Base de données de profils COOLTEC
Nous avons plus de 500 profils standard en stock – si tu ne trouves pas celui qui te convient, nous développons ensemble une solution de refroidissement sur mesure.
Définis les dimensions et trouve le dissipateur adapté
Sélectionner la largeur
Sélectionner la hauteur
Sélectionner l’épaisseur de base
Aperçu des profils de dissipateurs correspondants
Les images des produits sont des visualisations générées par IA et représentent le produit de manière largement réaliste. Pour les détails, le dessin technique (PDF) et le modèle 3D (STEP) font foi.
Produit | Désignation du produit | Dimensions Largeur-Hauteur-Épaisseur de base | Dessin / Modèle 3D (Step) |
|---|---|---|---|

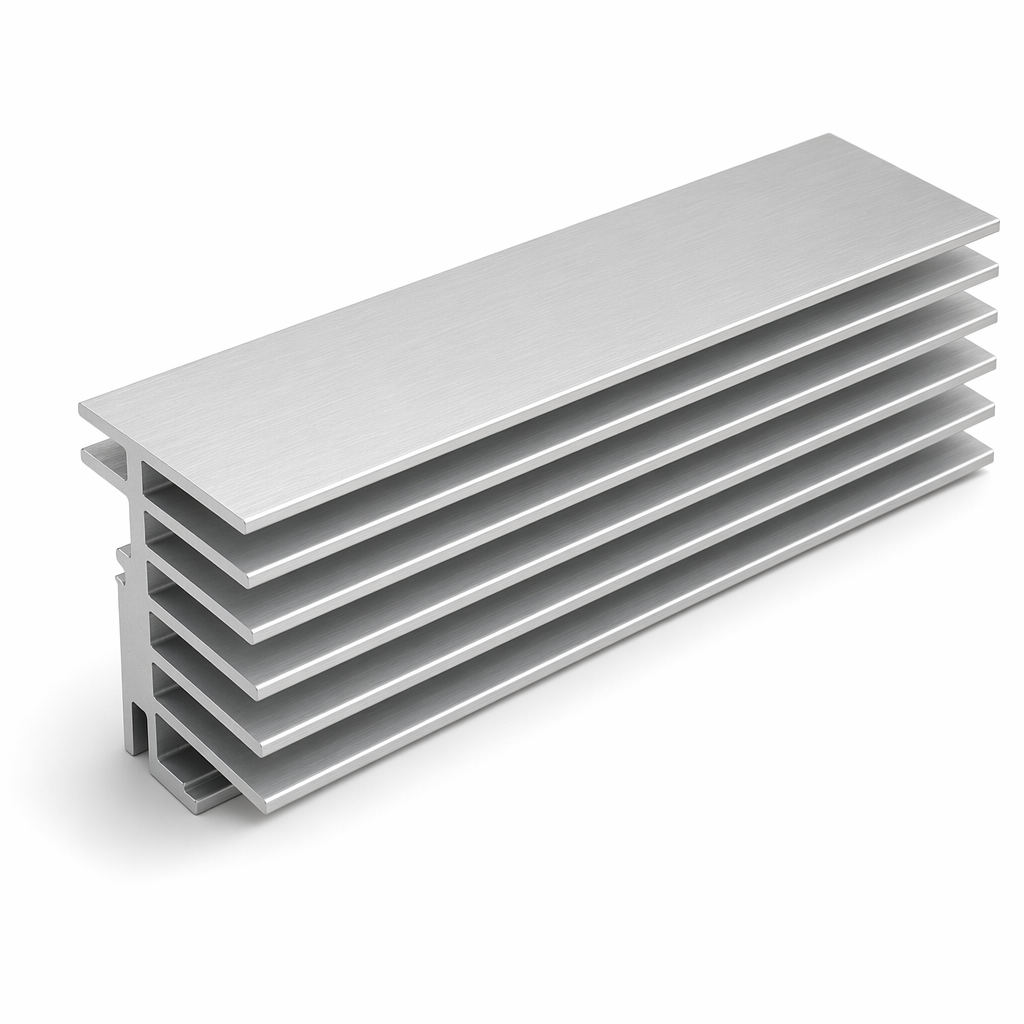

 | ct-27 | 30mm-45mm-N/D | |

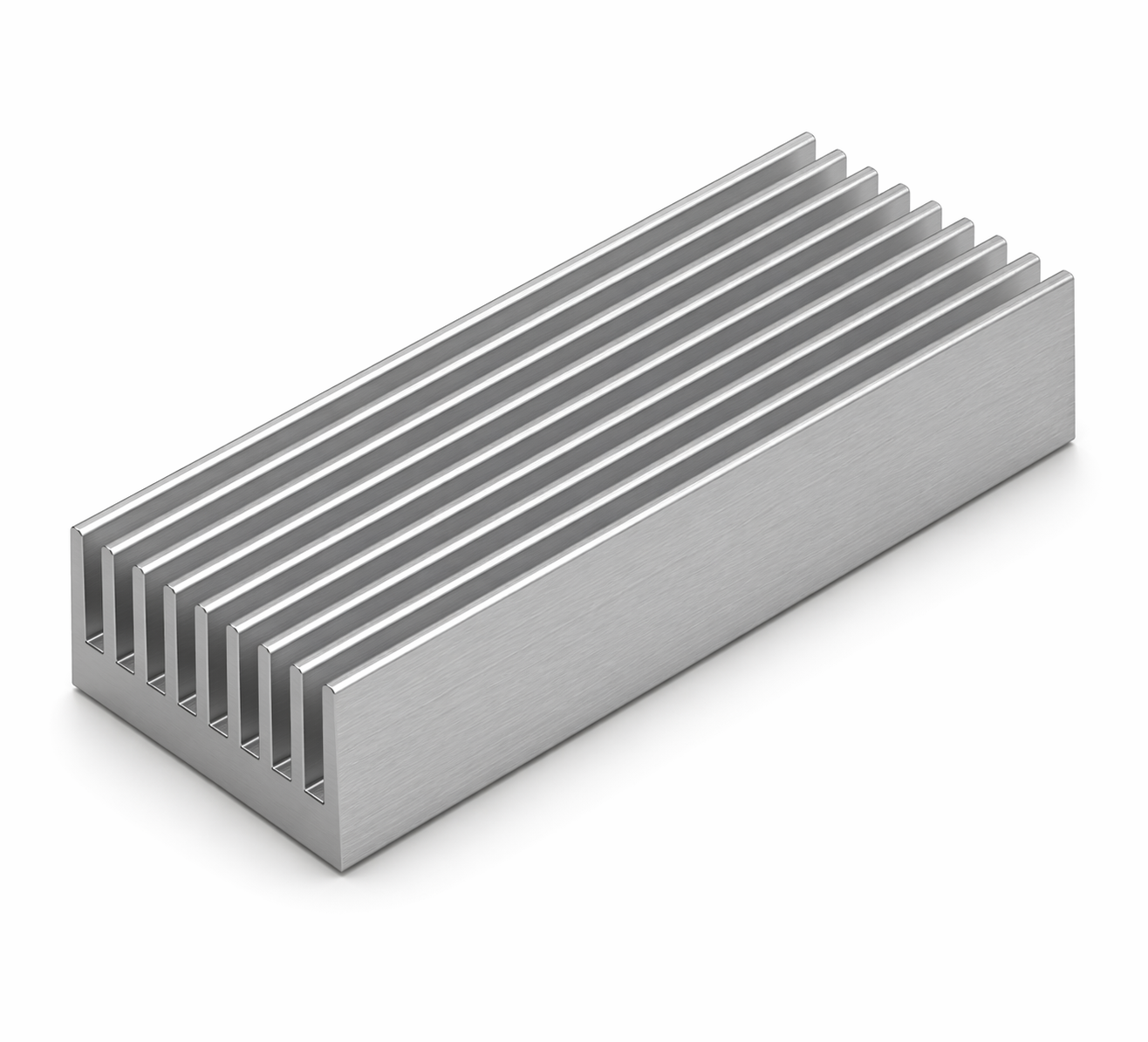

 | ct-34 | 34.6mm-16.5mm-5mm | |

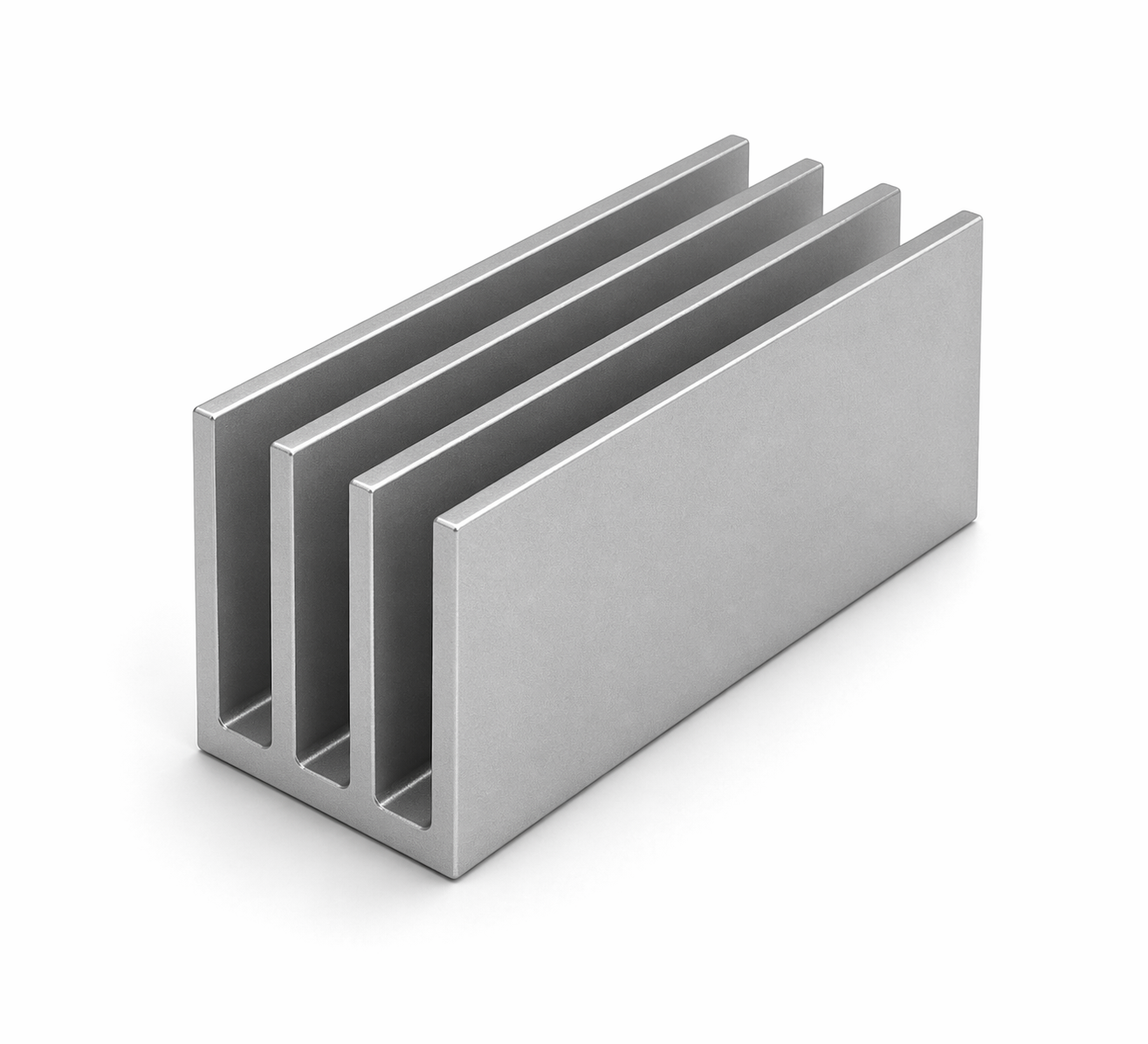

 | ct-36 | 36mm-50mm-5mm | |

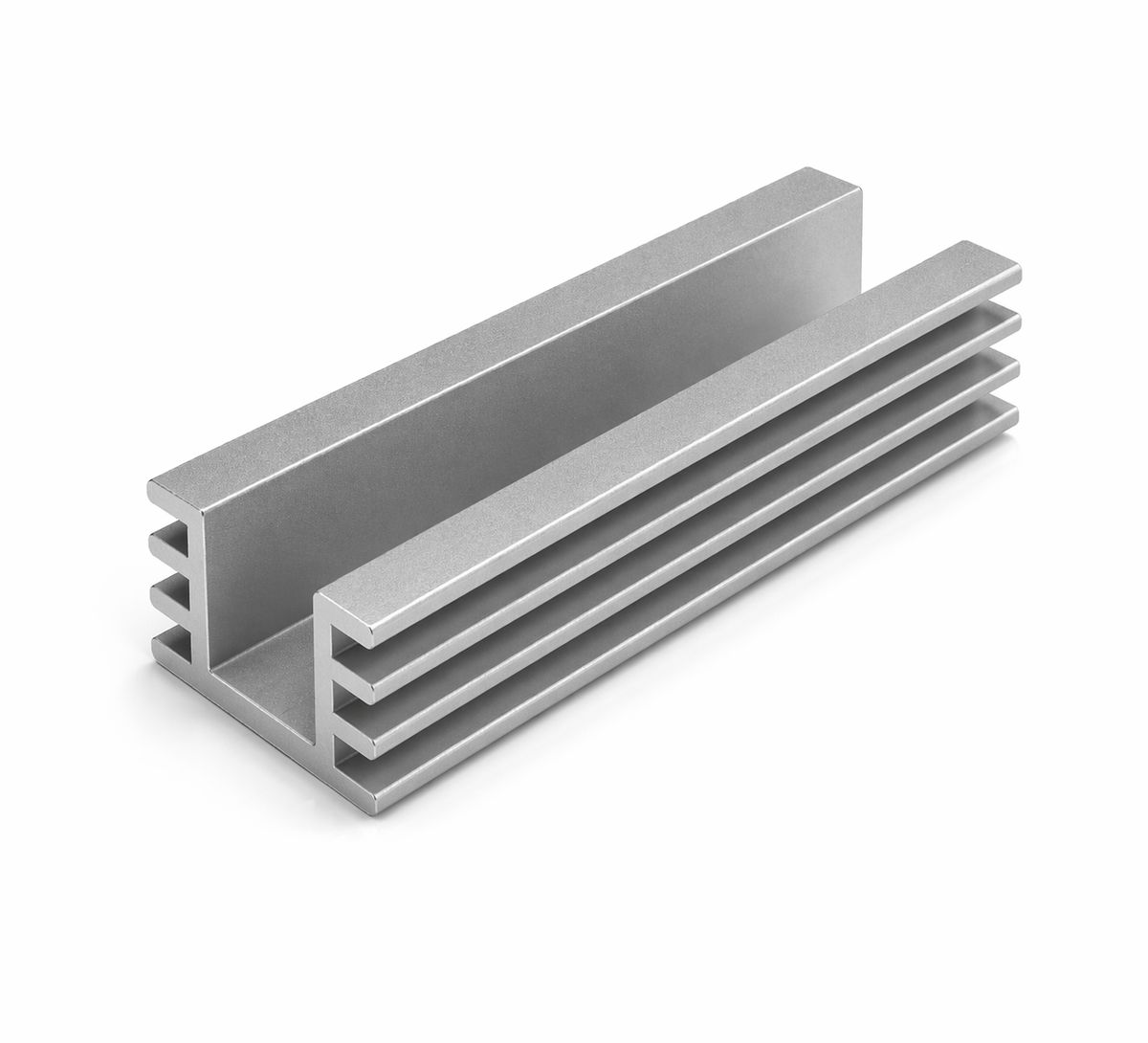

 | ct-38 | 32mm-20mm-N/D | |

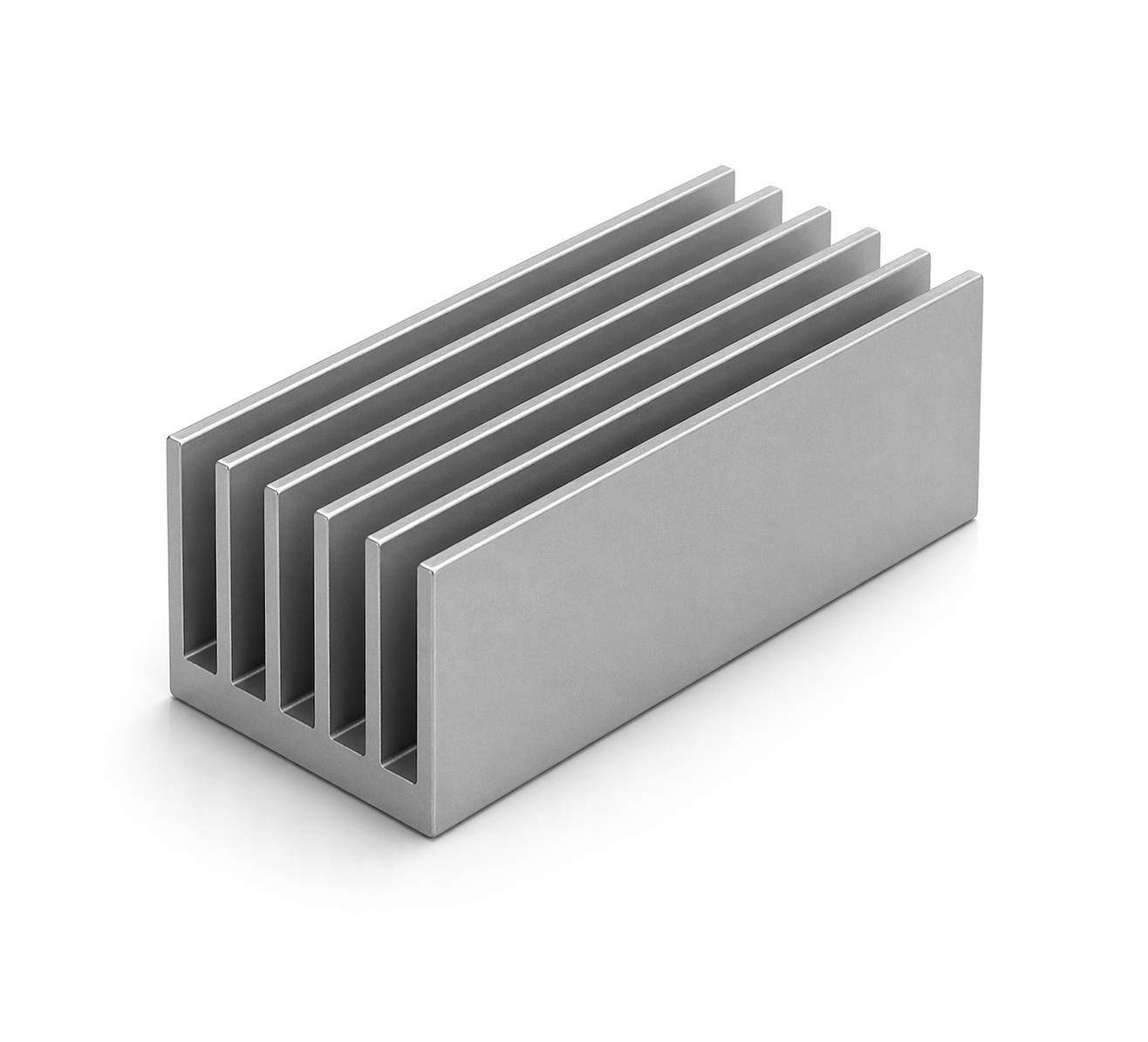

 | ct-41 | 41.5mm-34mm-8mm | |

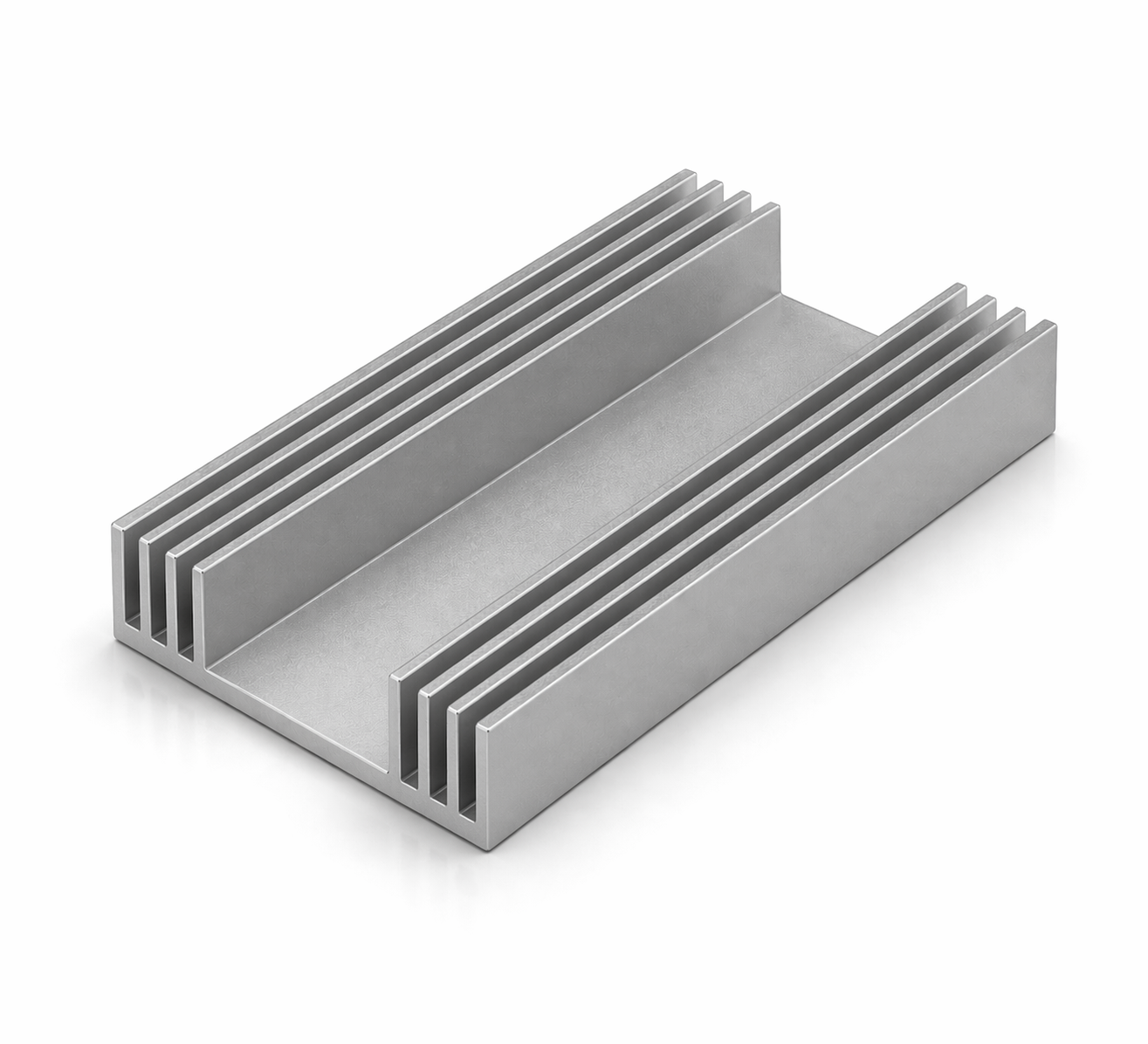

 | ct-42 | 43mm-12.7mm-2.5mm | |

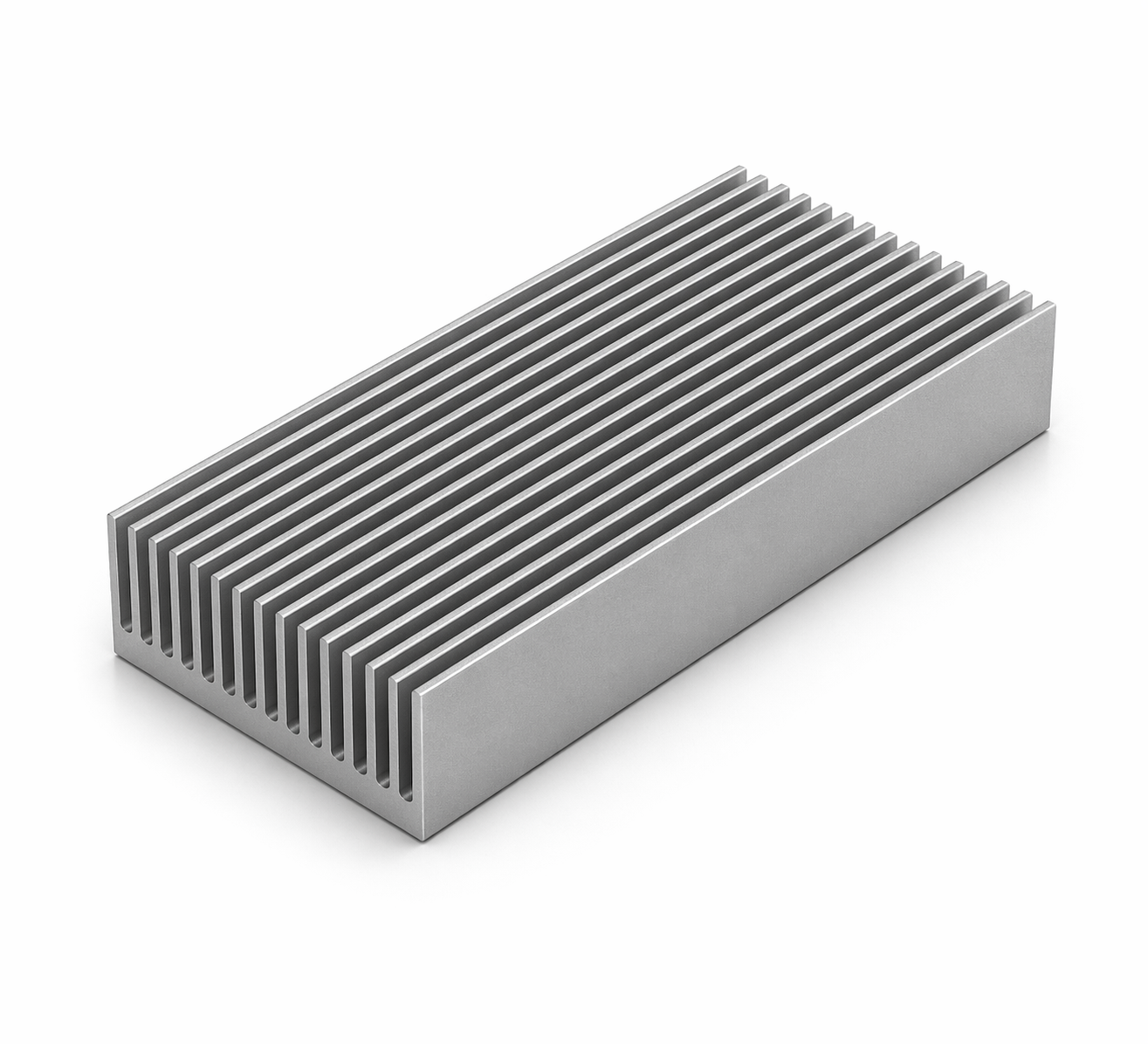

 | ct-43 | 43.1mm-16.5mm-4.1mm | |

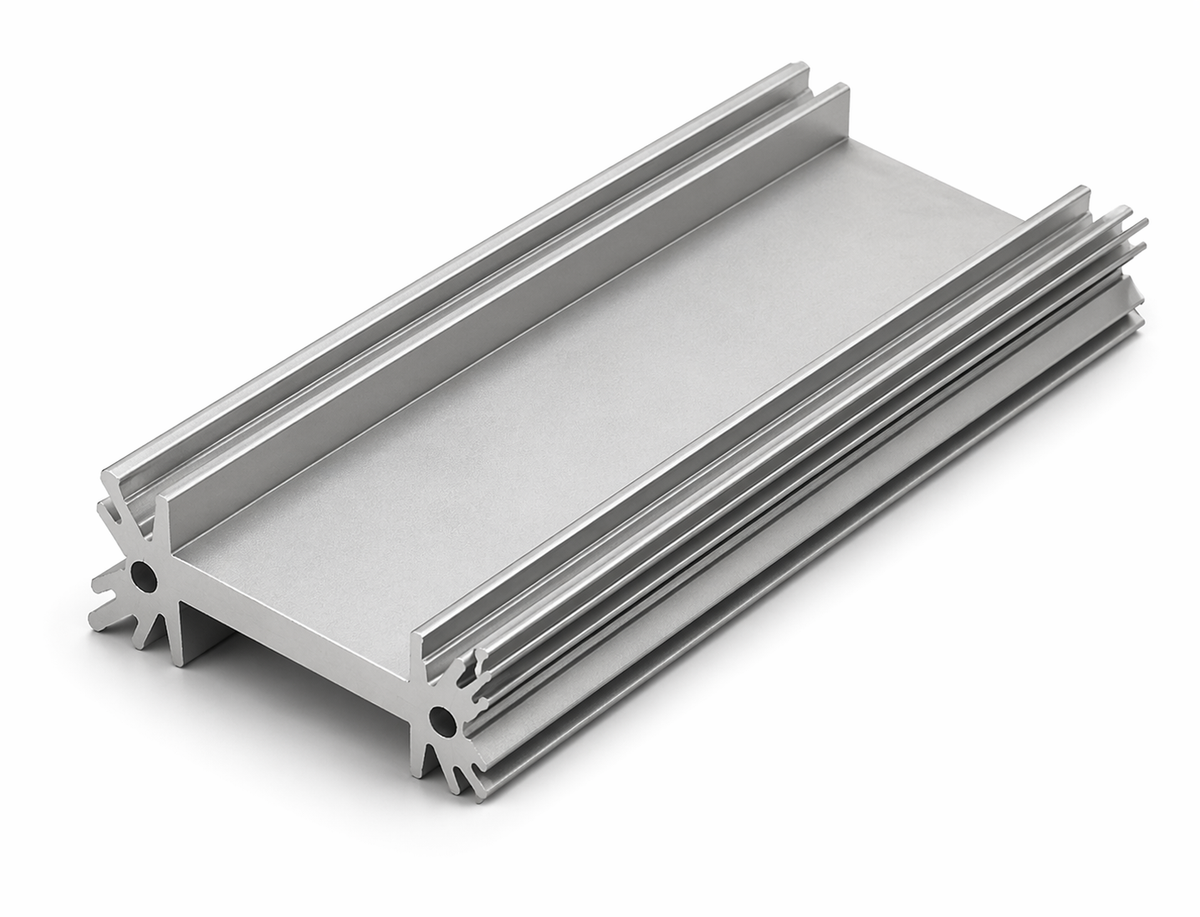

 | ct-45 | 45.05mm-12.74mm-3mm | |

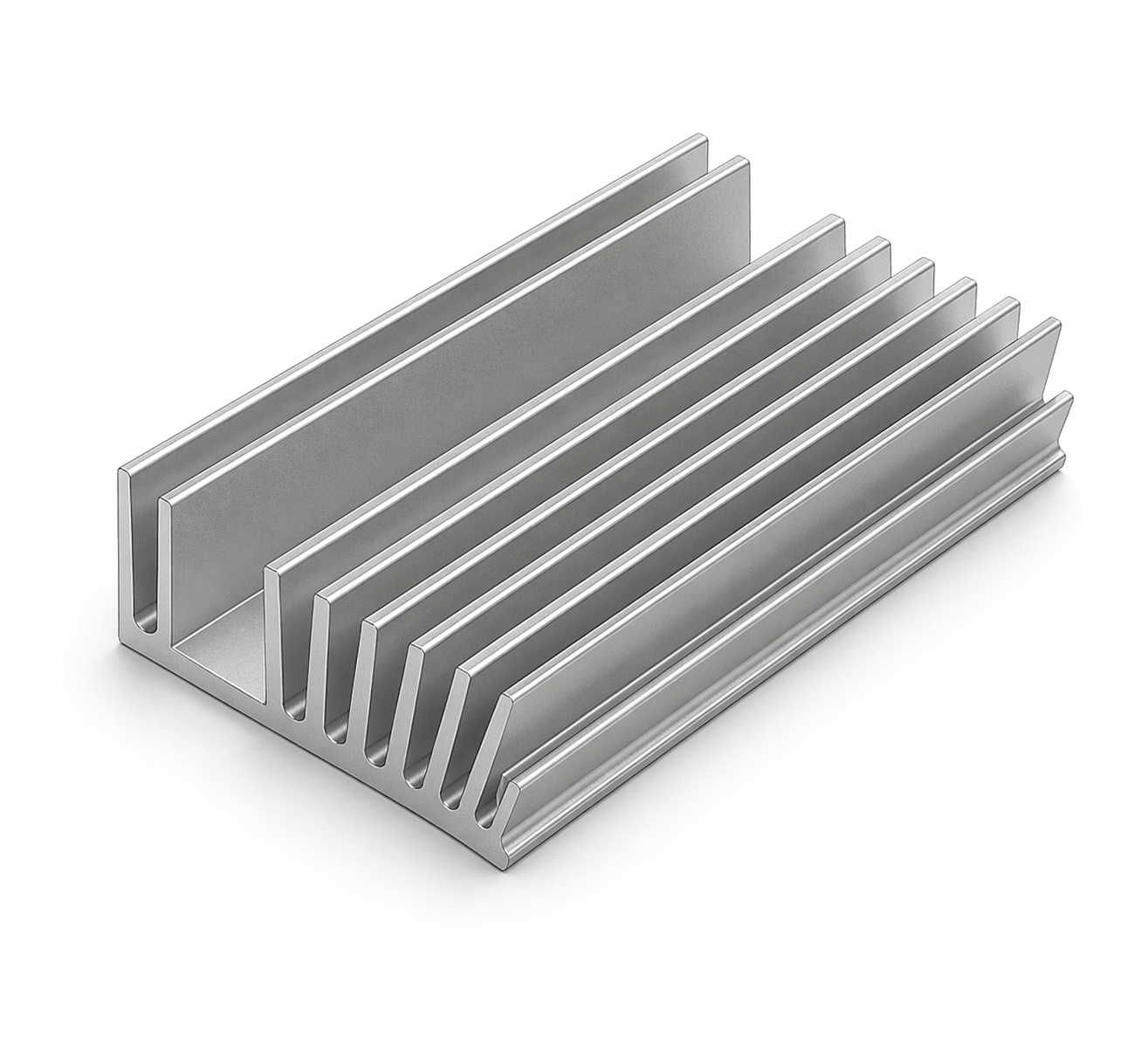

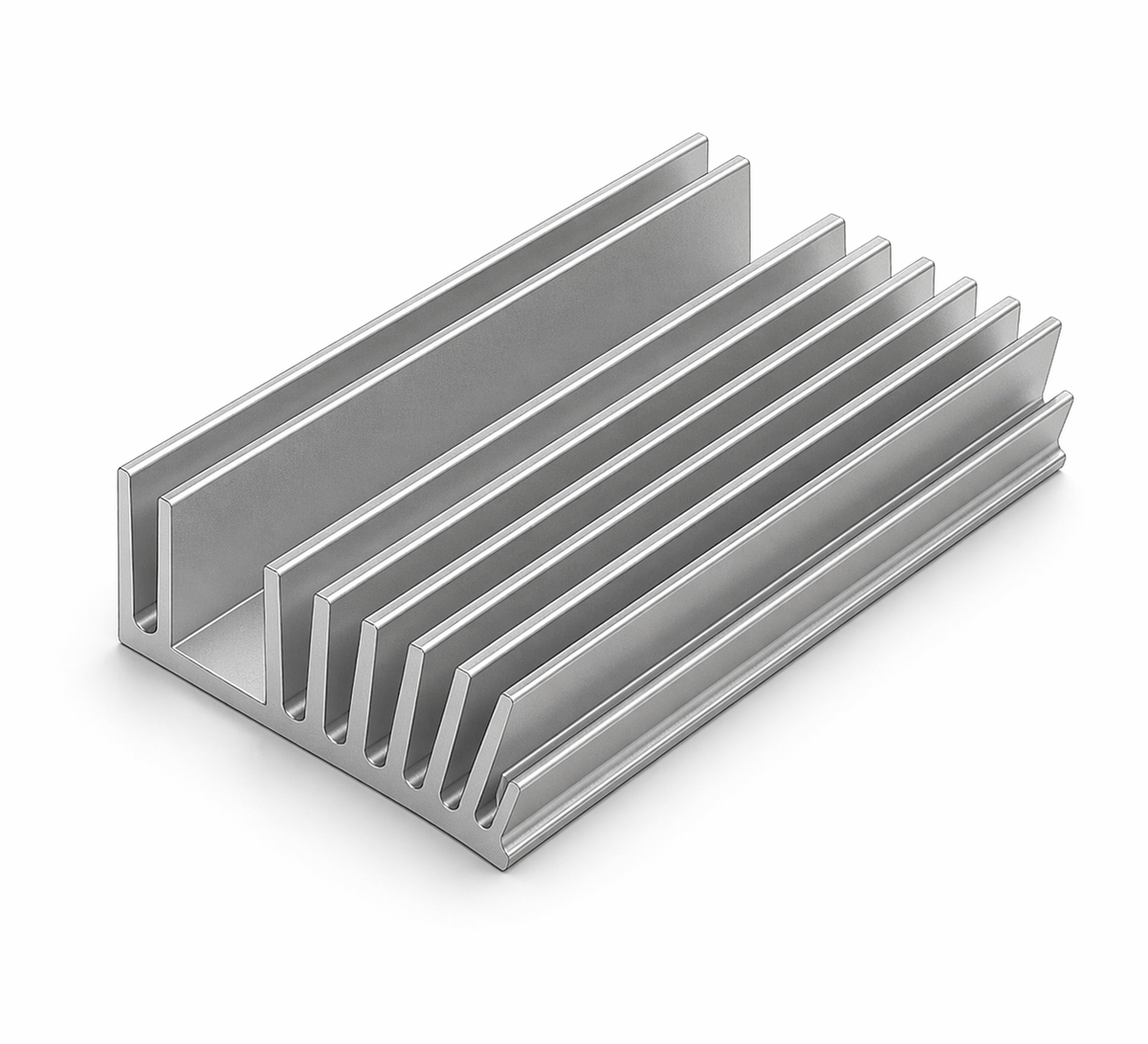

 | ct-50 | 50mm-20mm-N/D | |

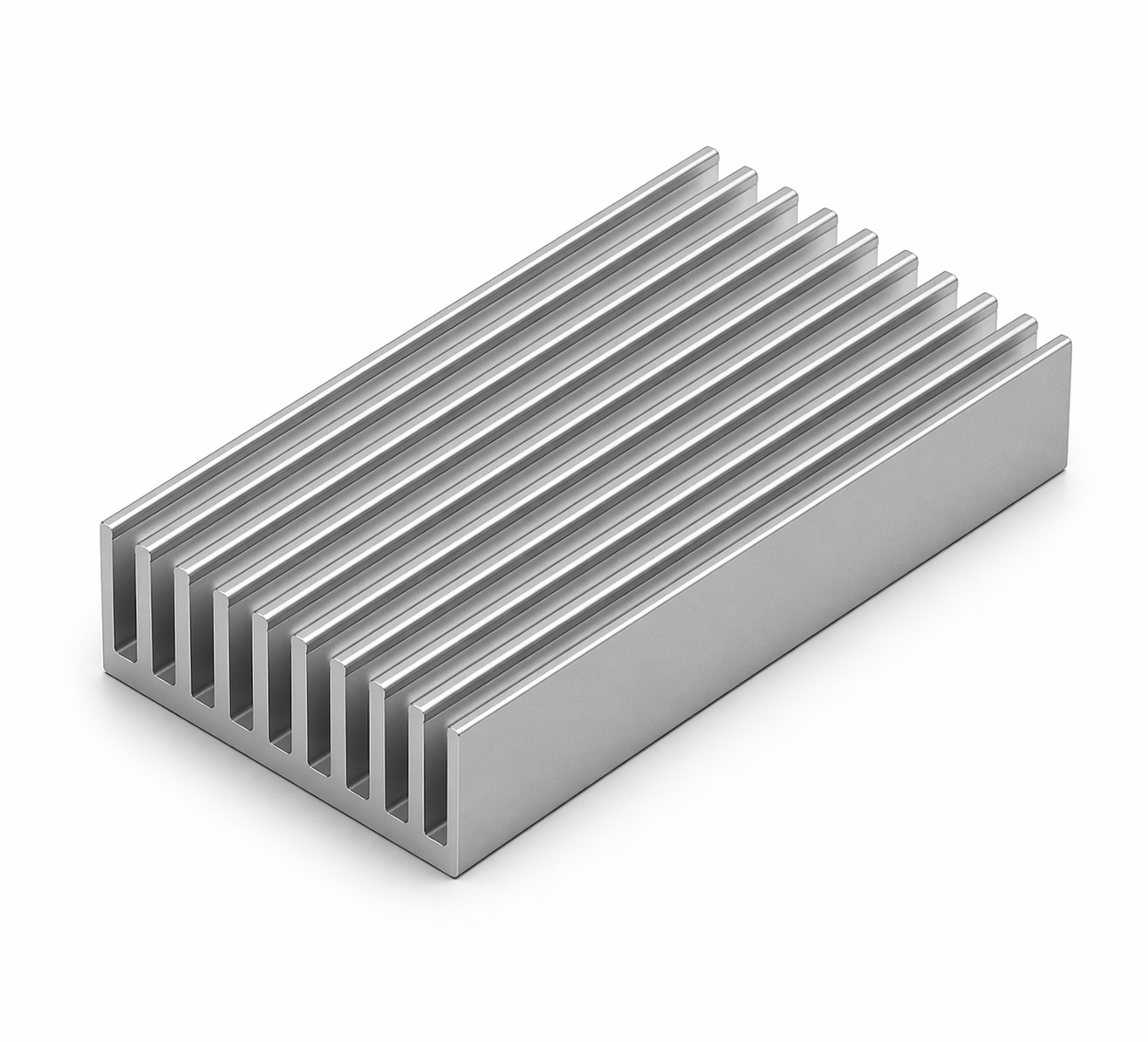

 | ct-54 | 54mm-20mm-4mm | |

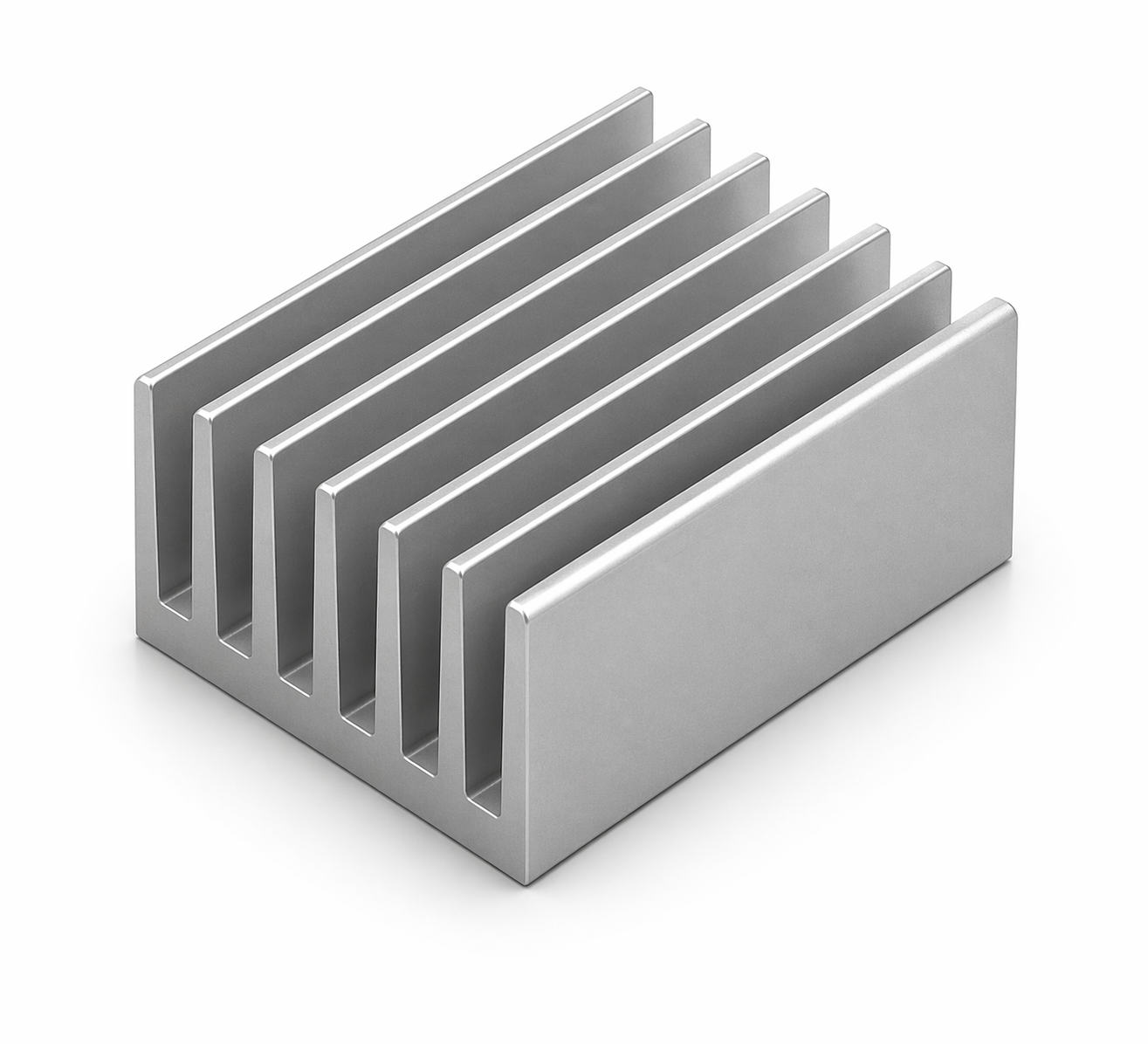

 | ct-66 | 66mm-40mm-10mm | |

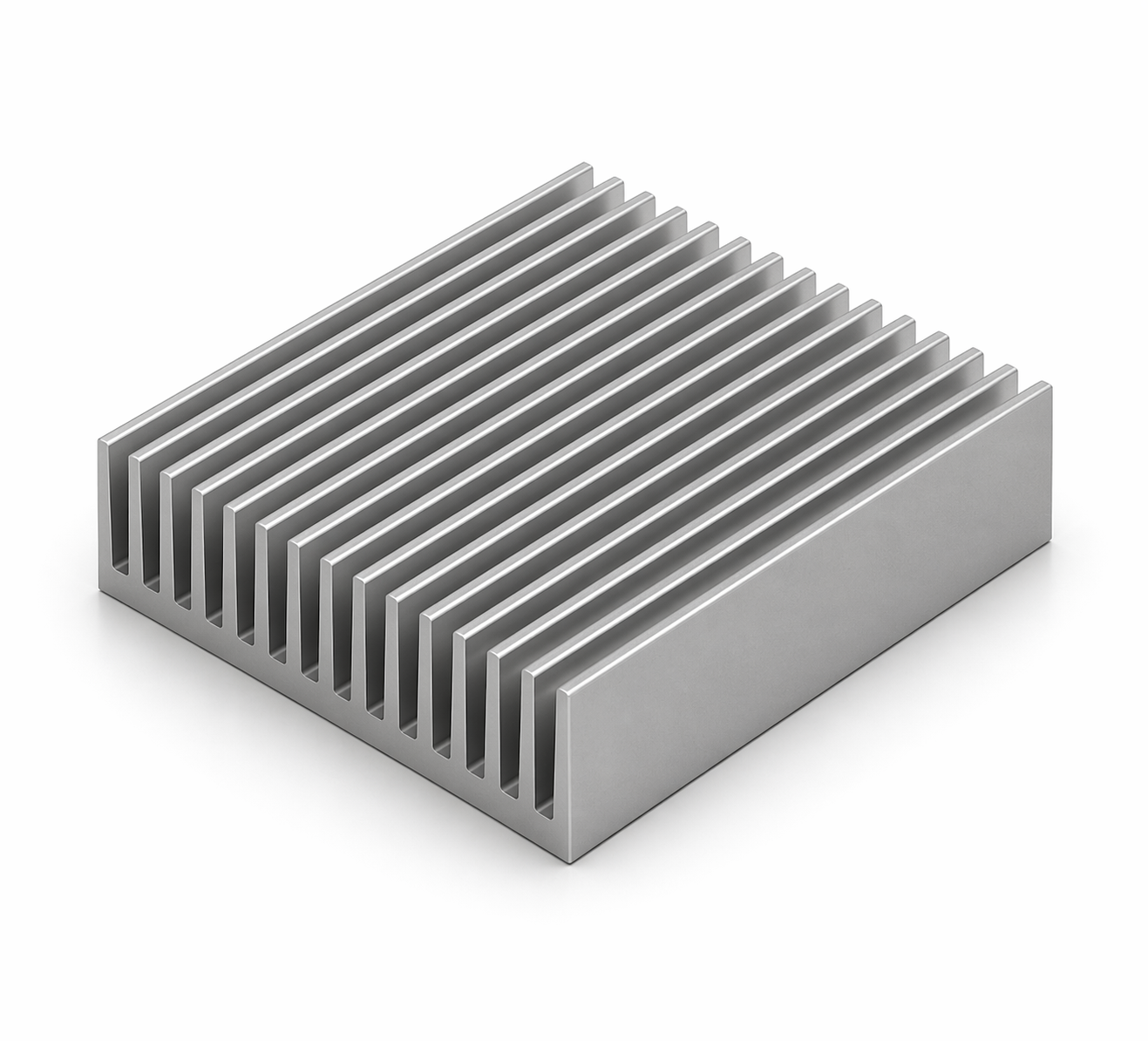

 | ct-83 | 83mm-25mm-4.5mm | |

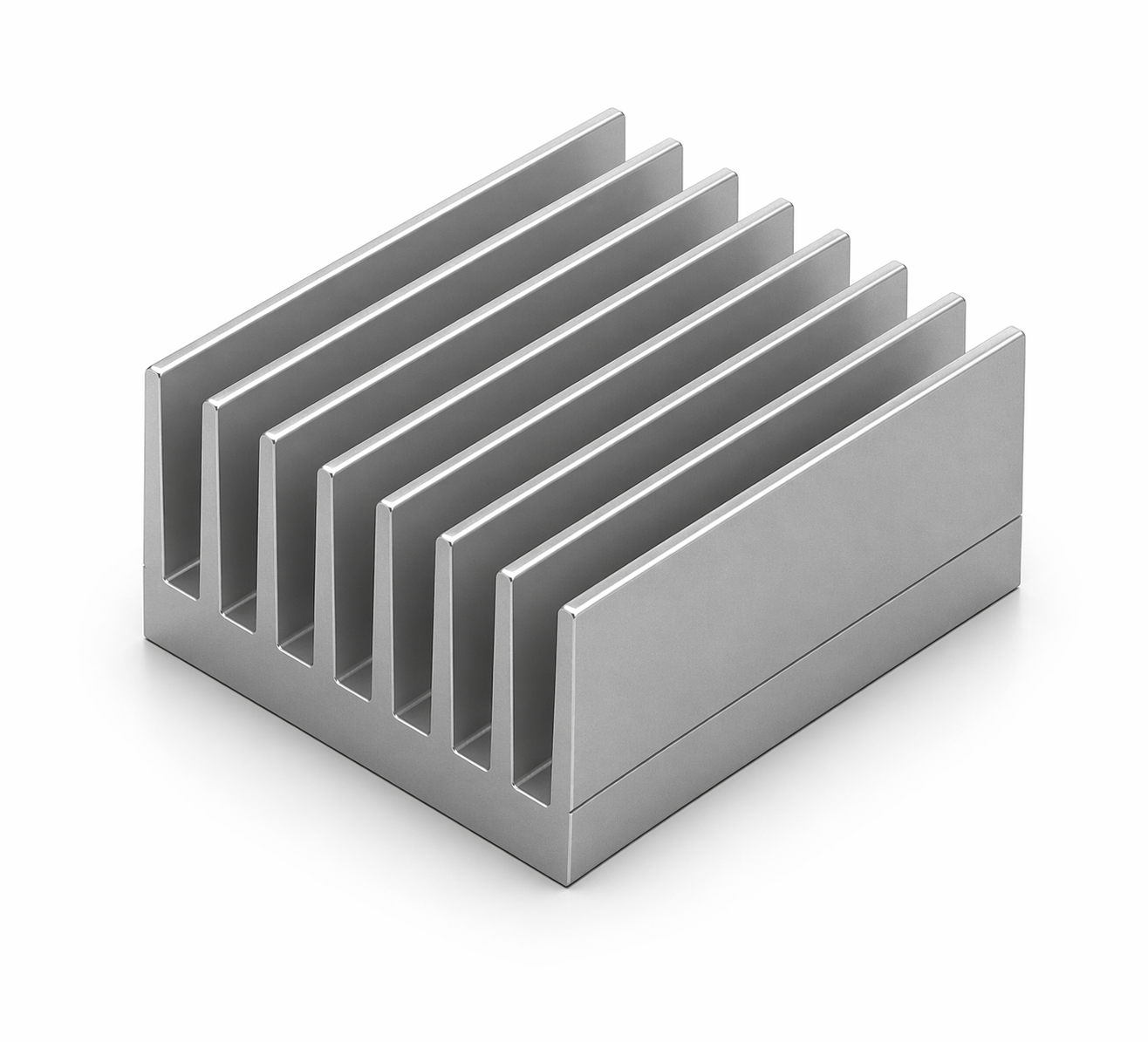

 | ct-84 | 84mm-40mm-10mm | |

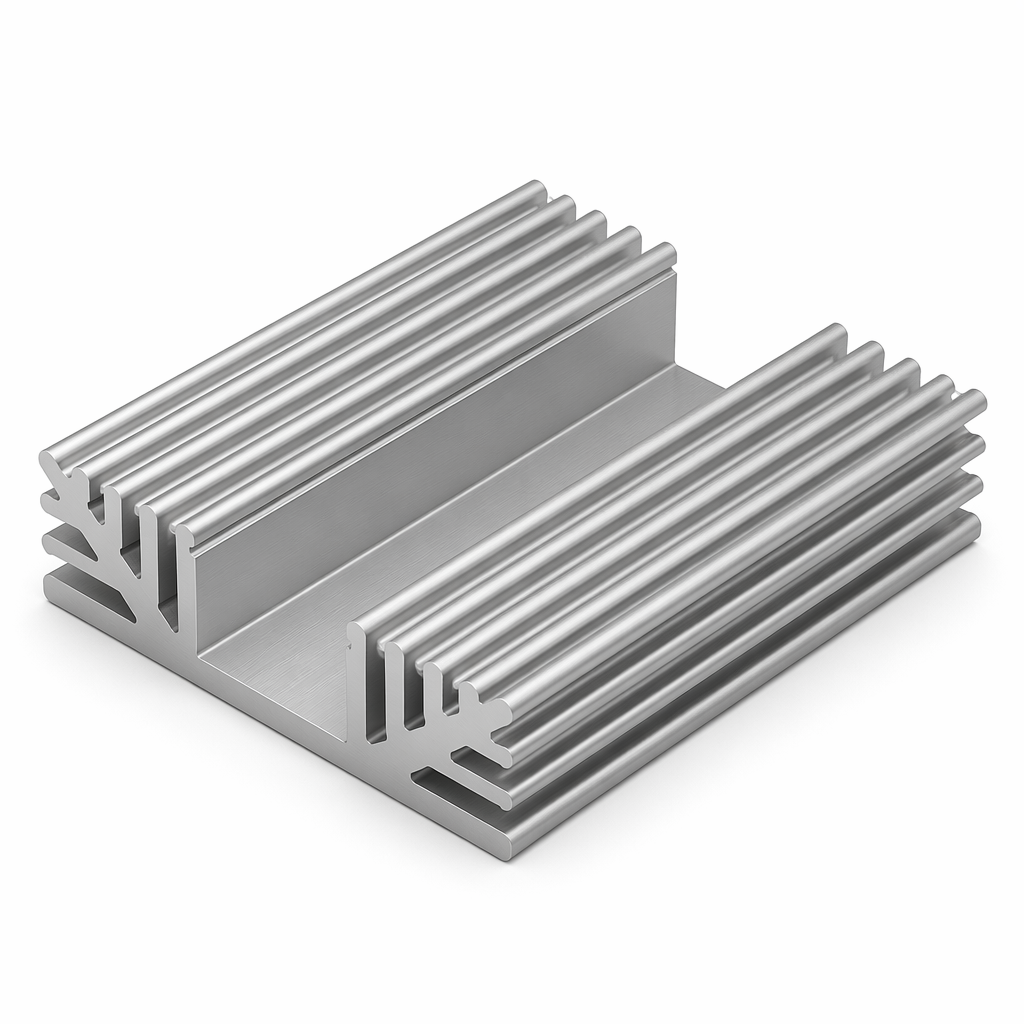

 | ct-88 | 88mm-25mm-4.5mm | |

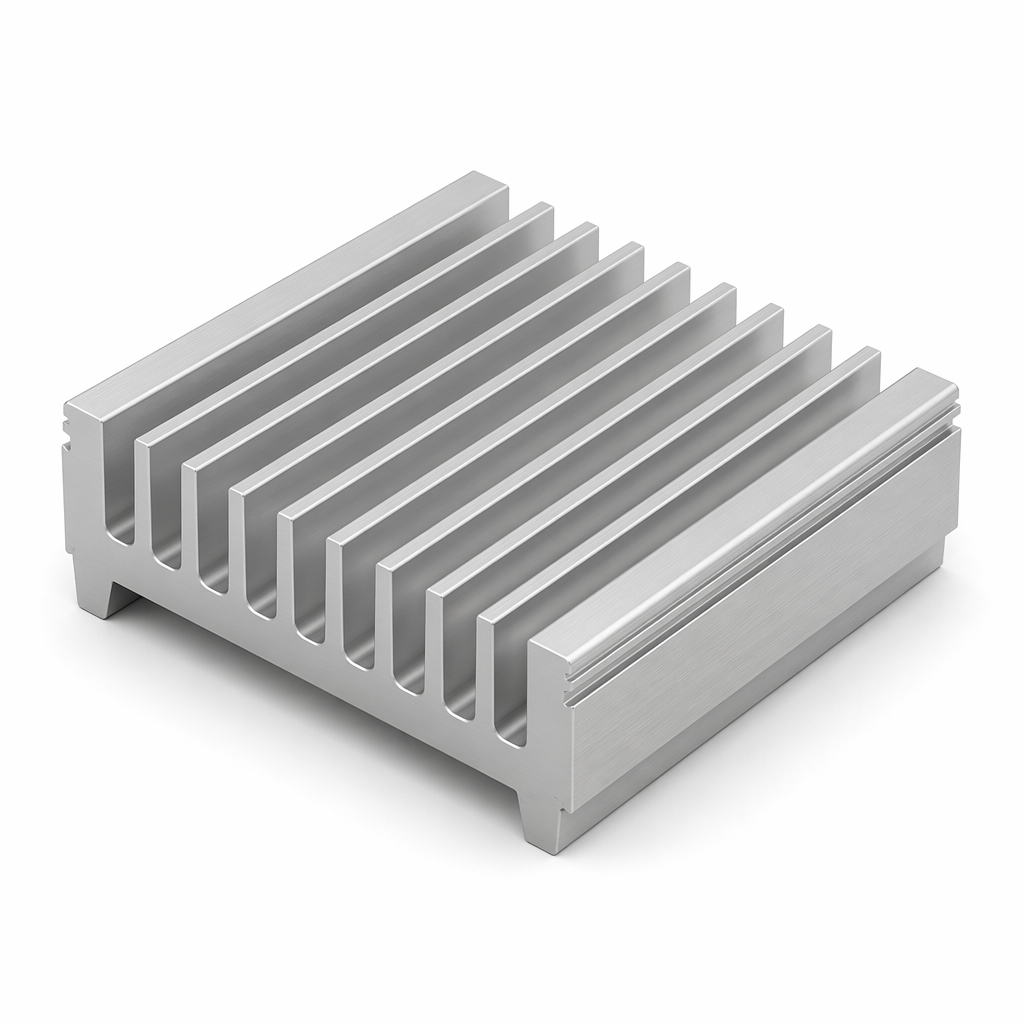

 | ct-90 | 90mm-34mm-N/D | |

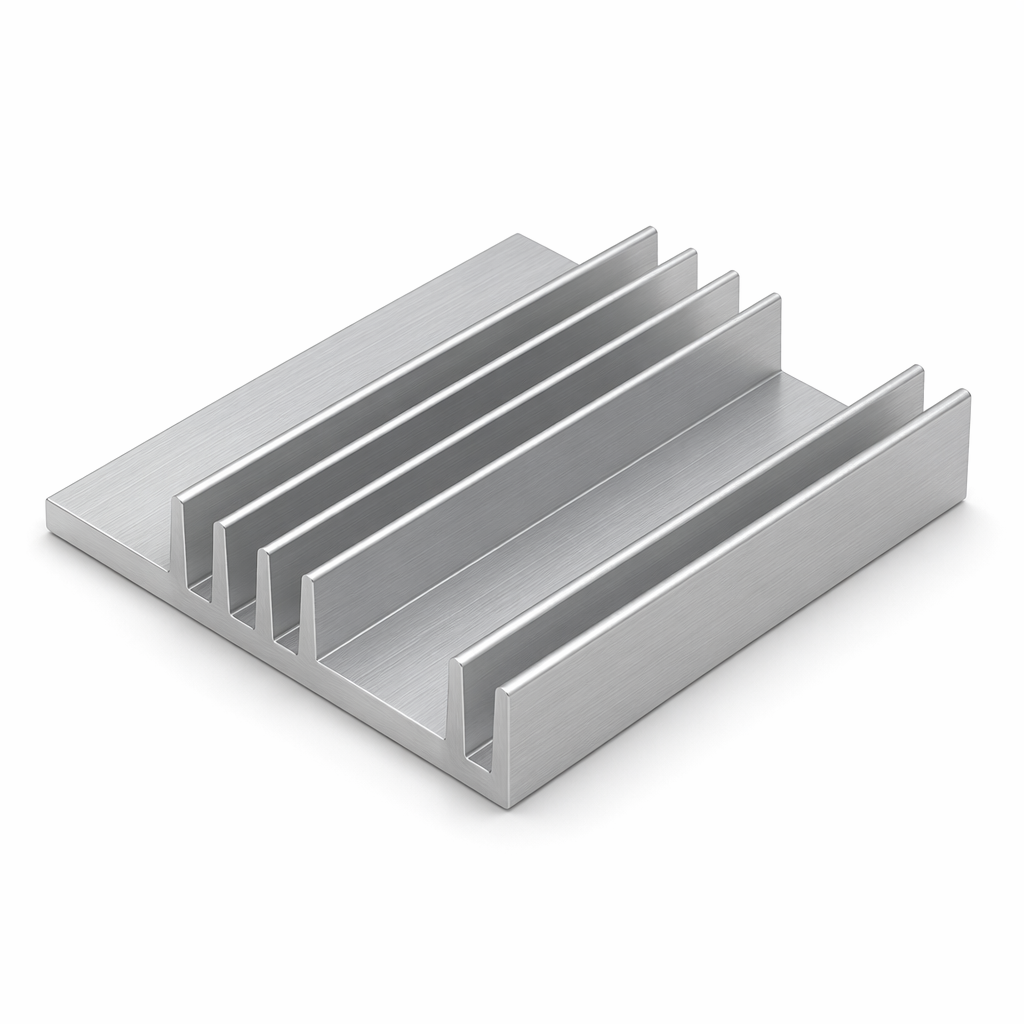

 | ct-93 | 93mm-19mm-4.6mm | |

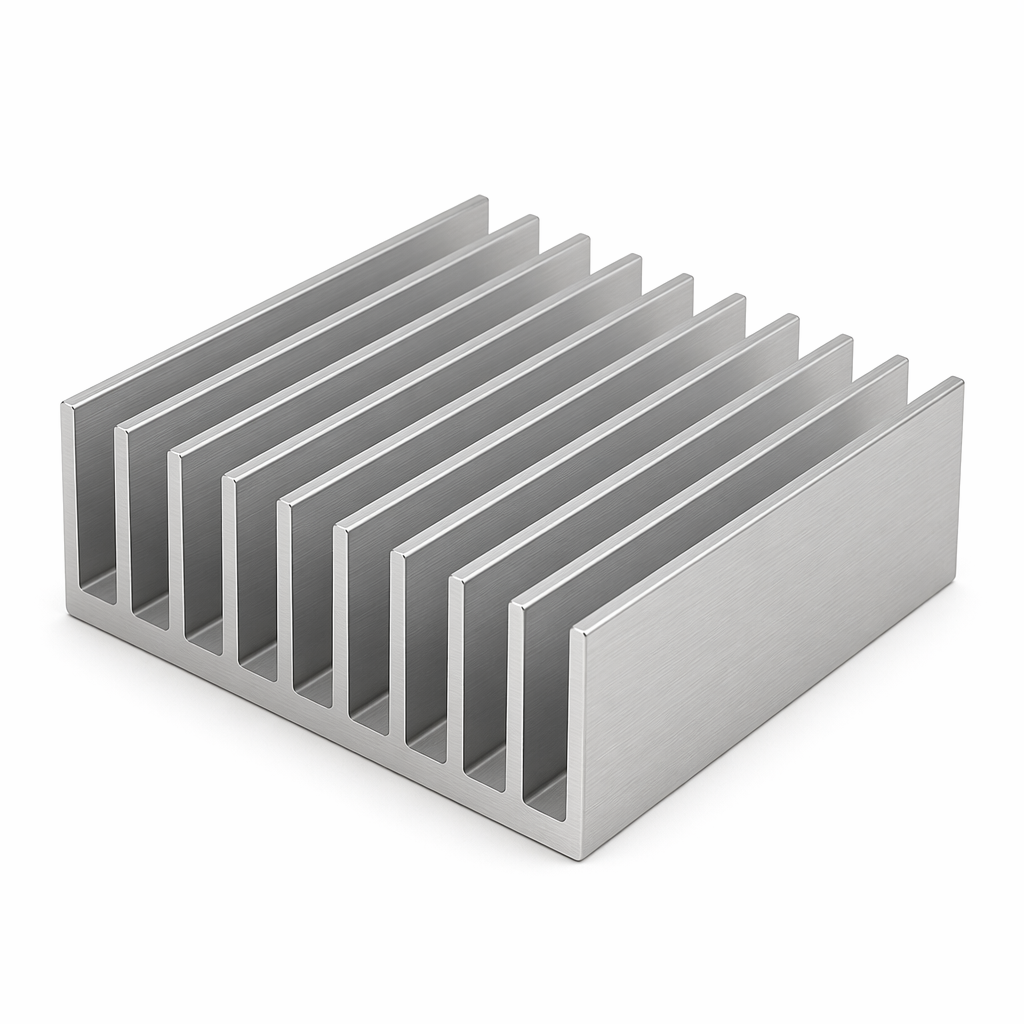

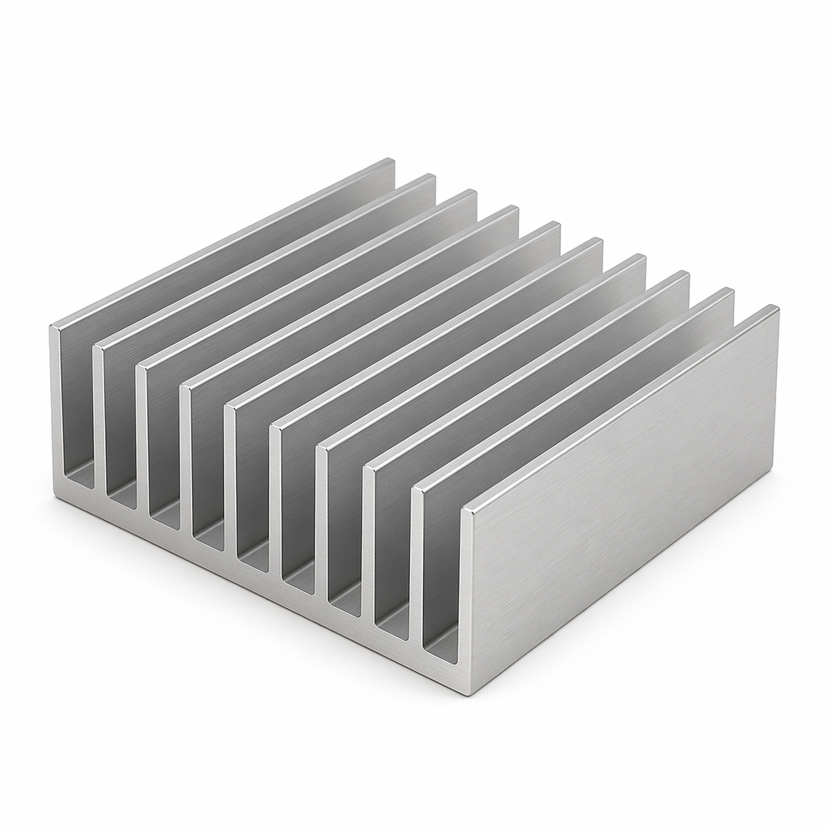

 | ct-98 | 98mm-40mm-5mm | |

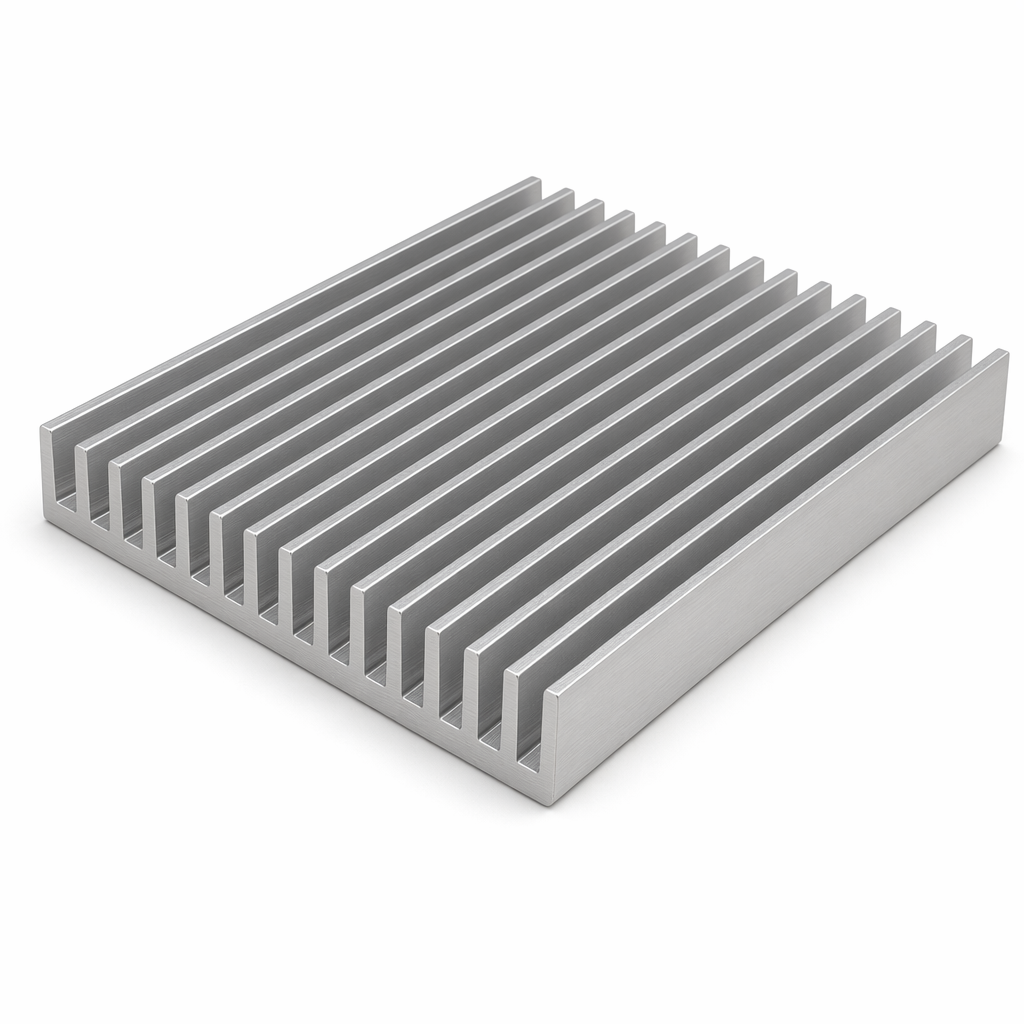

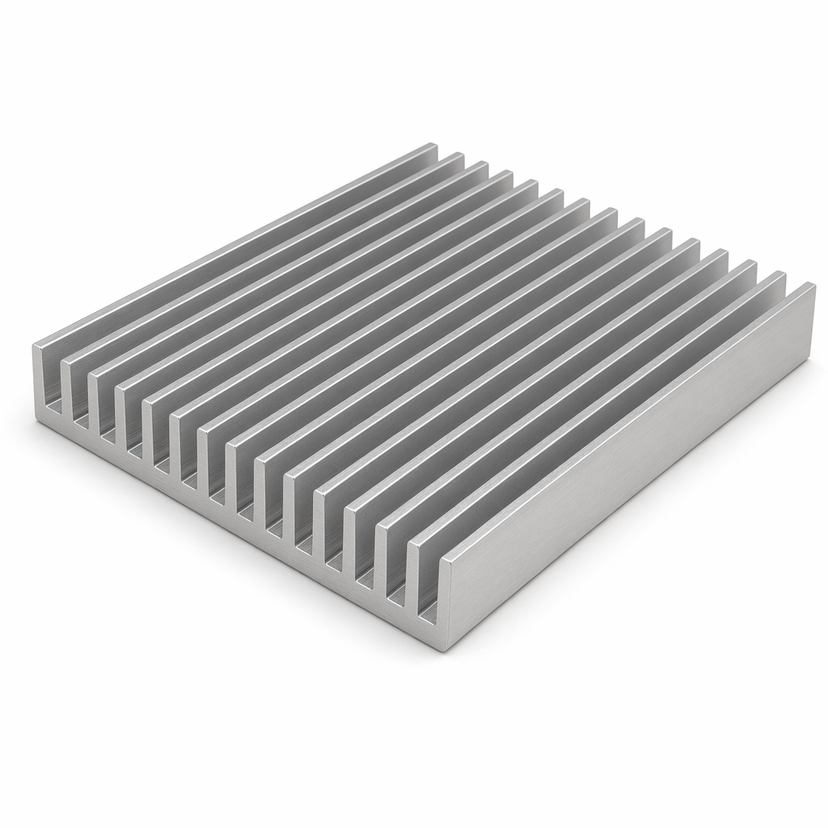

 | ct-100 | 100mm-15mm-4mm | |

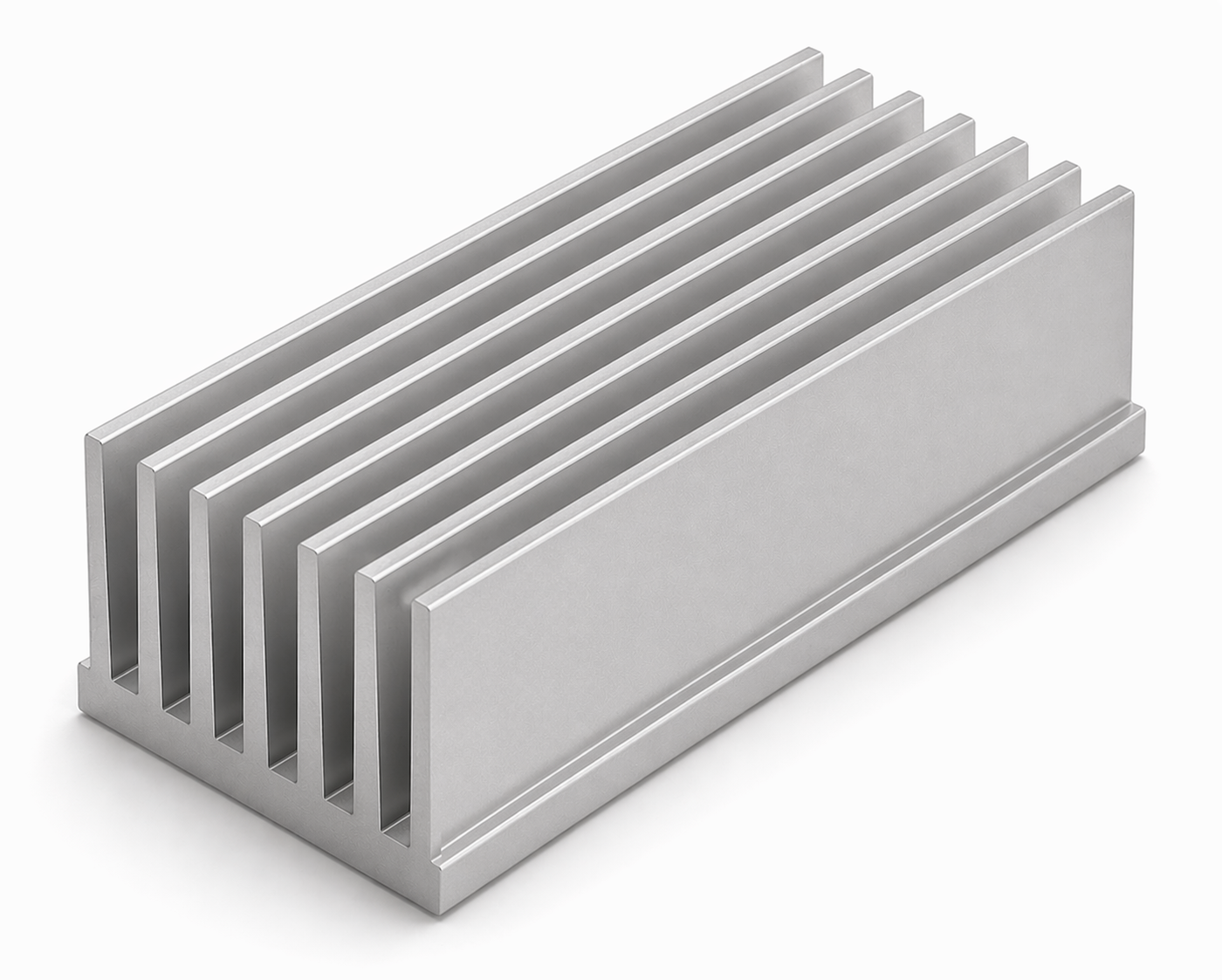

 | ct-106 | 38mm-27mm-5mm | |

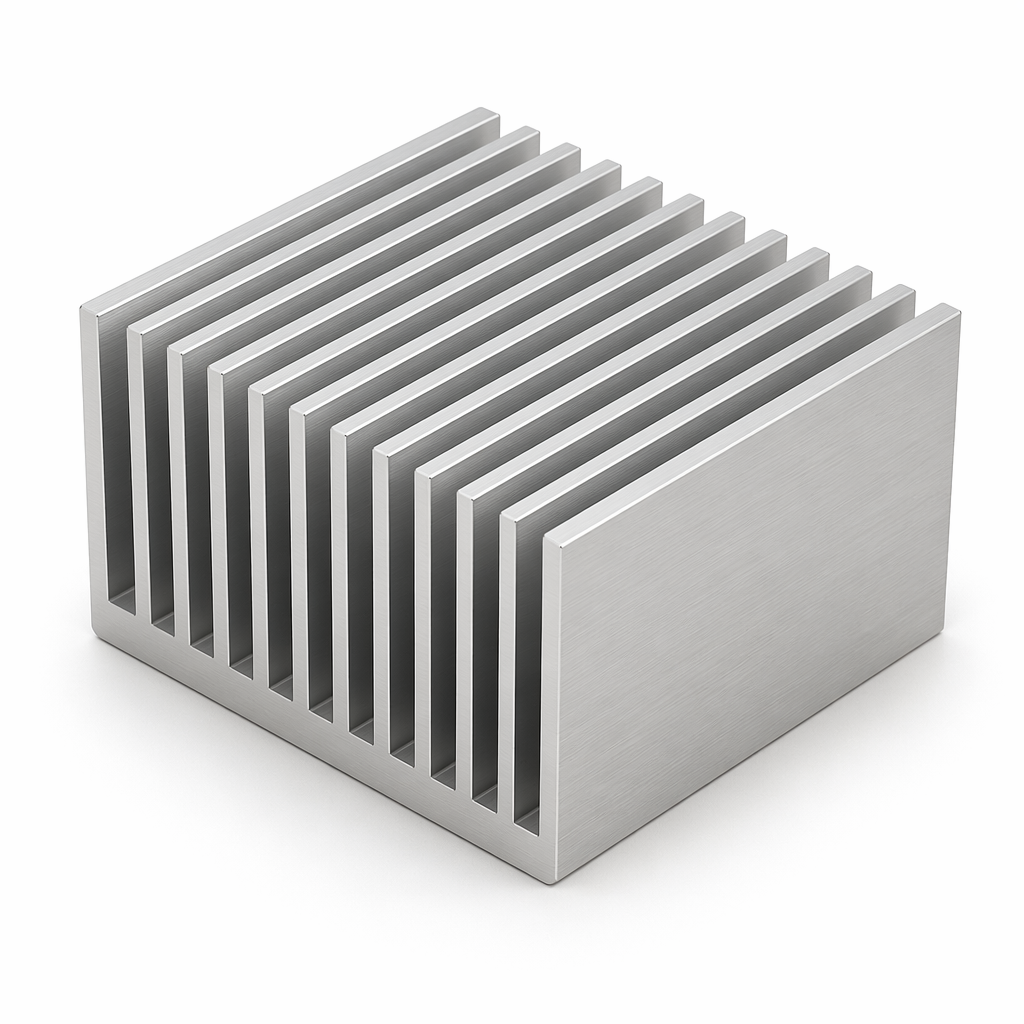

 | ct-112 | 112mm-67.5mm-10.5mm | |

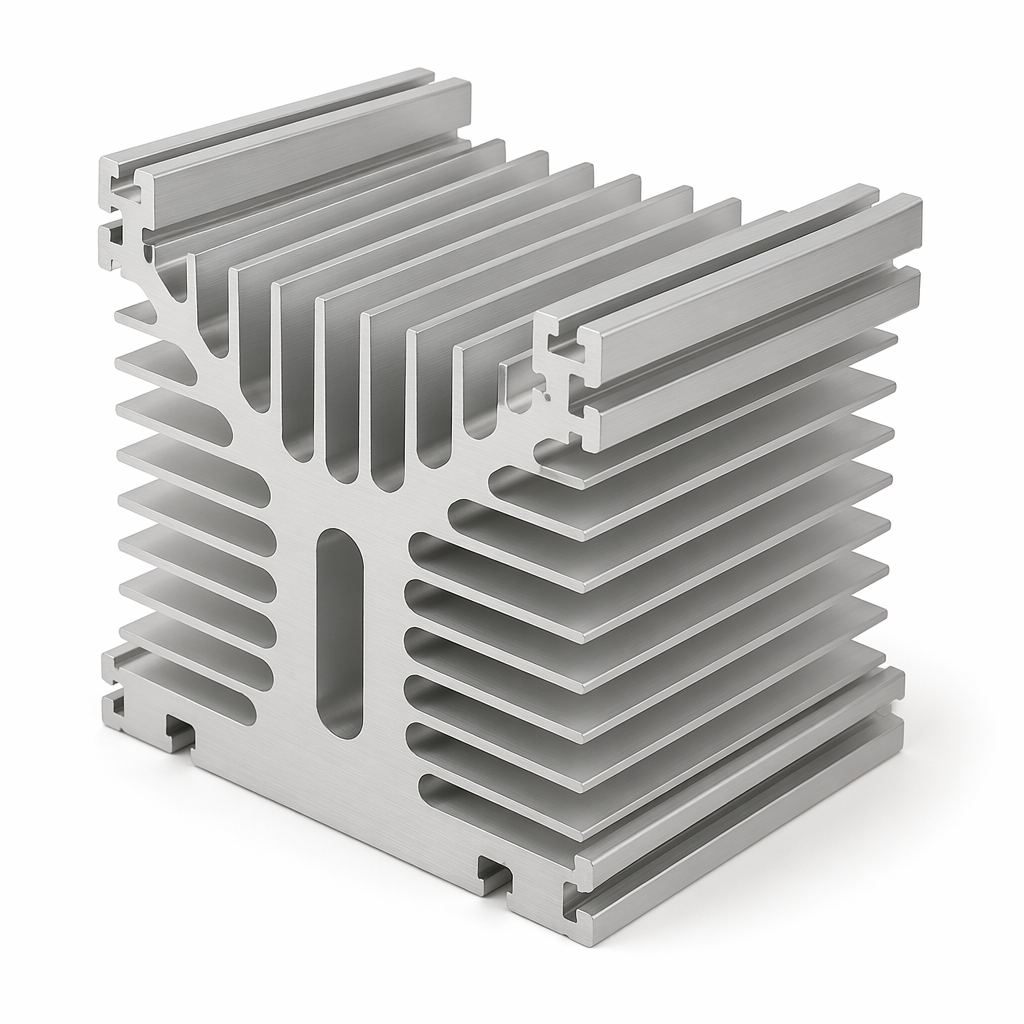

 | ct-125 | 125mm-135mm-N/D | |

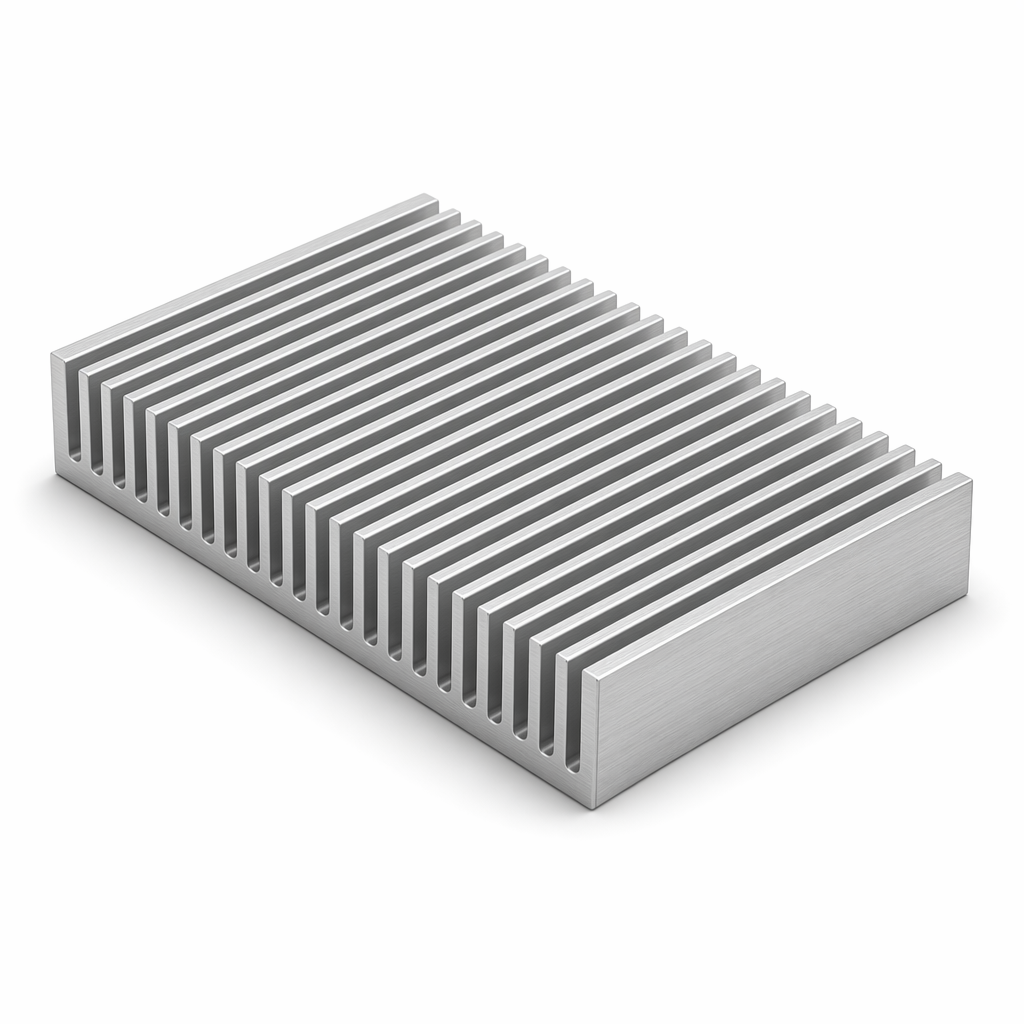

 | ct-127 | 150mm-27mm-5mm | |

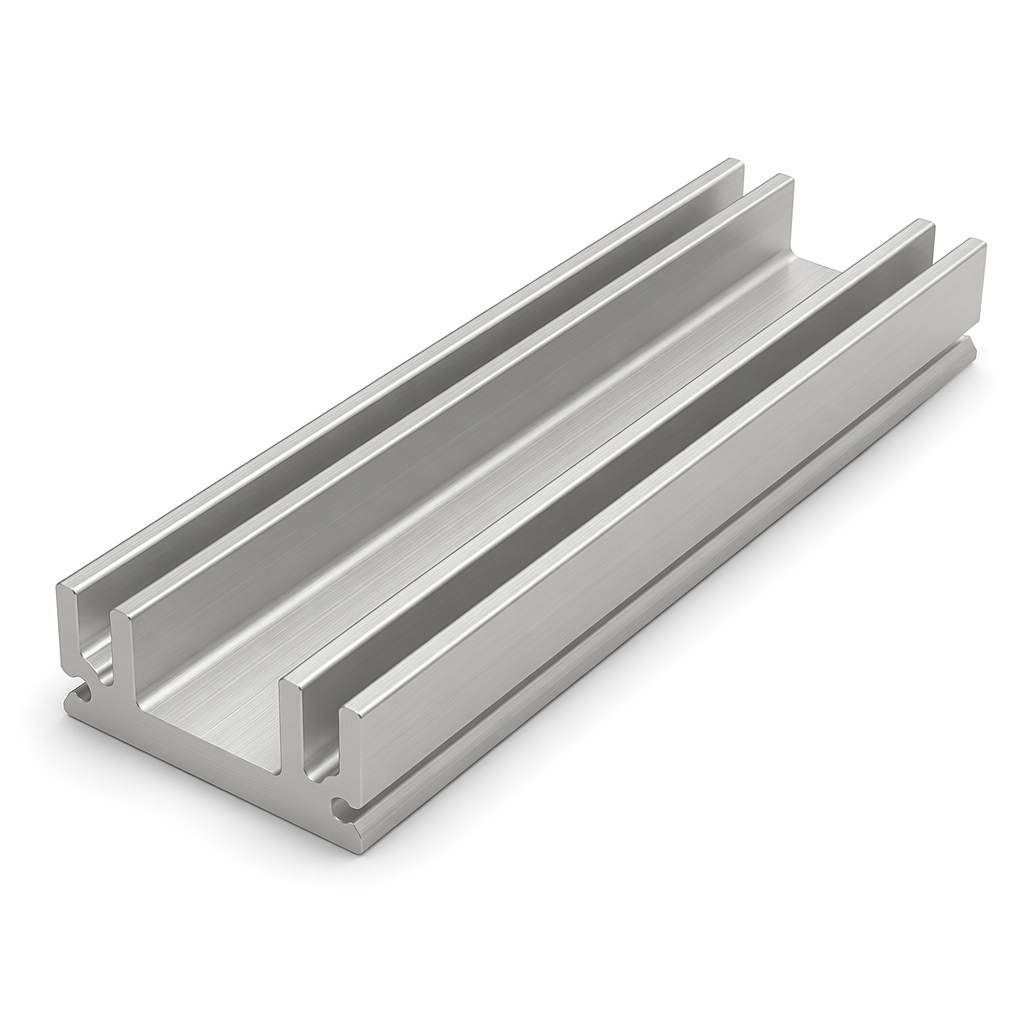

 | ct-129 | 29mm-12mm-3mm | |

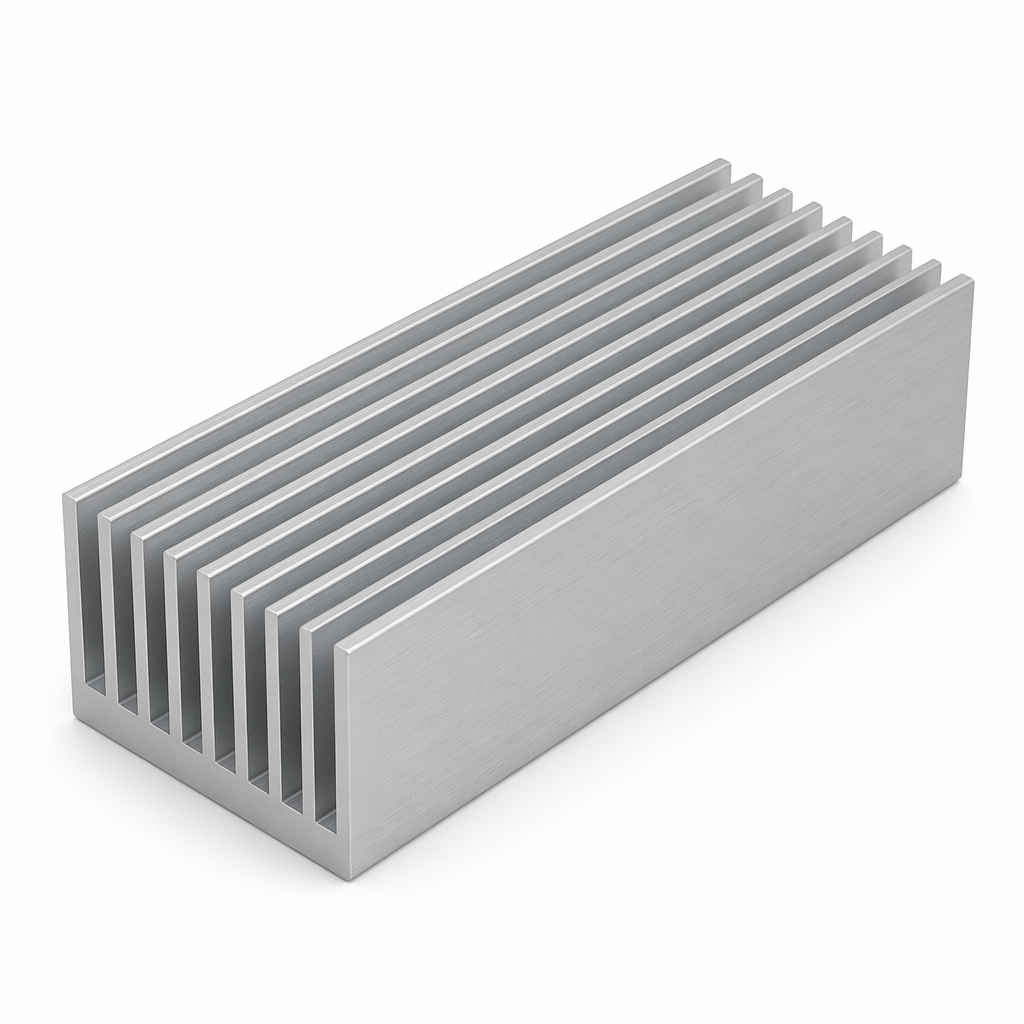

 | ct-134 | 34.6mm-25mm-5mm | |

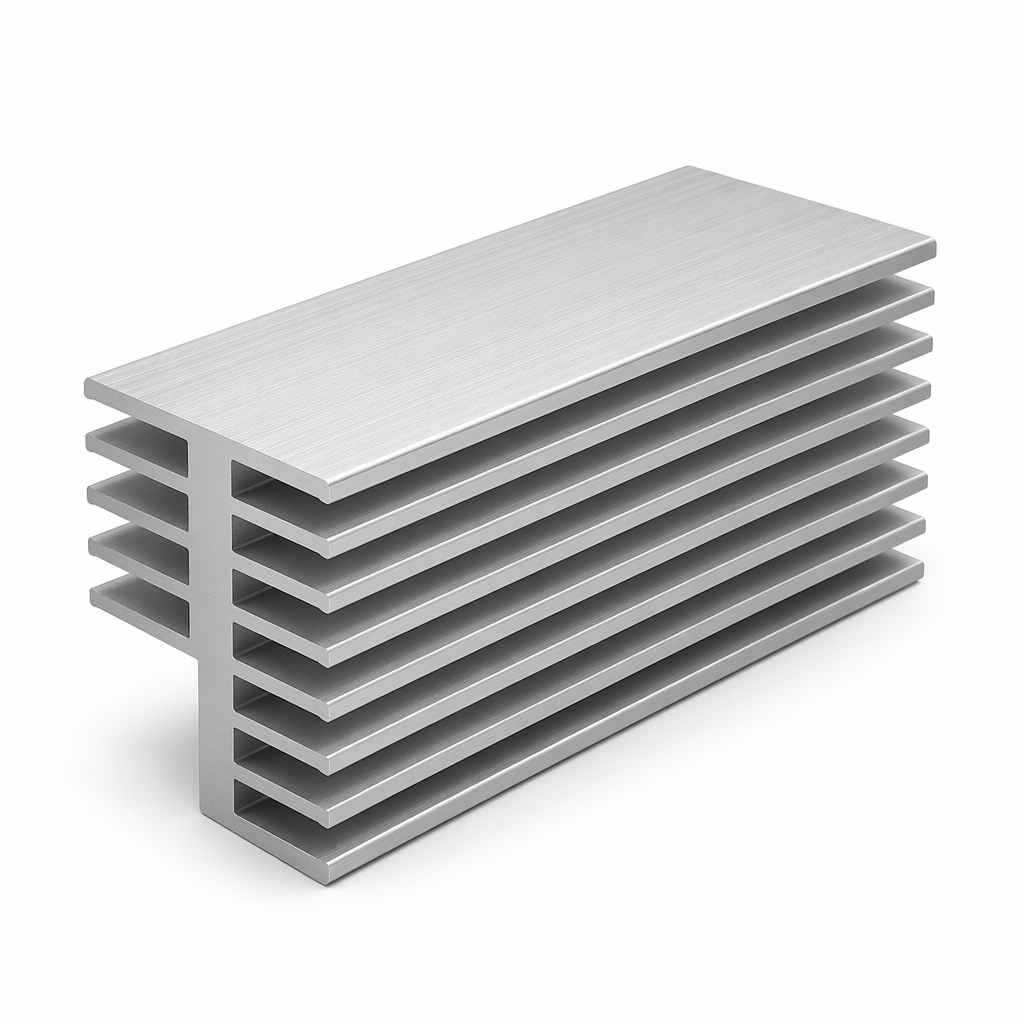

 | ct-138 | 54mm-38mm-N/D | |

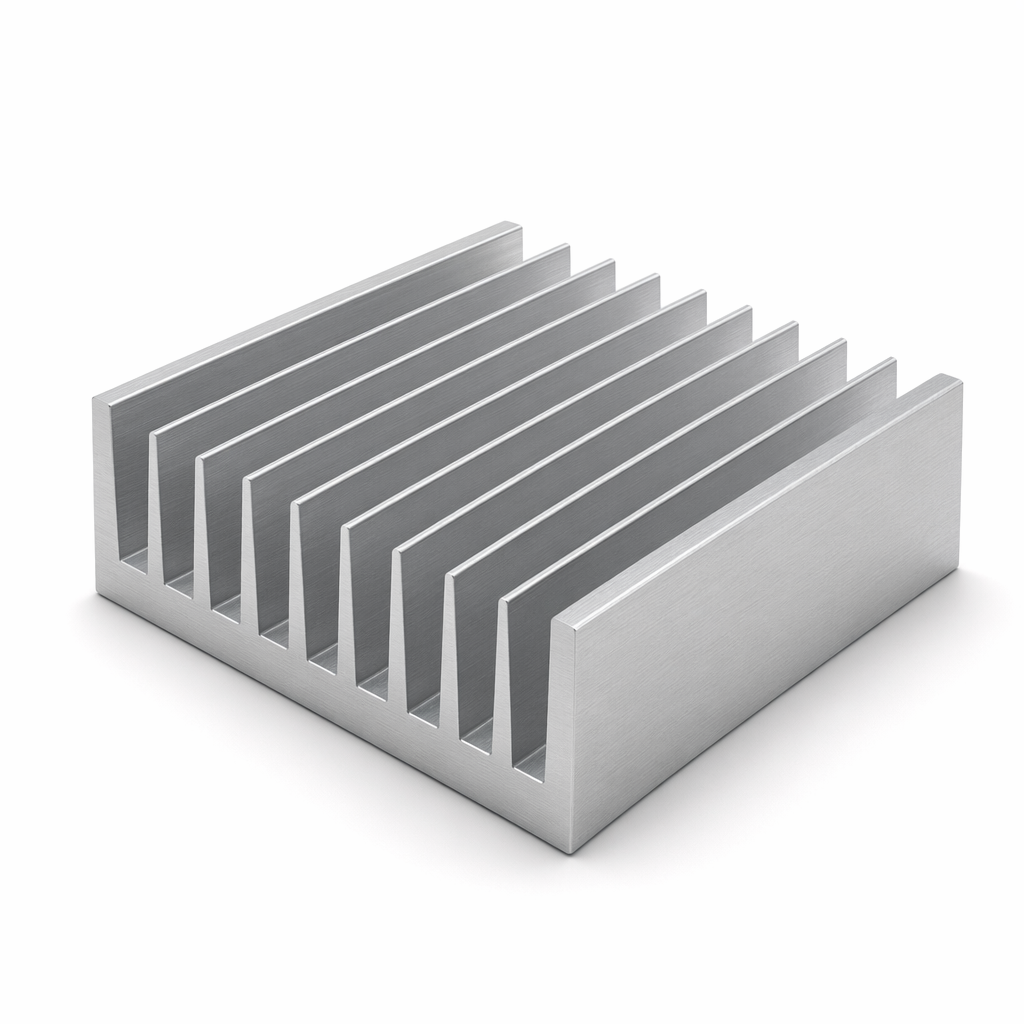

 | ct-140 | 100mm-40mm-10mm | |

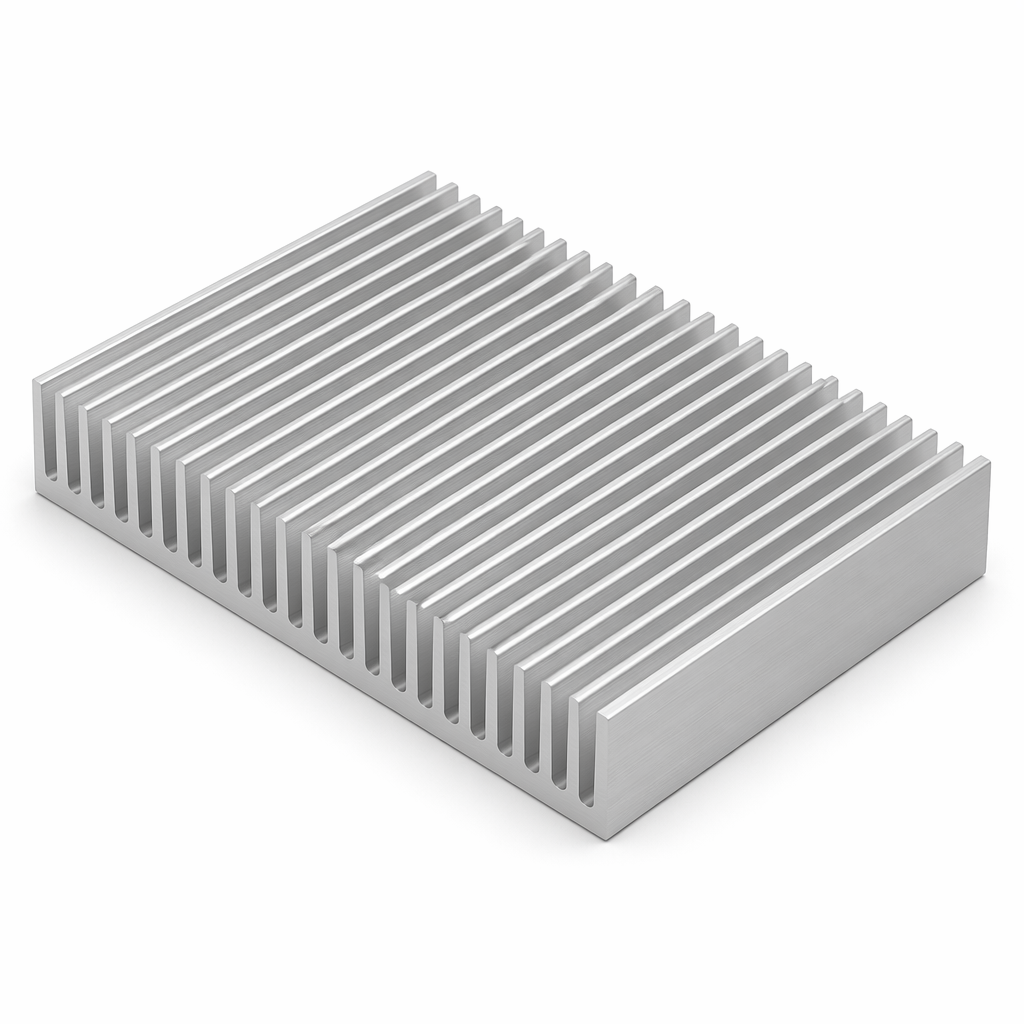

 | ct-148 | 150mm-25mm-4.5mm | |

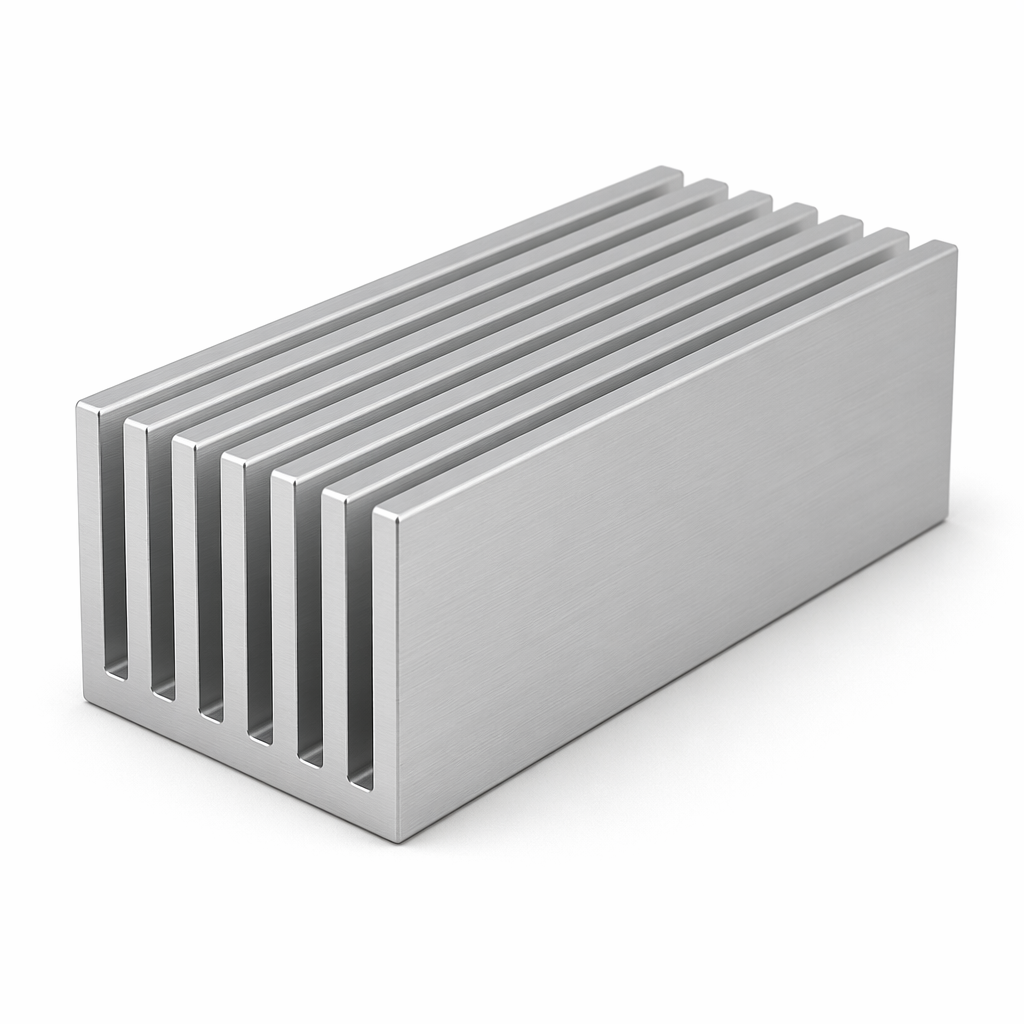

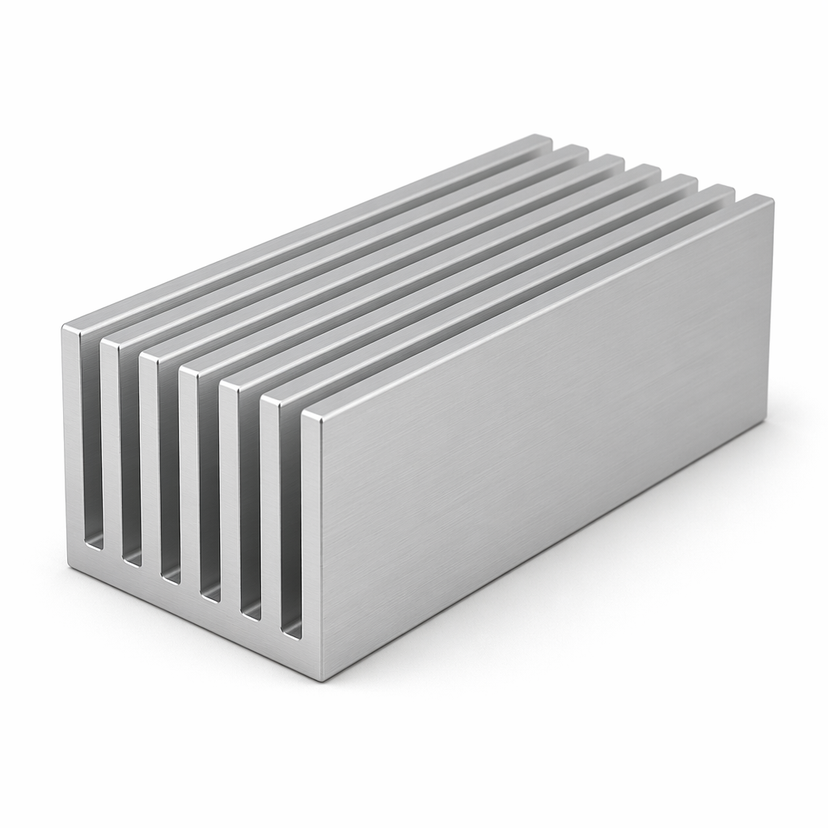

 | ct-149 | 49.45mm-38mm-5mm | |

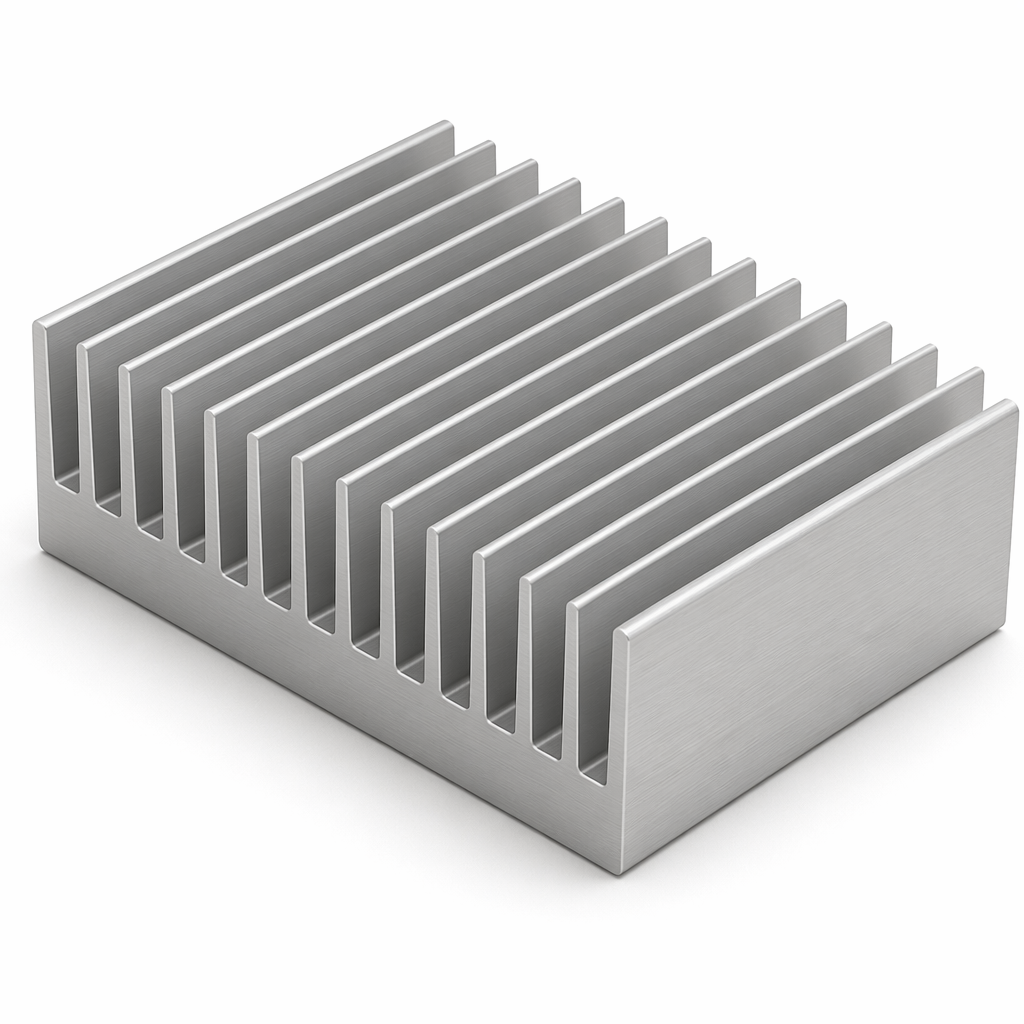

 | ct-150 | 150mm-50mm-15mm | |

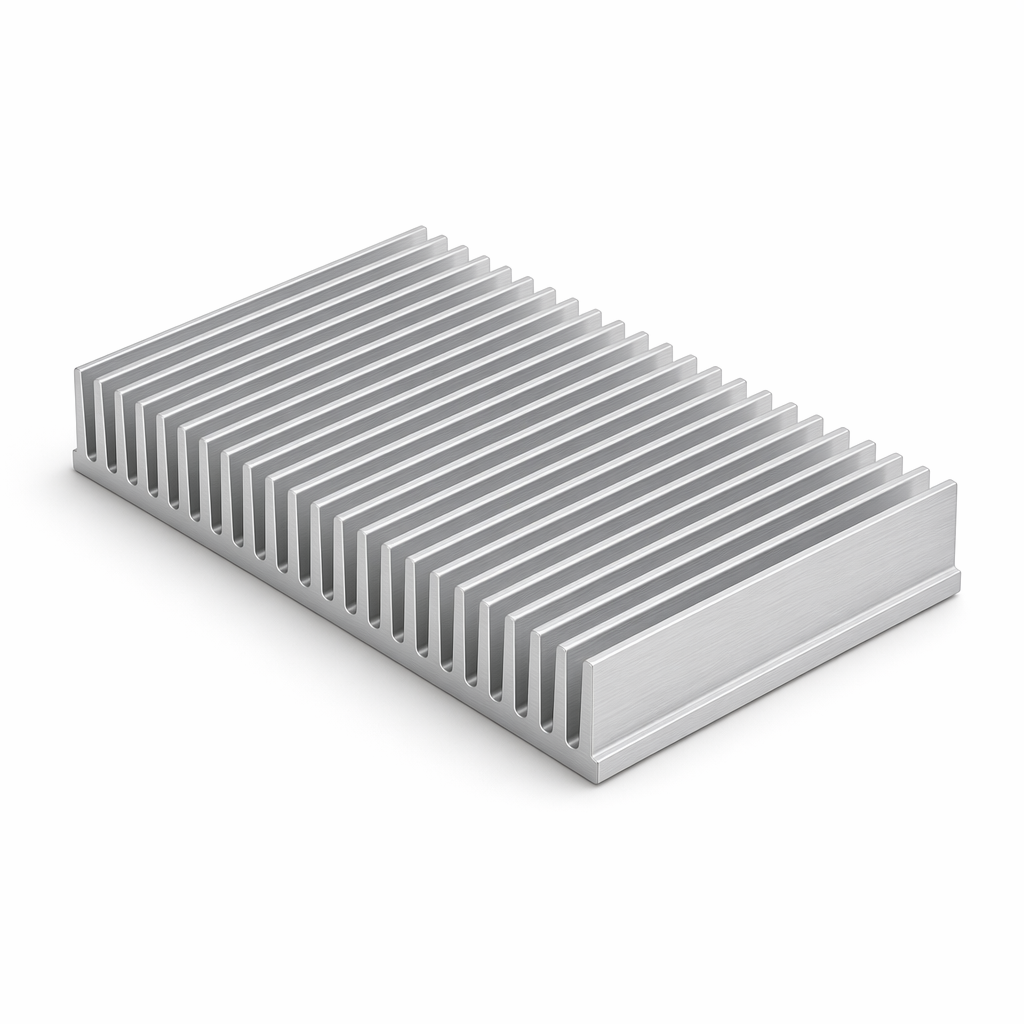

 | ct-157 | 150mm-27mm-5mm | |

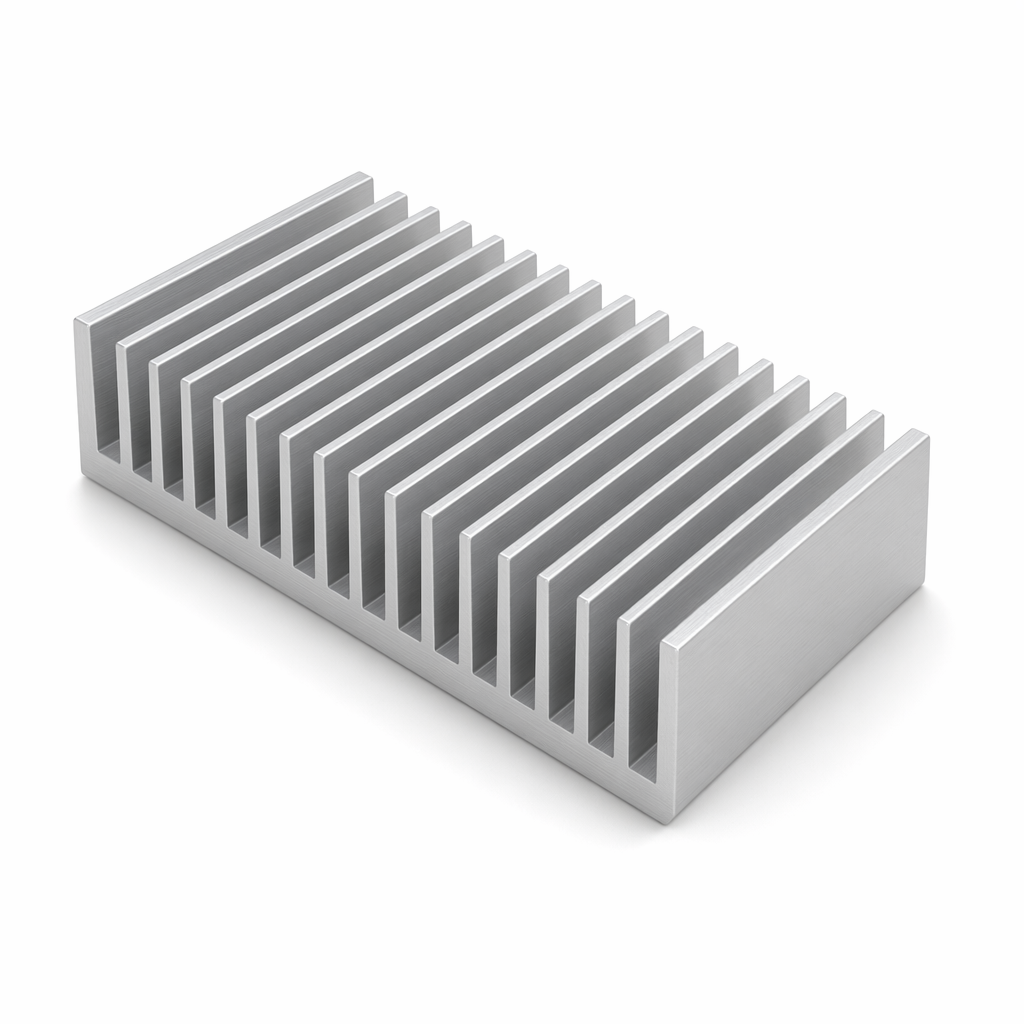

 | ct-160 | 160mm-40mm-10mm | |

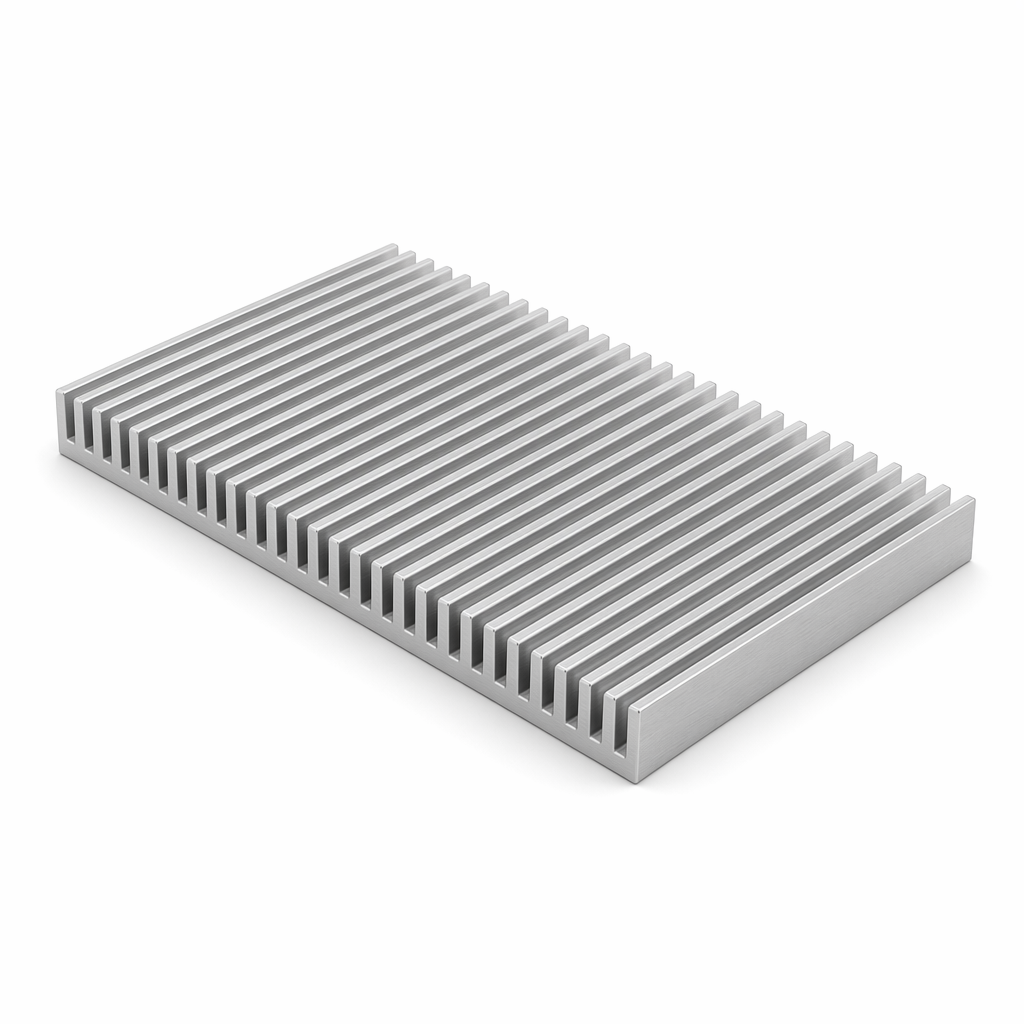

 | ct-161 | 160mm-15mm-4mm | |

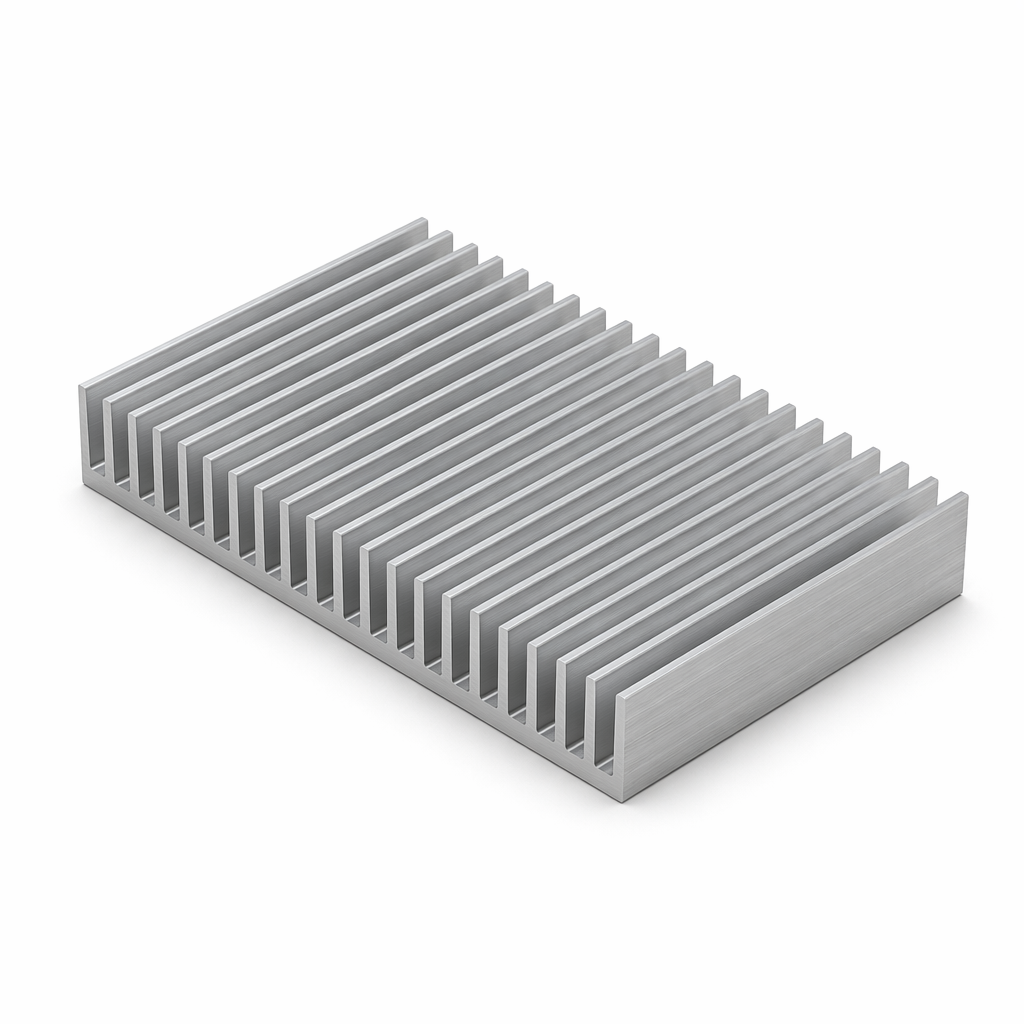

 | ct-162 | 162mm-25mm-4mm | |

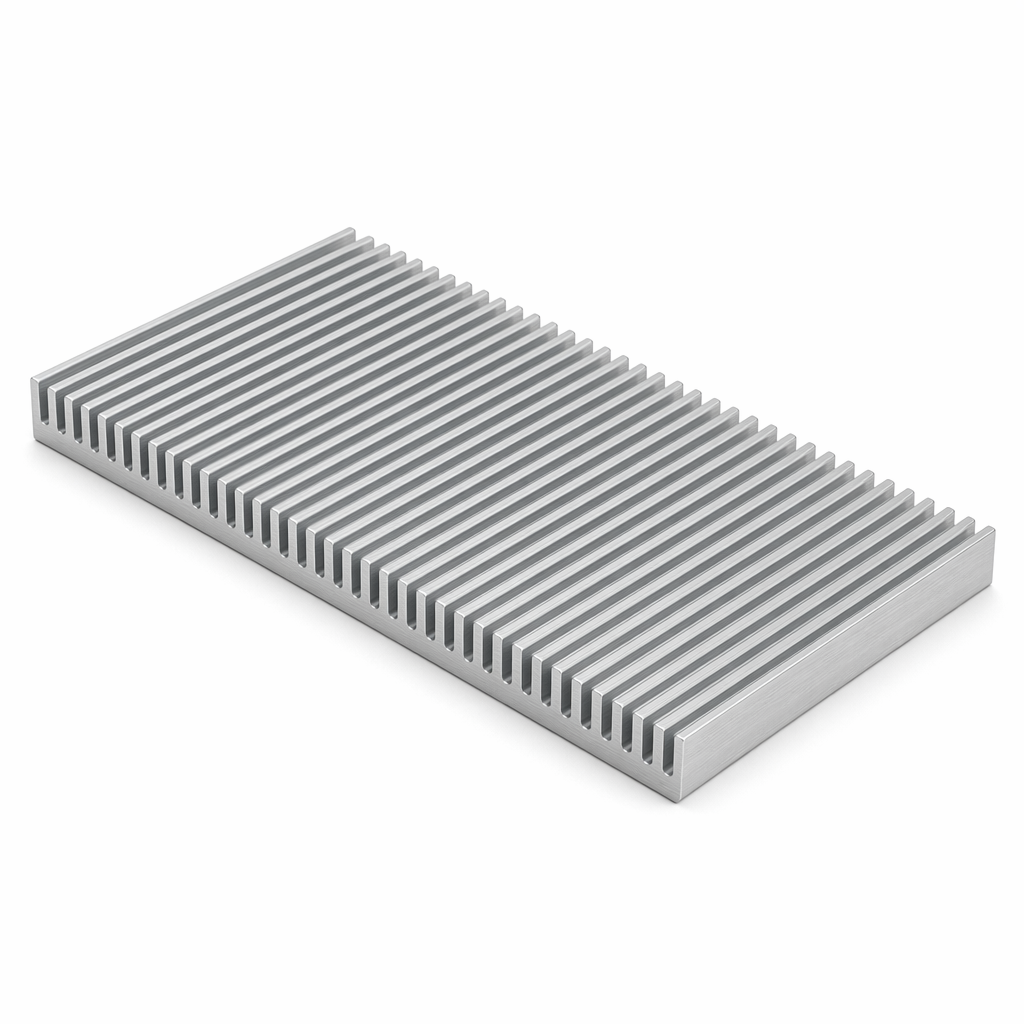

 | ct-164 | 162mm-12.5mm-3.5mm | |

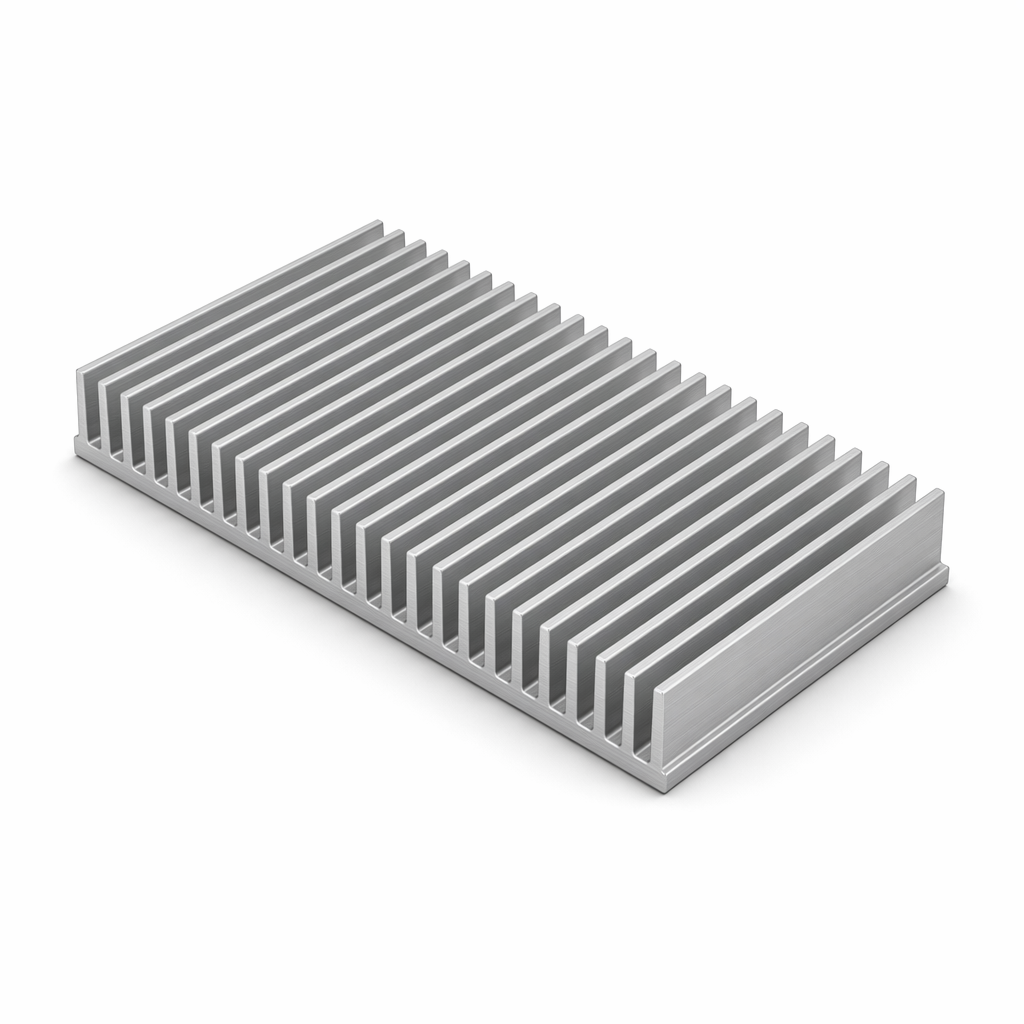

 | ct-168 | 168mm-22mm-4mm | |

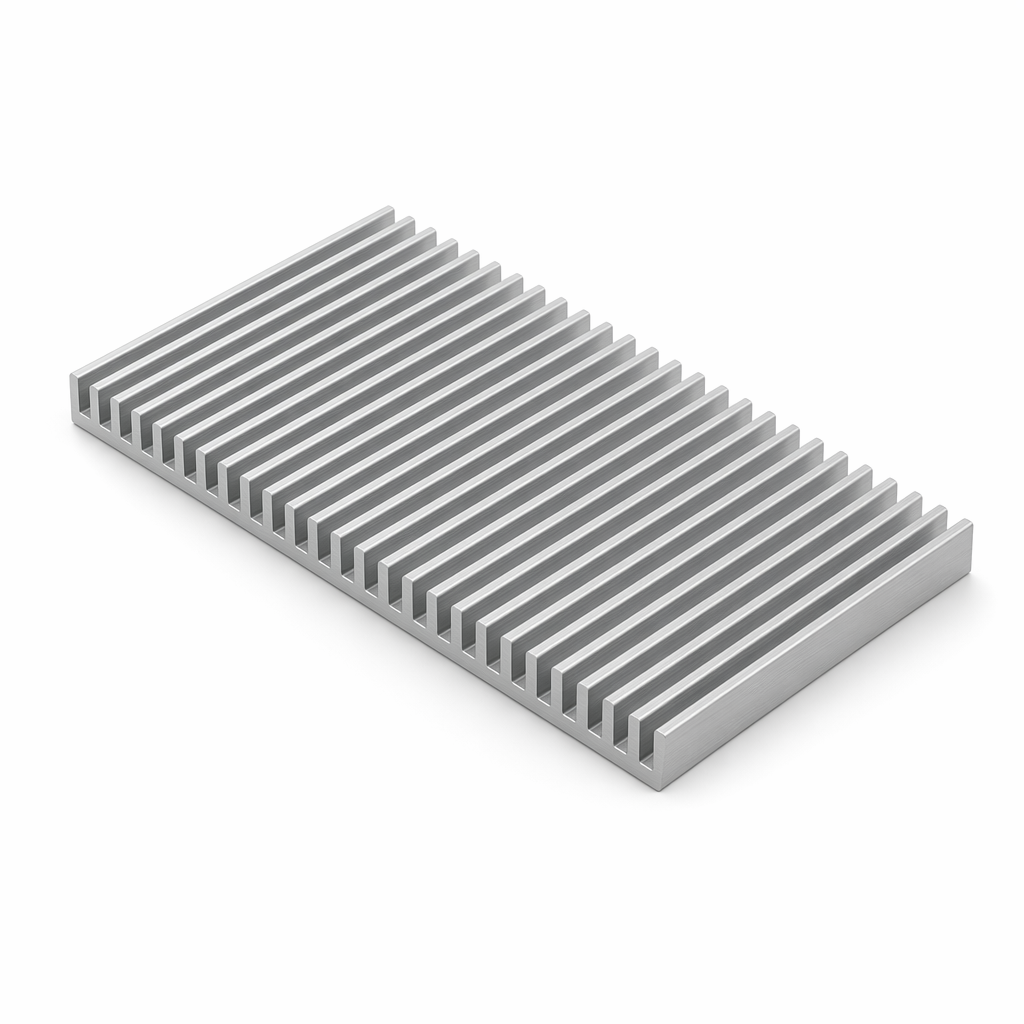

 | ct-187 | 187mm-15mm-4mm | |

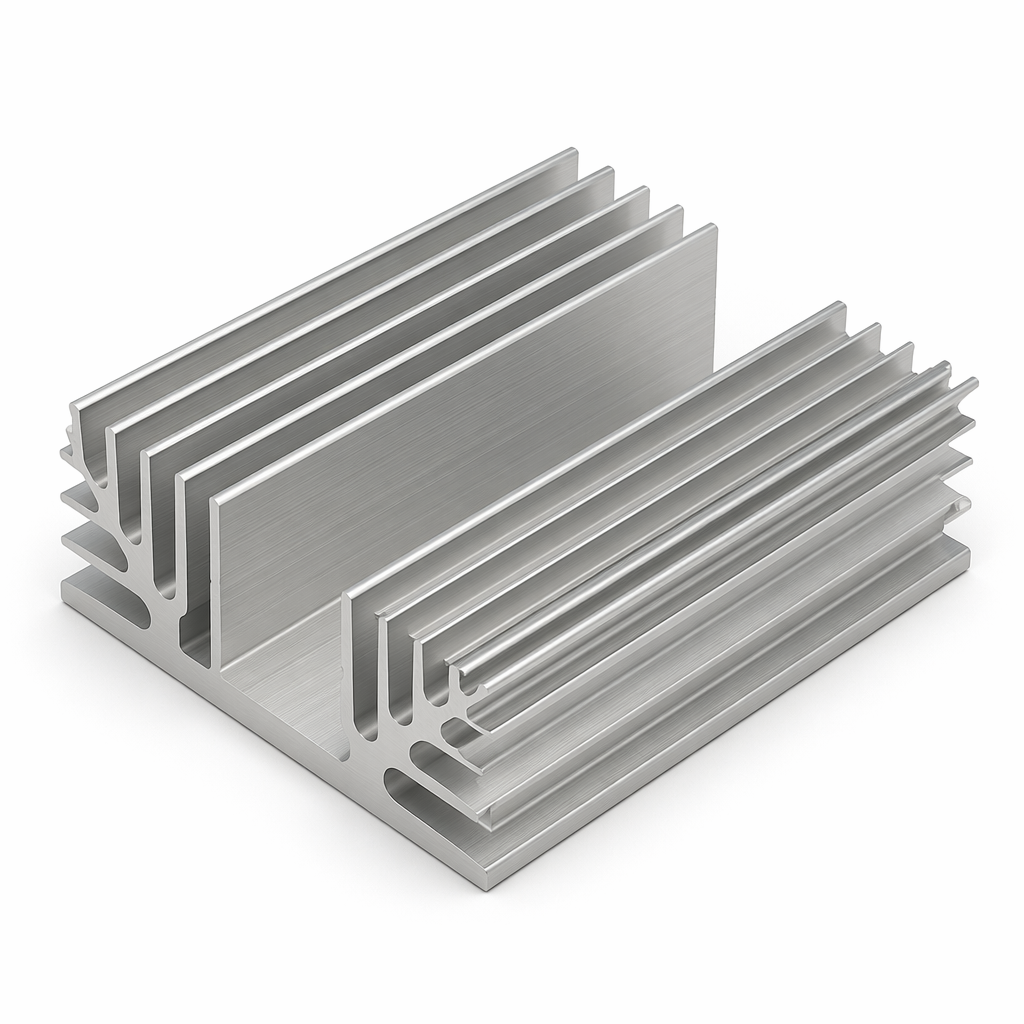

 | ct-188 | 88mm-35mm-N/D | |

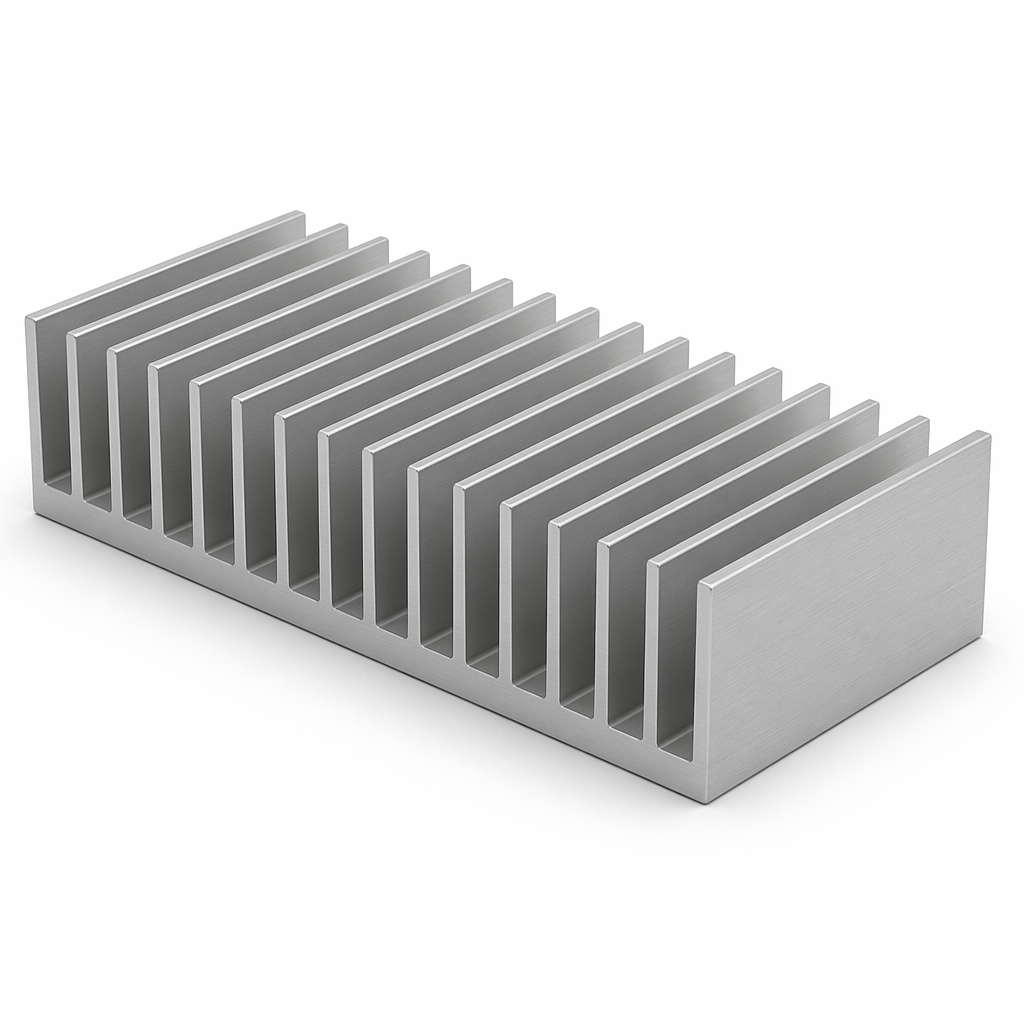

 | ct-191 | 190.2mm-50mm-5mm | |

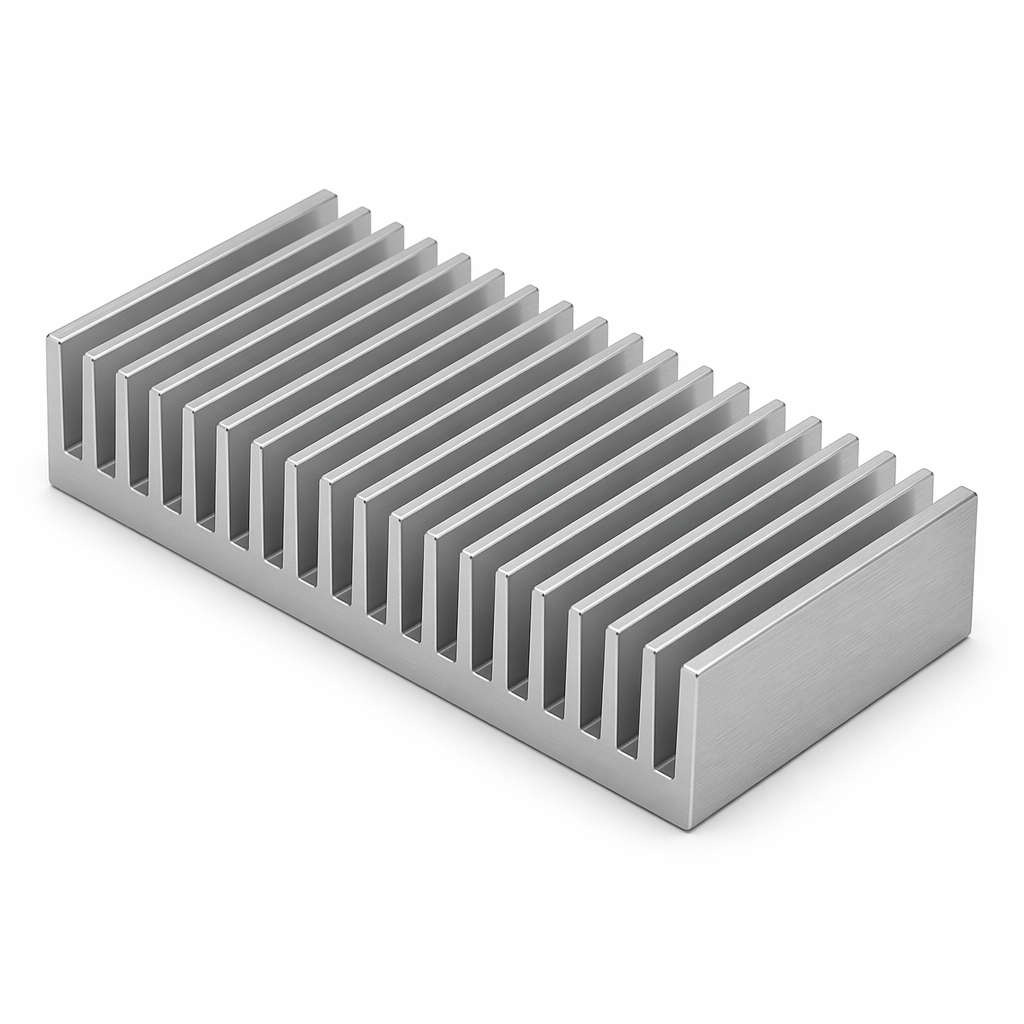

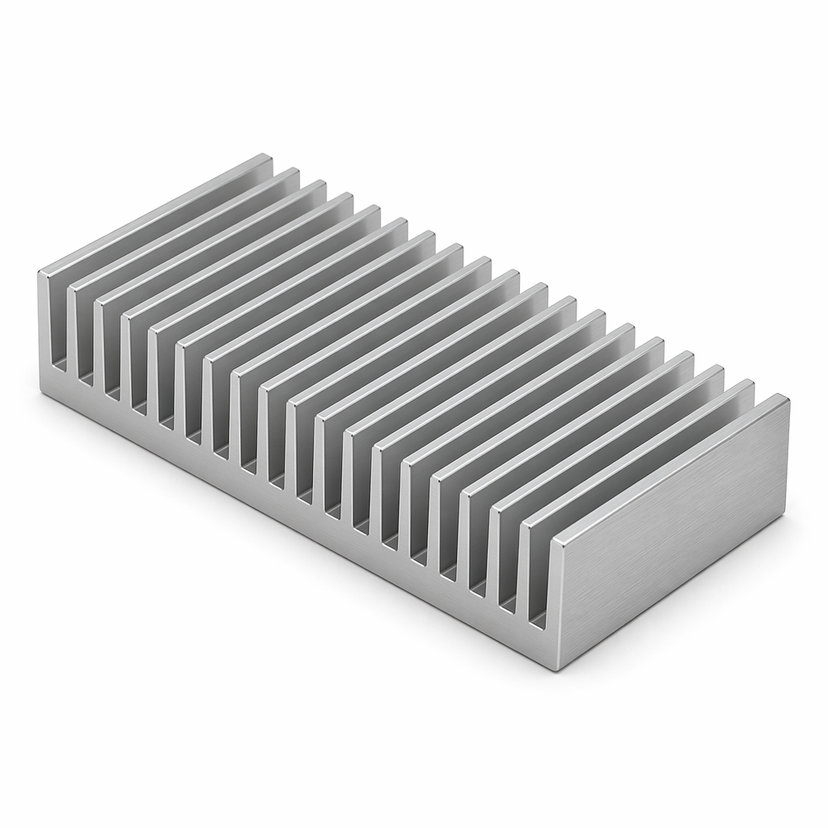

 | ct-200 | 200mm-40mm-10mm | |

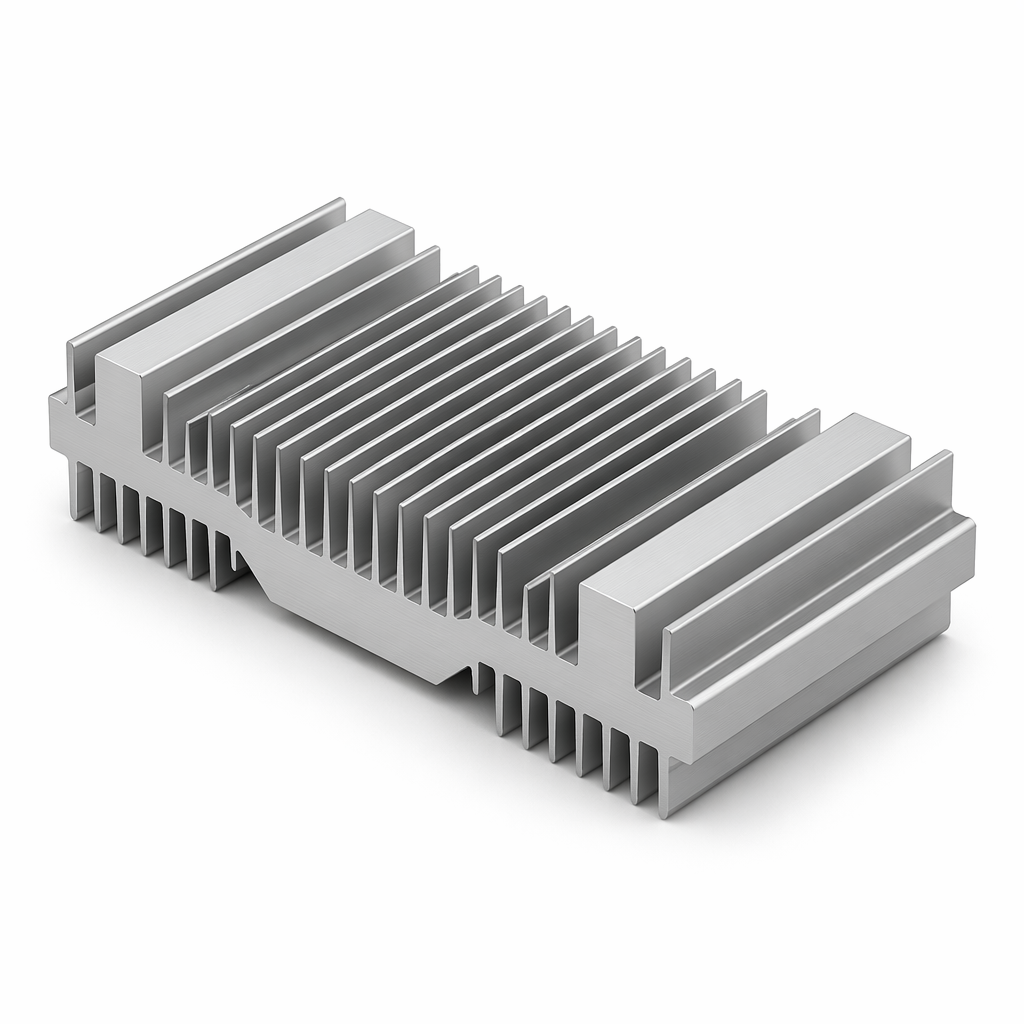

 | ct-210 | 210mm-55mm-N/D | |

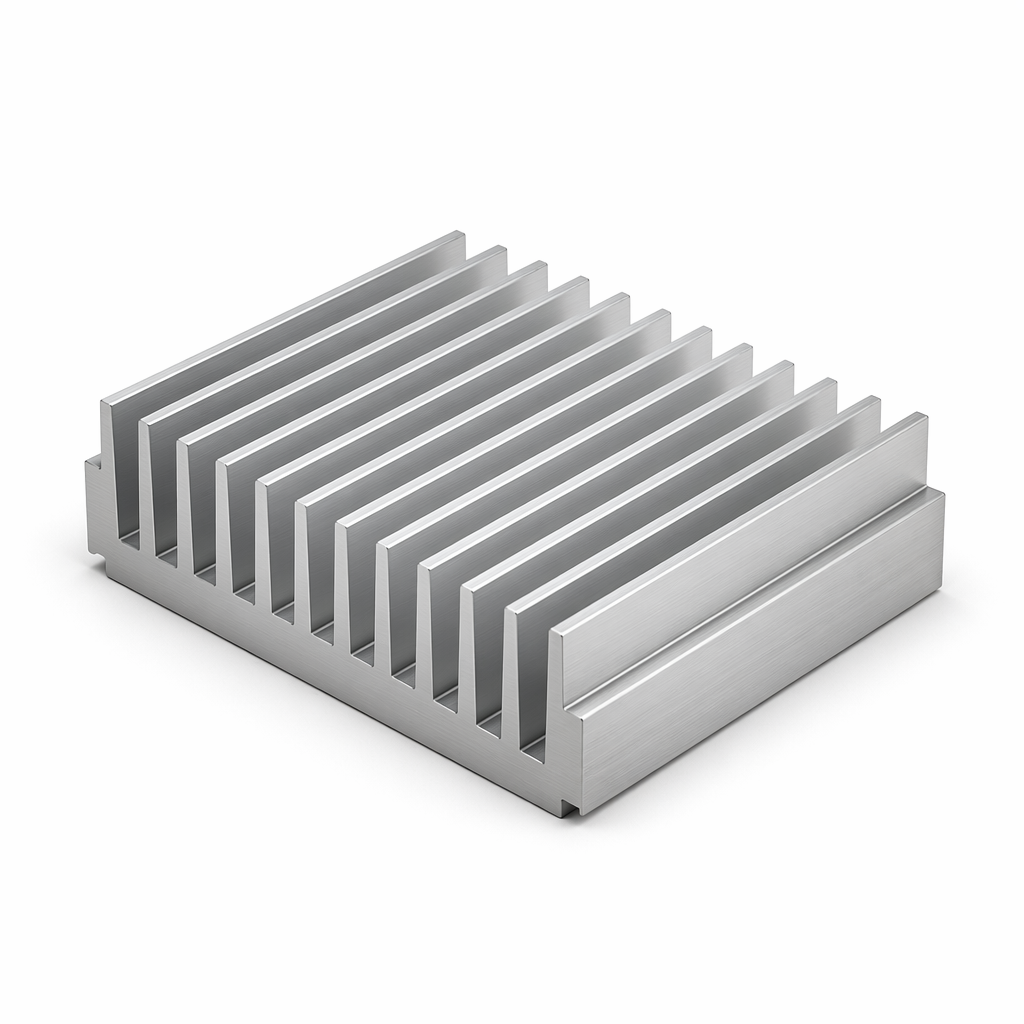

 | ct-211 | 125mm-39mm-N/D | |

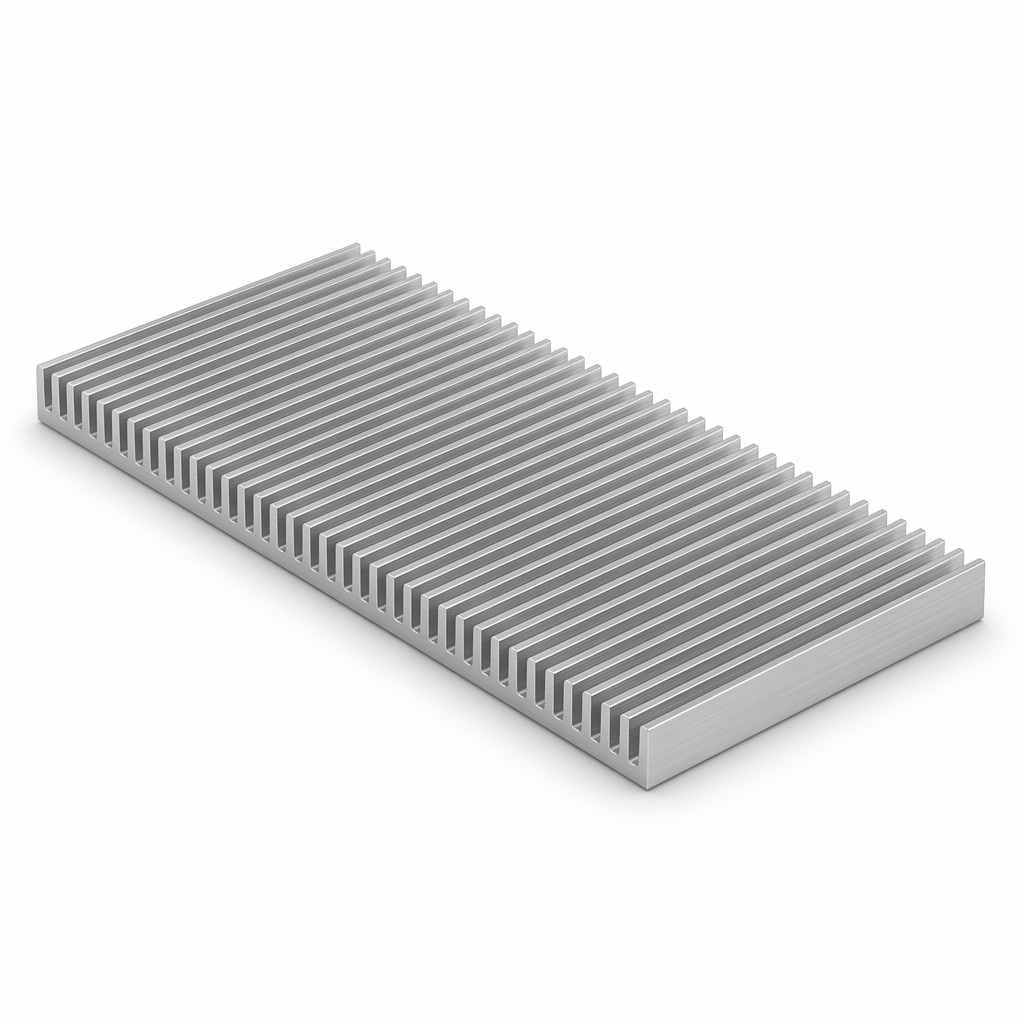

 | ct-215 | 200mm-15mm-3.5mm | |

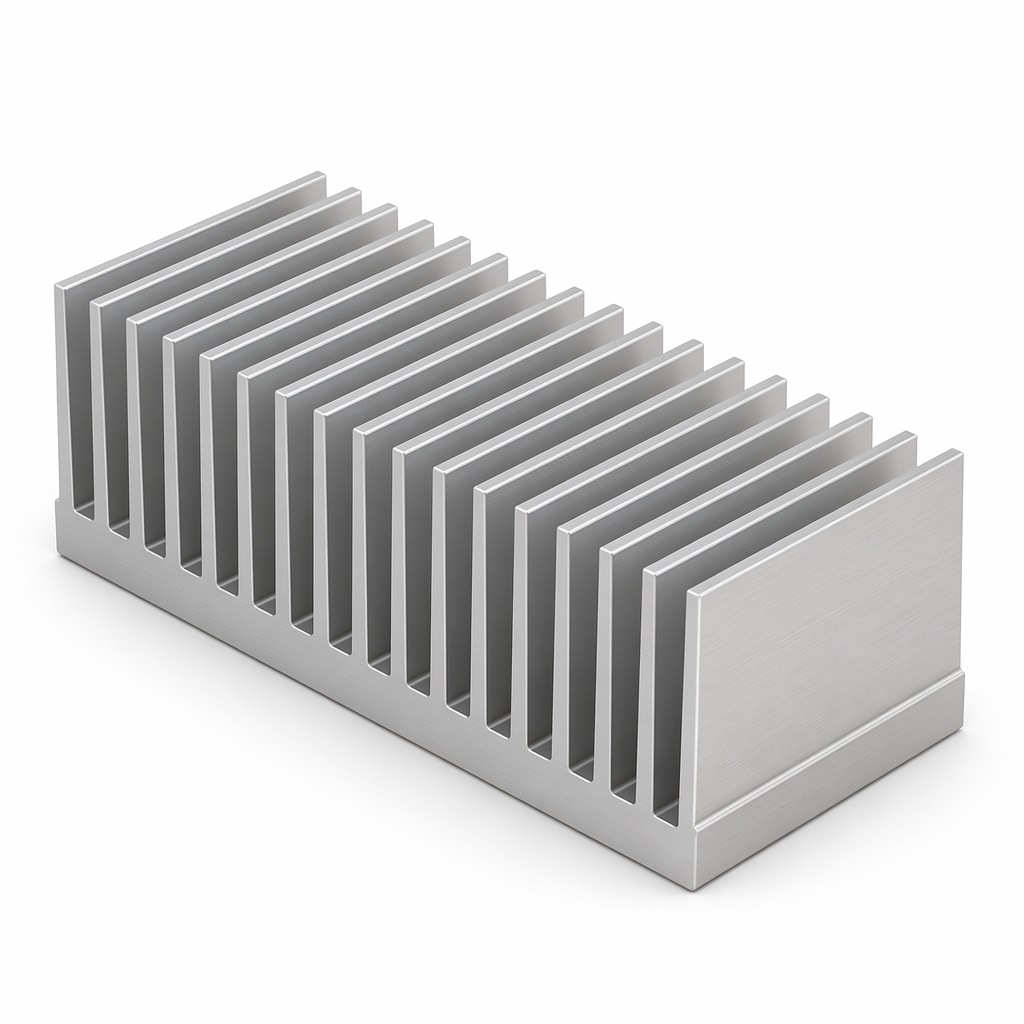

 | ct-216 | 216mm-83mm-15mm | |

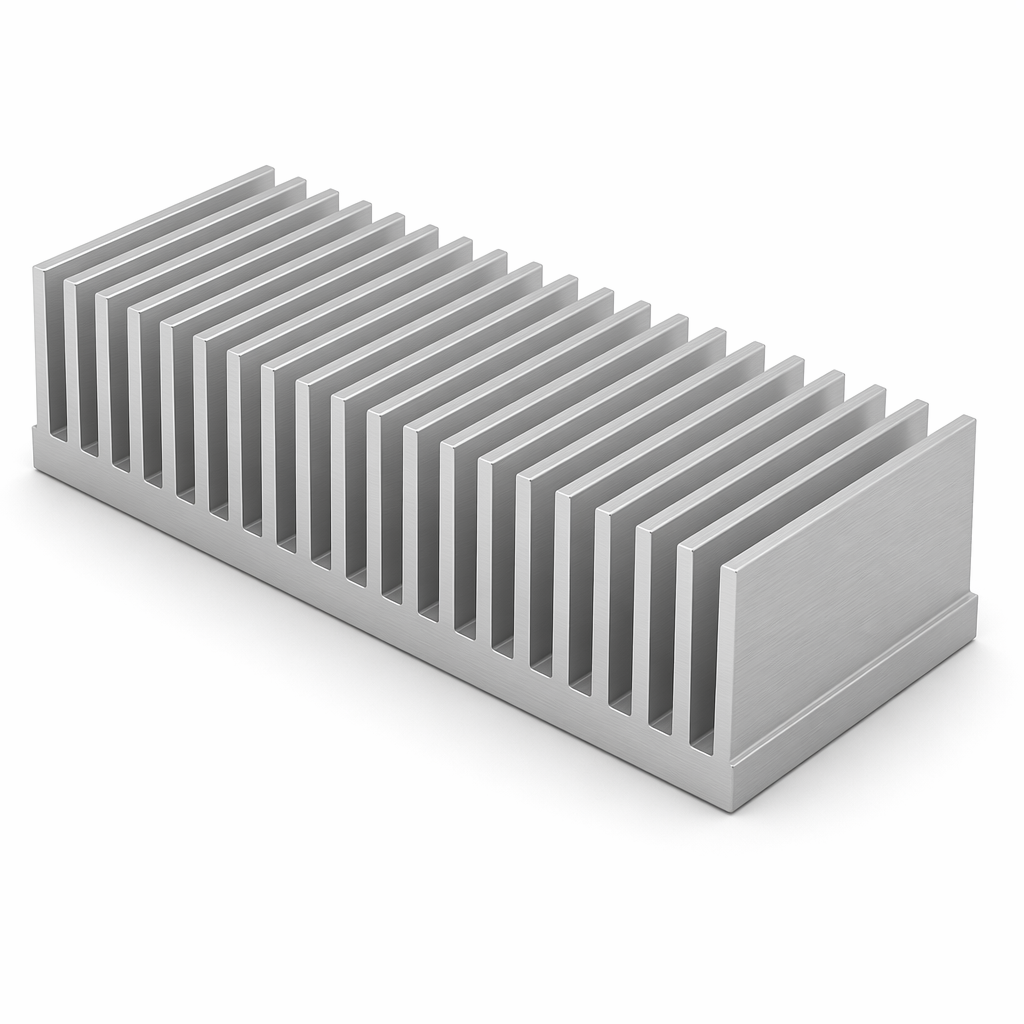

 | ct-217 | 216mm-61mm-12mm | |

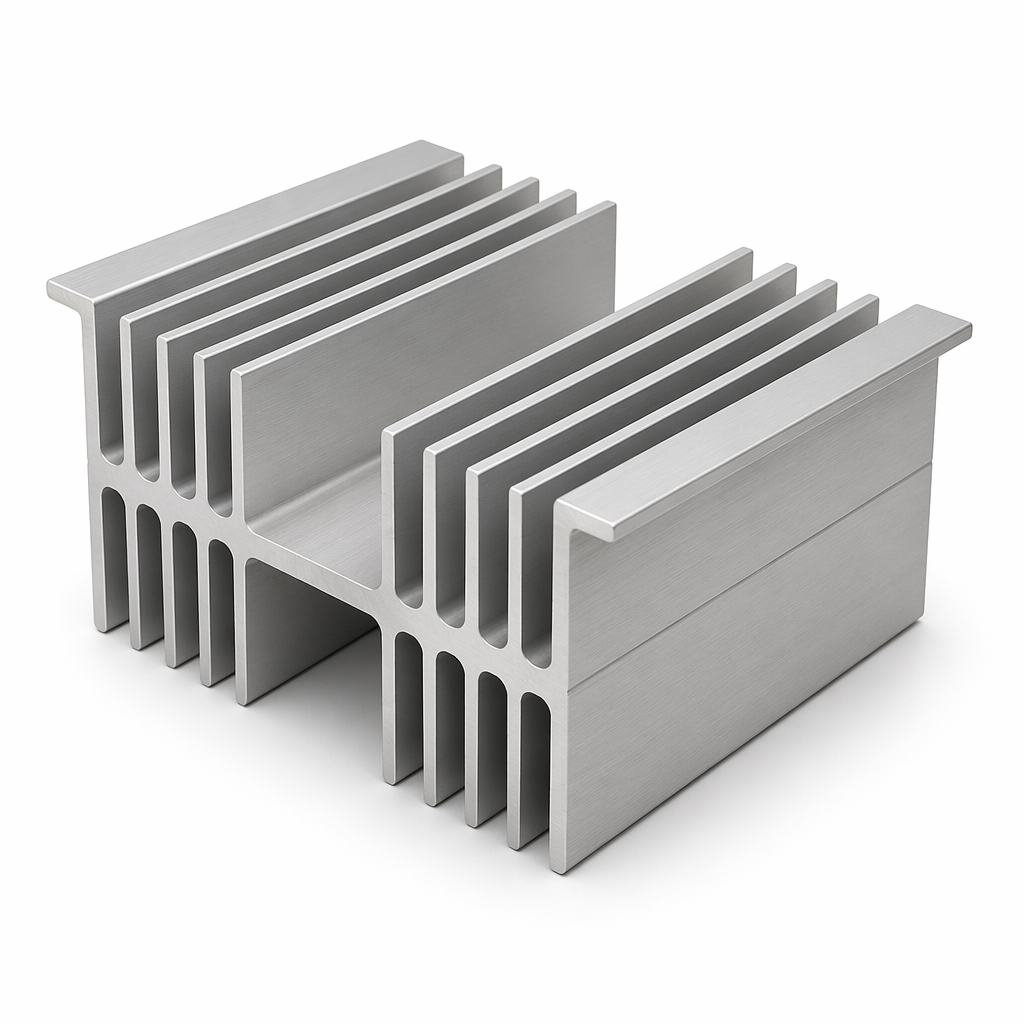

 | ct-225 | 126mm-65mm-5mm | |

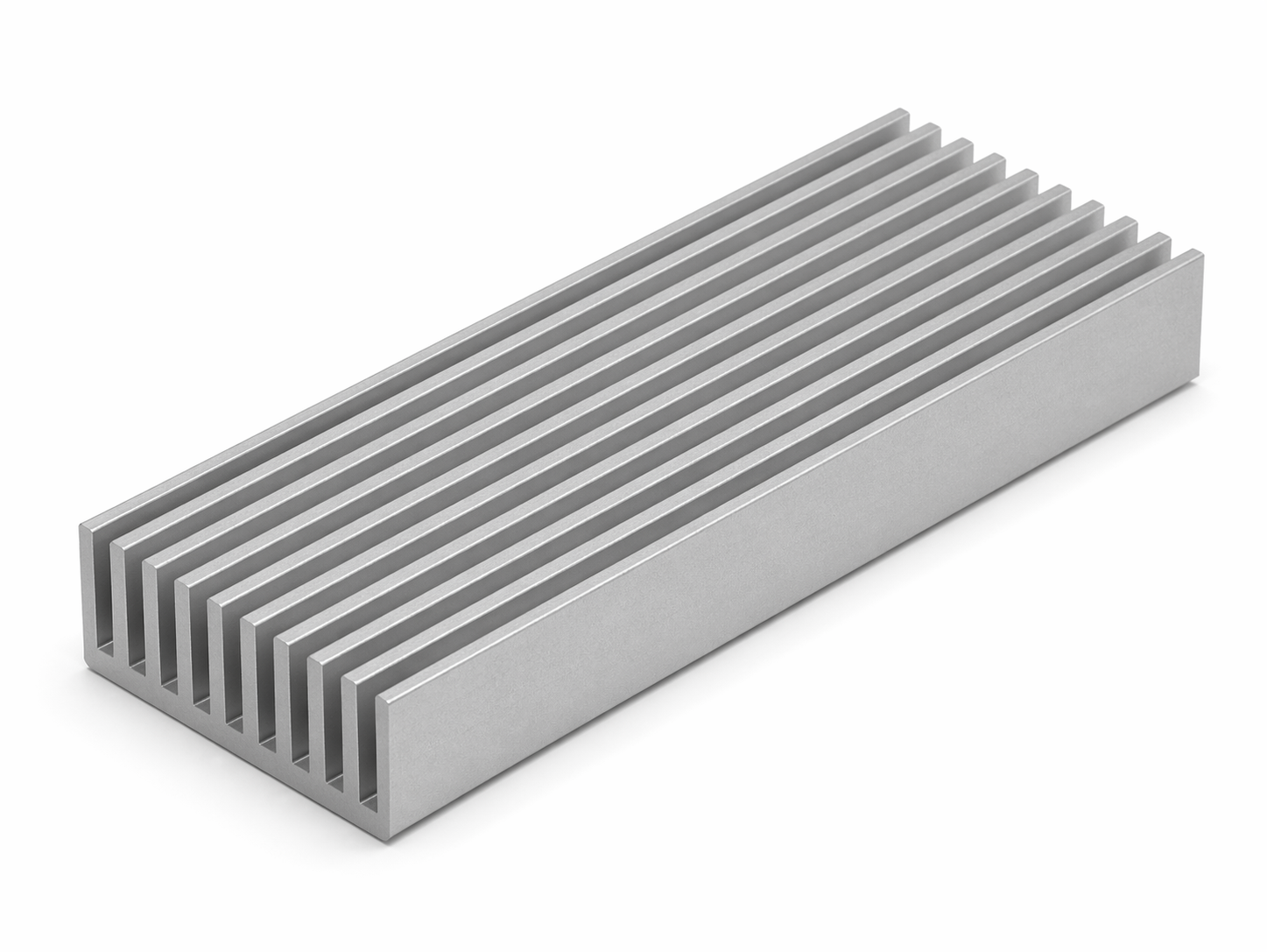

 | ct-238 | 38mm-16.5mm-3.5mm | |

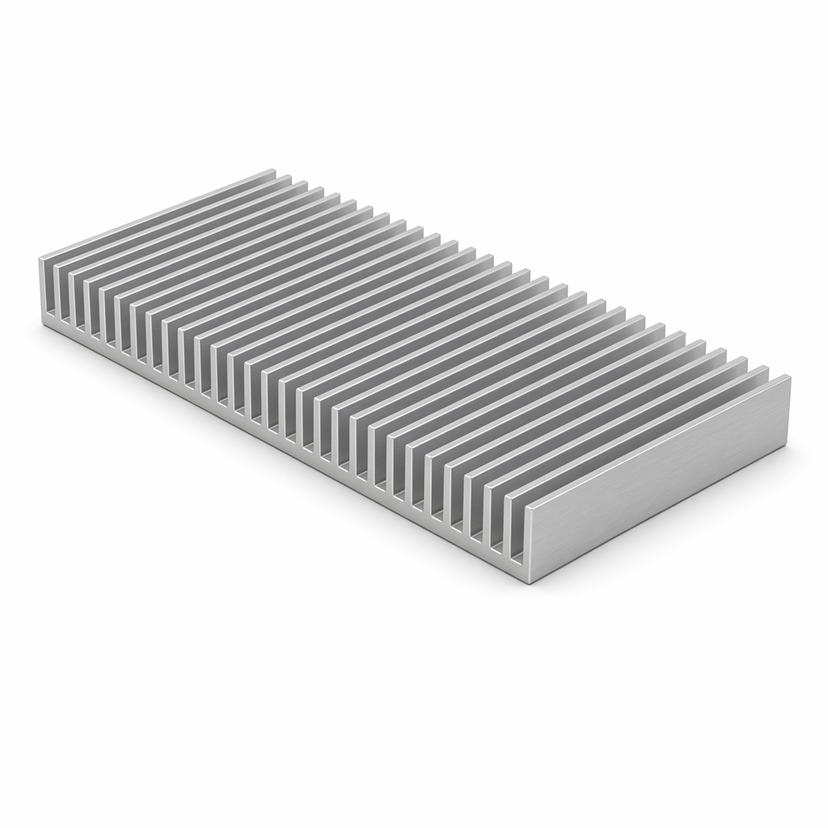

 | ct-245 | 245.6mm-25mm-5mm | |

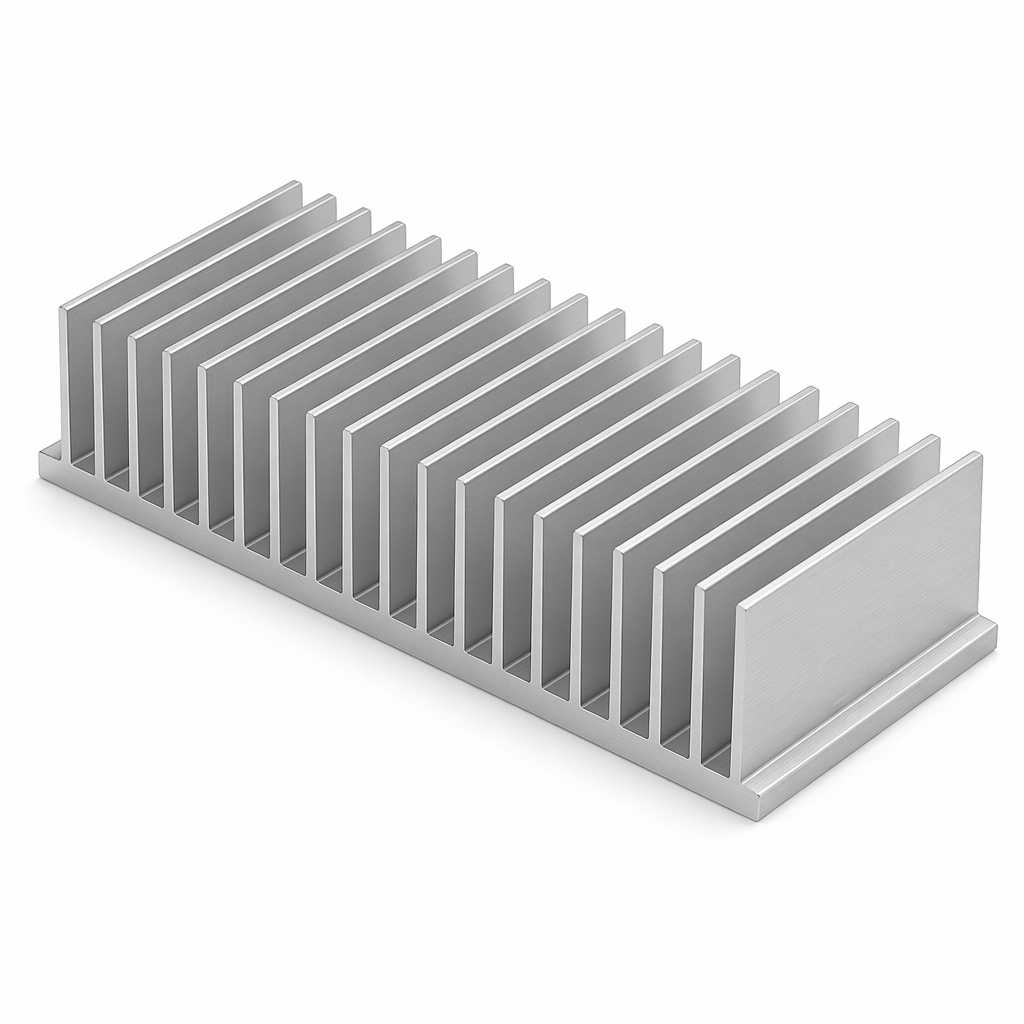

 | ct-248 | 247.65mm-57.9mm-7.11mm | |

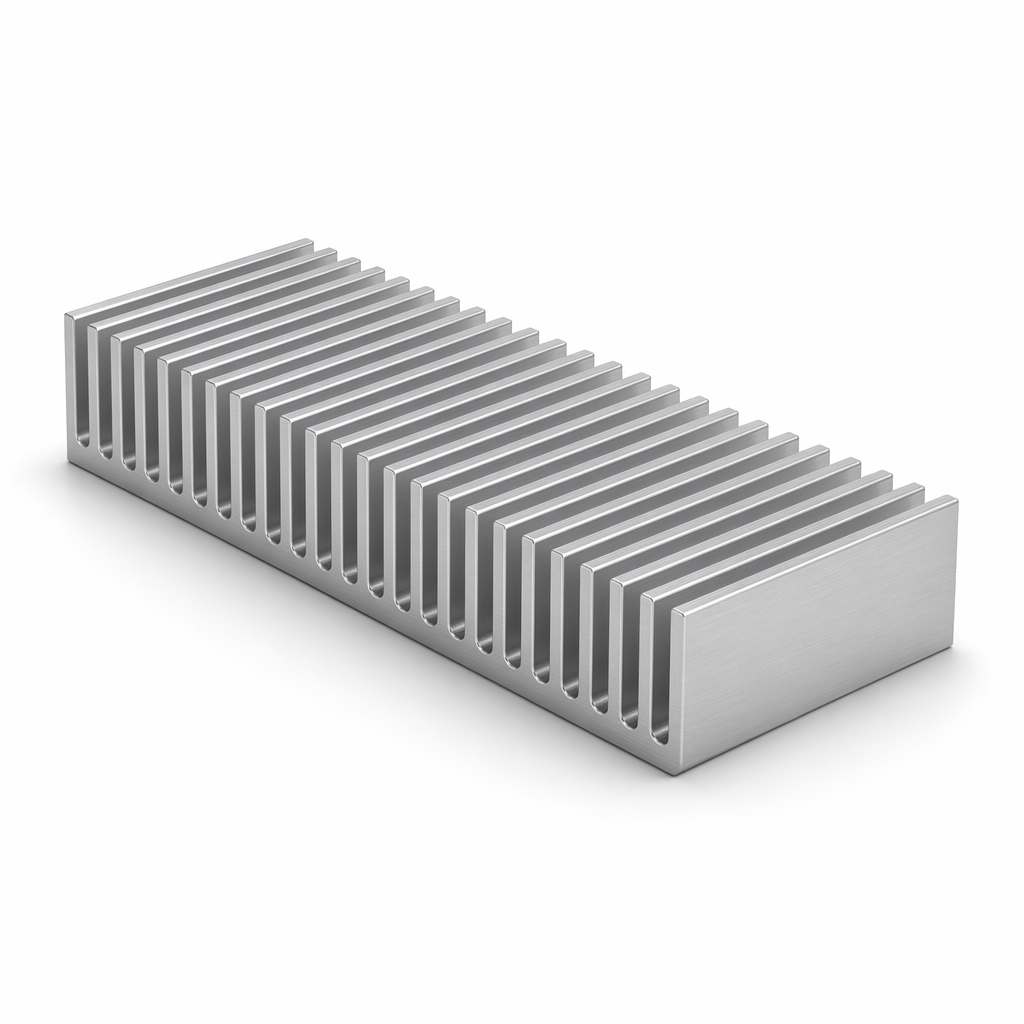

 | ct-250 | 250mm-40mm-6mm | |

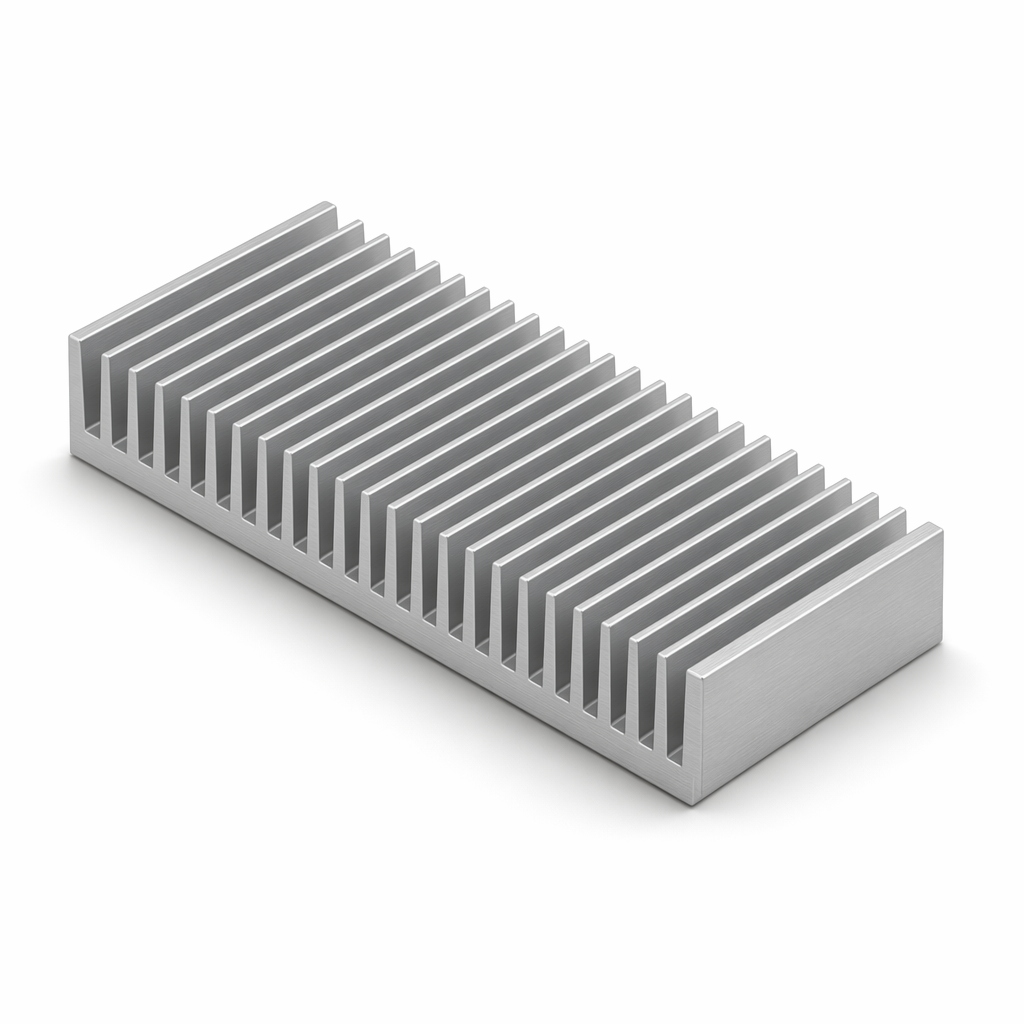

 | ct-252 | 250mm-40mm-10mm | |

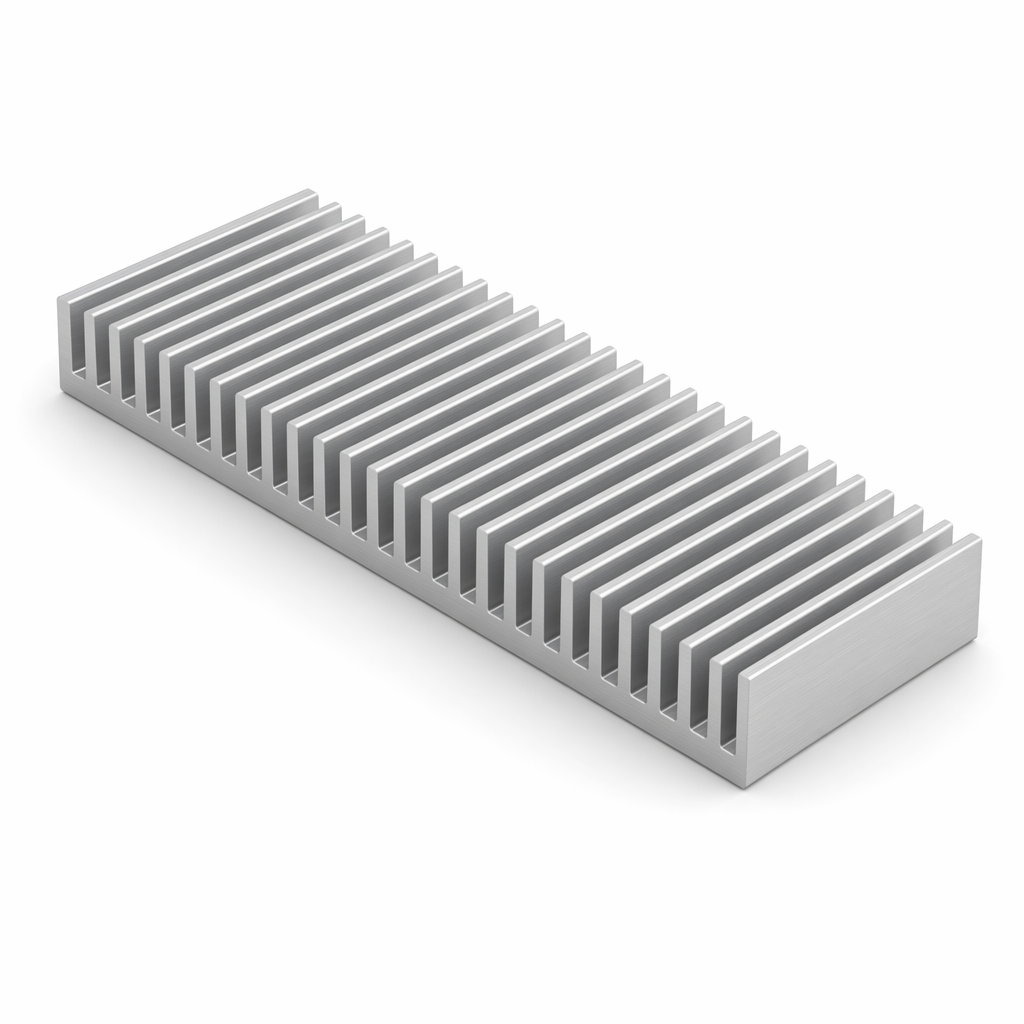

 | ct-258 | 250mm-28mm-6mm | |

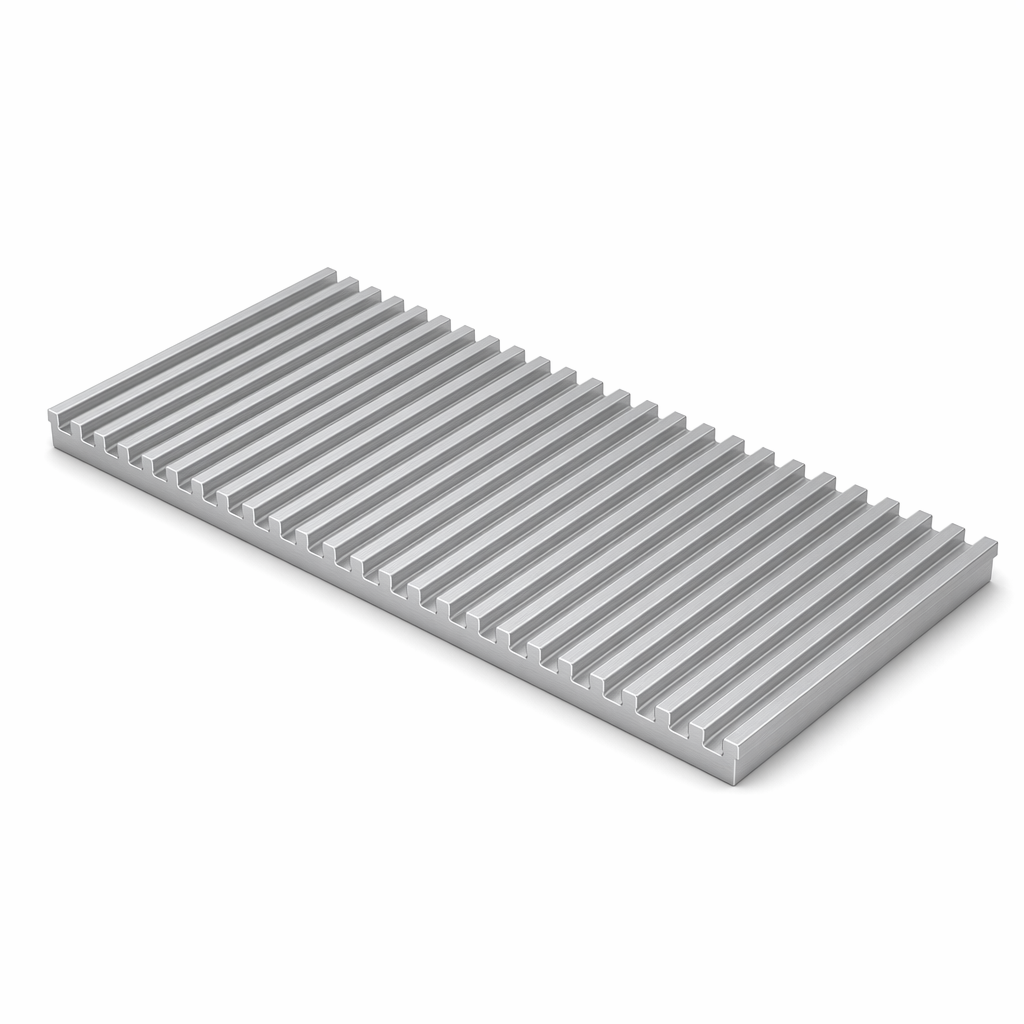

 | ct-264 | 161.8mm-9mm-5mm | |

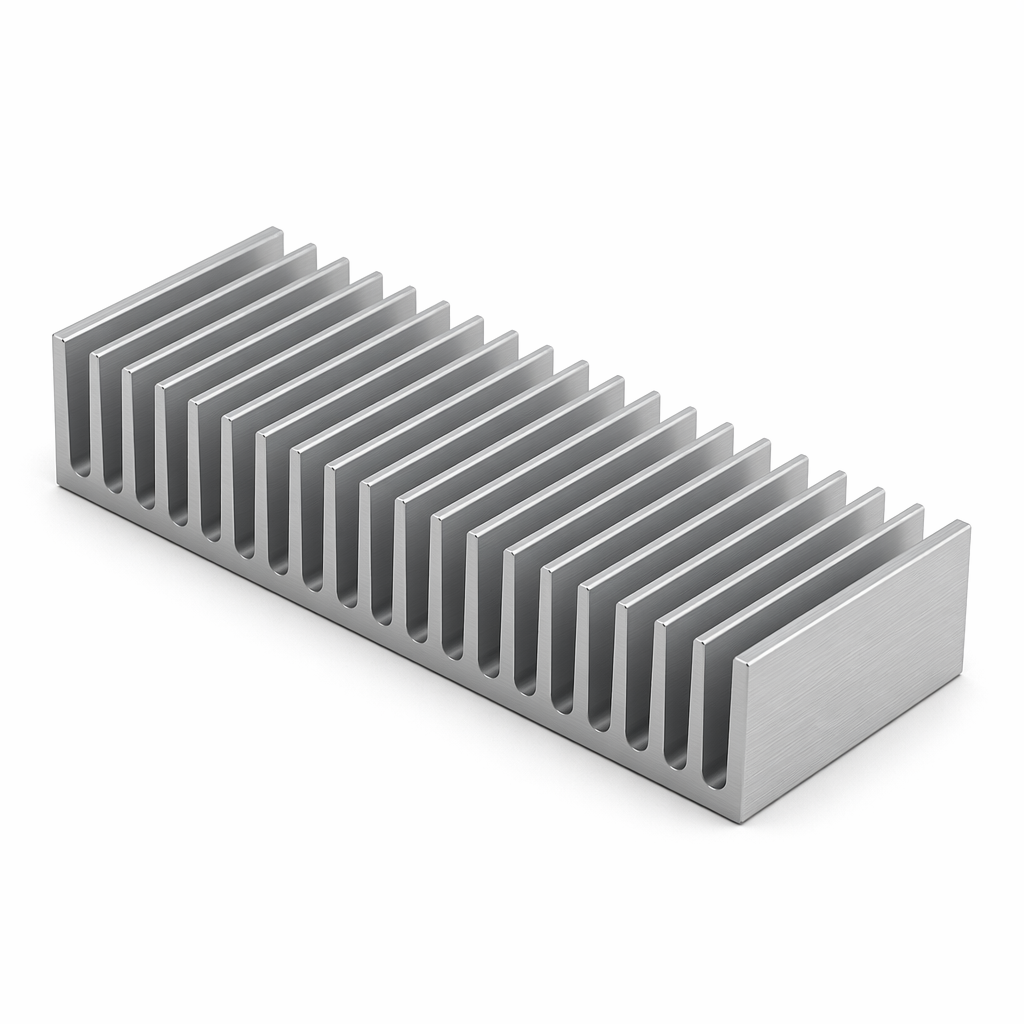

 | ct-266 | 265mm-50mm-6mm | |

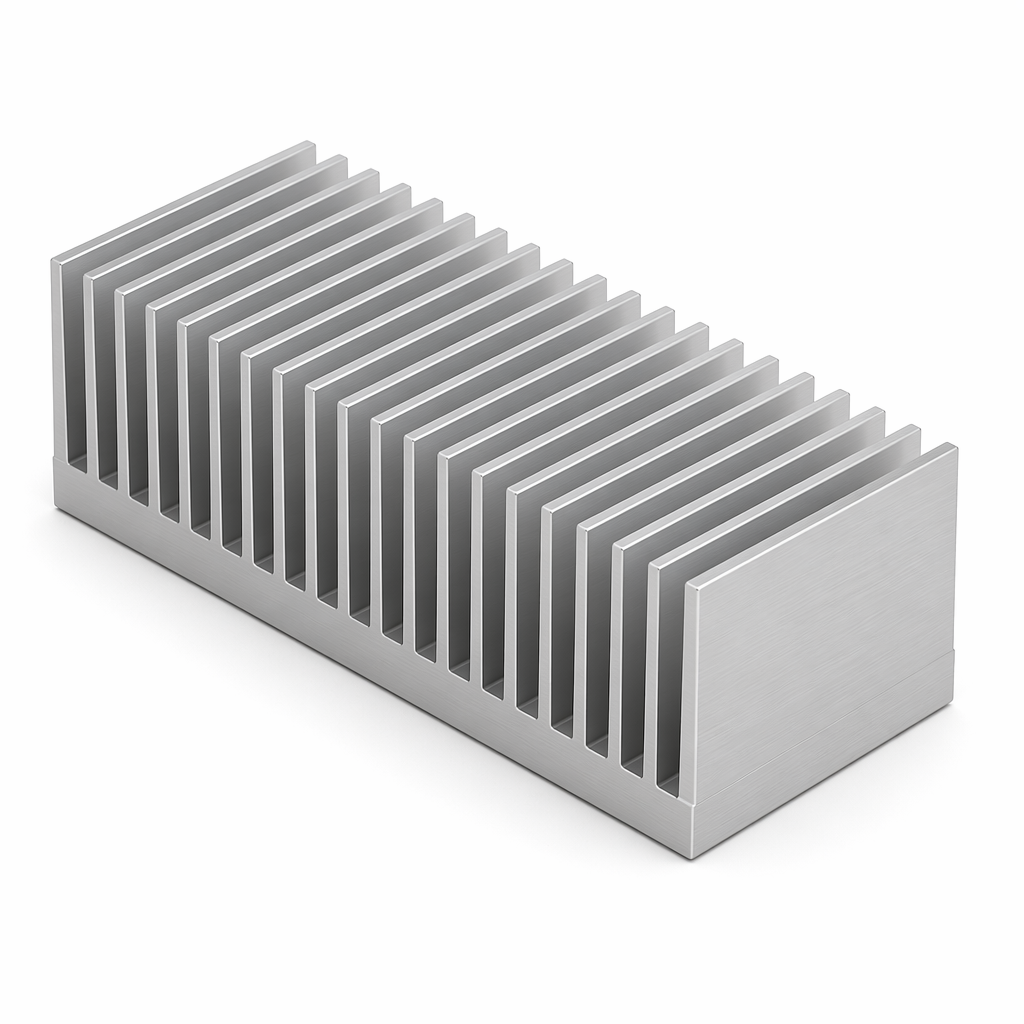

 | ct-283 | 250mm-83mm-15mm | |

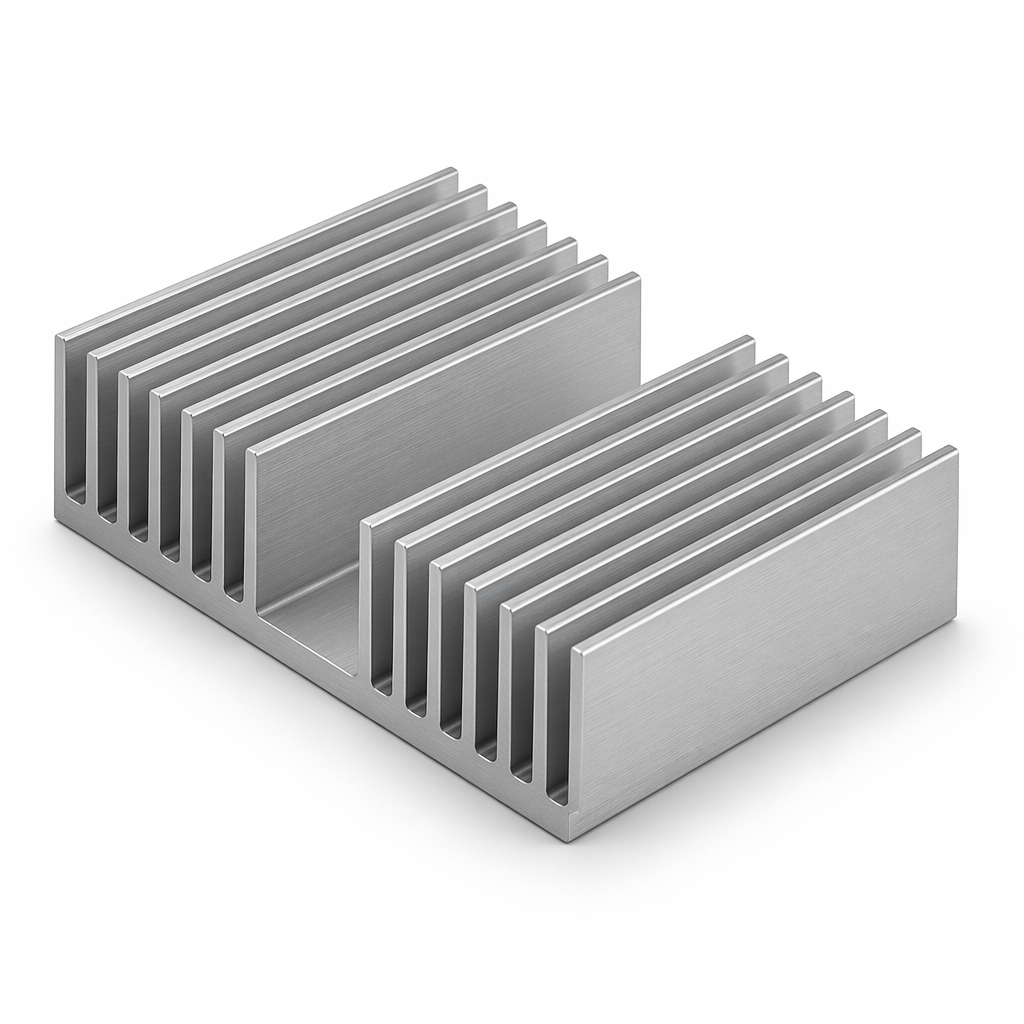

 | ct-298 | 150mm-40mm-6mm | |

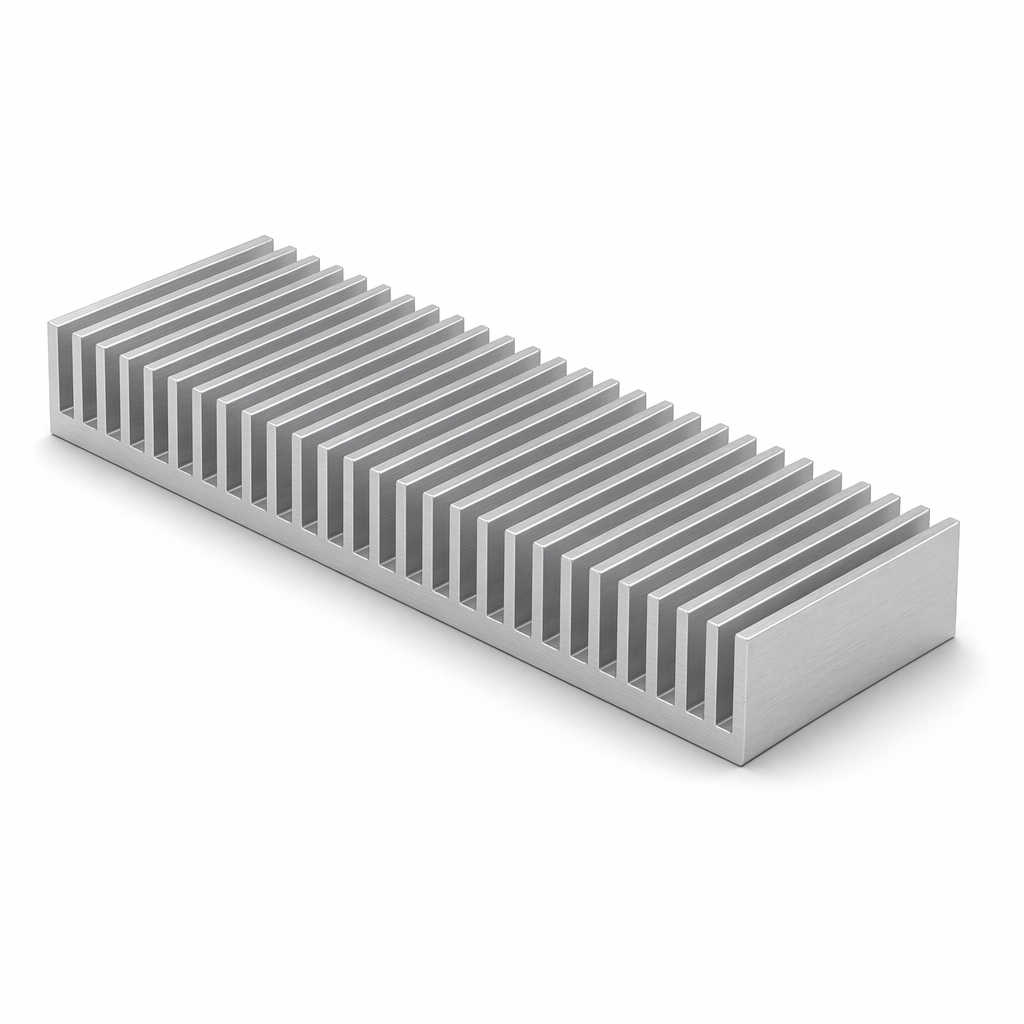

 | ct-300 | 300mm-40mm-10mm | |

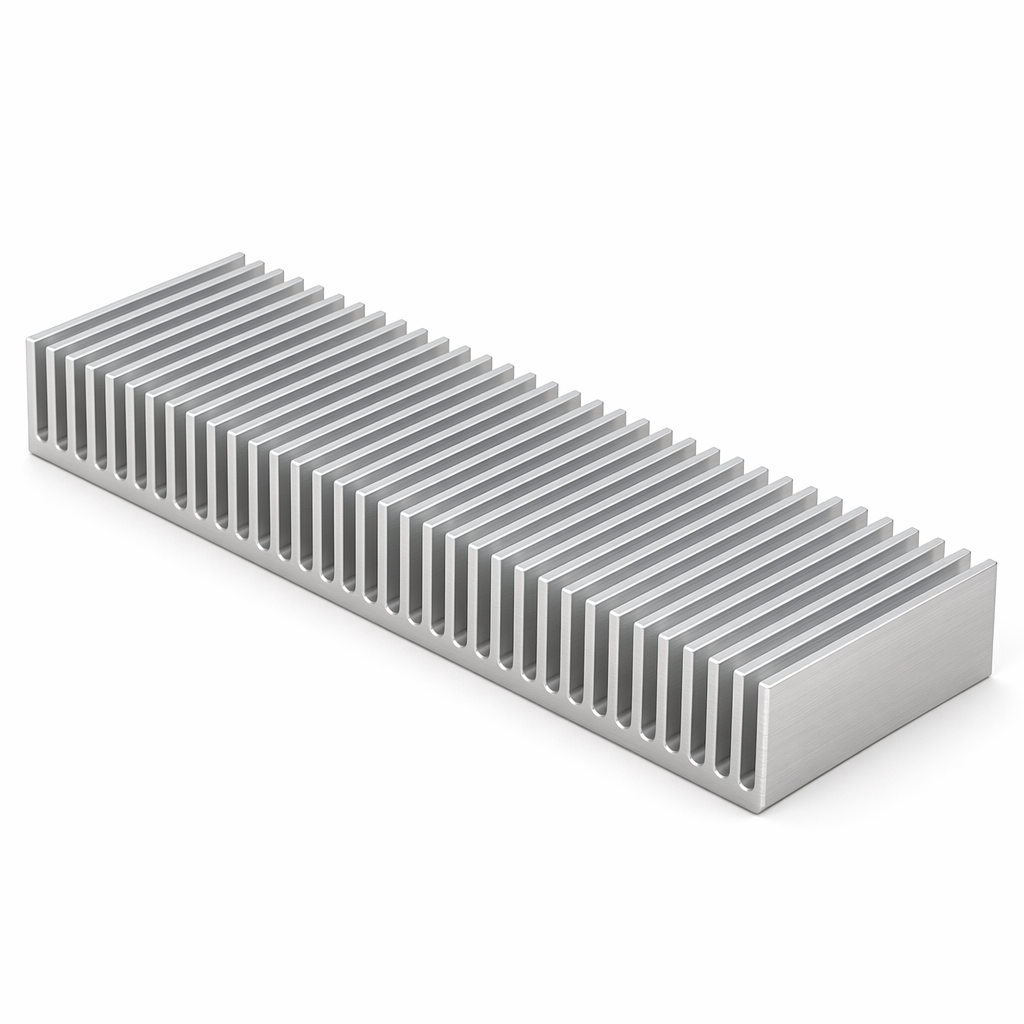

 | ct-306 | 306.4mm-40mm-4.5mm | |

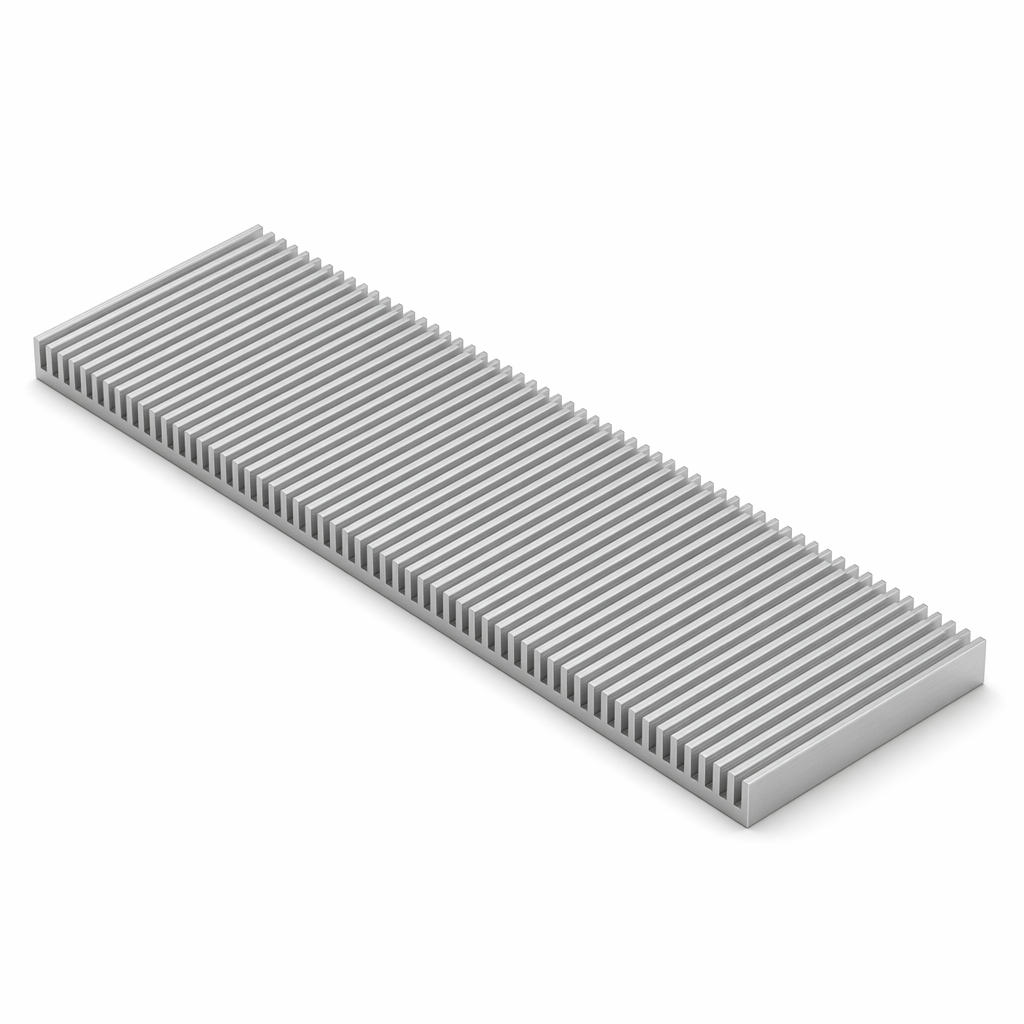

 | ct-315 | 300mm-15mm-3.5mm | |

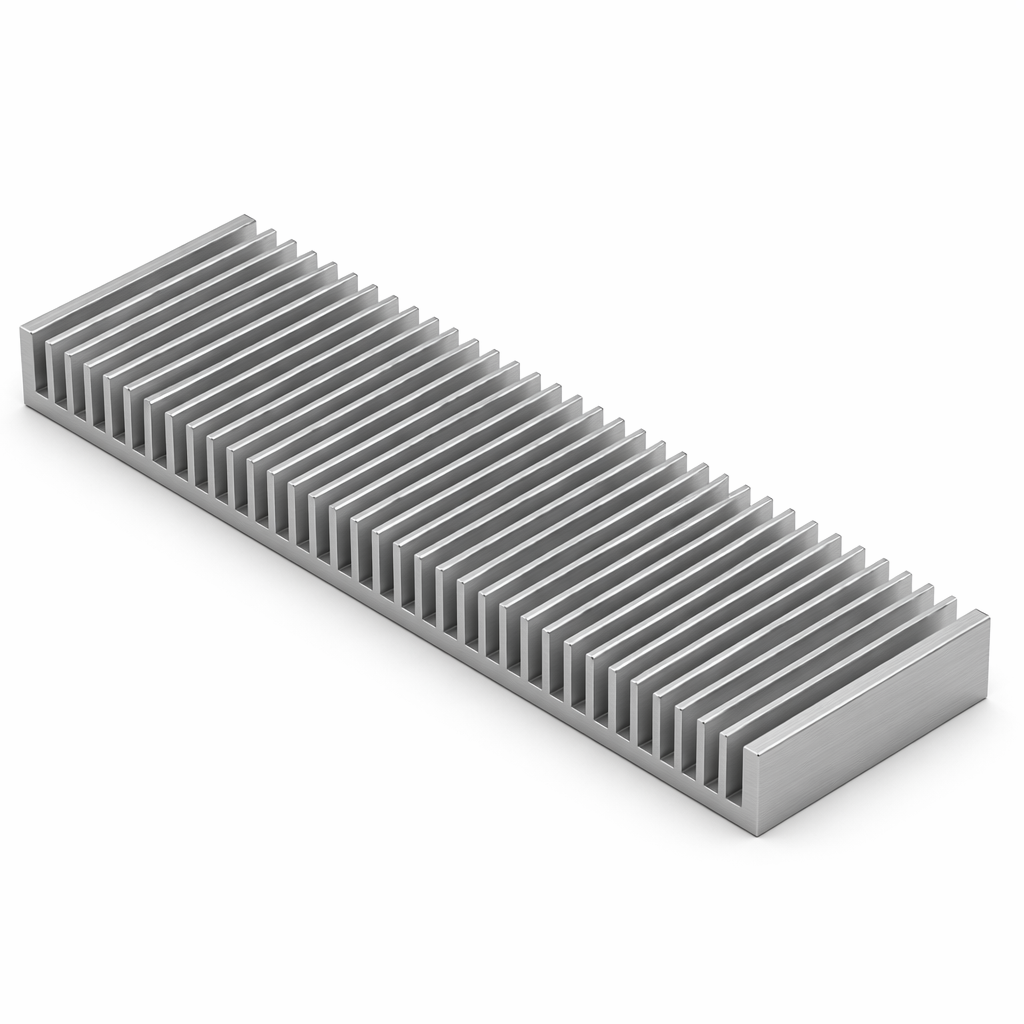

 | ct-318 | 300mm-25mm-6mm | |

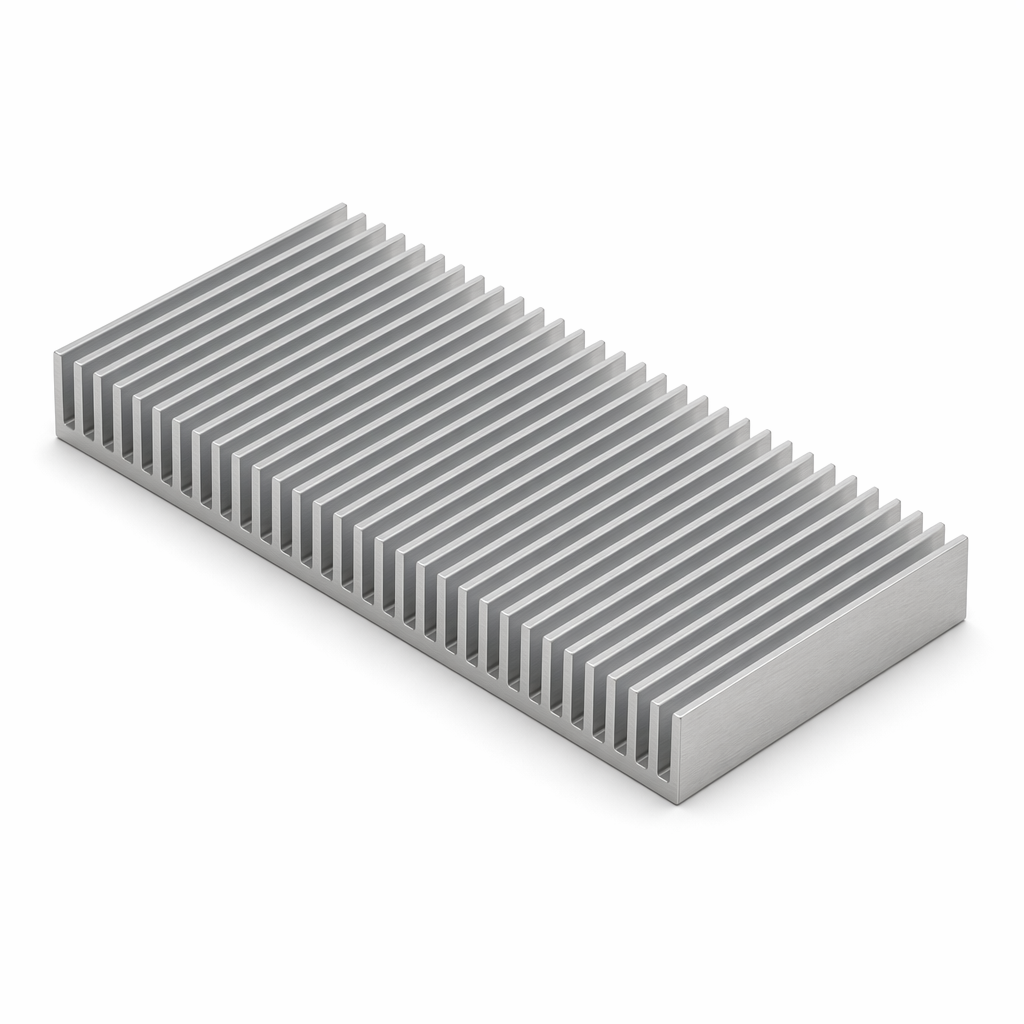

 | ct-320 | 200mm-25mm-4mm | |

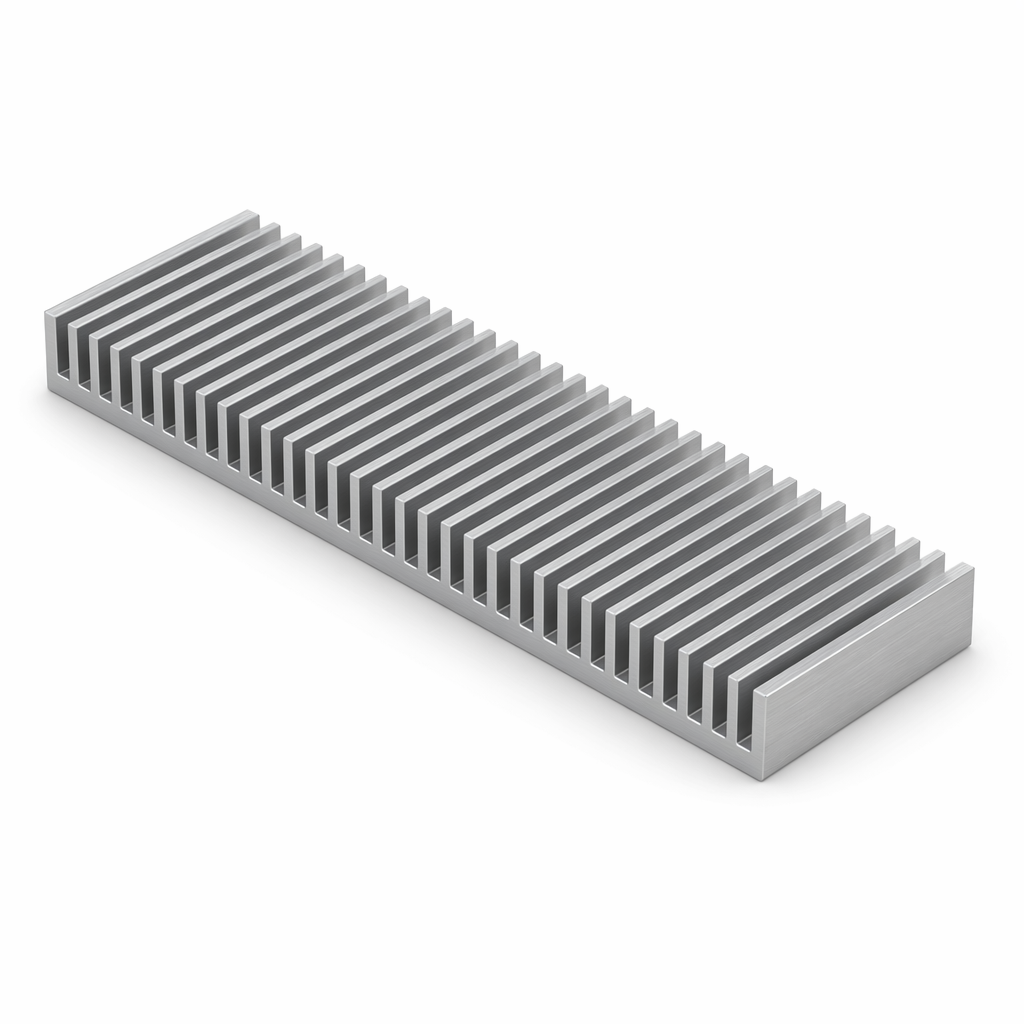

 | ct-325 | 325mm-30mm-7mm | |

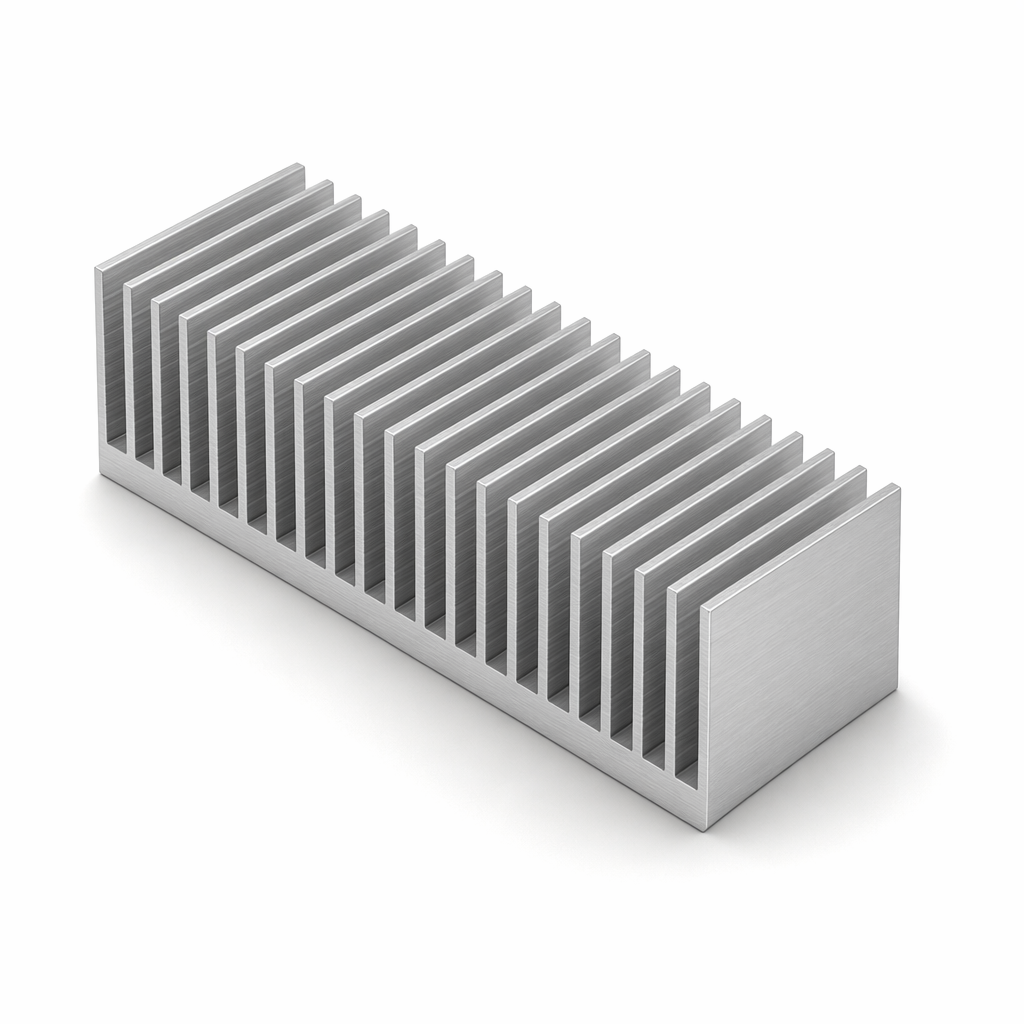

 | ct-330 | 300mm-84.5mm-16.5mm | |

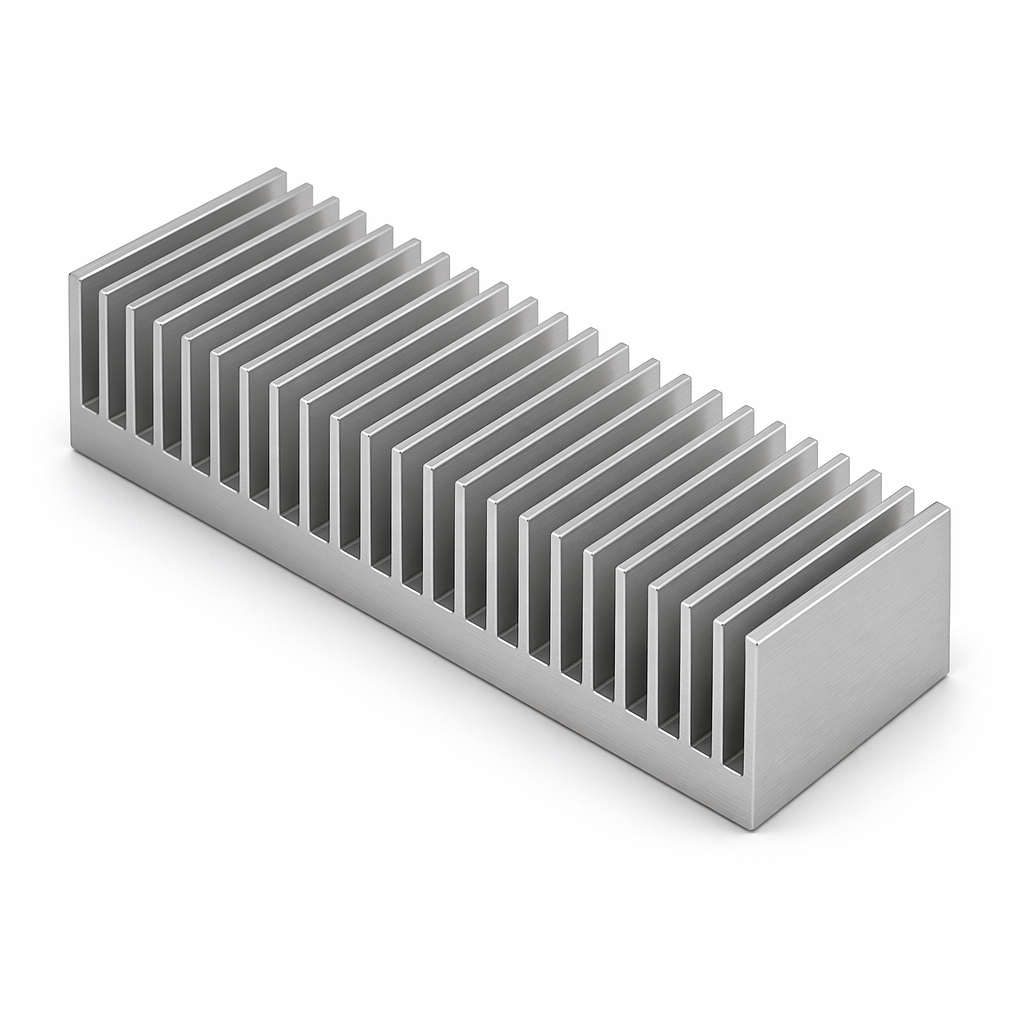

 | ct-360 | 300mm-60mm-12mm | |

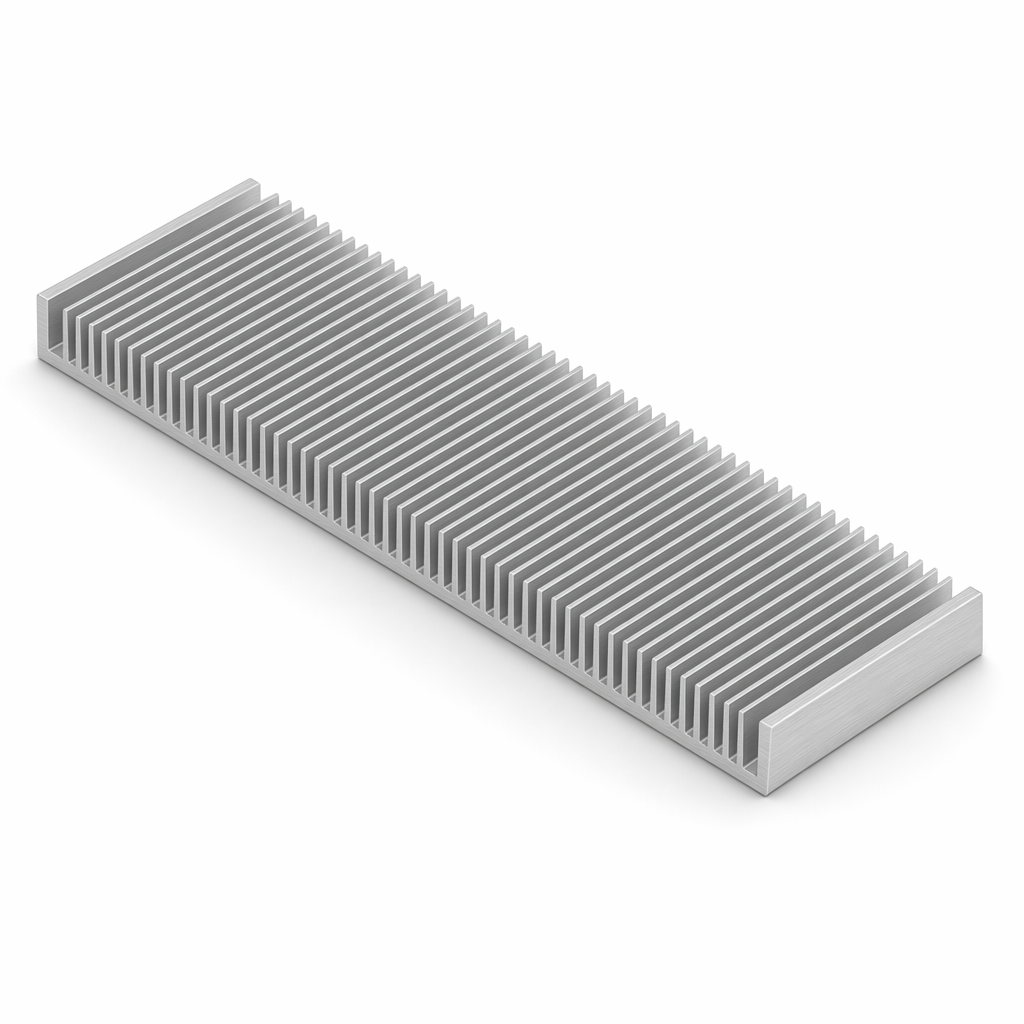

 | ct-380 | 380mm-25mm-5mm | |

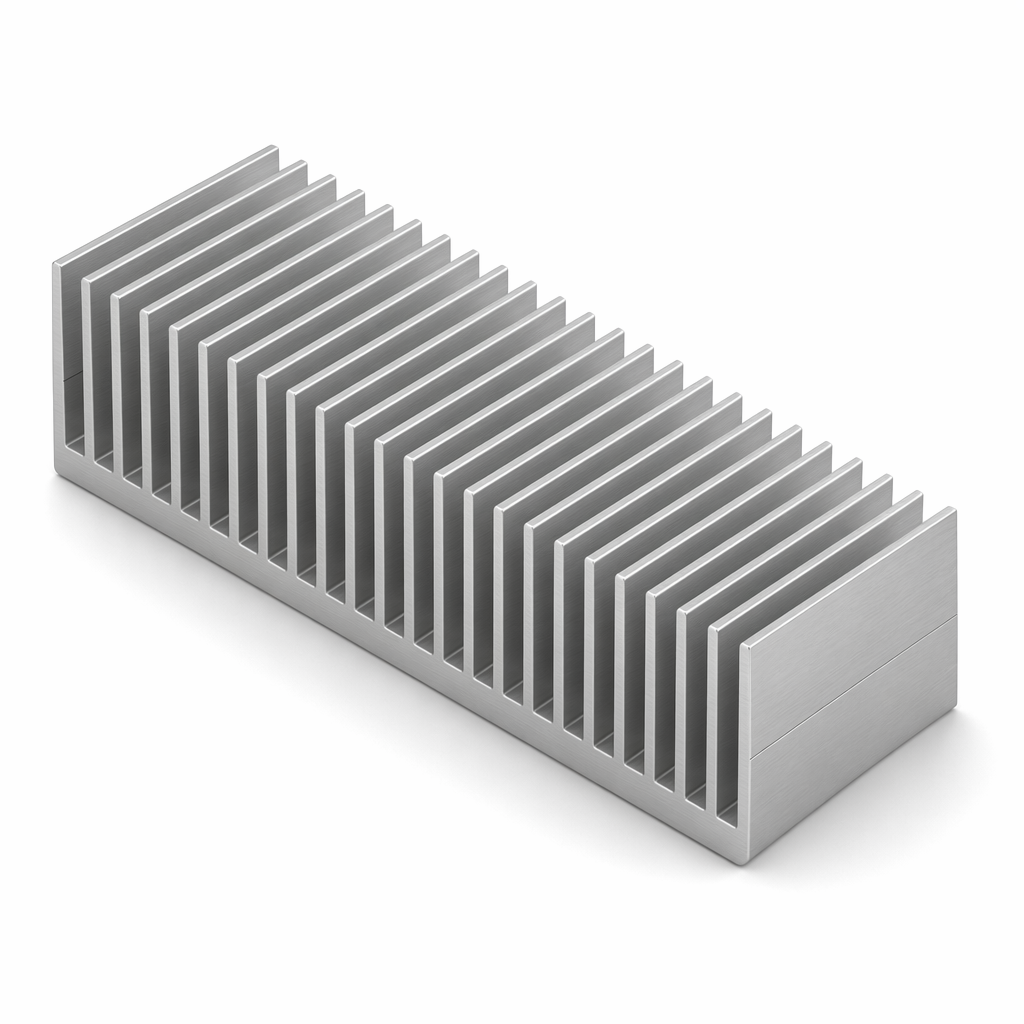

 | ct-383 | 300mm-83.45mm-12.5mm | |

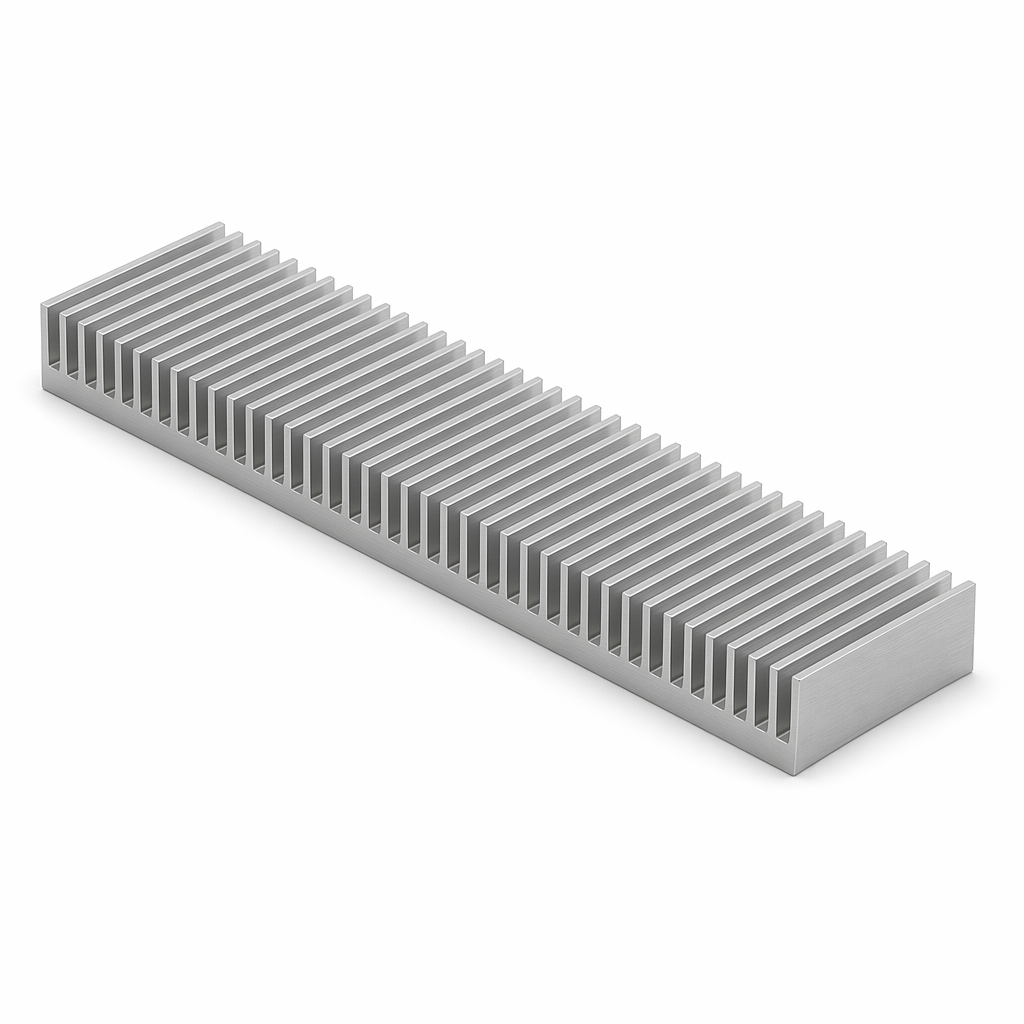

 | ct-400 | 400mm-40mm-10mm | |

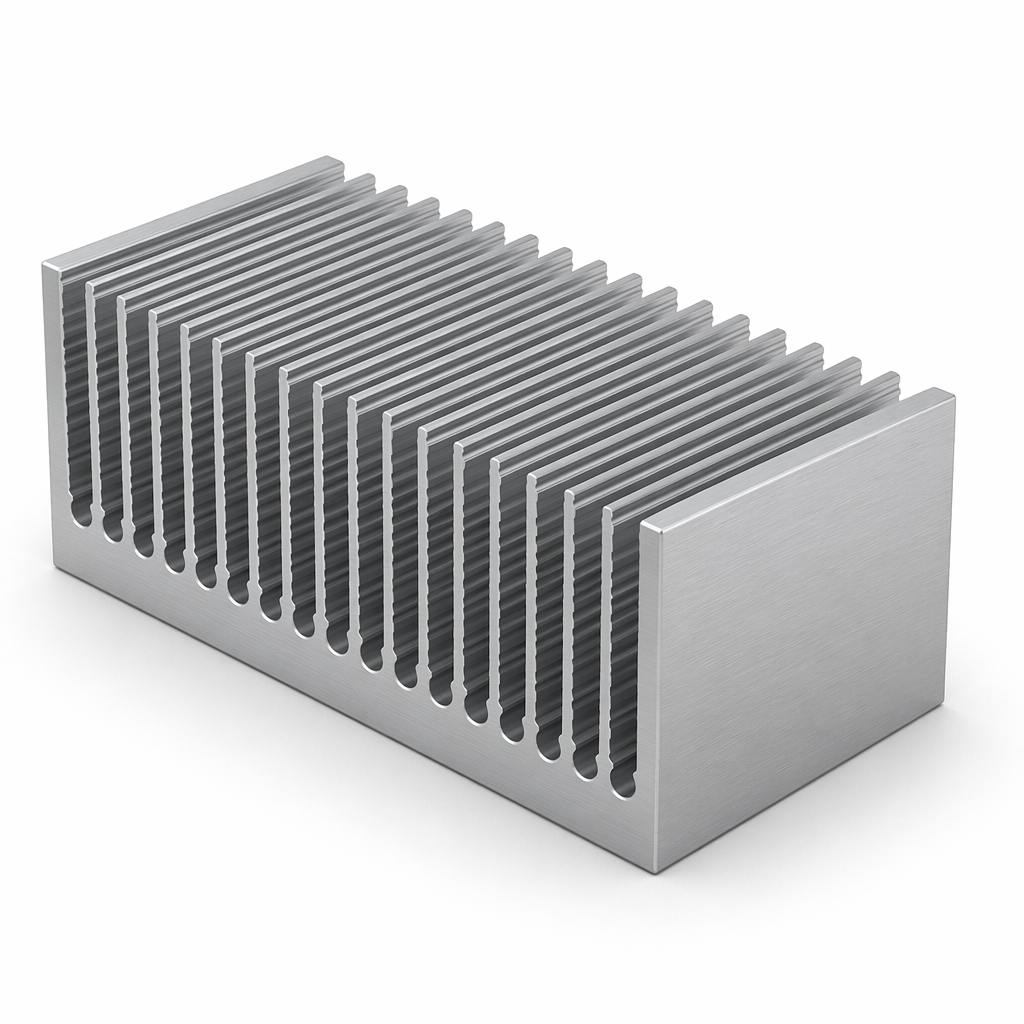

 | ct-521 | 200mm-84mm-15mm | |

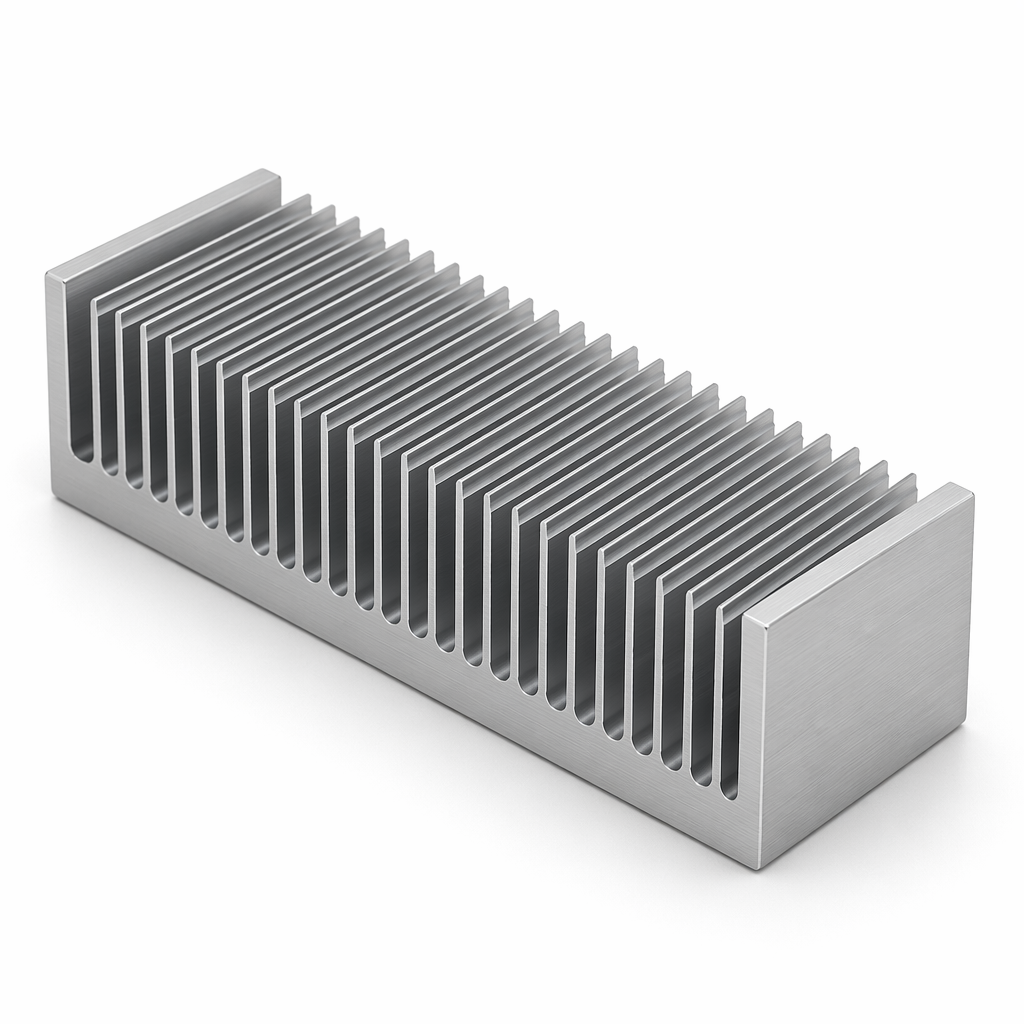

 | ct-530 | 300mm-84mm-15mm | |

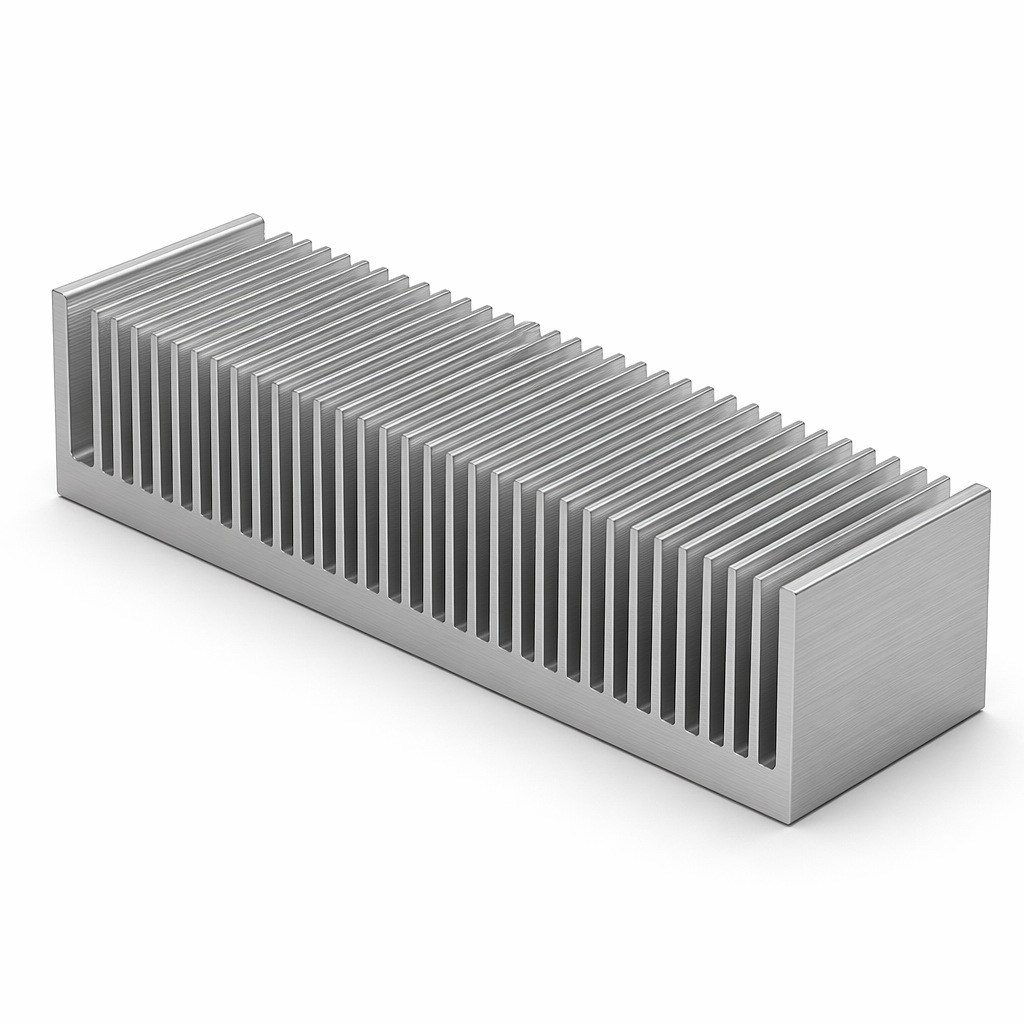

 | ct-540 | 400mm-85mm-16mm | |

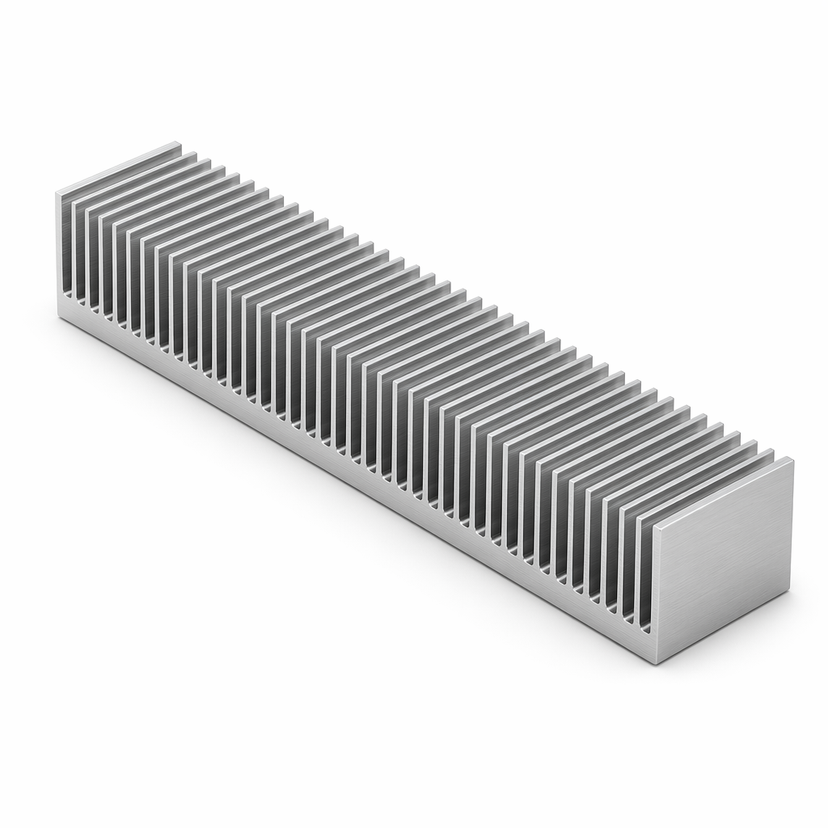

 | ct-560 | 600mm-85mm-16mm | |

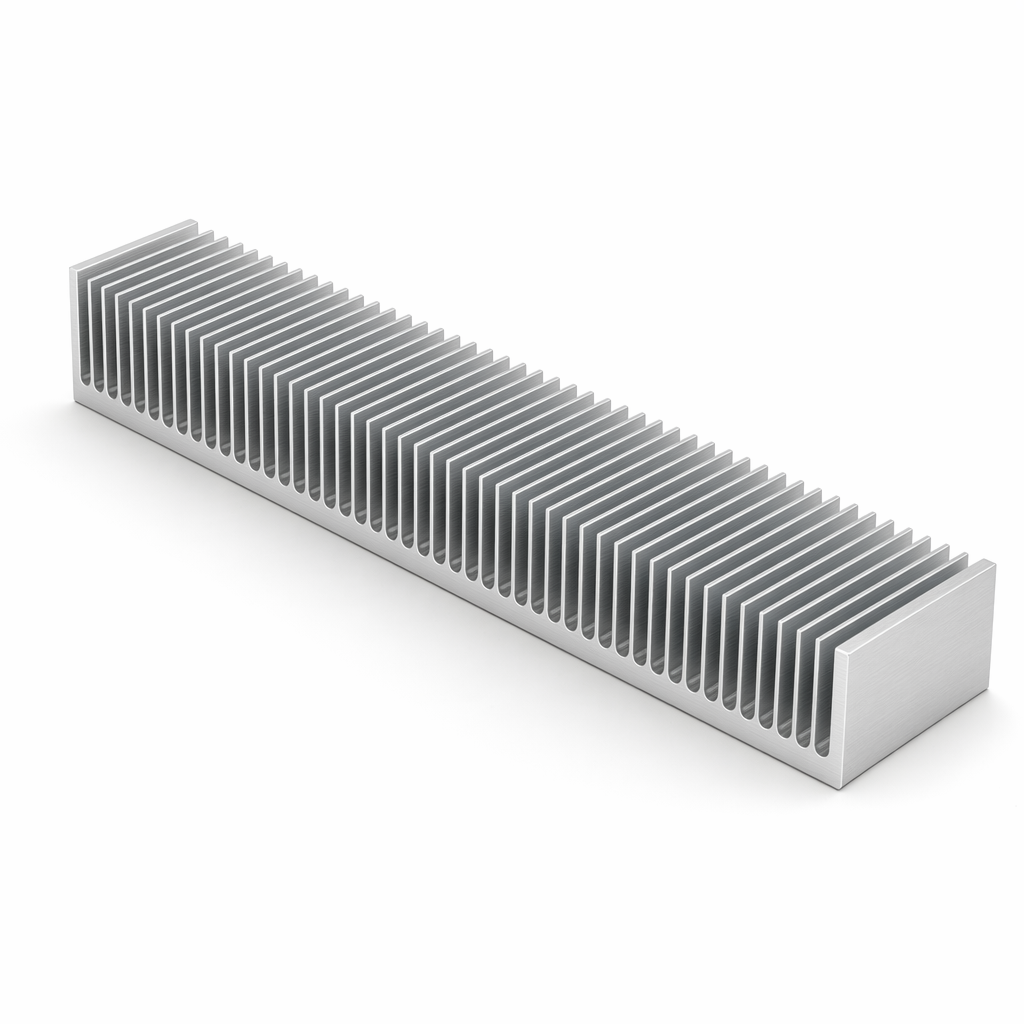

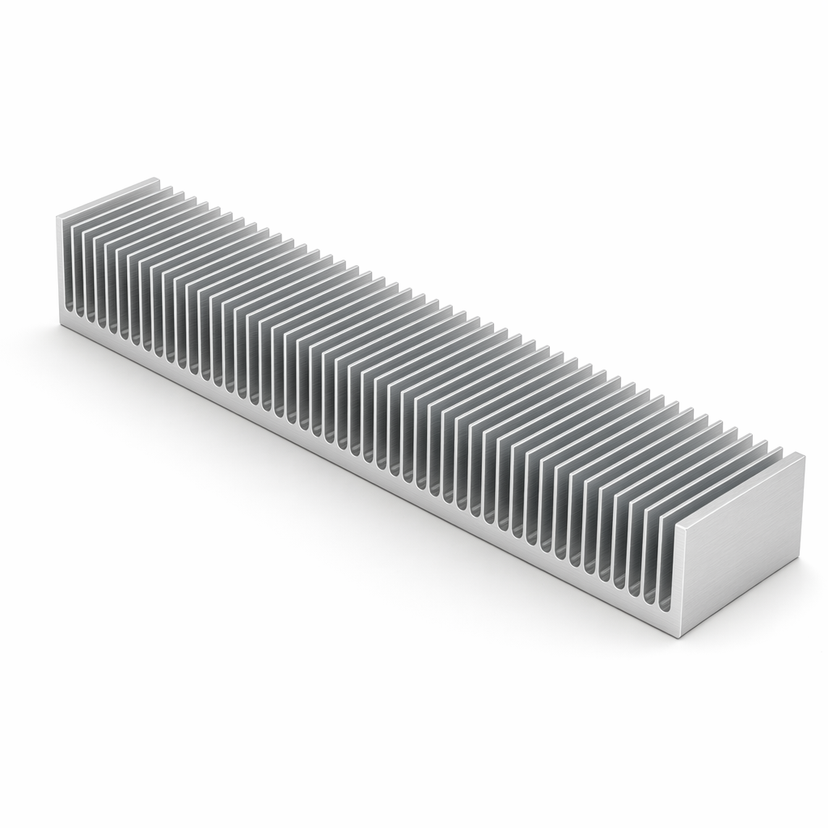

 | ct-570 | 750mm-85mm-16mm | |

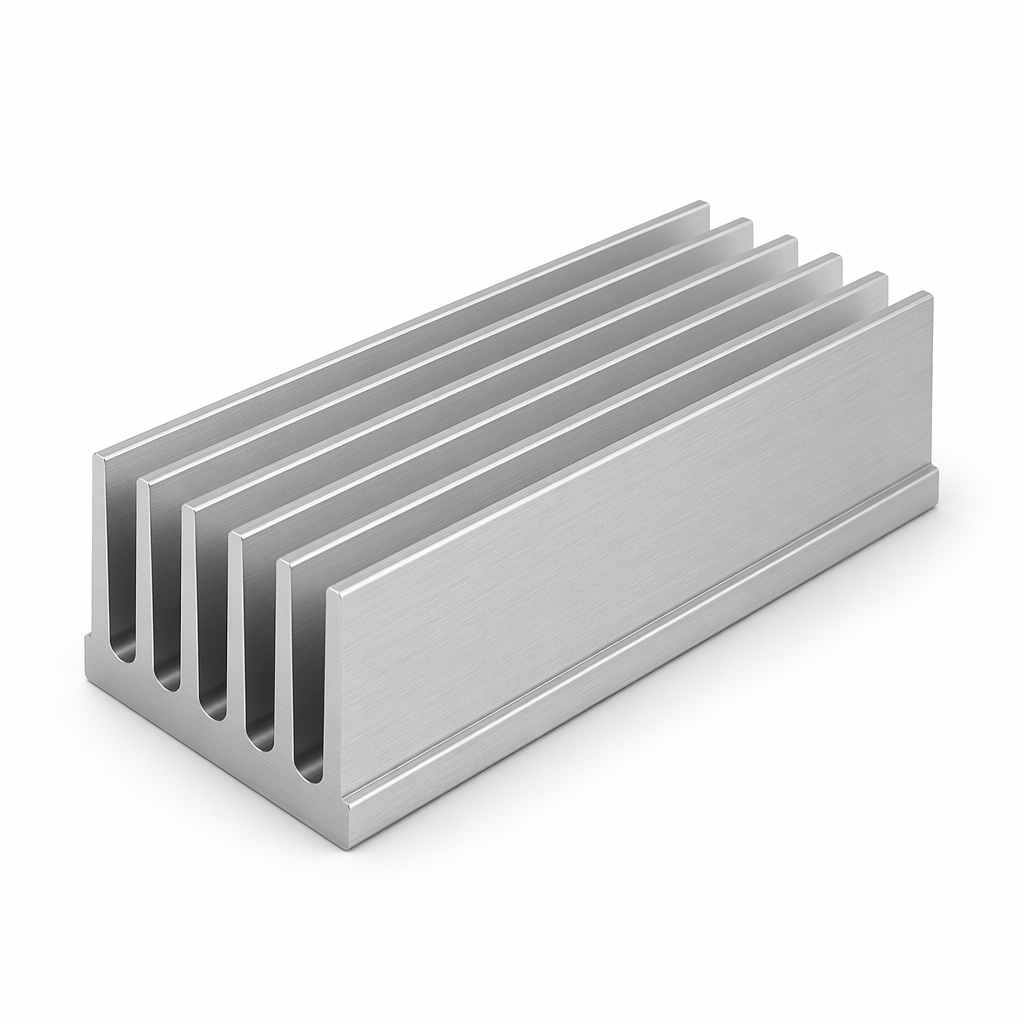

 | ct-1040 | 40mm-27mm-5mm | |

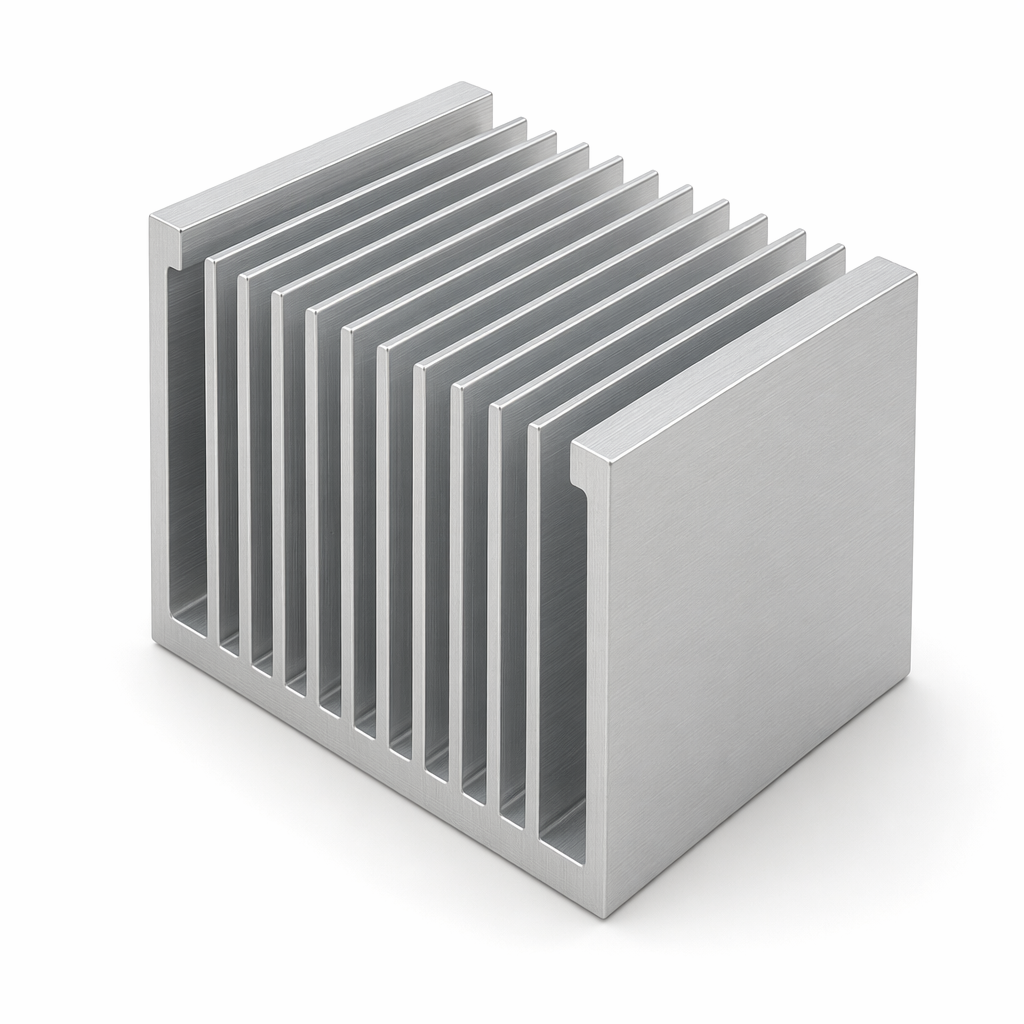

 | ct-1121 | 120mm-110mm-10mm | |

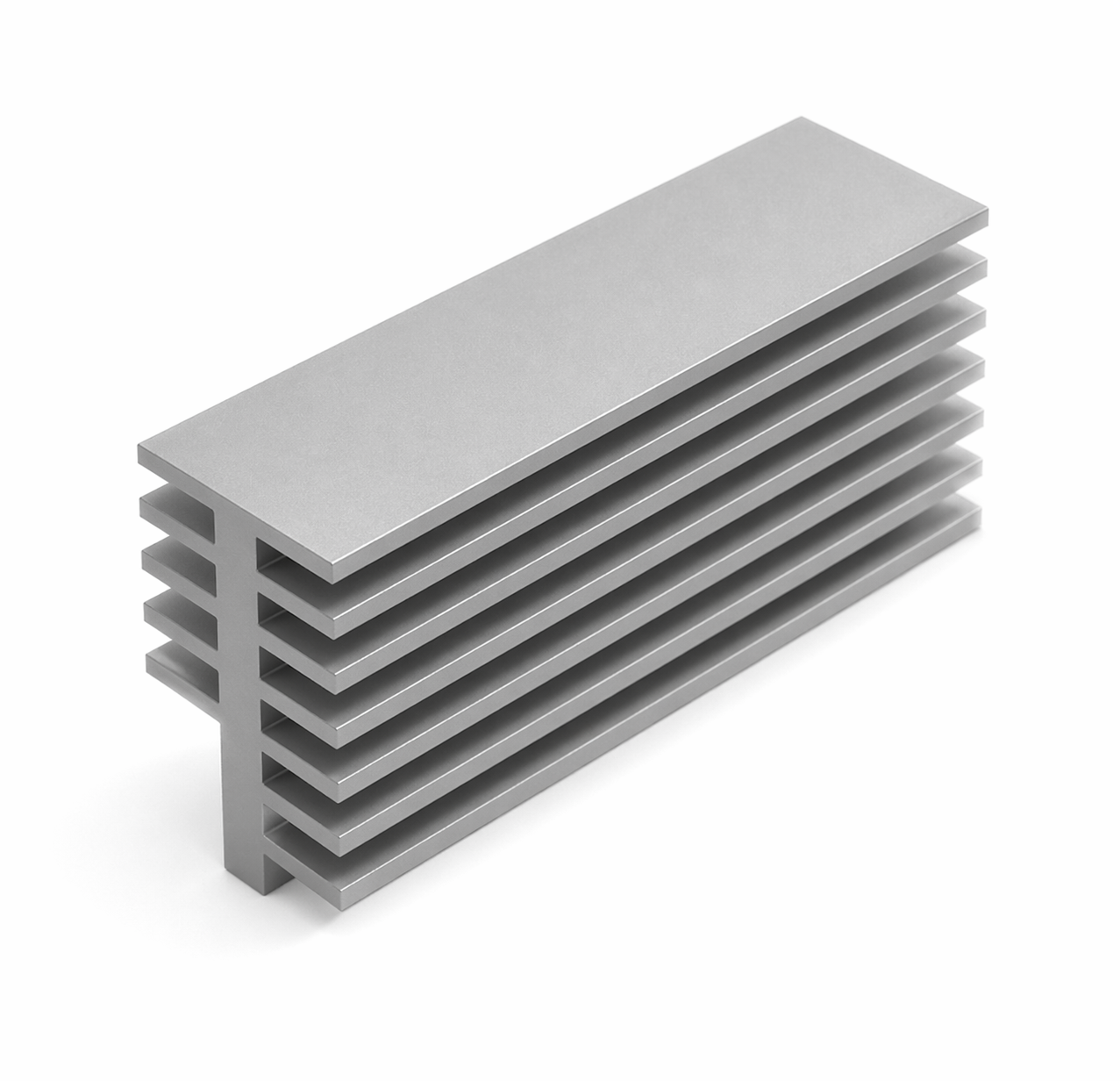

 | ct-1139 | 30mm-54mm-N/D | |

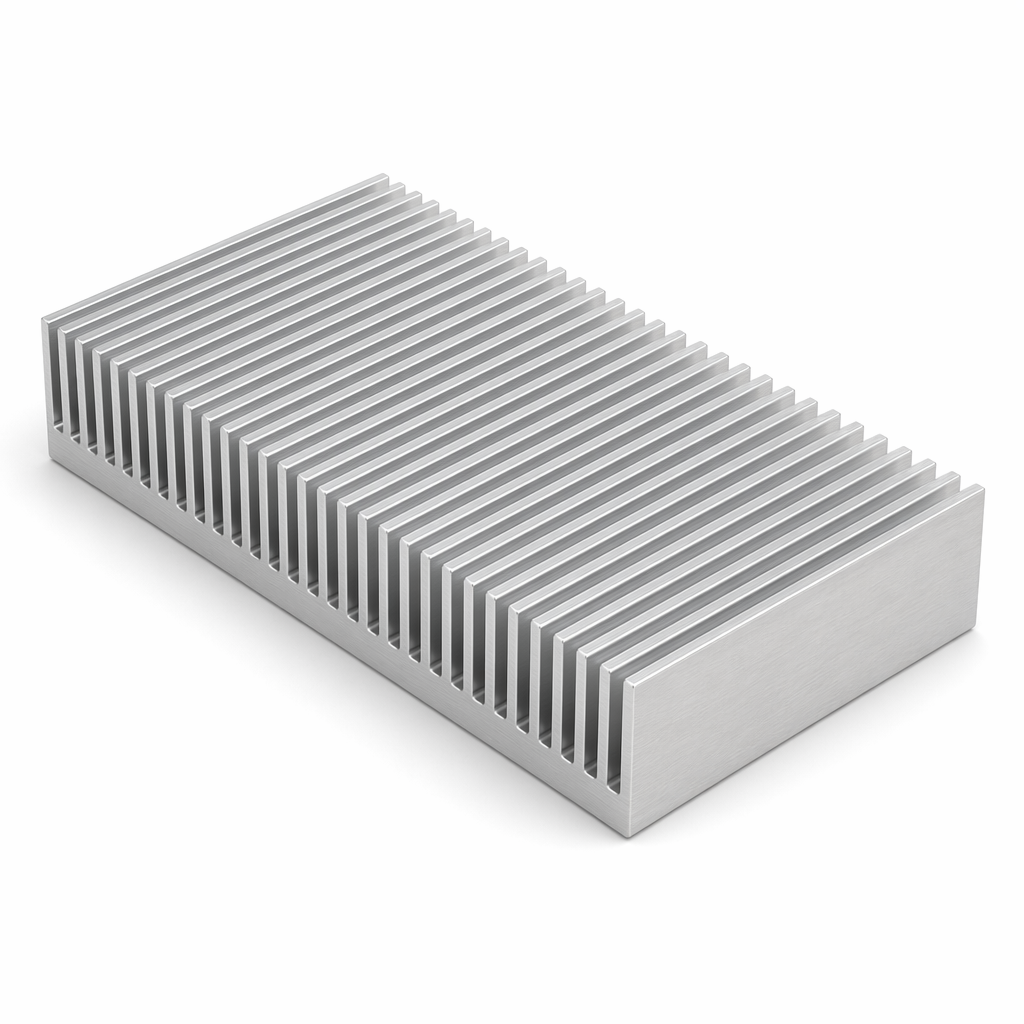

 | ct-1152 | 152mm-34.5mm-8mm | |

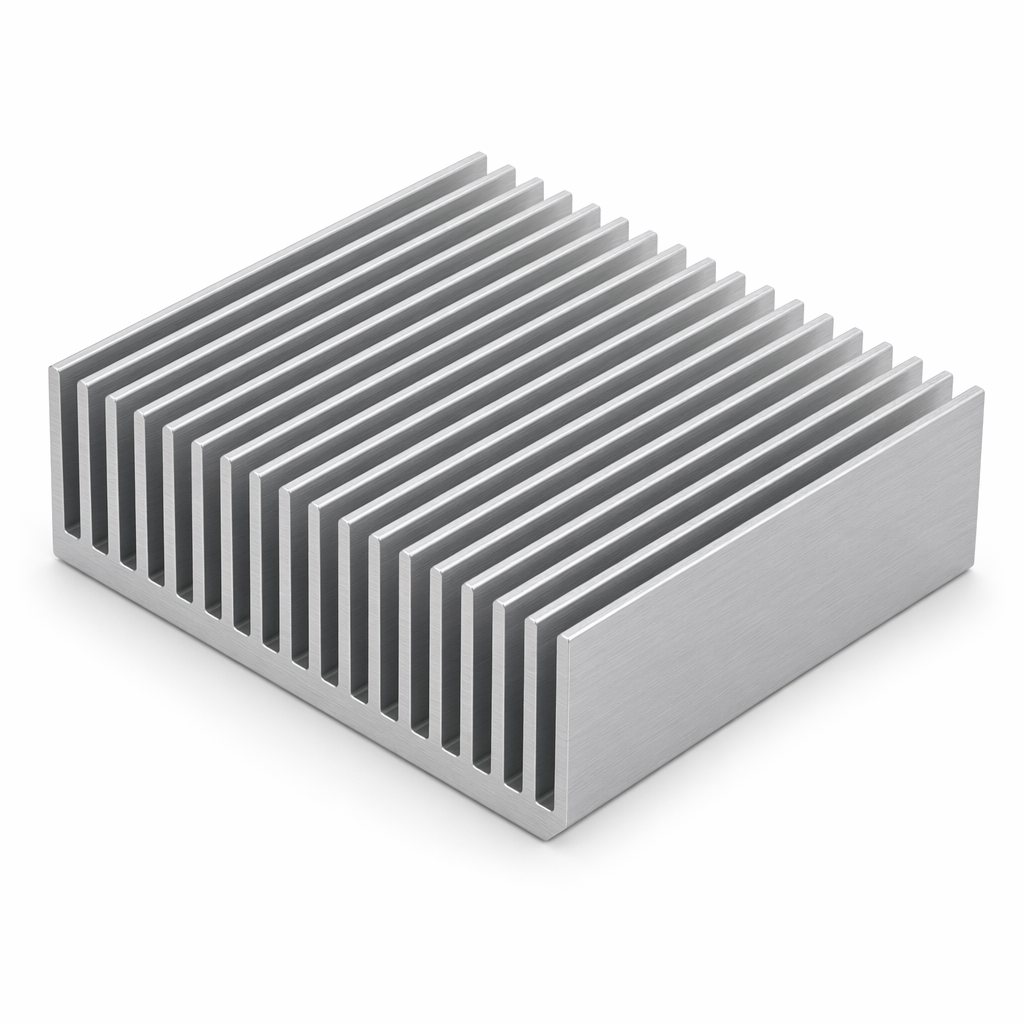

 | ct-1155 | 110mm-35.7mm-6.1mm | |

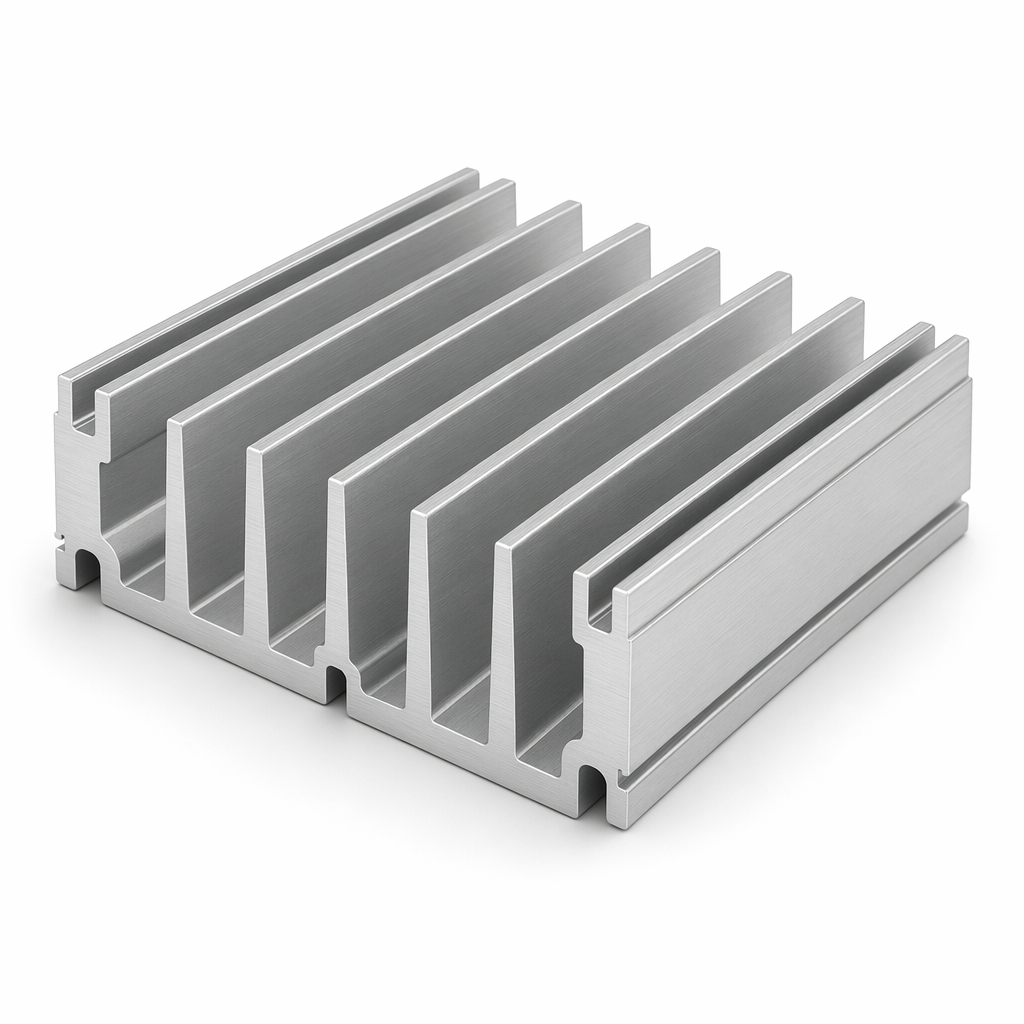

 | ct-1162 | 100mm-34mm-5mm | |

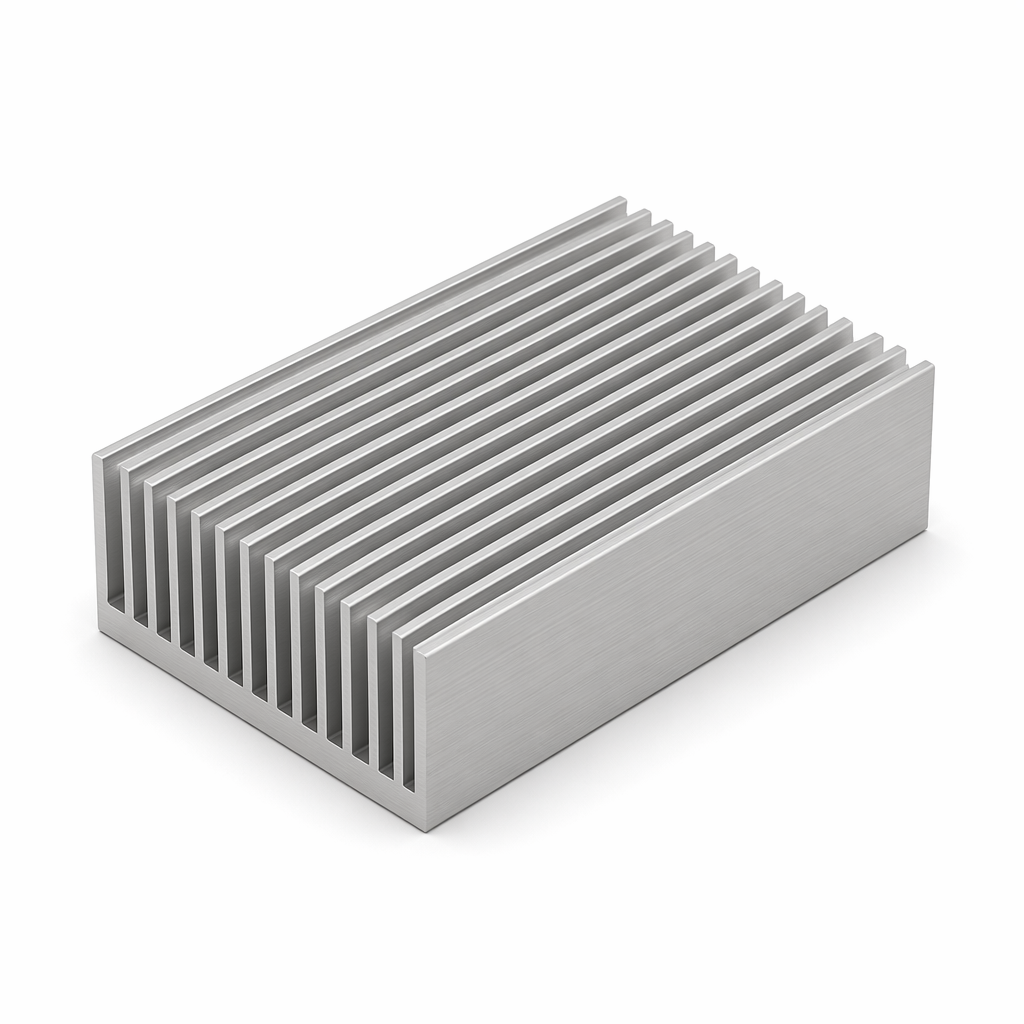

 | ct-1176 | 70mm-28.5mm-5.2mm | |

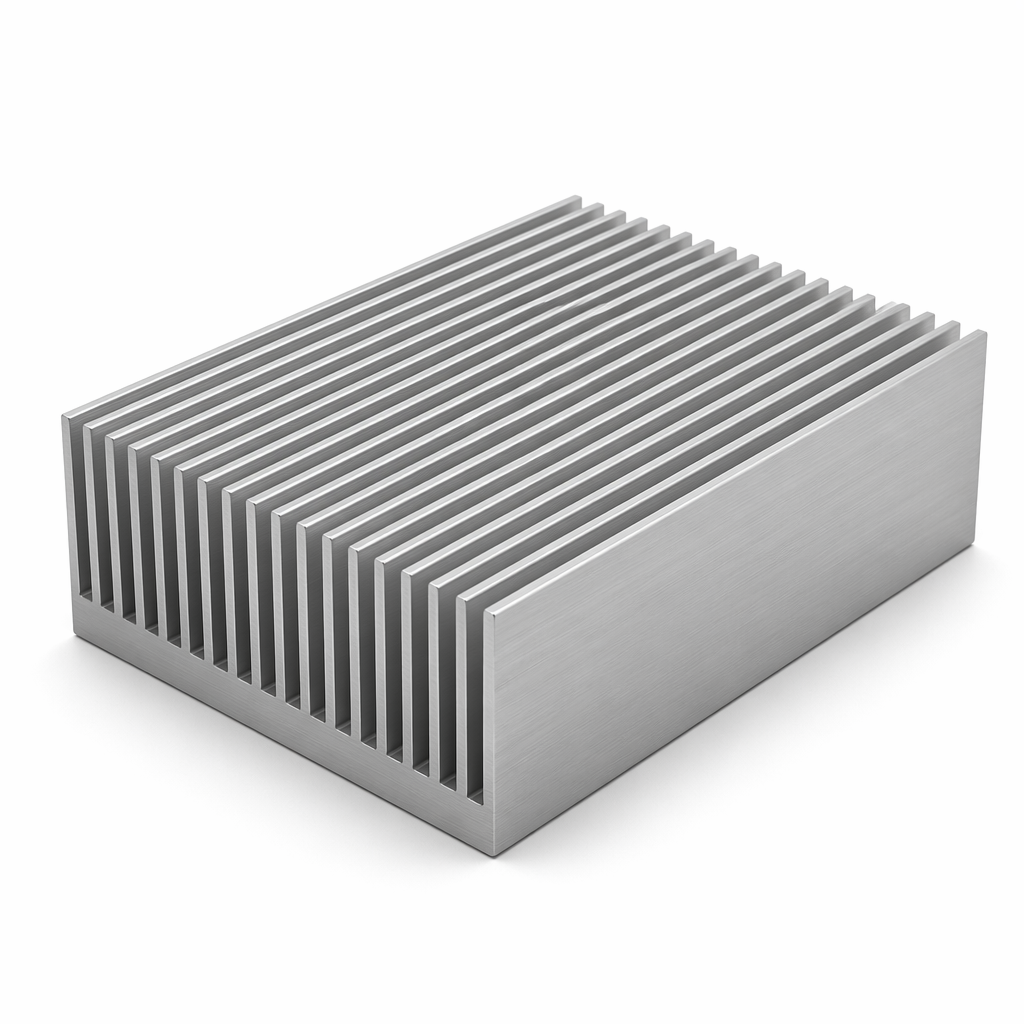

 | ct-1180 | 80mm-32.8mm-6.5mm | |

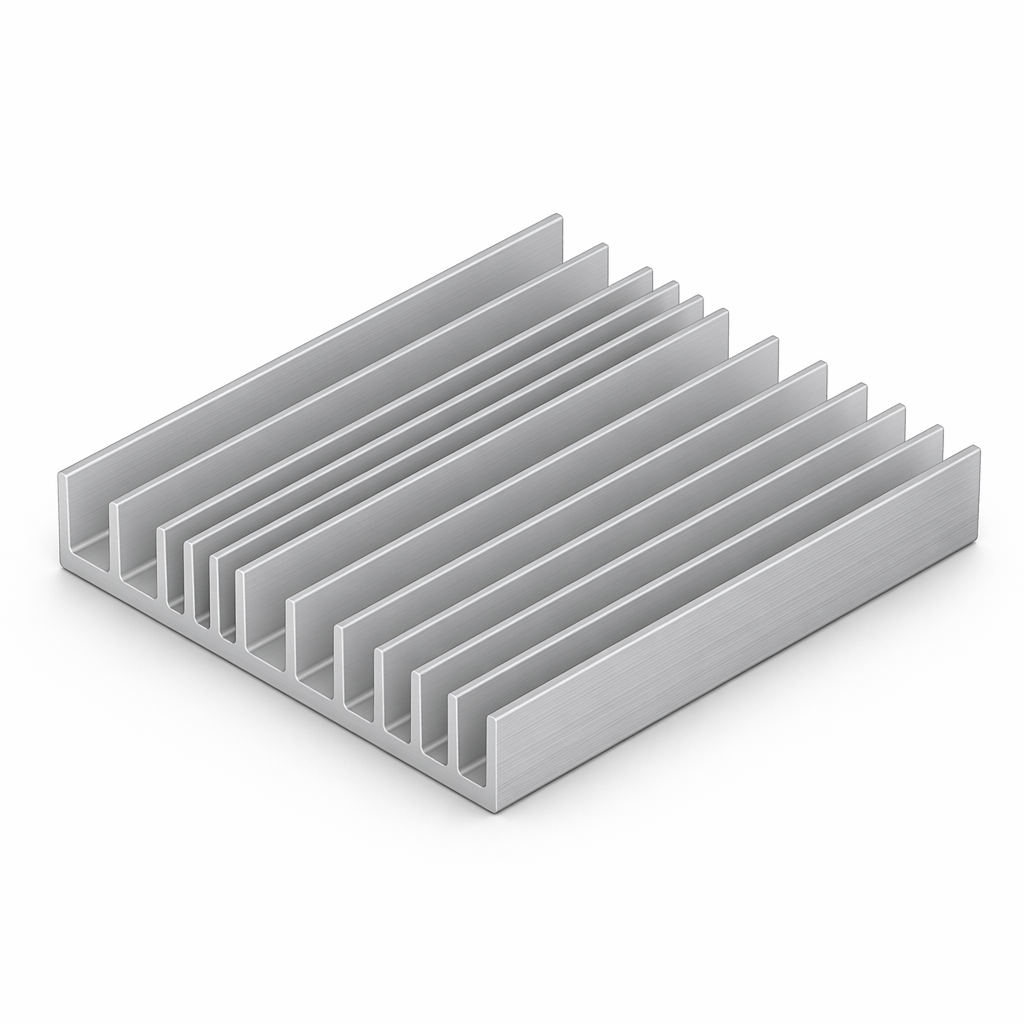

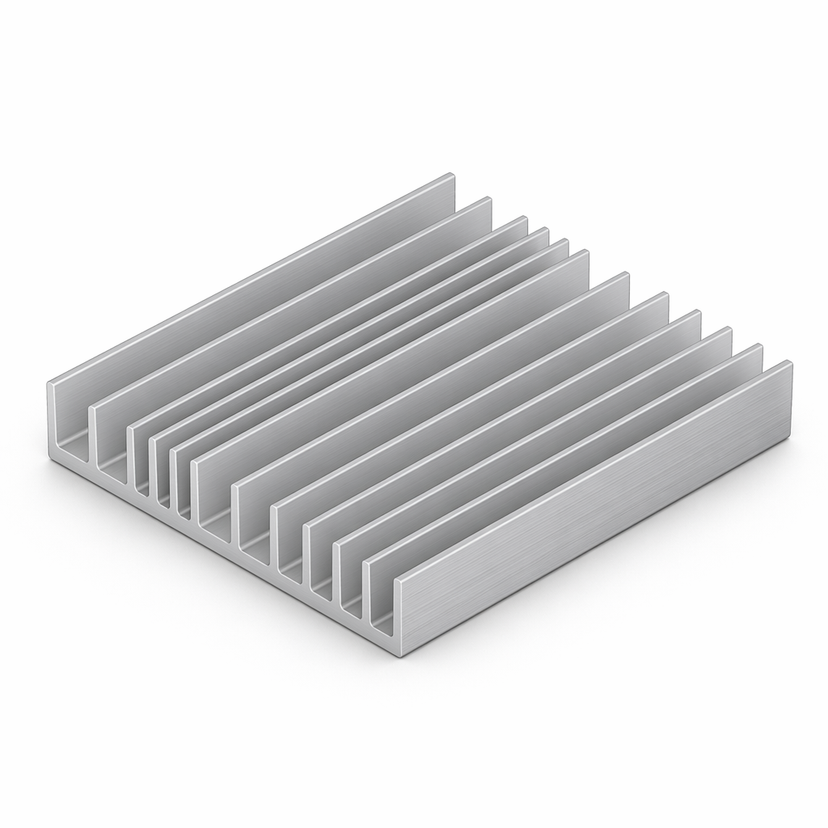

 | ct-1189 | 89.6mm-17mm-3.5mm | |

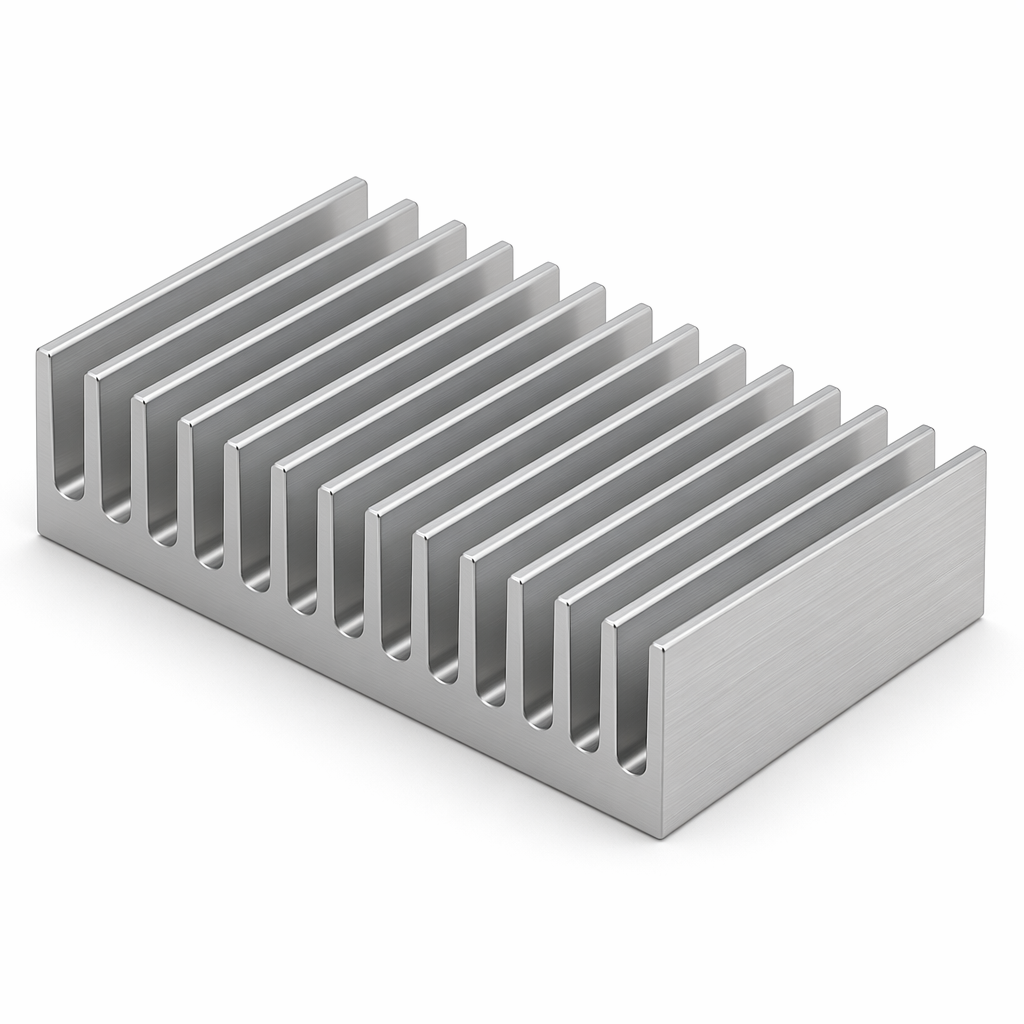

 | ct-1195 | 150mm-40mm-10mm | |

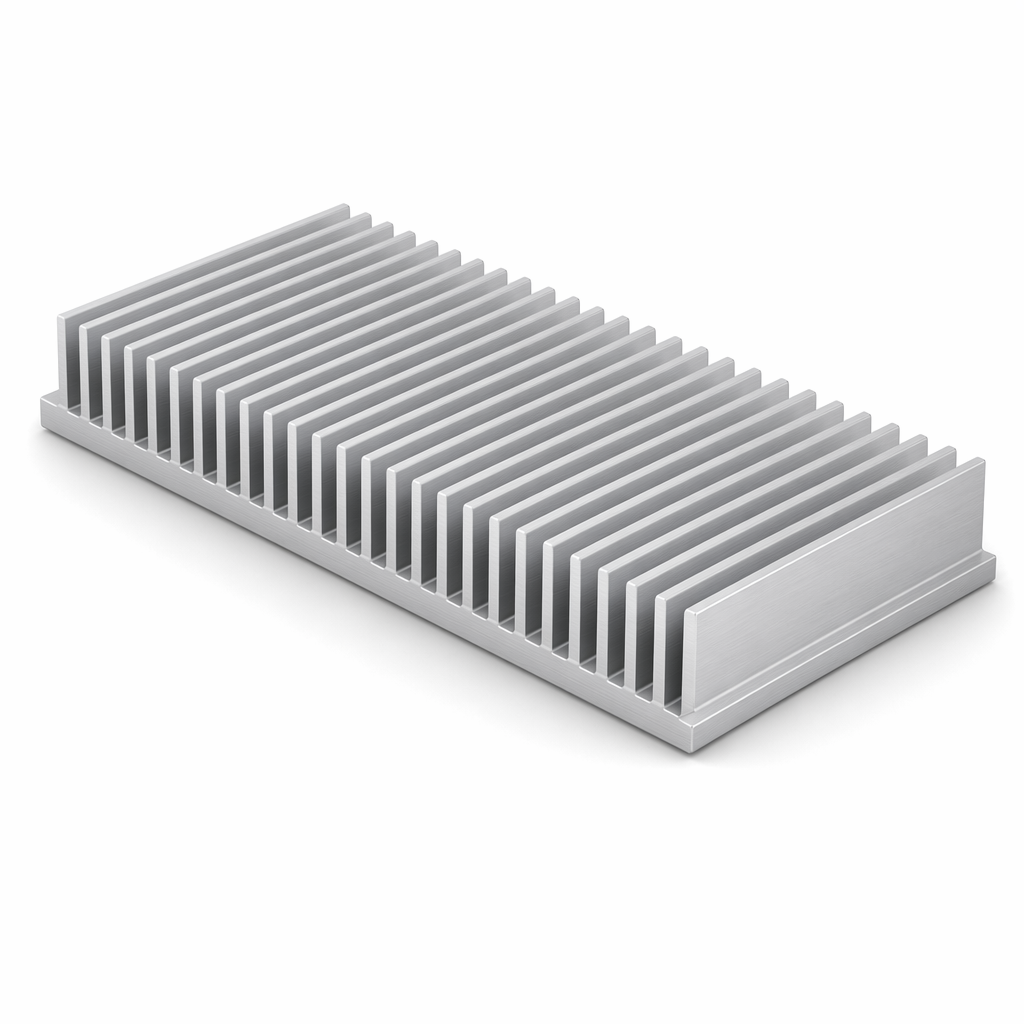

 | ct-1211 | 211mm-25mm-5mm | |

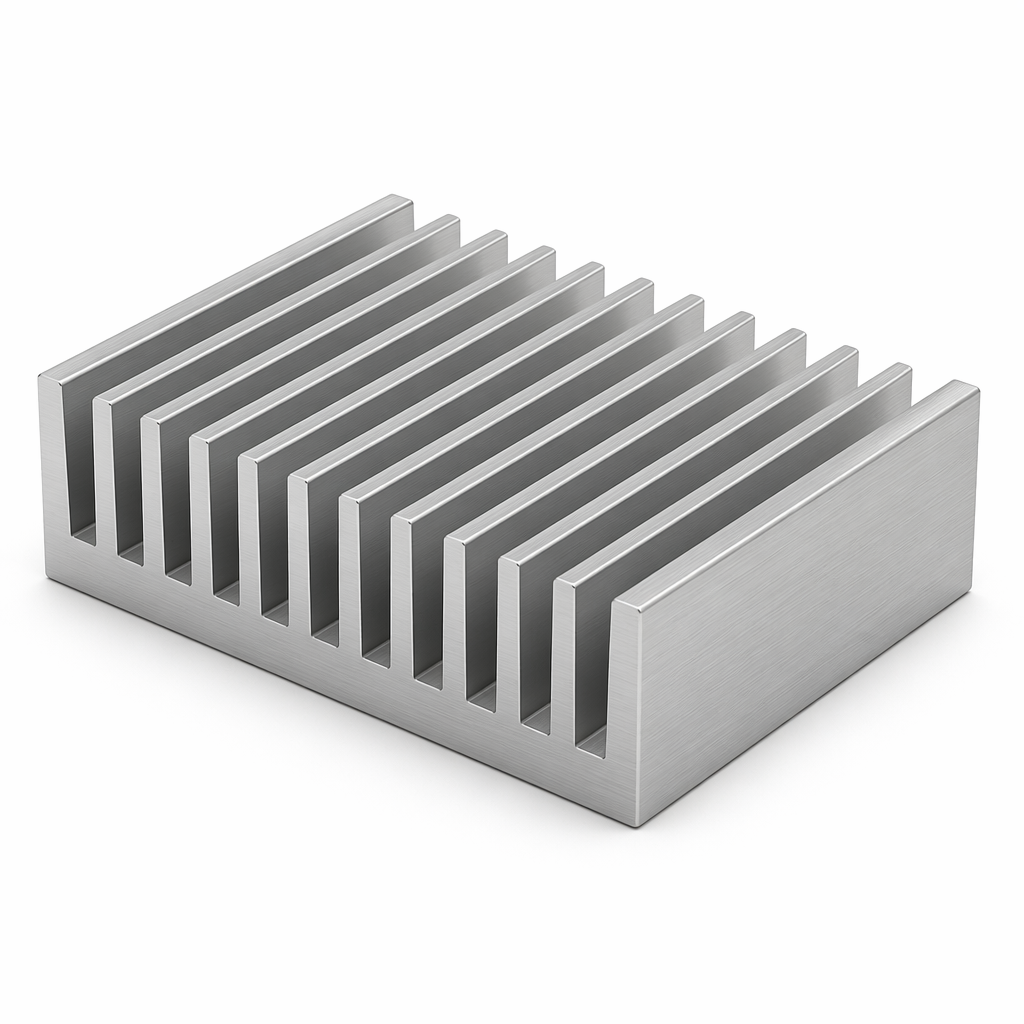

 | ct-1214 | 120mm-40mm-10mm | |

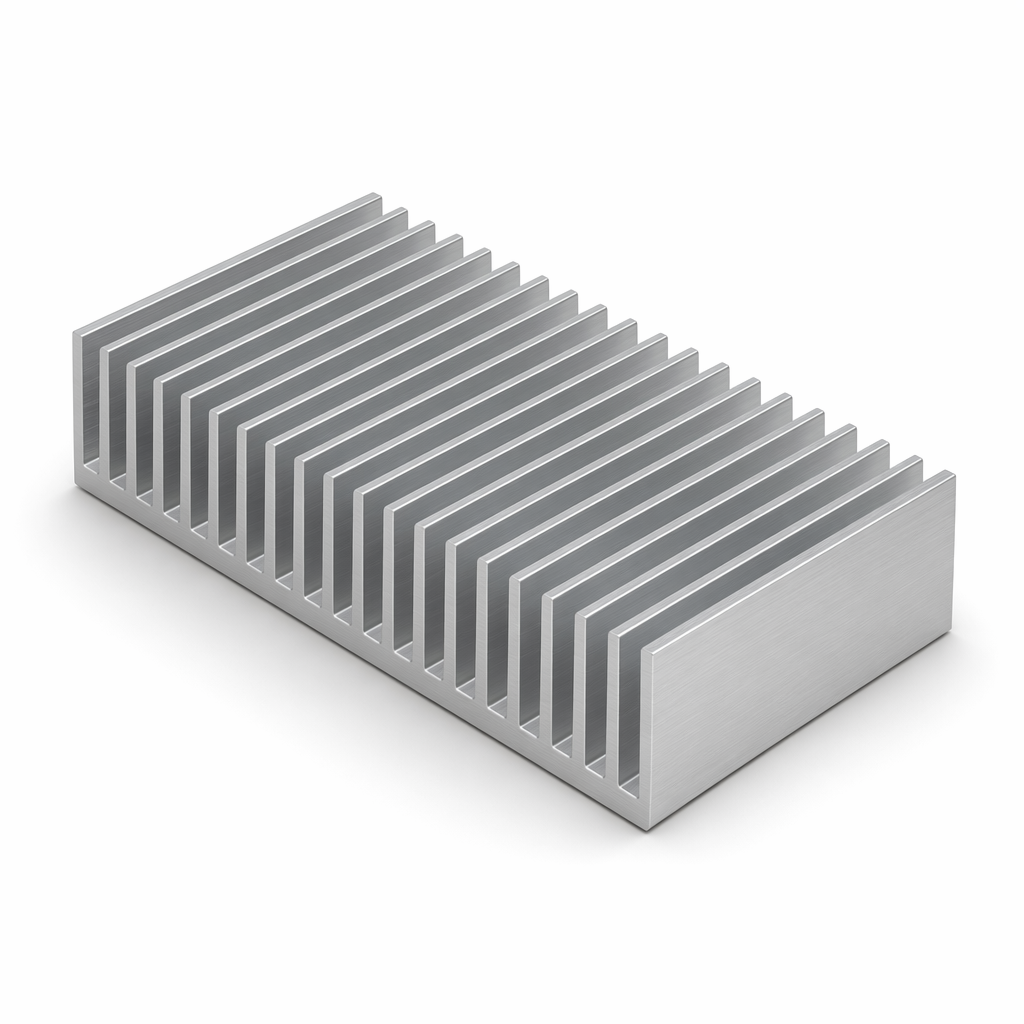

 | ct-1220 | 200mm-45.5mm-6.5mm | |

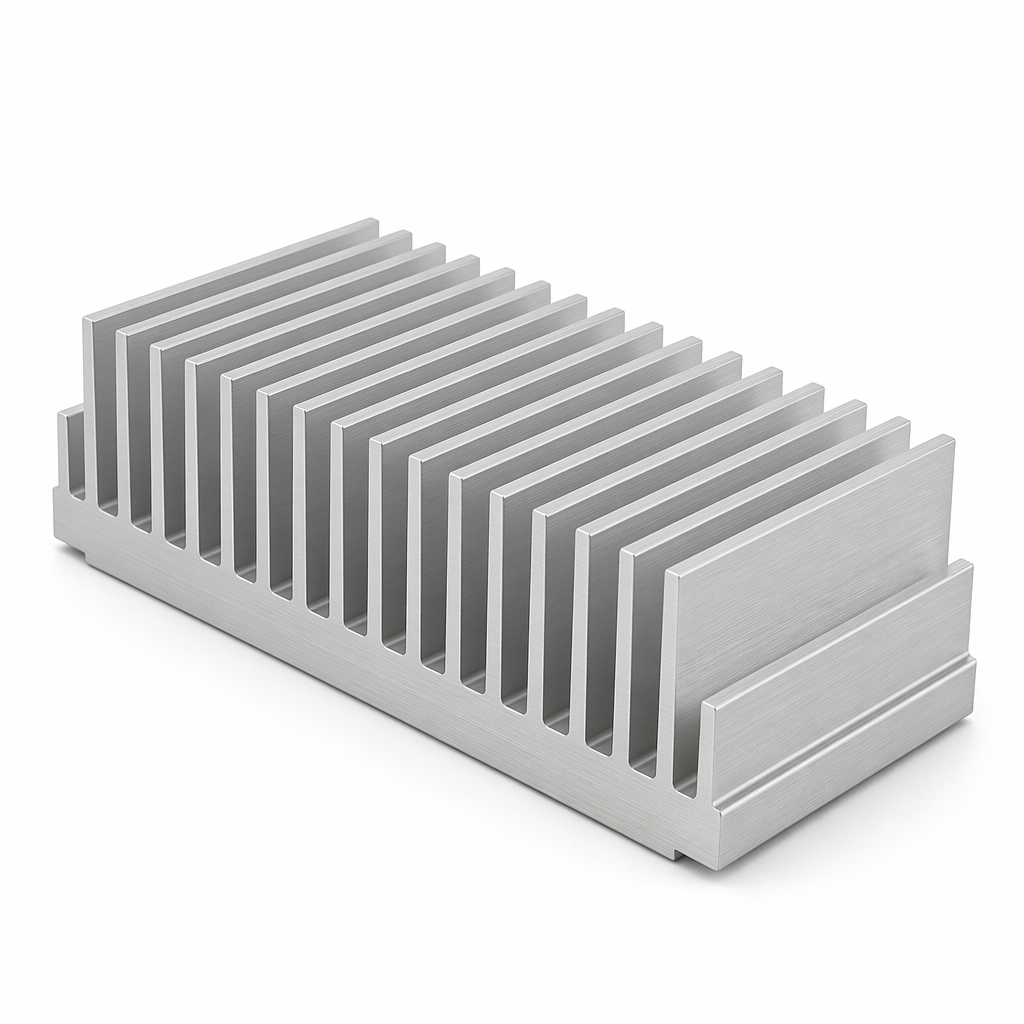

 | ct-1222 | 230mm-76mm-18mm | |

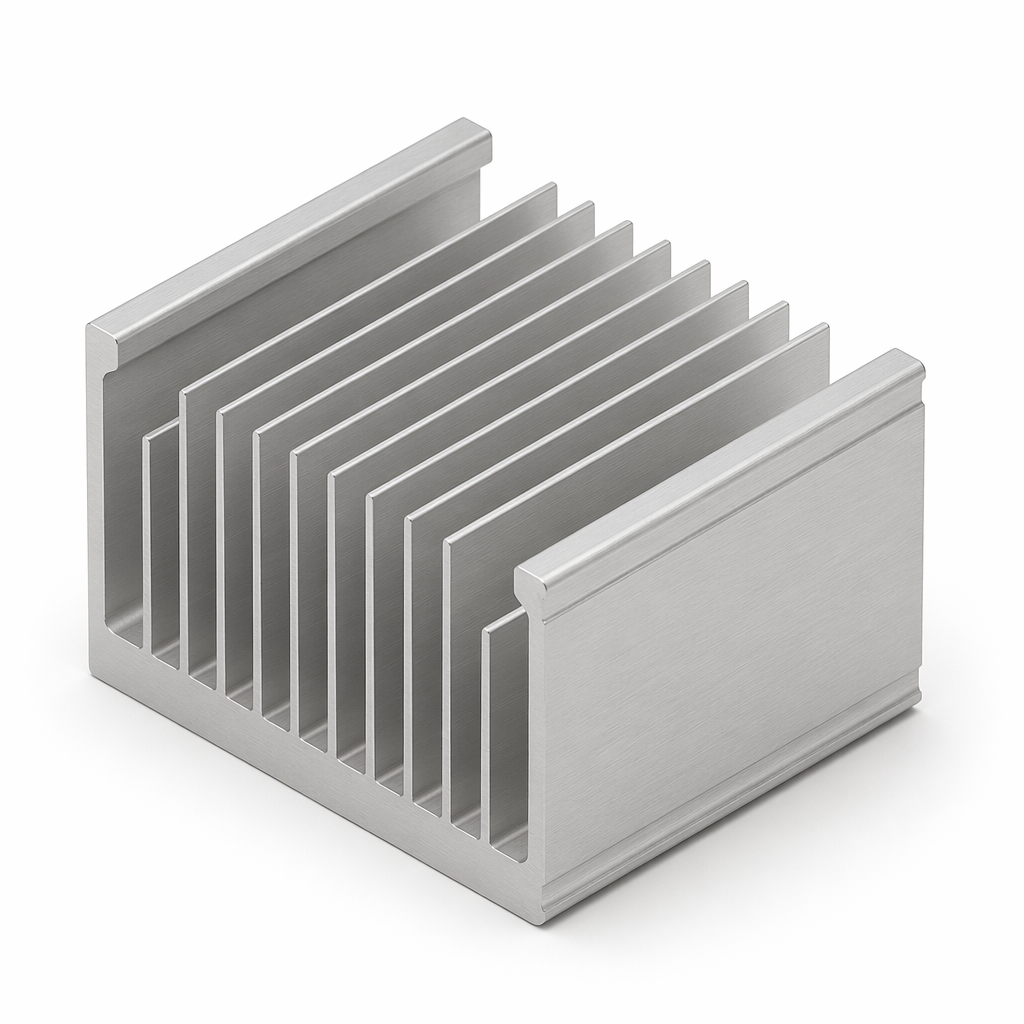

 | ct-1224 | 120mm-80mm-12mm | |

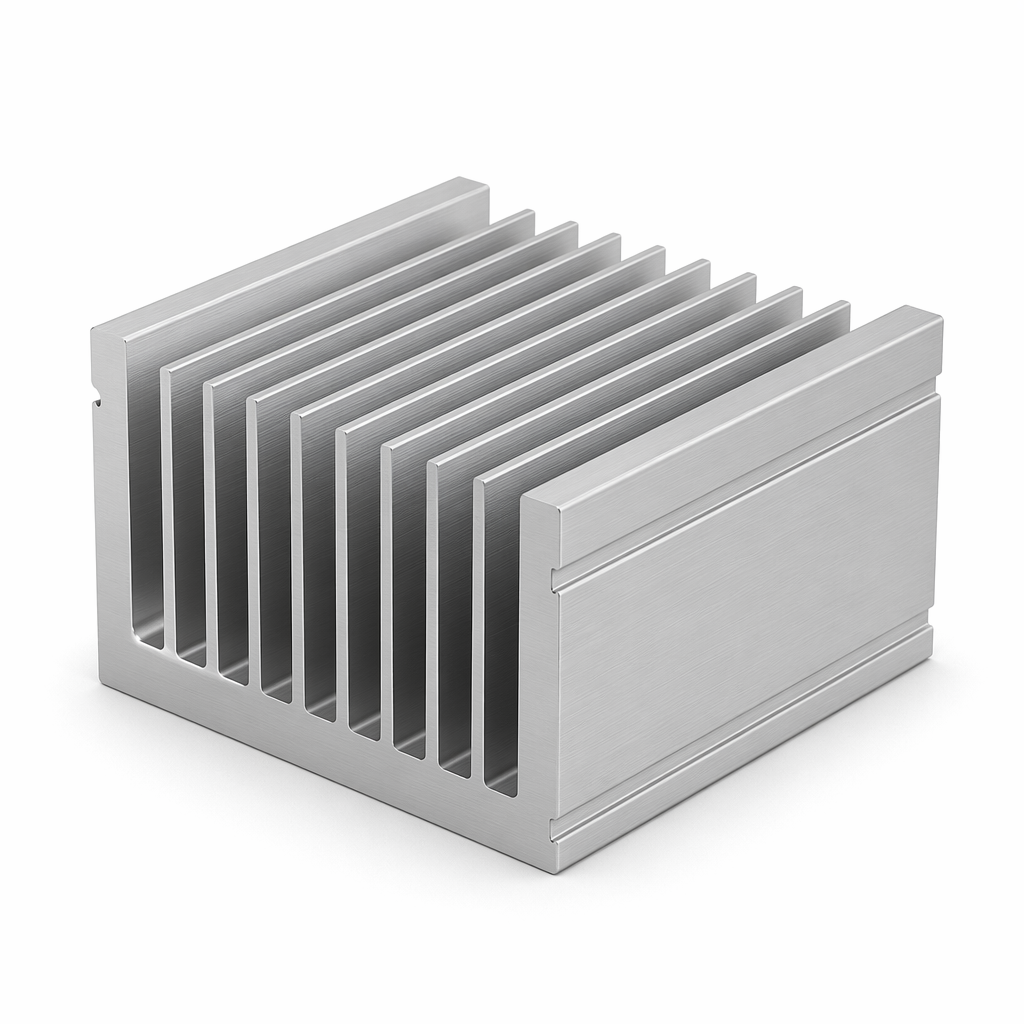

 | ct-1227 | 105mm-71mm-12mm | |

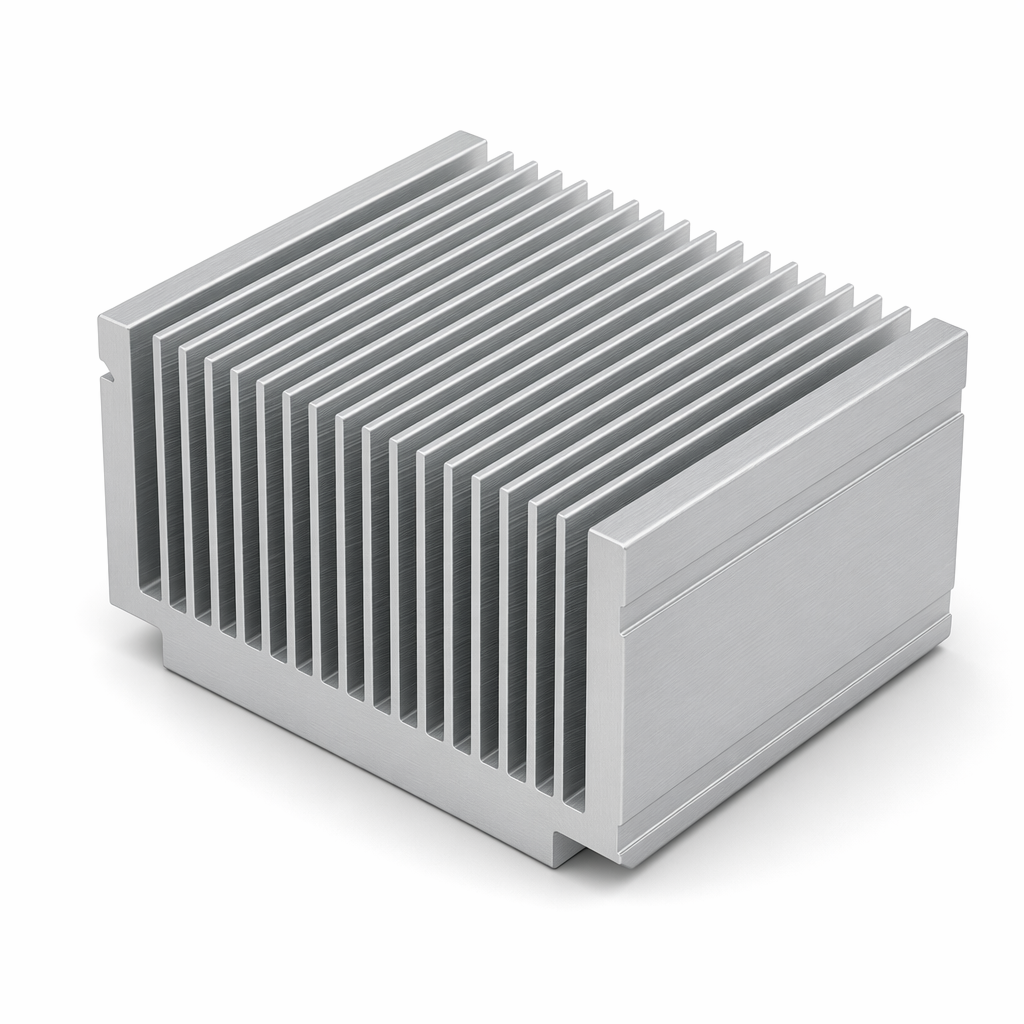

 | ct-1228 | 120mm-75mm-12.5mm | |

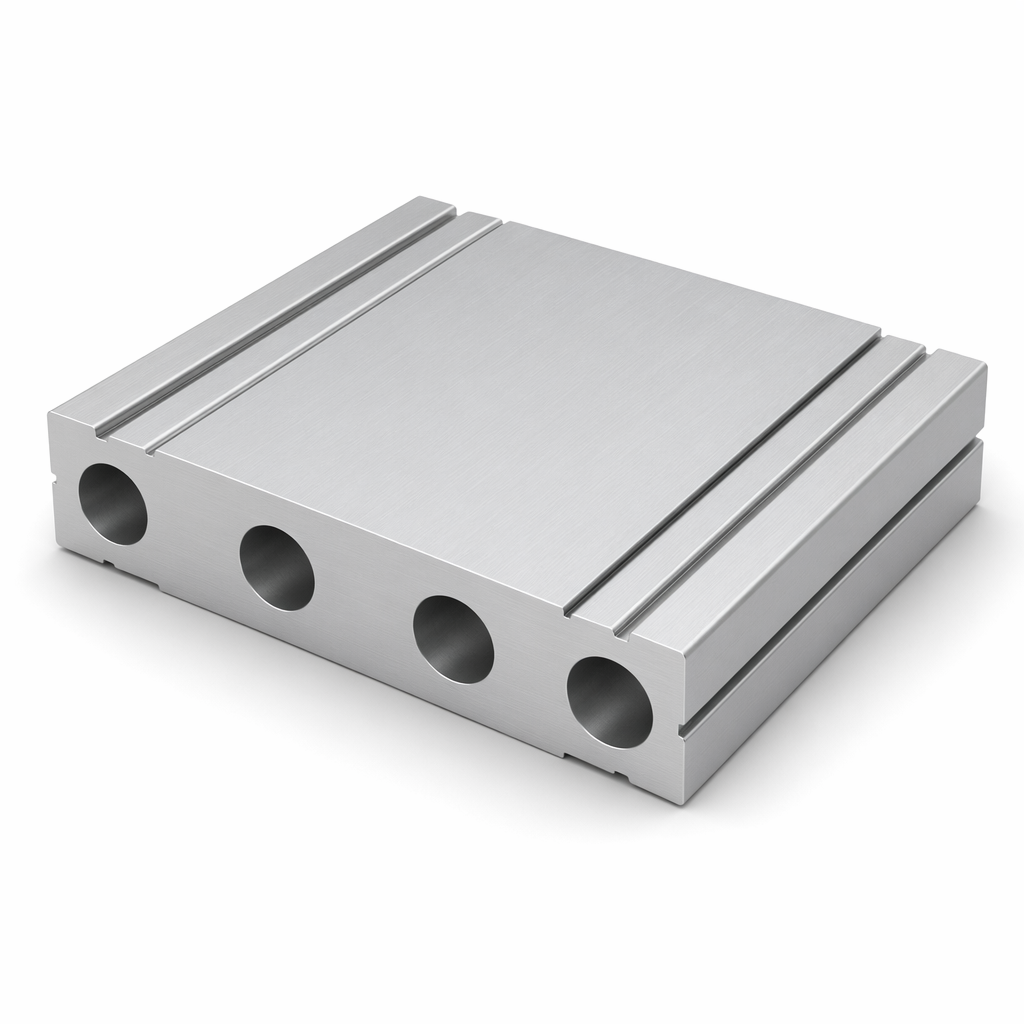

 | ct-1233 | 120mm-33mm-N/D | |

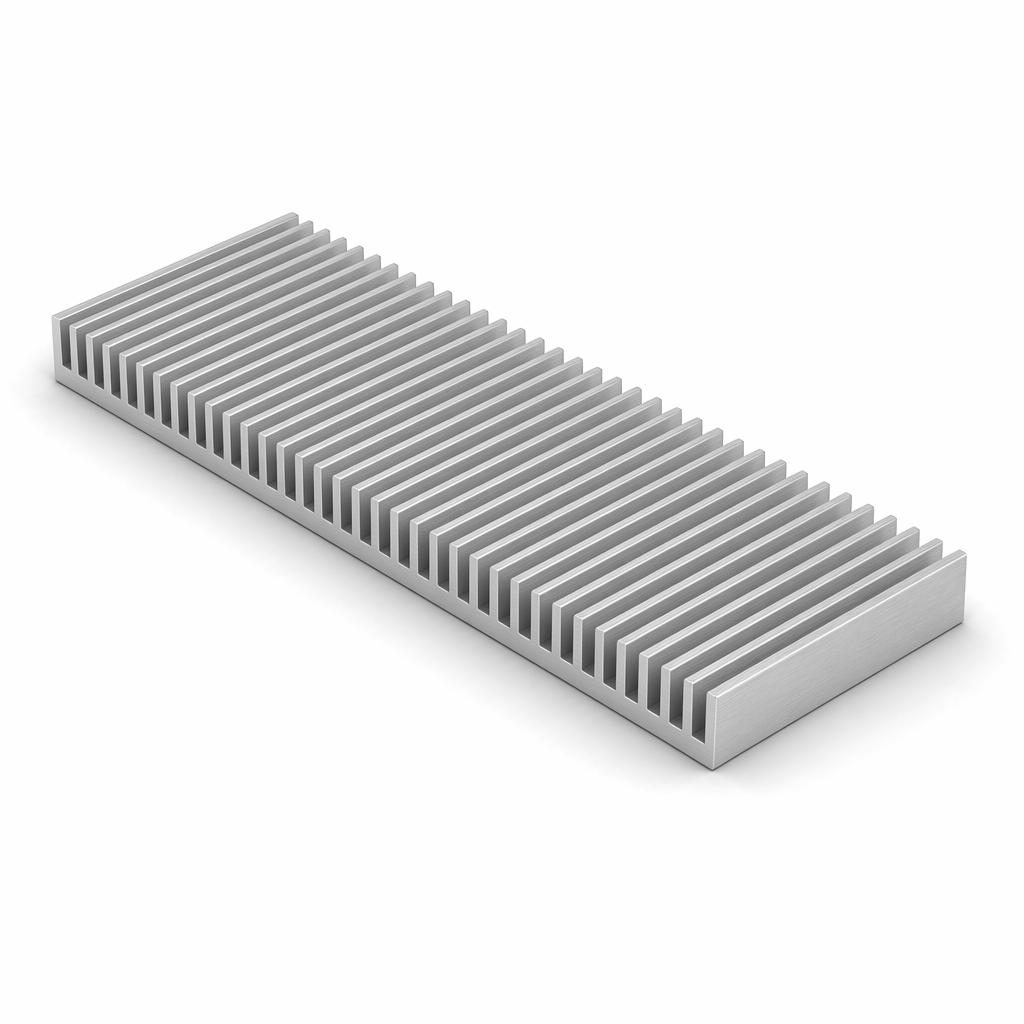

 | ct-1245 | 245mm-20mm-5mm | |

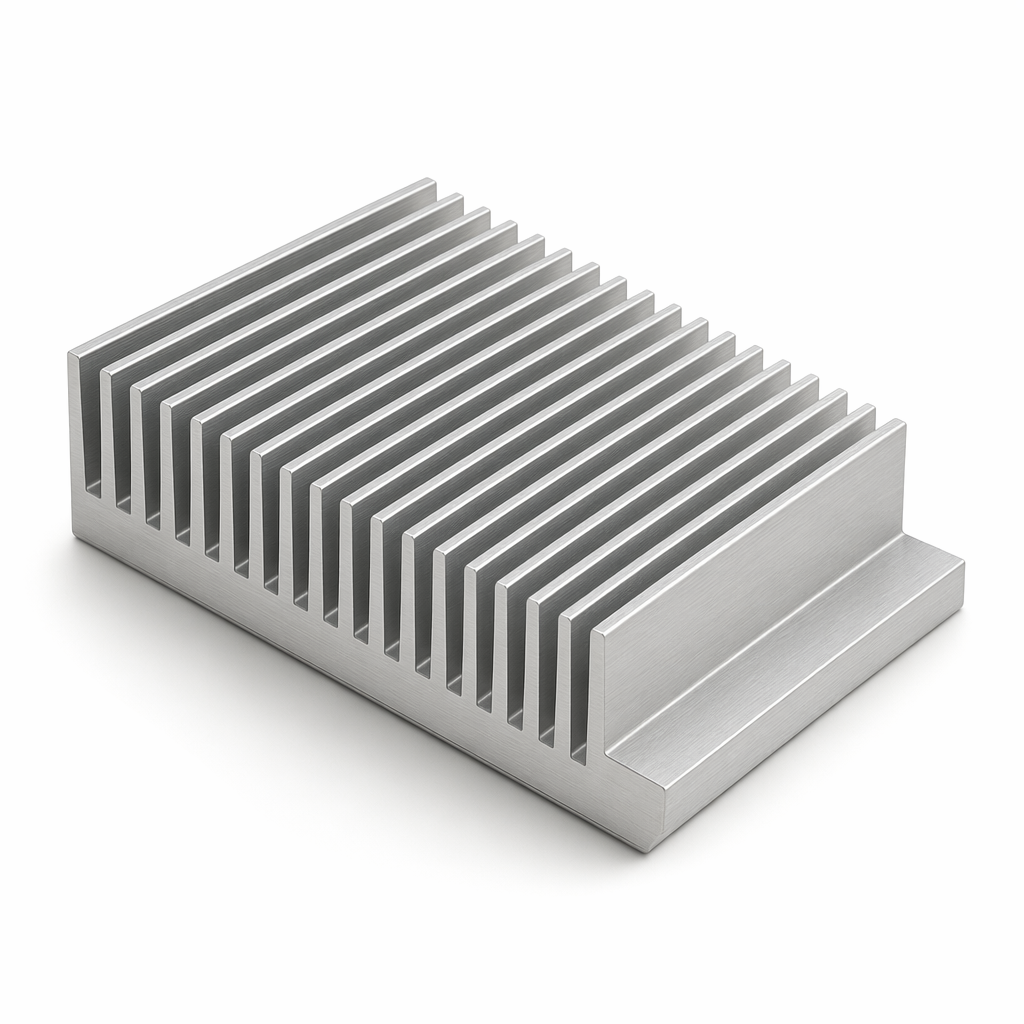

 | ct-1252 | 152.7mm-40mm-12mm | |

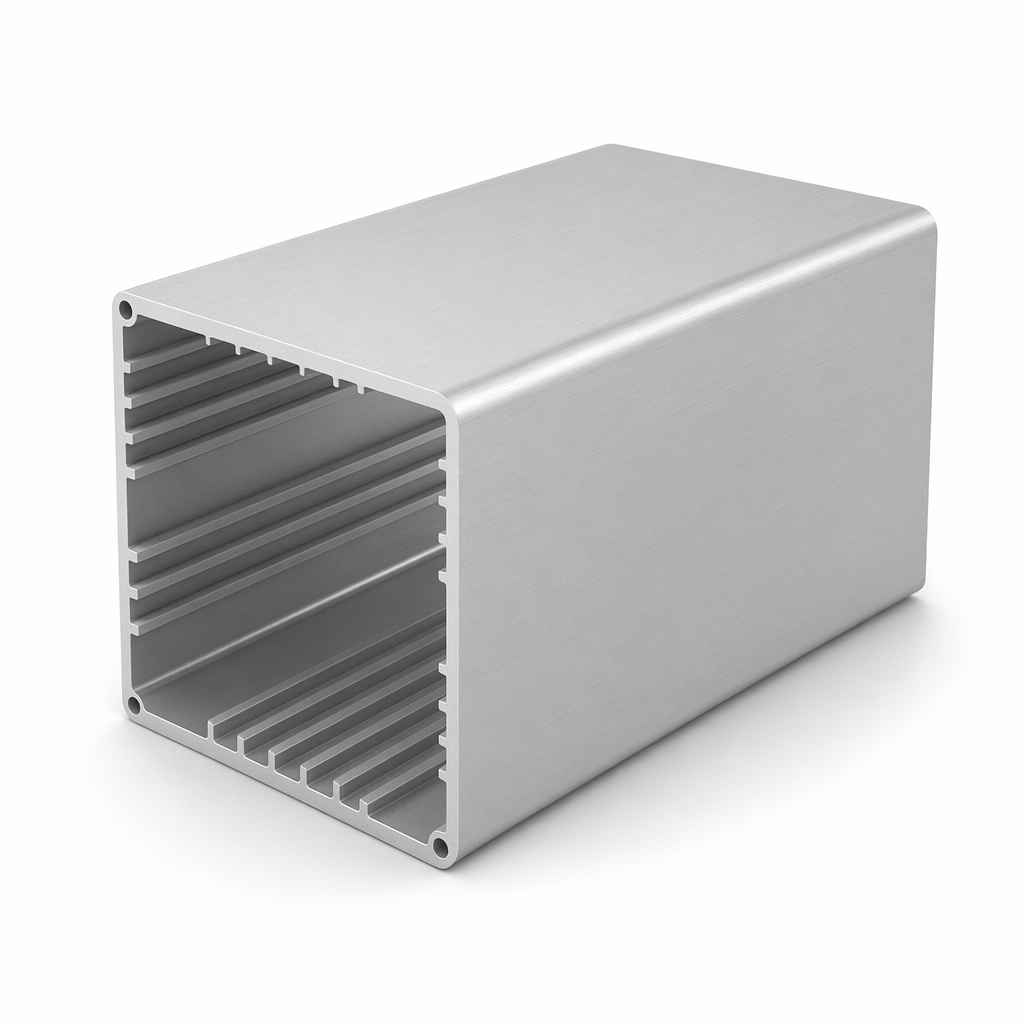

 | ct-1265 | 65.25mm-65.25mm-N/D | |

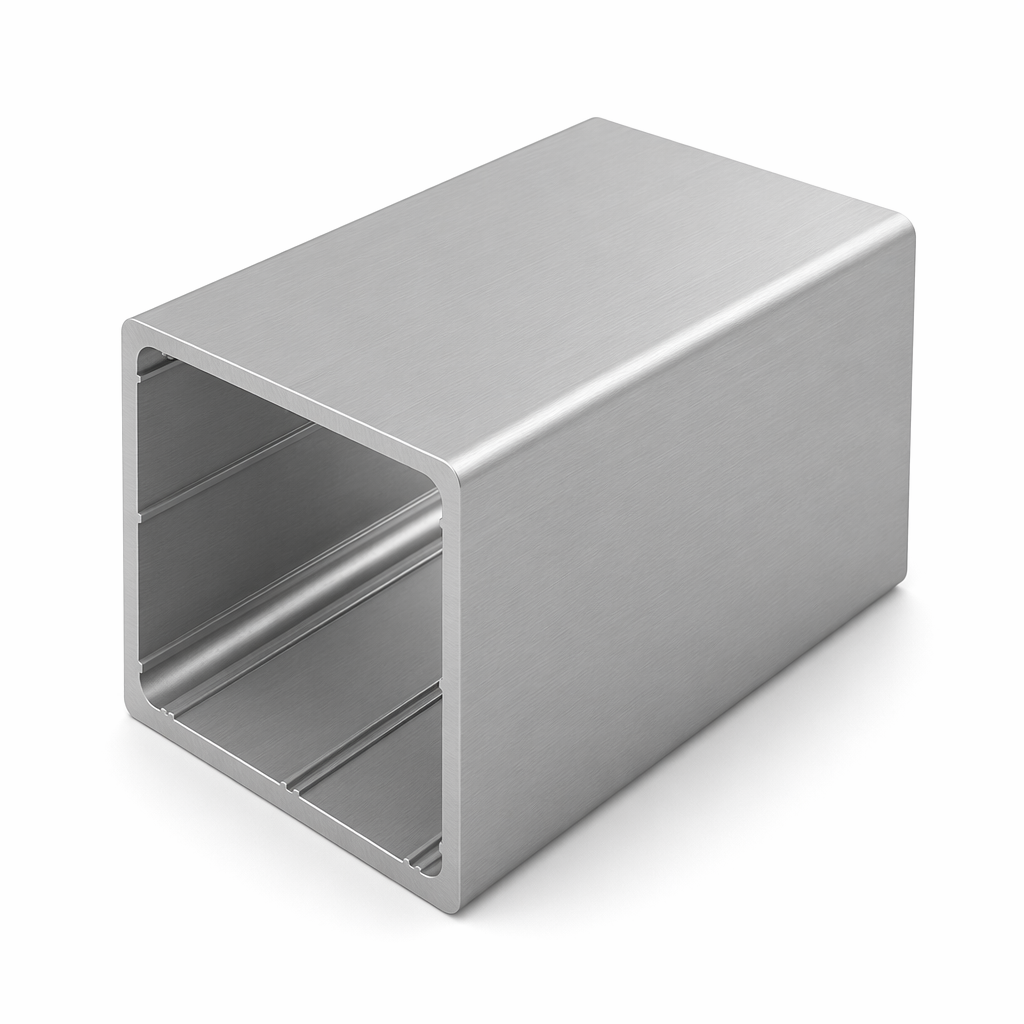

 | ct-1266 | 65.5mm-65.5mm-N/D | |

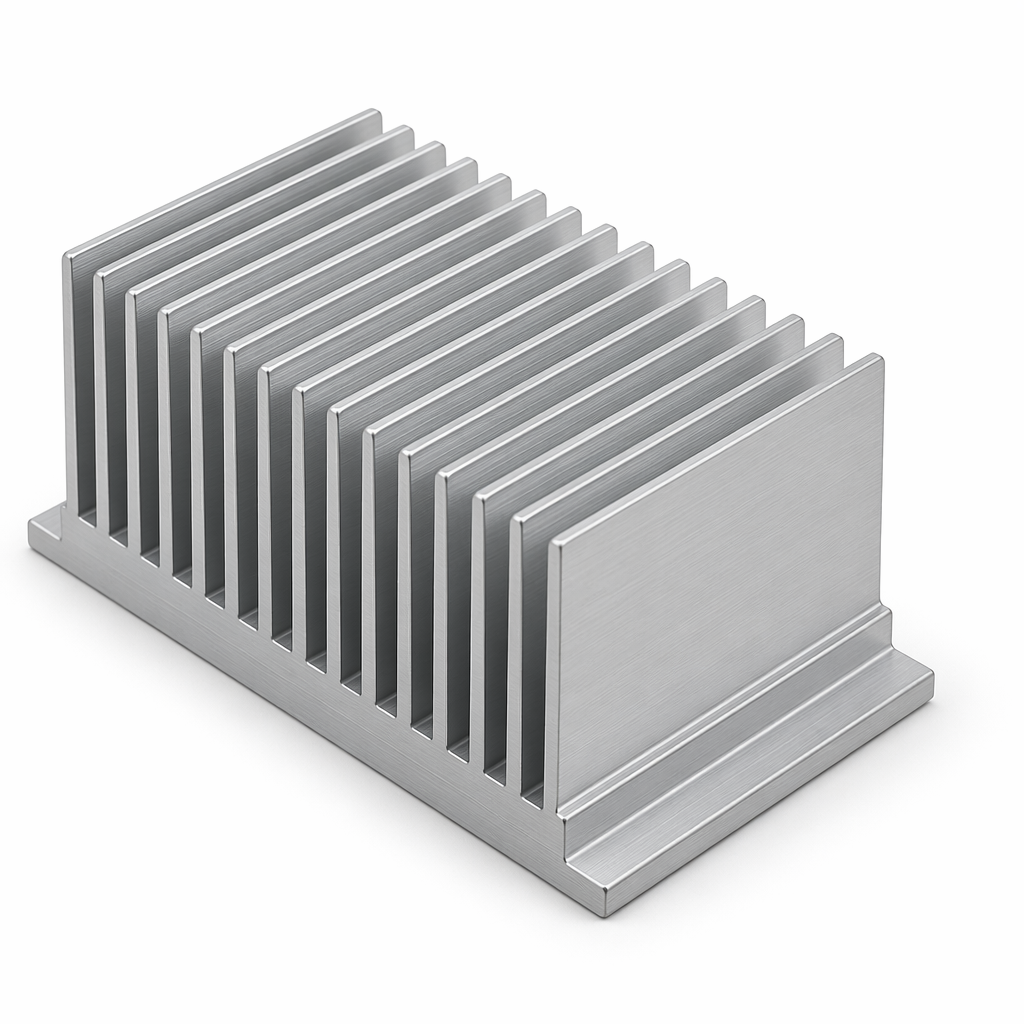

 | ct-1275 | 175mm-83mm-16mm | |

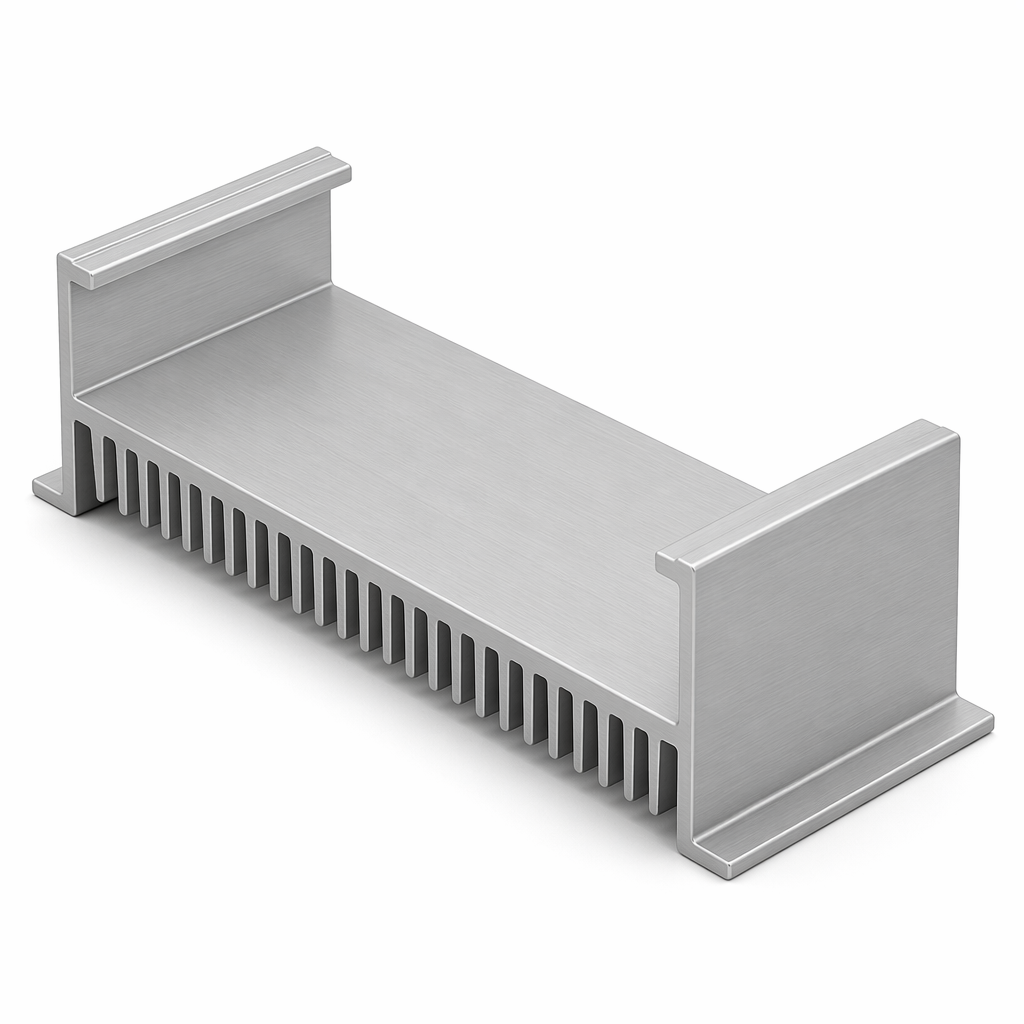

 | ct-1280 | 280mm-91mm-6mm | |

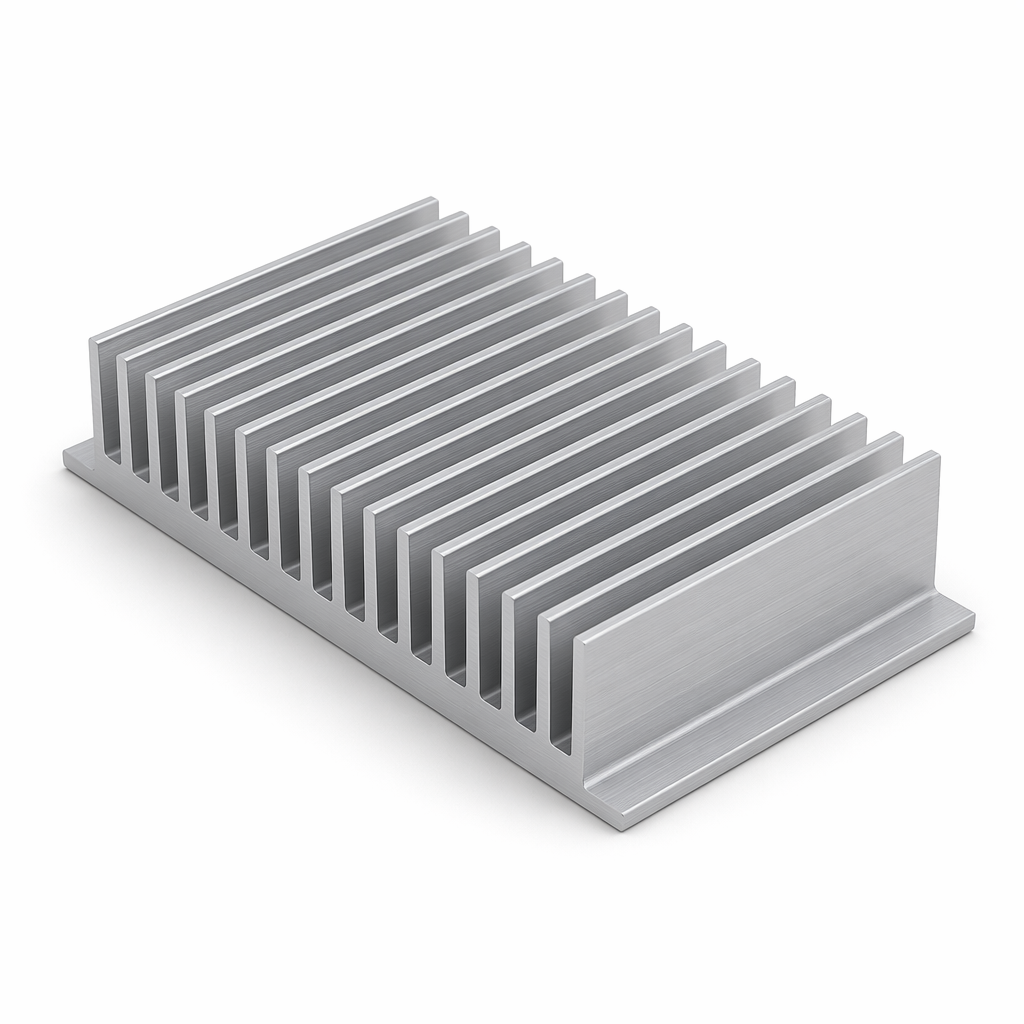

 | ct-1281 | 180mm-41mm-11mm | |

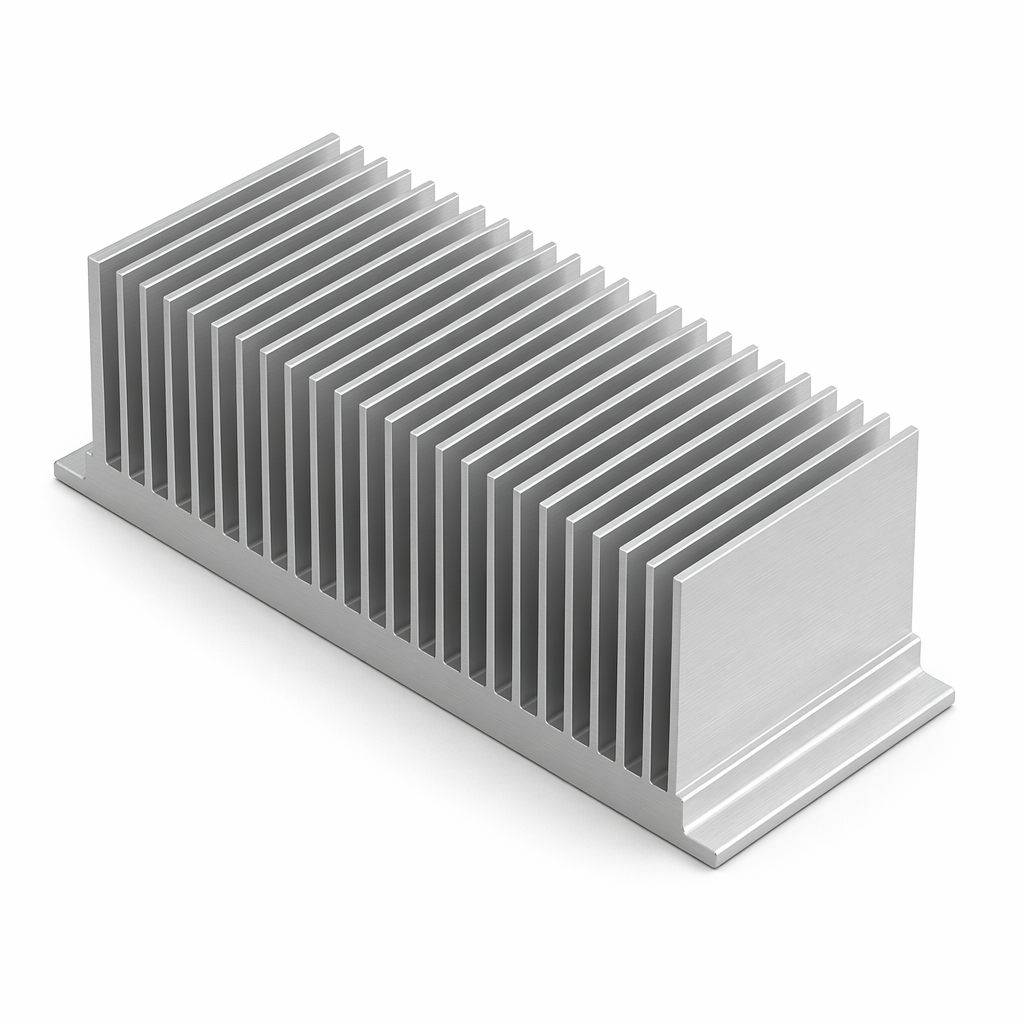

 | ct-1282 | 256mm-84mm-14mm | |

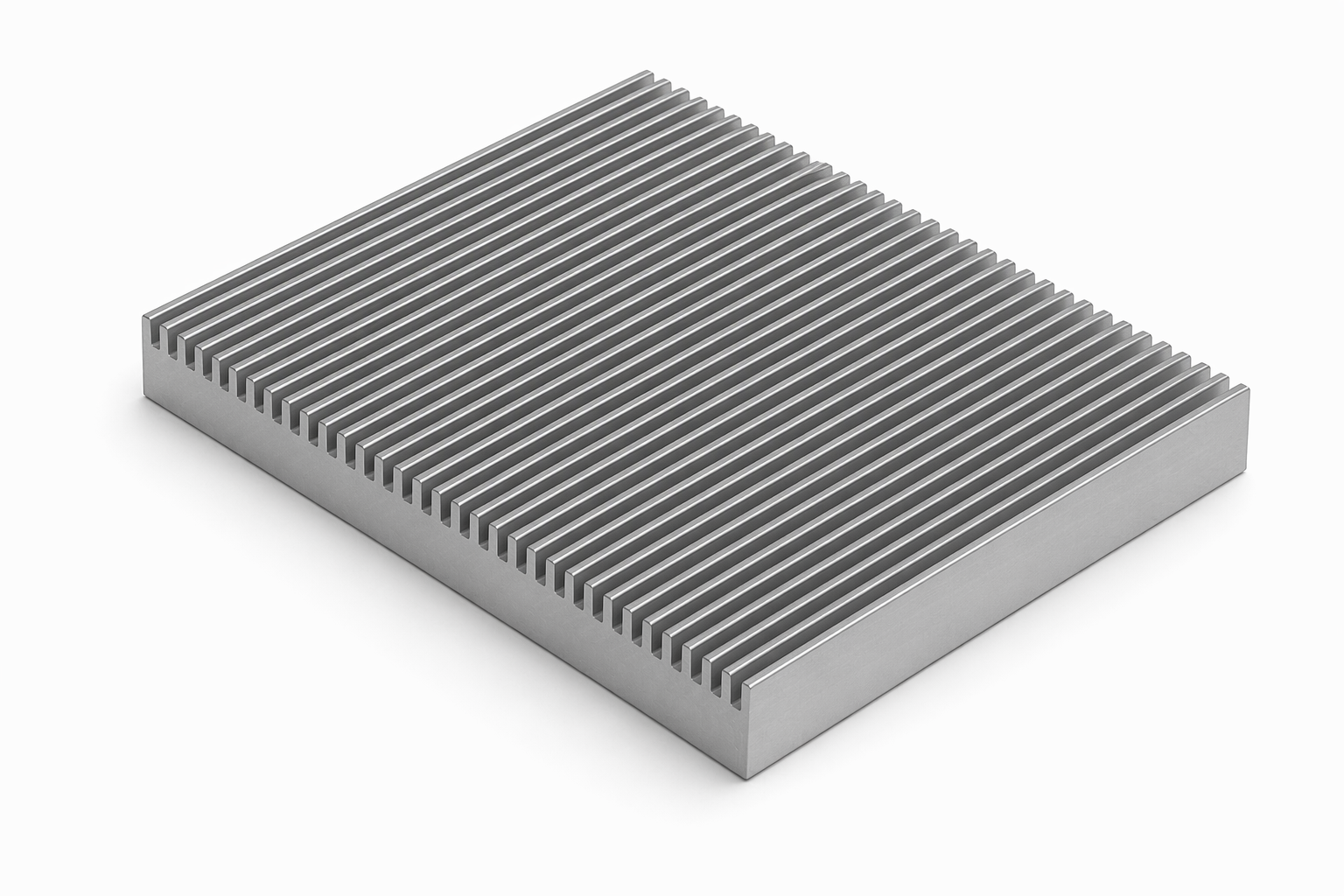

 | ct-1283 | 140mm-13.5mm-10.5mm | |

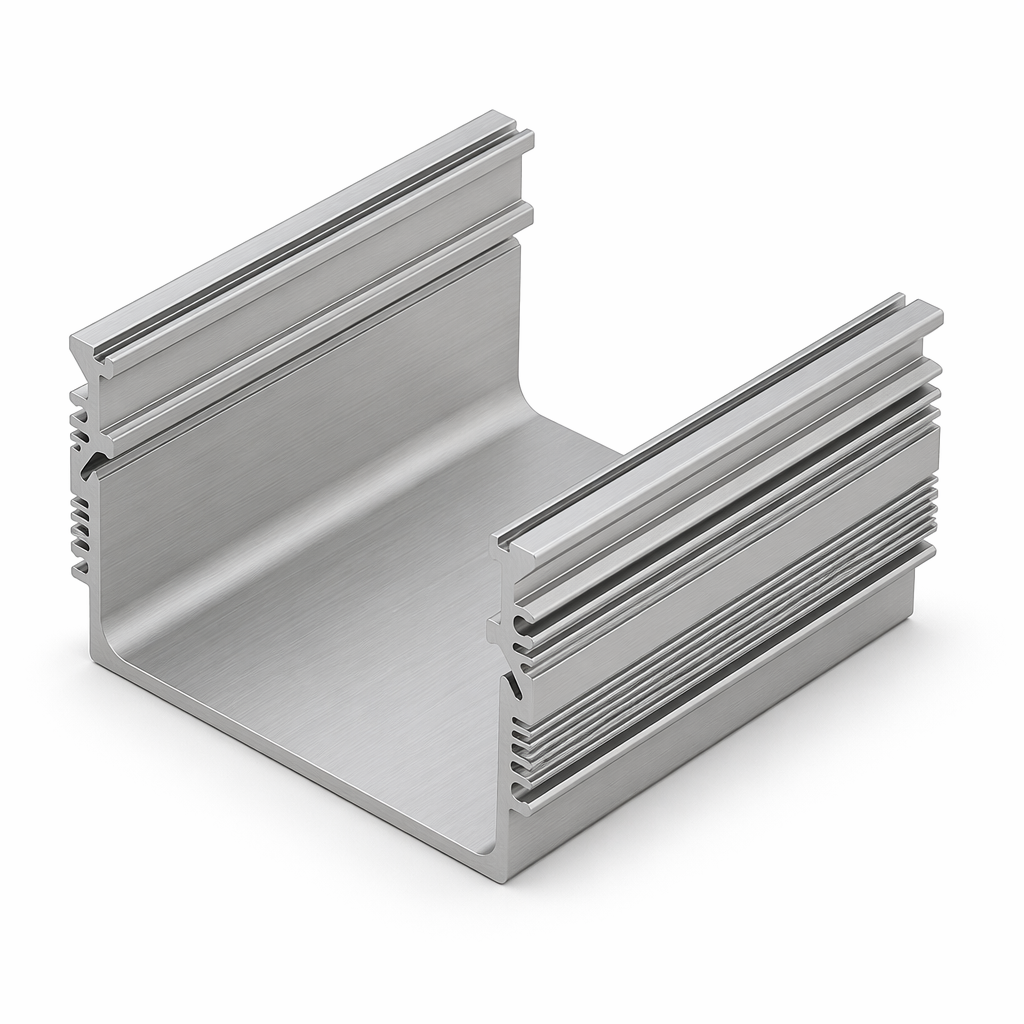

 | ct-1287 | 87mm-57mm-N/D | |

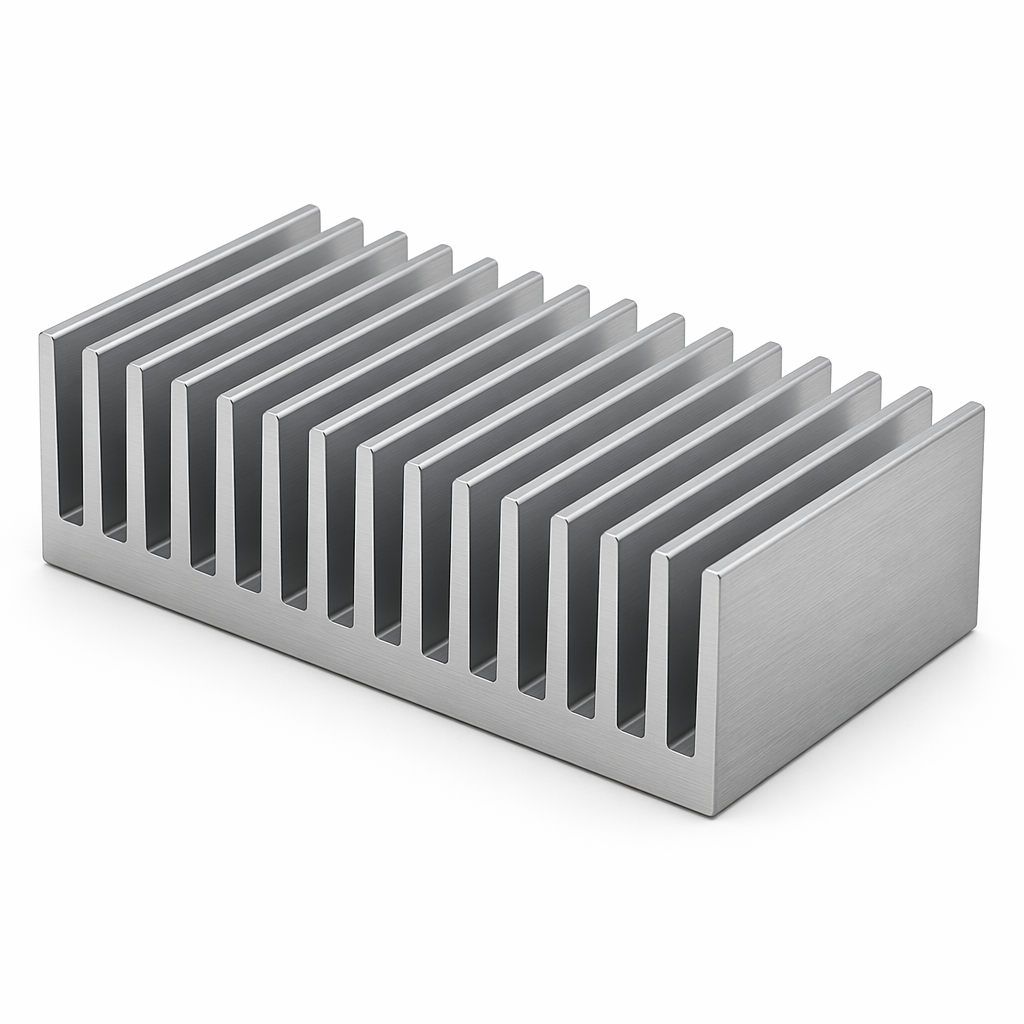

 | ct-1288 | 182mm-60mm-12mm | |

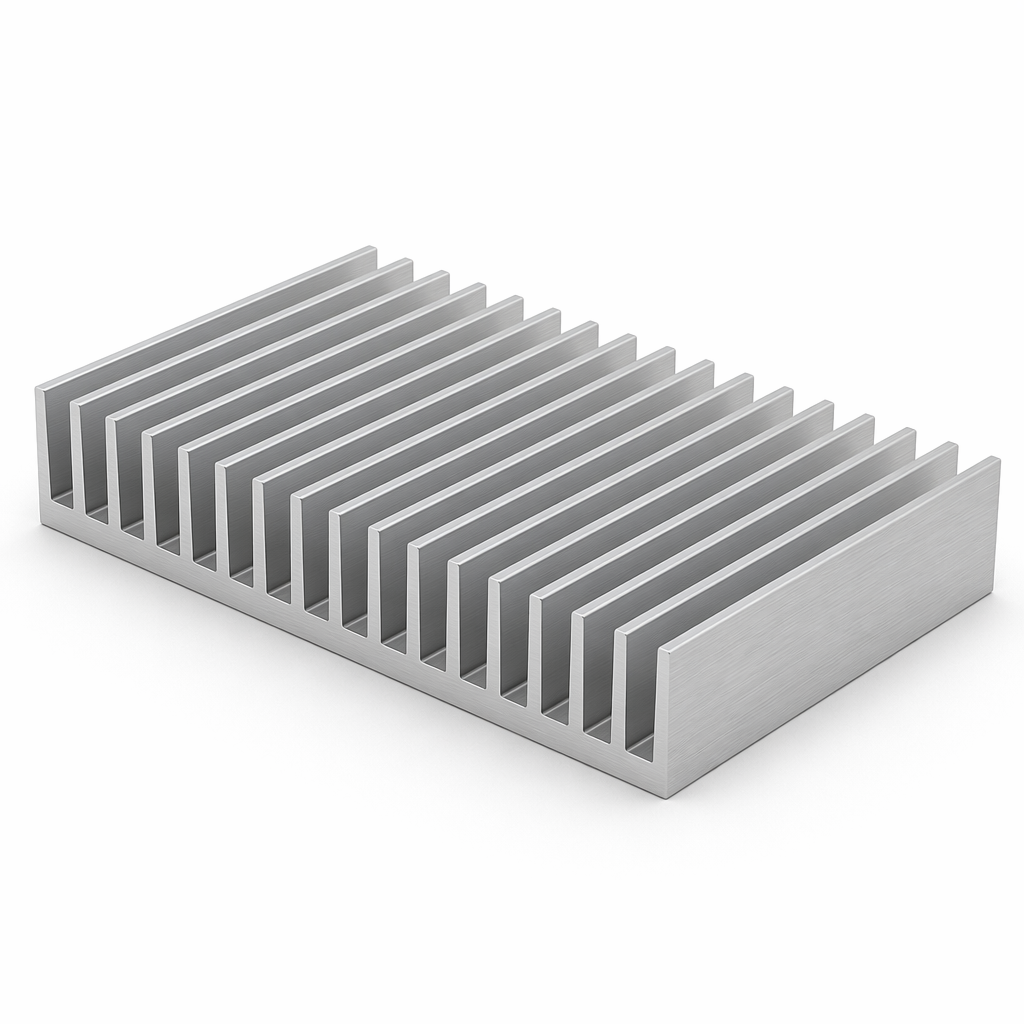

 | ct-1289 | 154mm-33.3mm-6mm | |

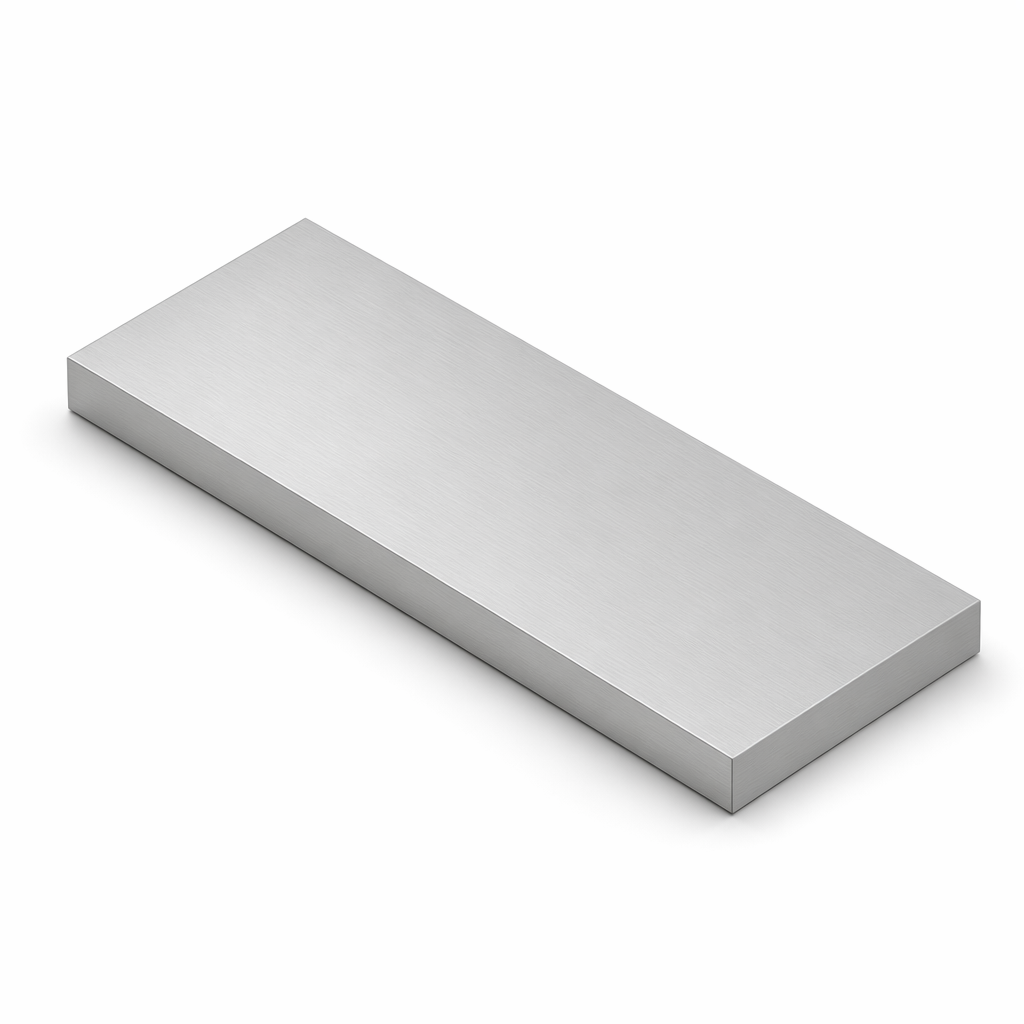

 | ct-1305 | 305mm-22mm-N/D | |

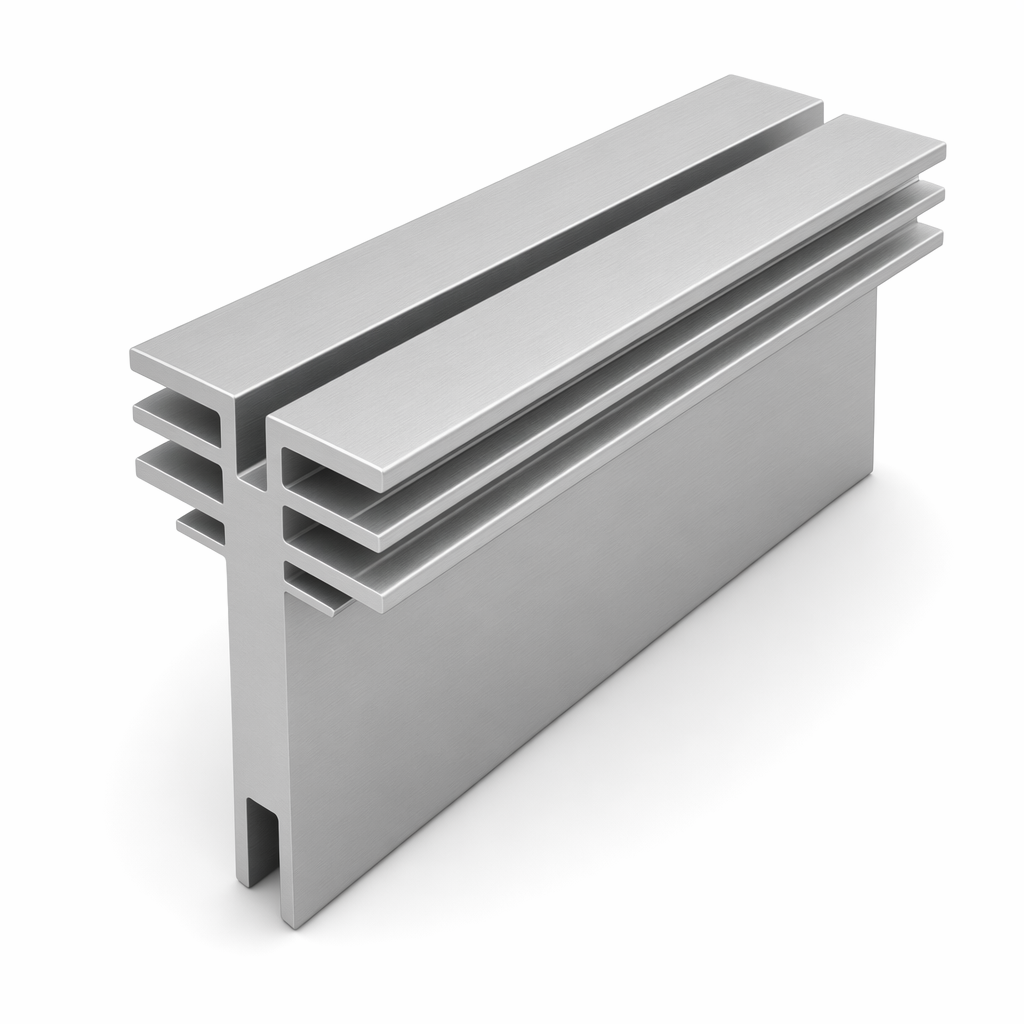

 | ct-1330 | 30mm-45.9mm-N/D | |

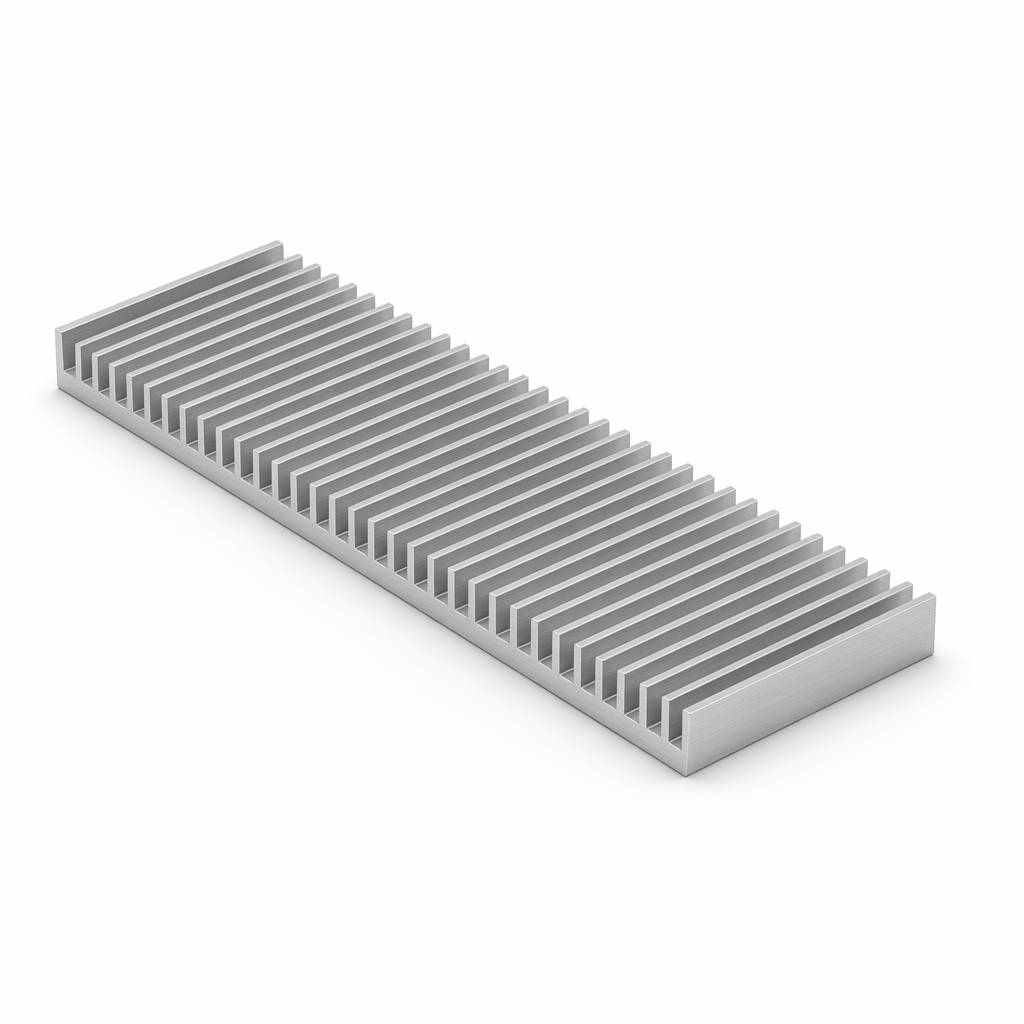

 | ct-1345 | 345mm-20.7mm-8mm | |

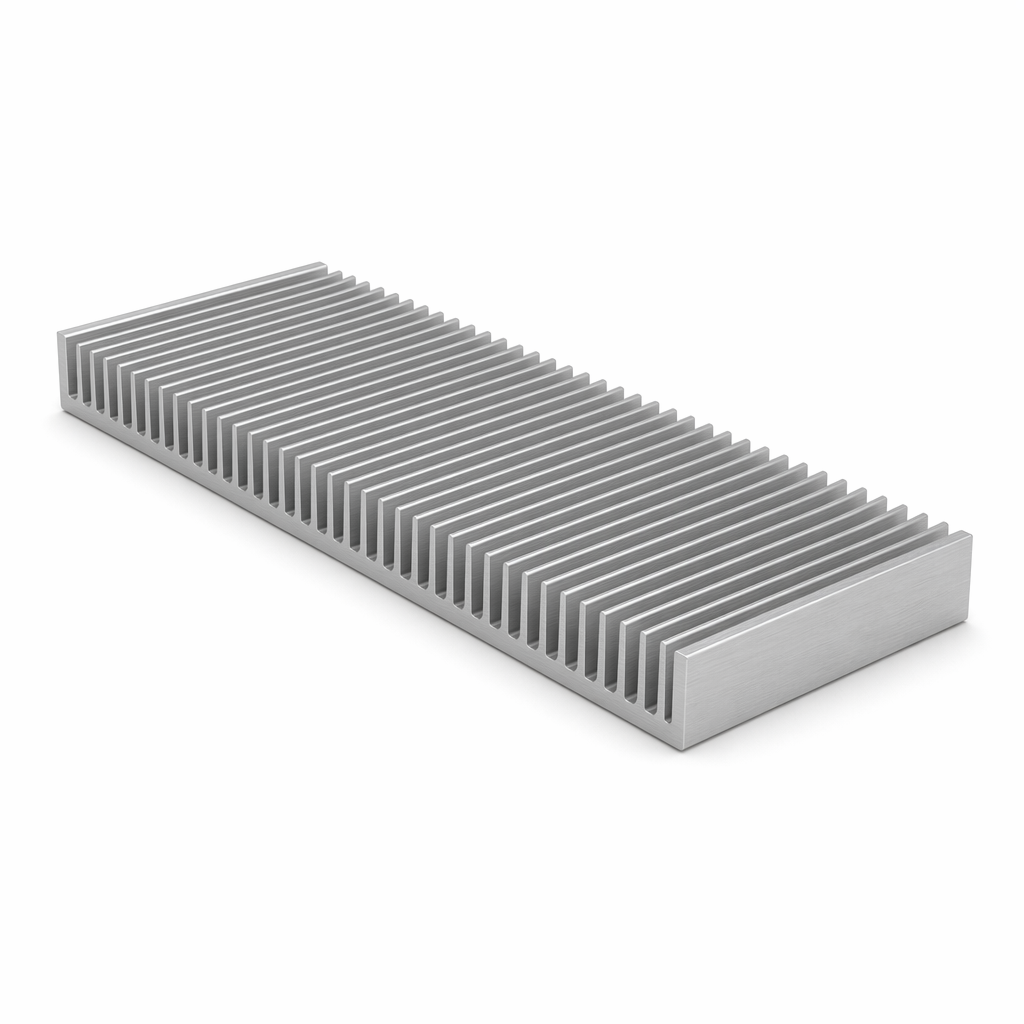

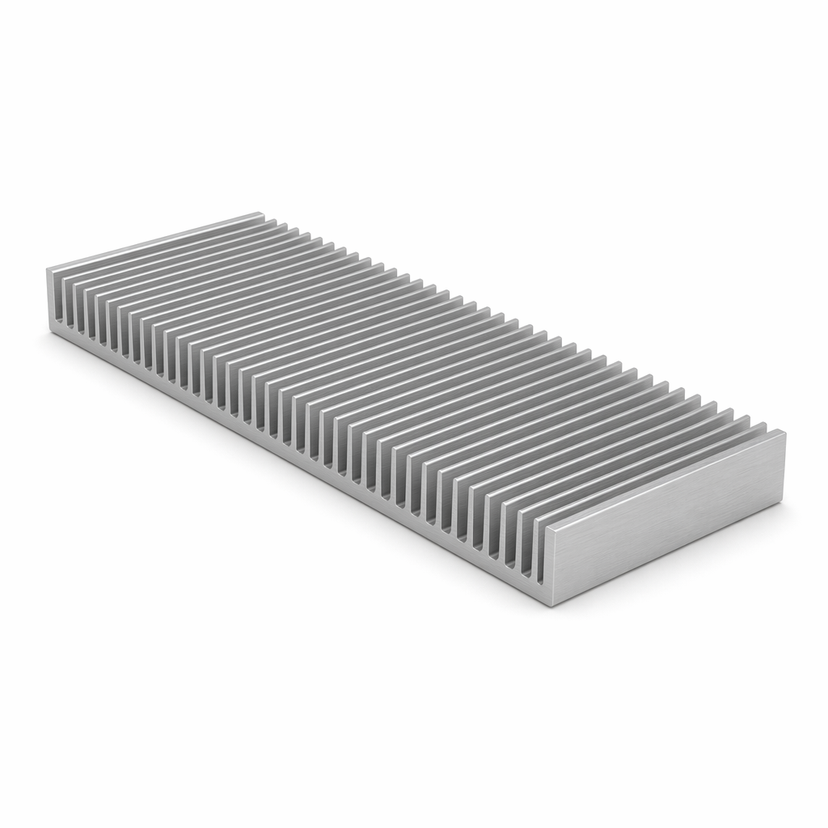

 | ct-1360 | 280mm-25mm-5mm | |

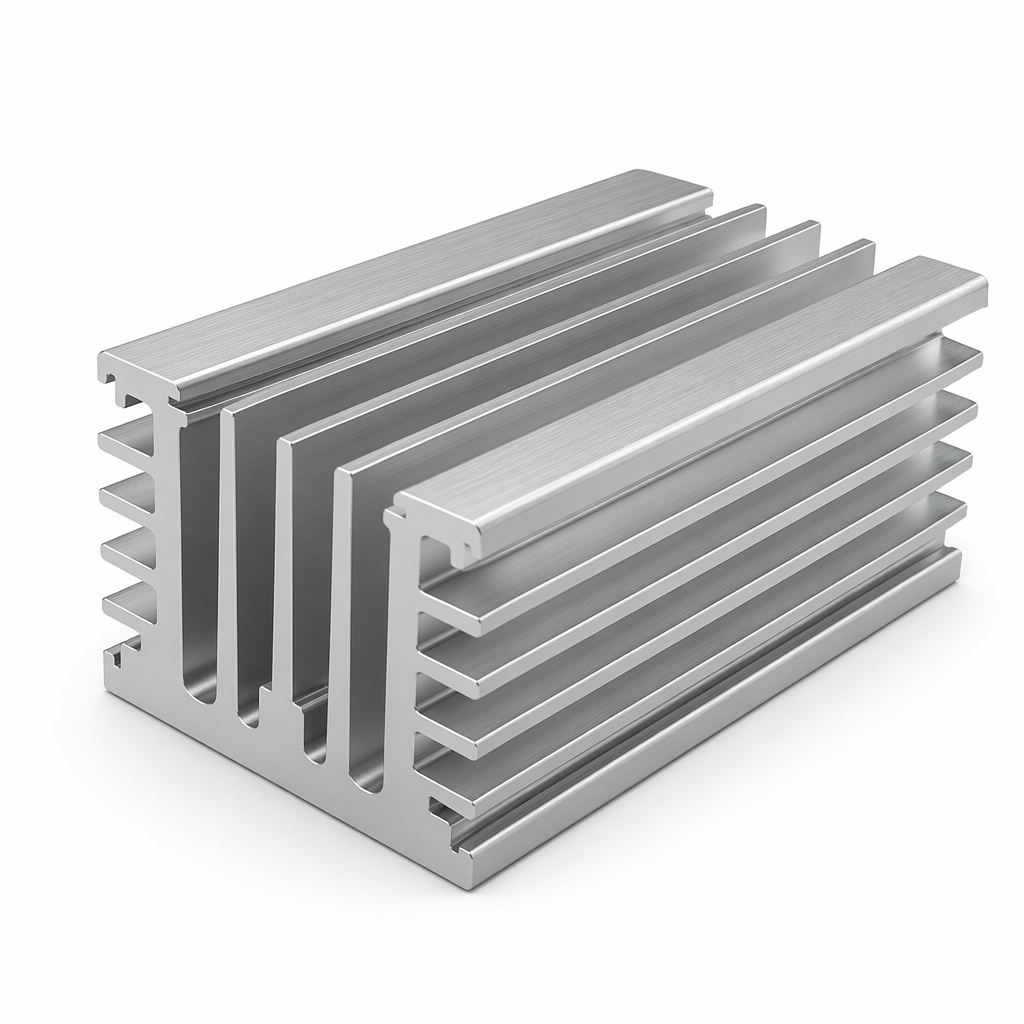

 | ct-1365 | 65mm-46mm-5mm | |

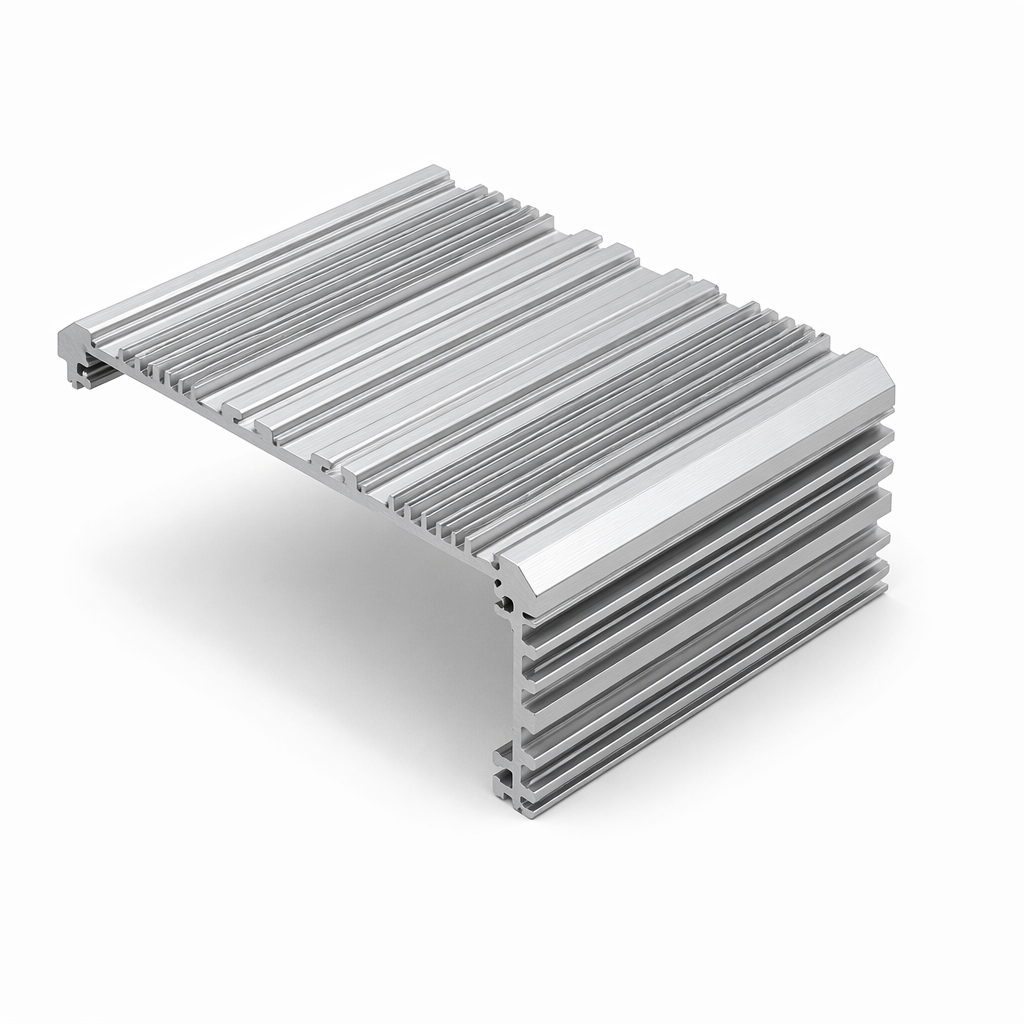

 | ct-1370 | 129.8mm-53.5mm-N/D | |

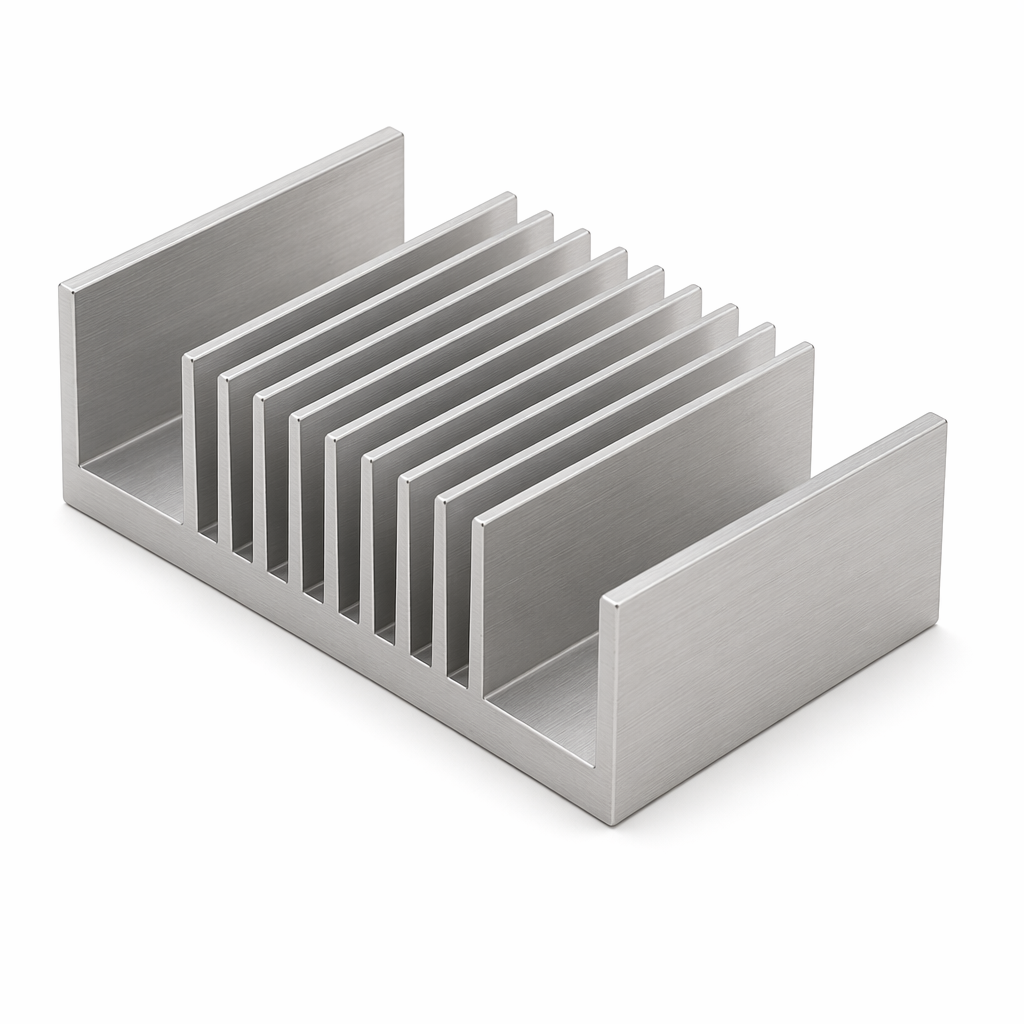

 | ct-1374 | 174.1mm-51mm-11mm | |

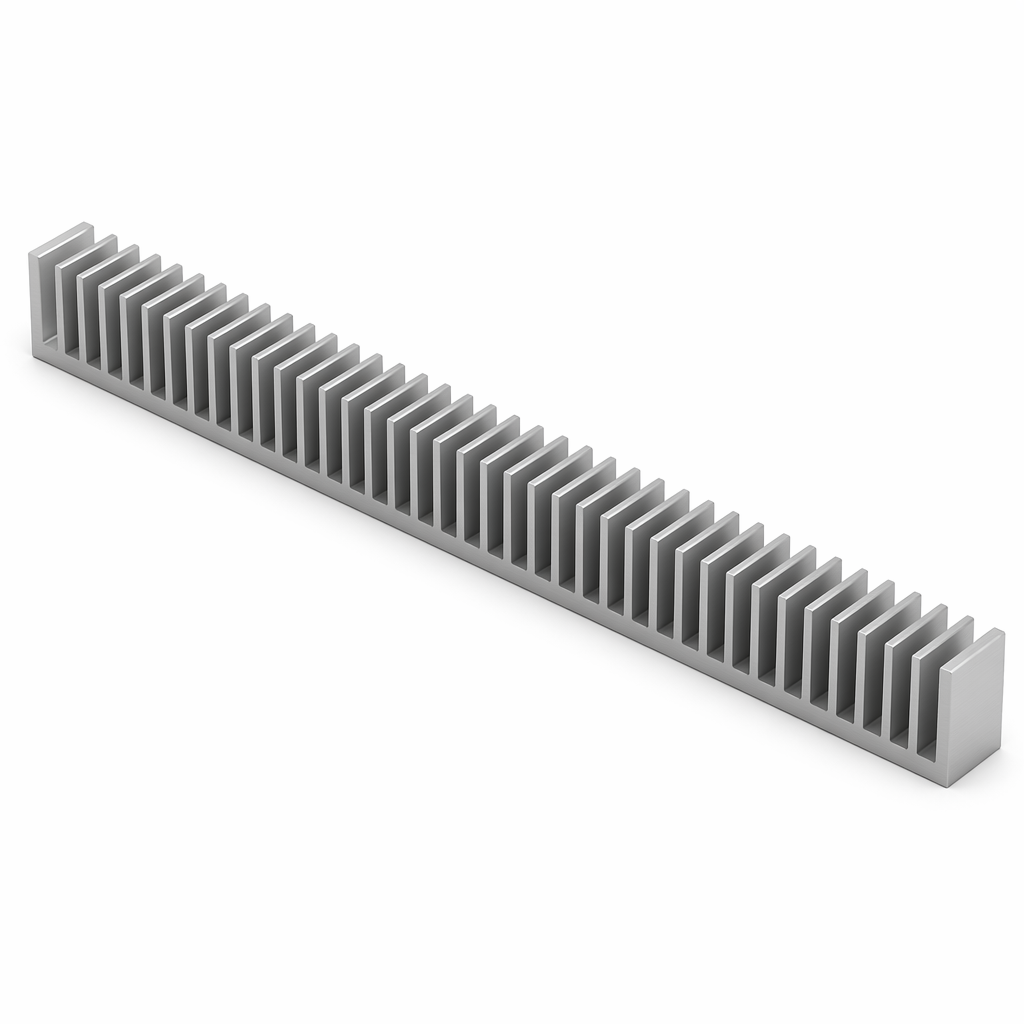

 | ct-1380 | 380mm-35mm-5mm | |

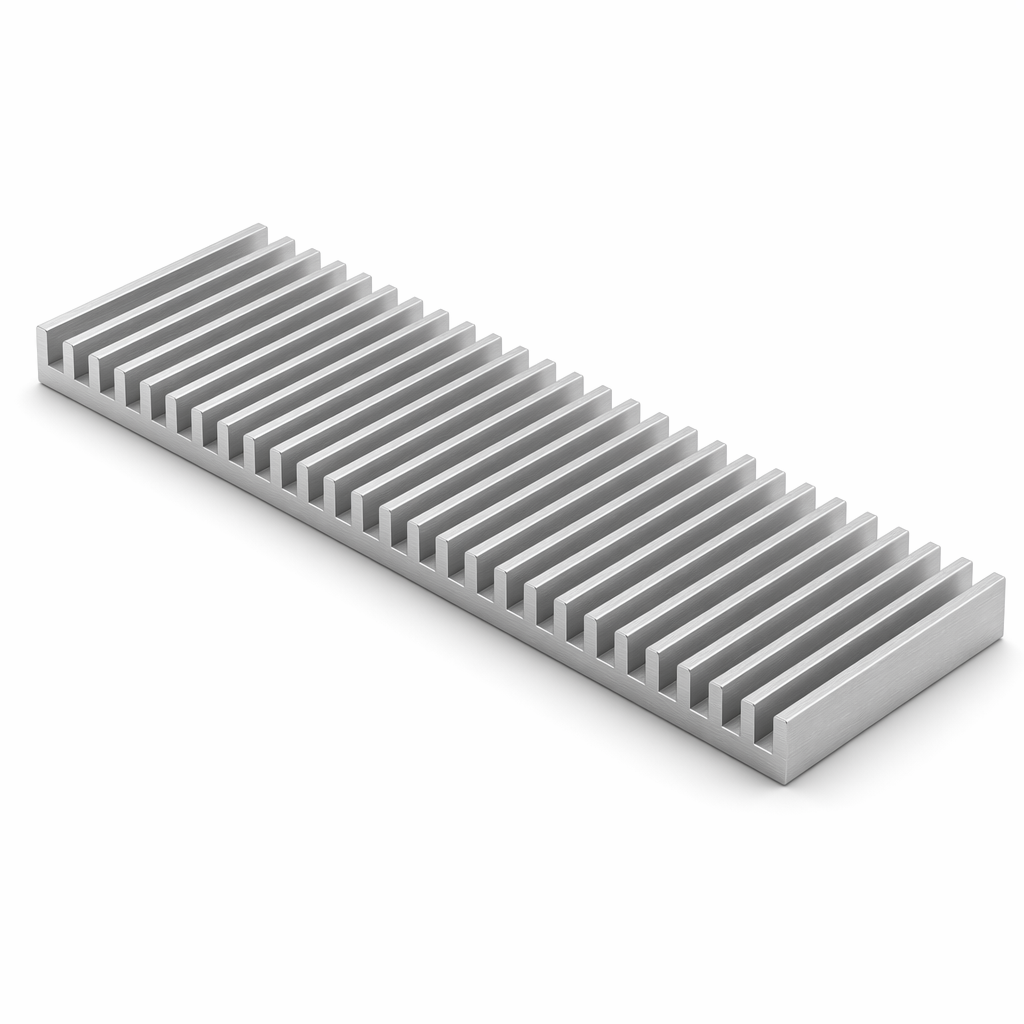

 | ct-1386 | 286.4mm-19.7mm-8.2mm | |

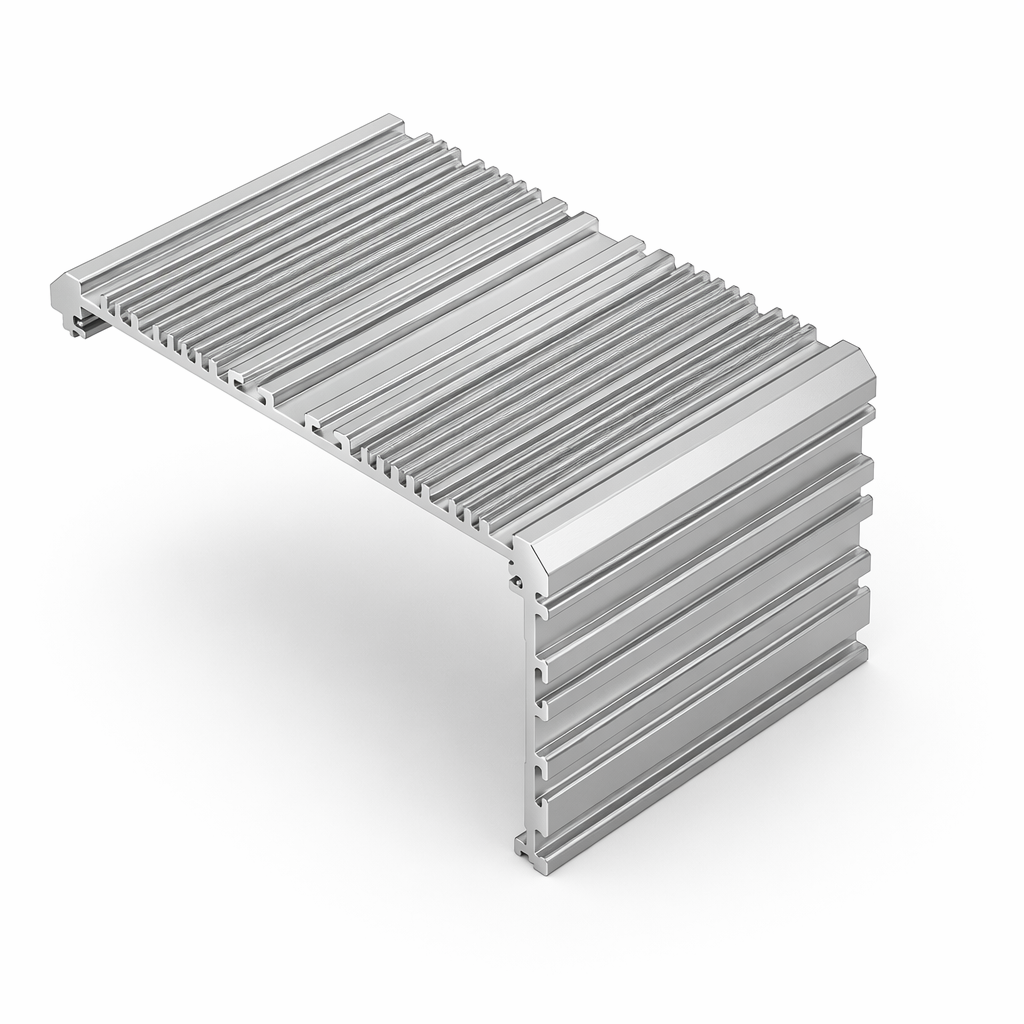

 | ct-1390 | 154.8mm-78mm-N/D | |

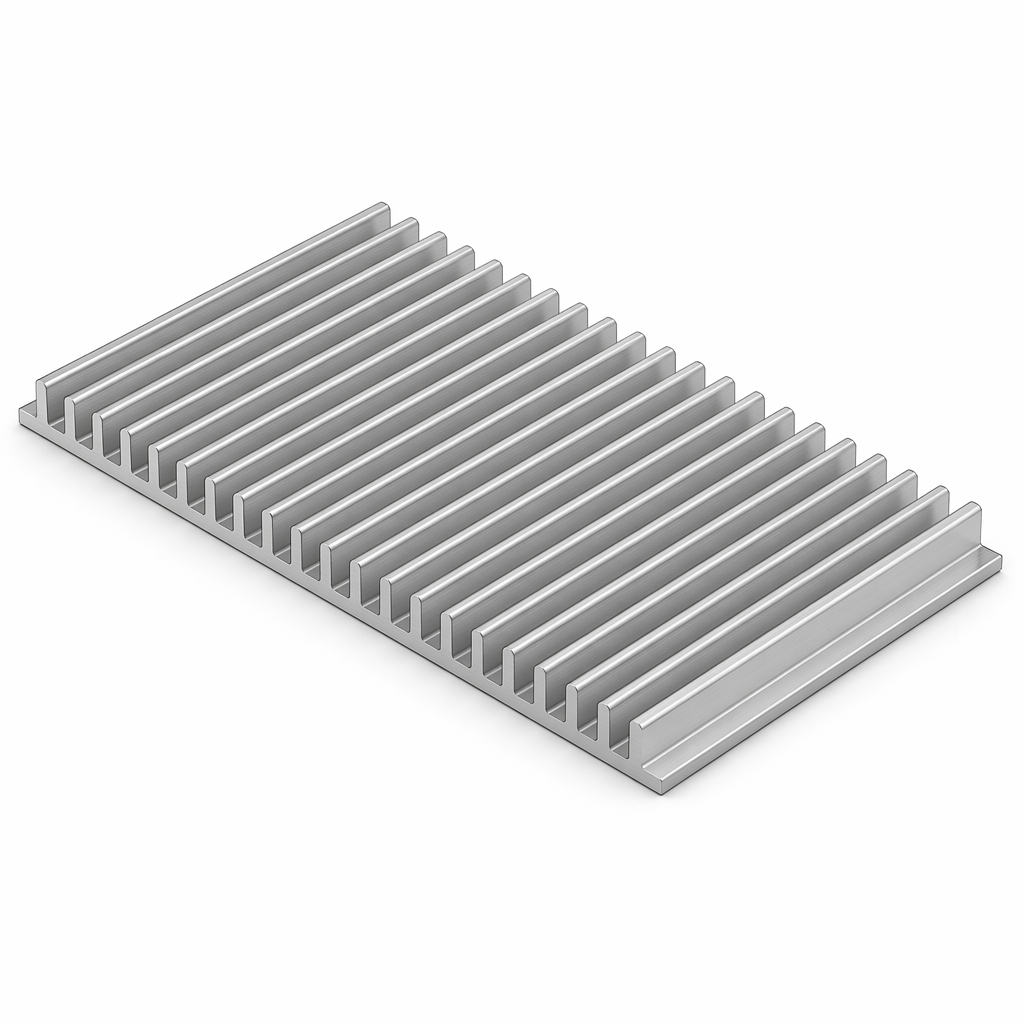

 | ct-1405 | 167.5mm-10mm-2.5mm | |

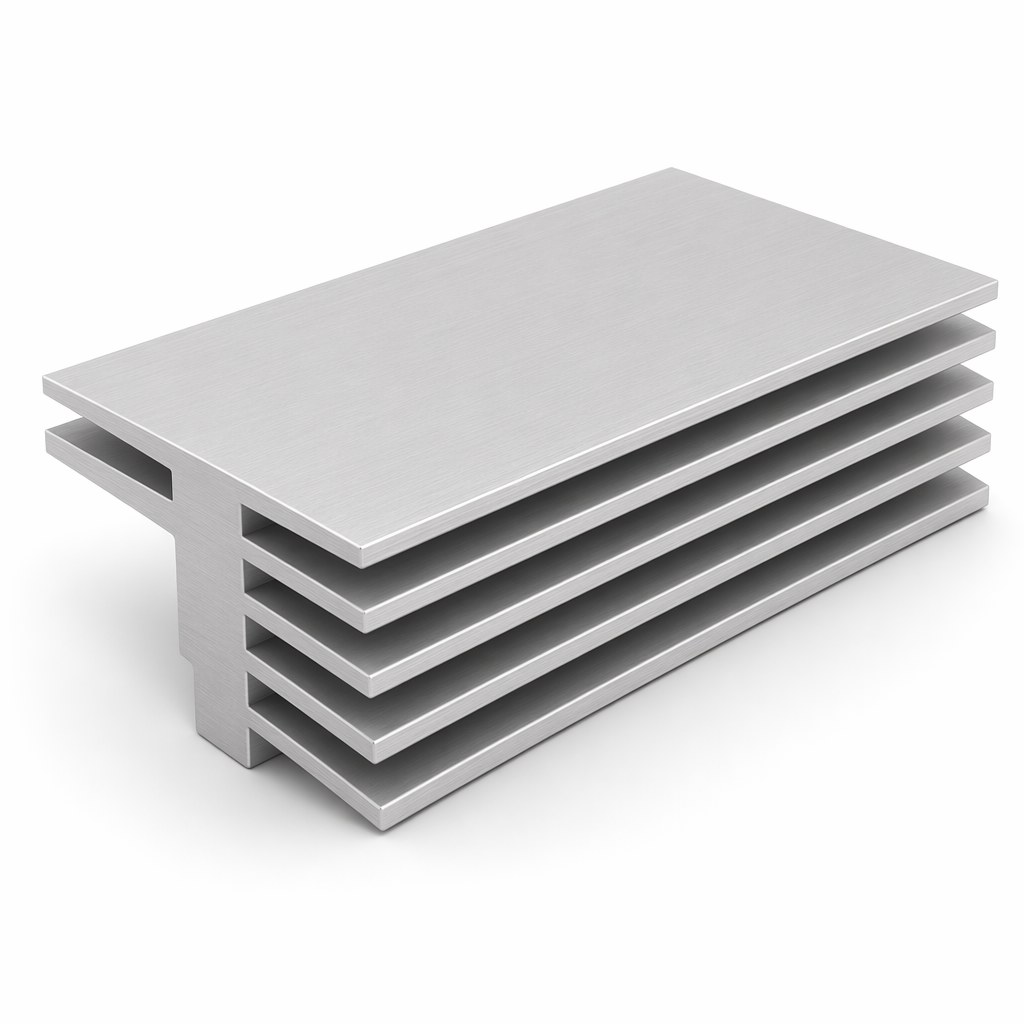

 | ct-1448 | 76mm-48mm-N/D | |

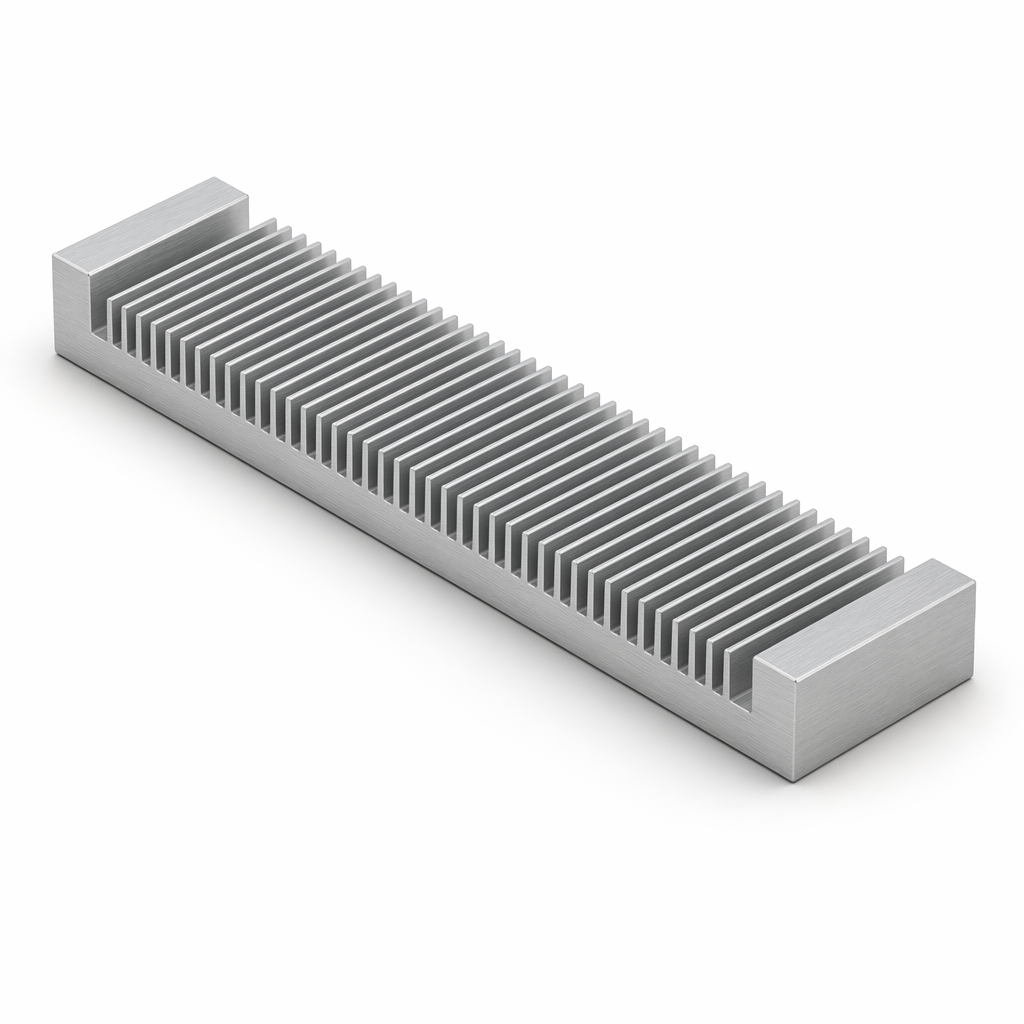

 | ct-1480 | 480mm-40mm-15mm | |

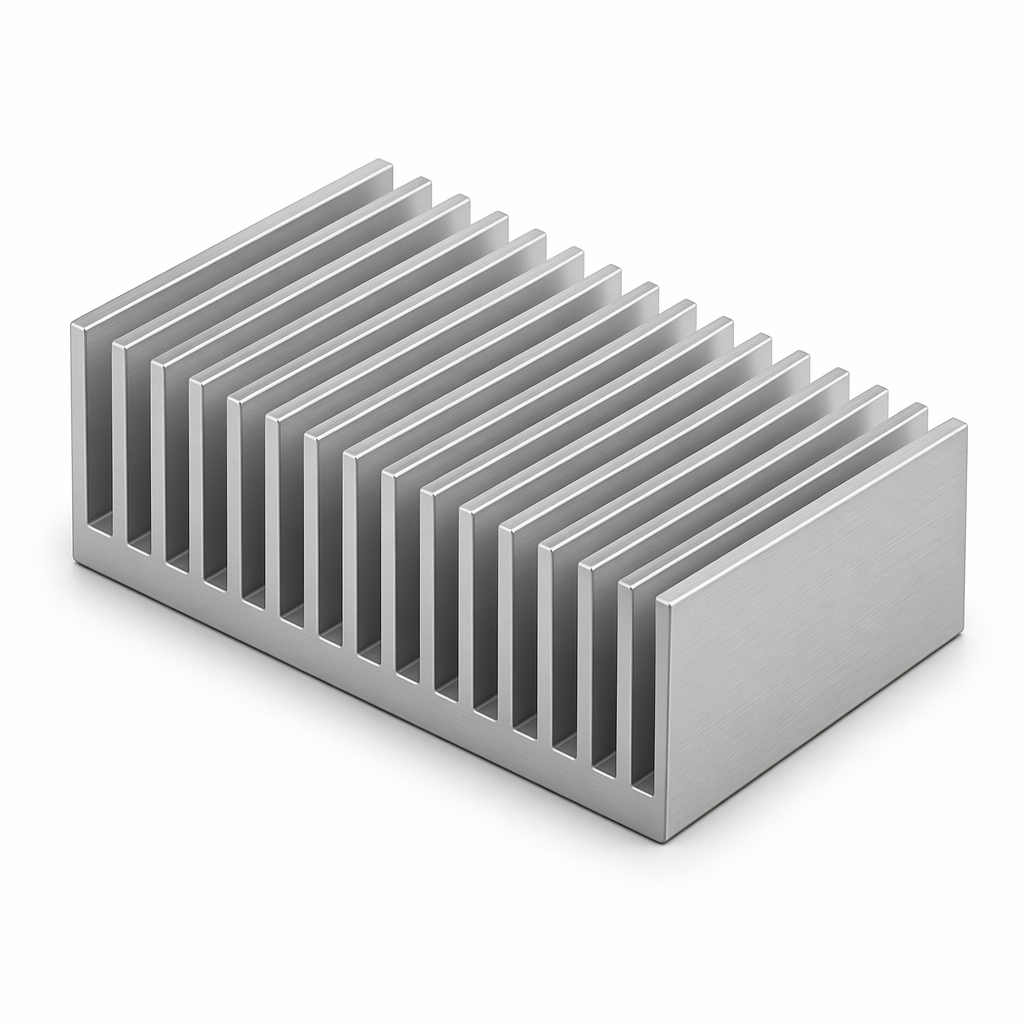

 | ct-1860 | 160mm-61mm-11mm | |

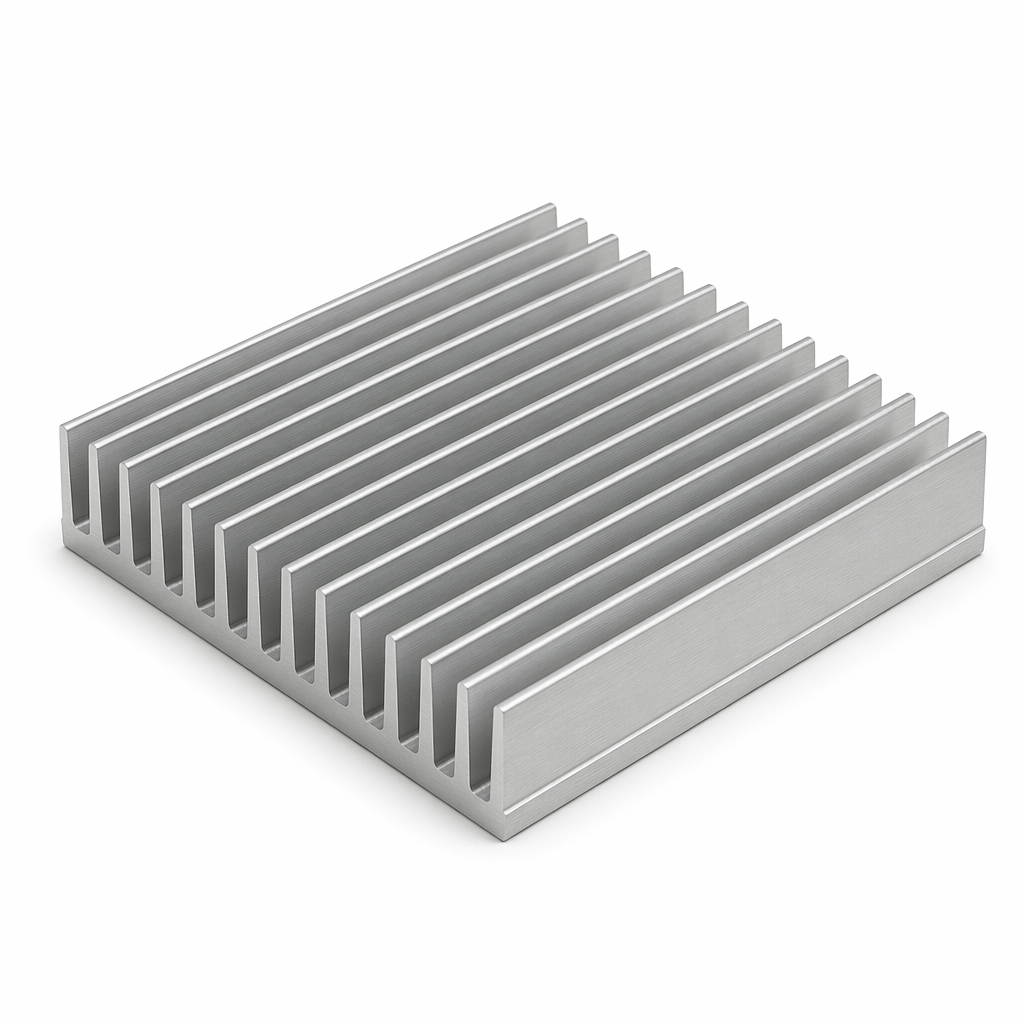

 | ct-2095 | 95mm-20mm-4mm | |

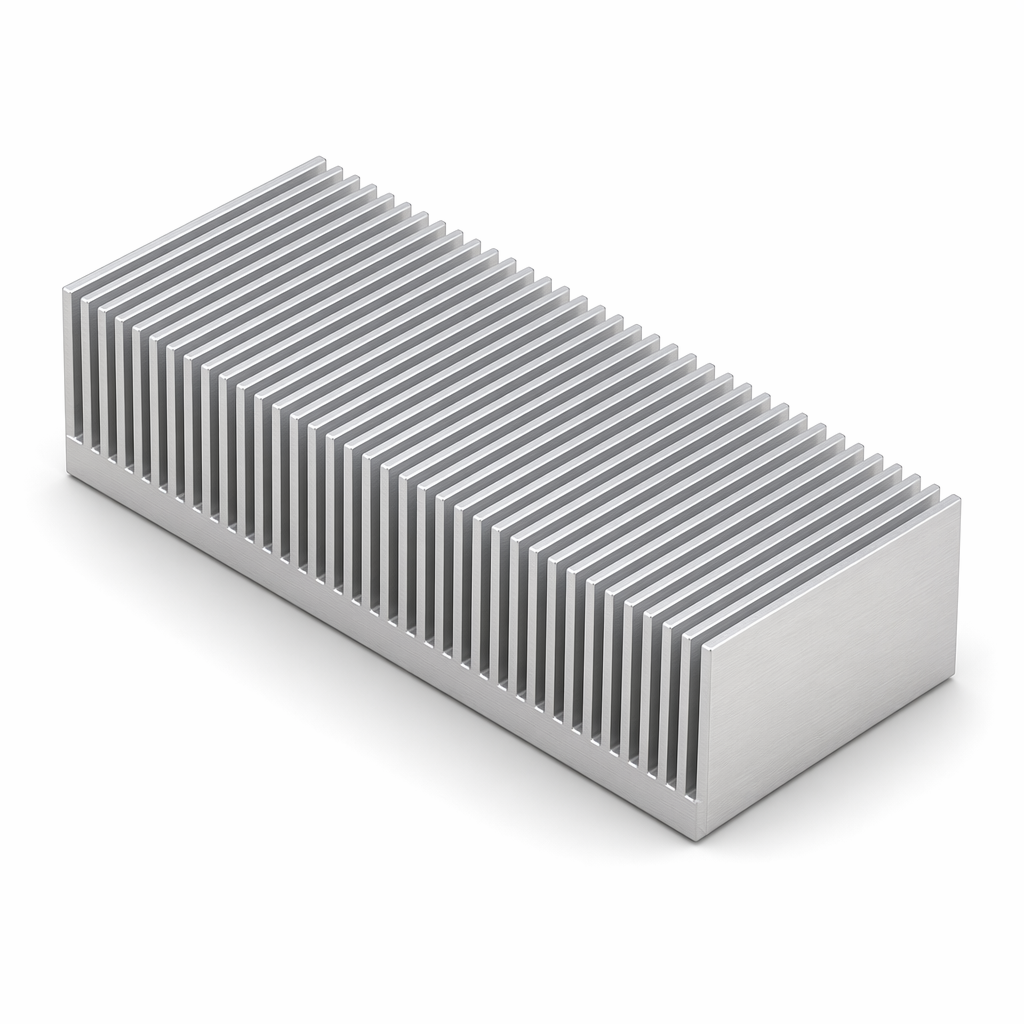

 | ct-2240 | 240mm-61mm-13mm | |

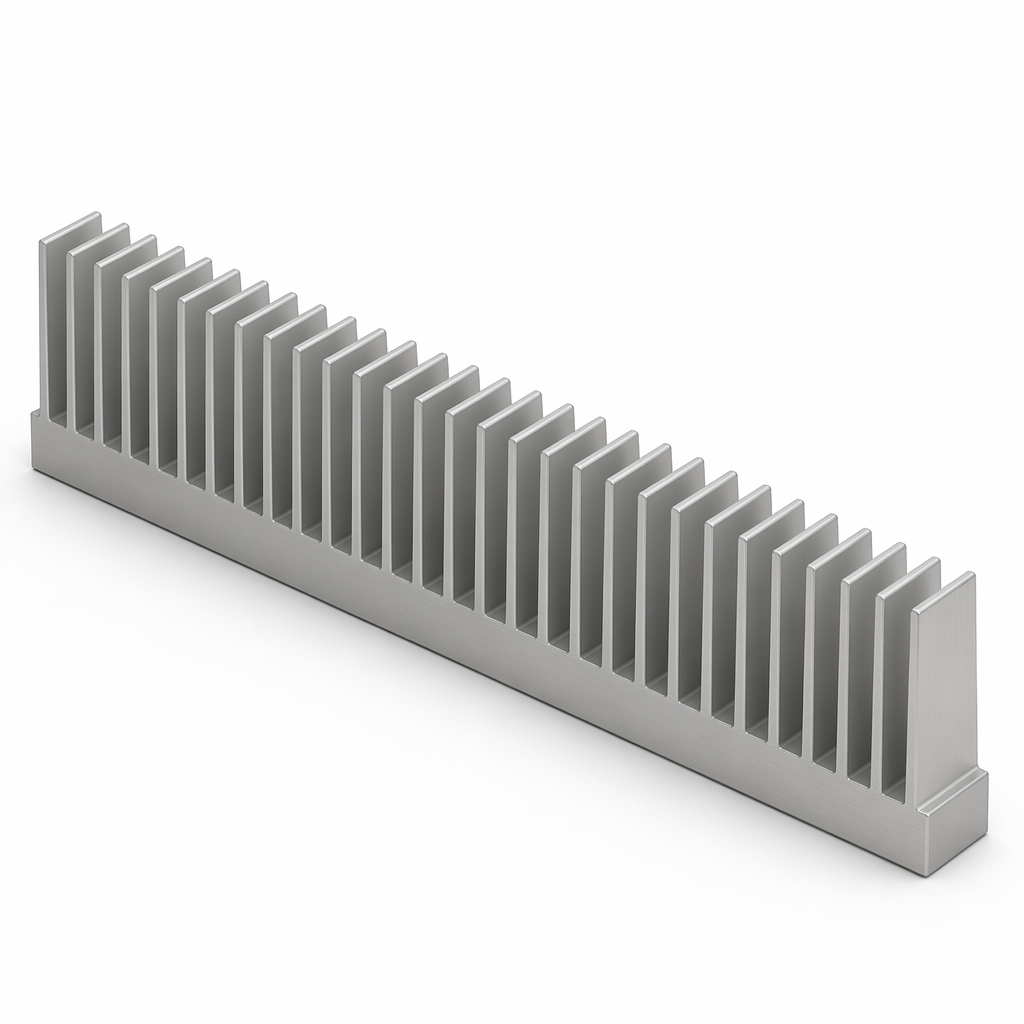

 | ct-2320 | 320mm-71mm-16mm | |

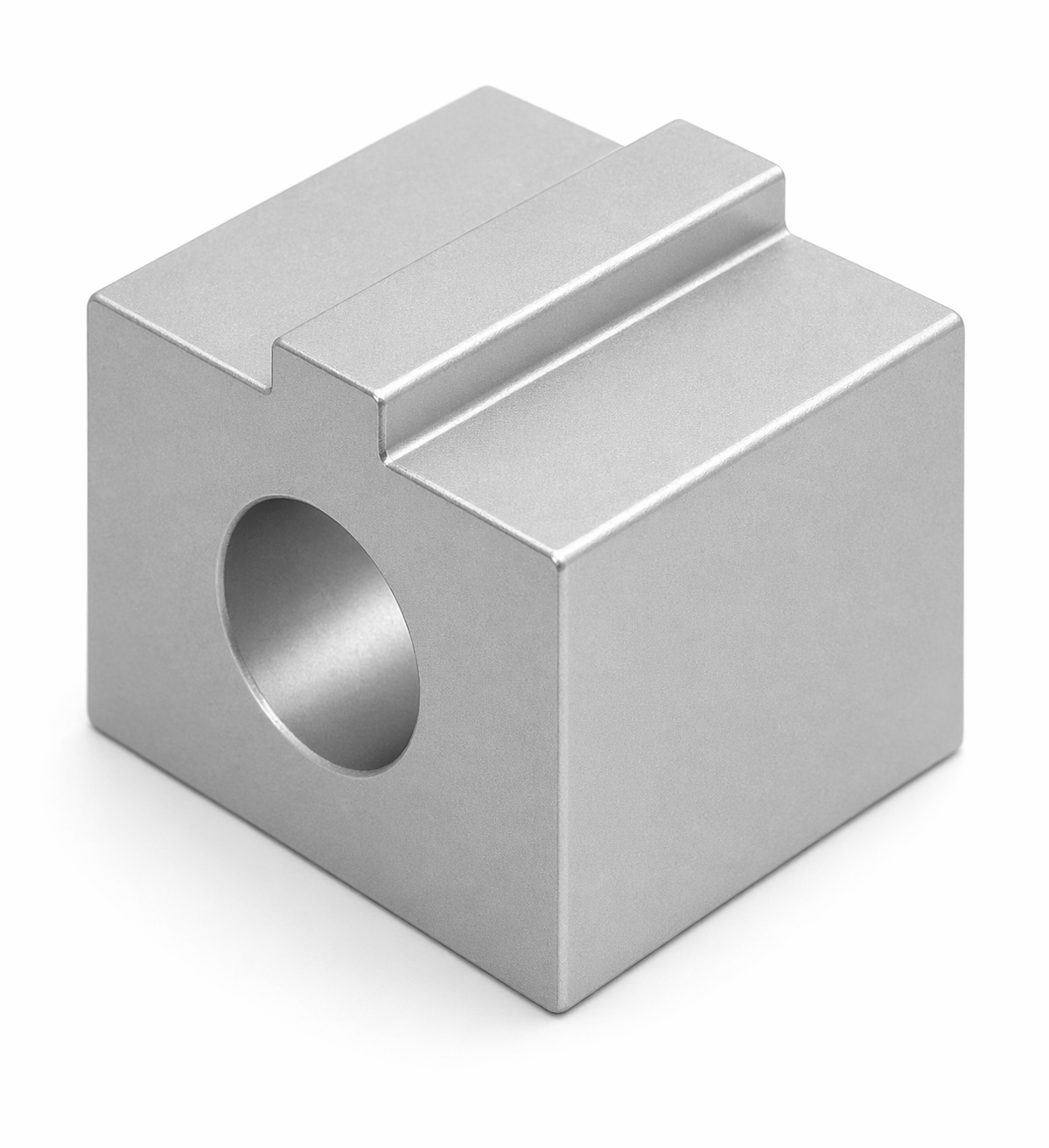

 | ct-4110 | 110mm-102mm-N/D | |

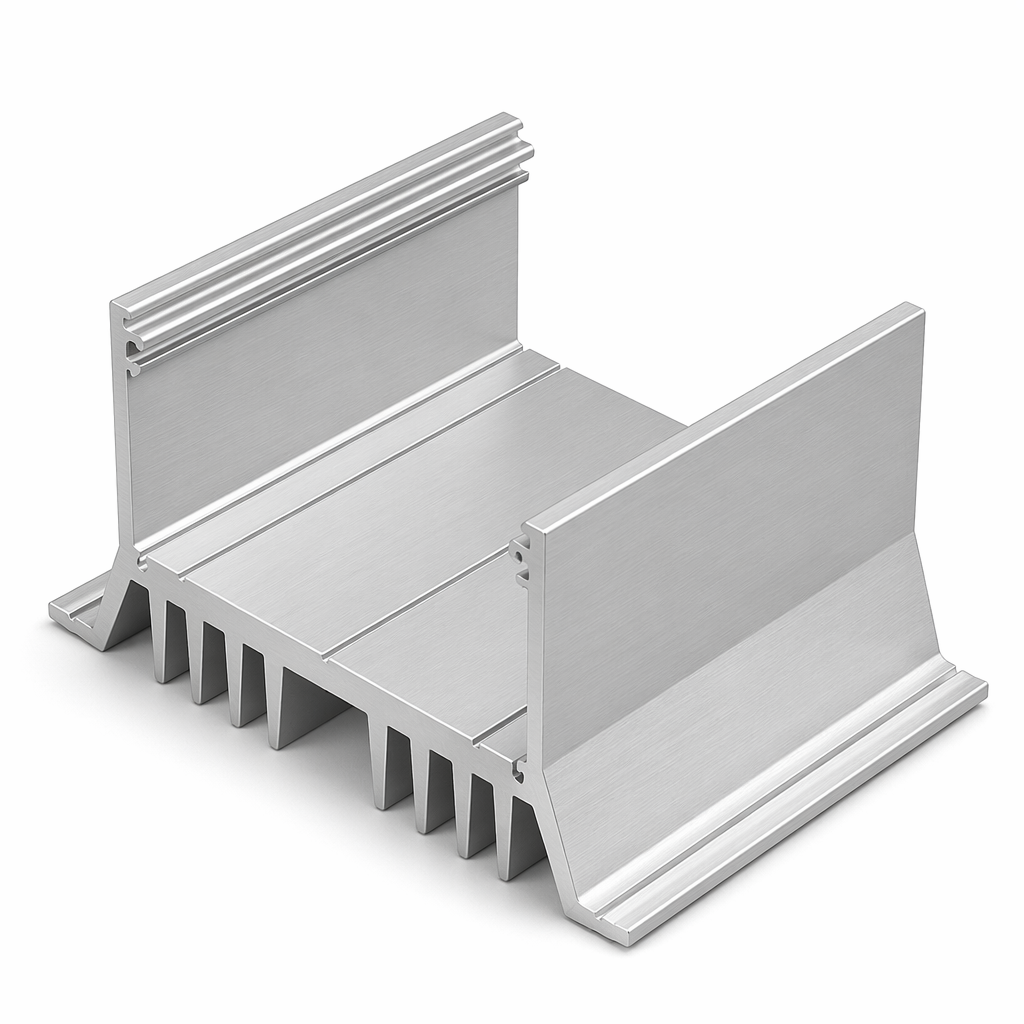

 | ct-4250 | 143mm-80mm-8mm |
Ton système de refroidissement simulé et optimisé numériquement.
Chez COOLTEC, nous utilisons la simulation thermique numérique pour développer rapidement, précisément et efficacement ta solution de refroidissement – sans cycles de prototypes longs.
Tu souhaites échanger directement avec l’un de nos experts ?
Notre équipe d’ingénierie t’accompagne rapidement, individuellement et avec précision dans le développement et le choix du dissipateur idéal.
