Cycle-proof cooling for 24/7 continuous operation
In automation it is not the peak value that counts but hour 8,000. We design heat sinks for inverters, drives and control cabinets that hold up in continuous operation: they need little maintenance, tolerate contamination and stay available for years to come.



More than the inverter gets hot in the plant.
Besides power electronics we cool drives, spindles, housings and process media. On mechanical components in particular, cooling decides cycle time, accuracy and service life.
-
Converters & frequency inverters
IGBT modules and rectifier stages in continuous operation.
-
Drives & stators
Removing waste heat directly at the winding.
-
Spindles & machine tools
Thermal drift costs accuracy, so we keep it small.
-
Control cabinets
Air-to-water cooling instead of an air conditioner.
-
Housings & structural parts
Temperature-controlled structures for dimensionally stable processes.
-
Welding & joining technology
High continuous loads at electrodes and guns.
-
Laser systems
High power densities in compact installation spaces.
-
Process media
Oil, water and gas cooling in the plant.
Service life · low maintenance · availability
In multi-shift operation every stoppage is expensive. That is why we do not design for the best value but for the value that is still there years later, and for designs that need little attention in between.
-
Service life
Designed for continuous load rather than peak load, with reserve for contamination and ageing of the circuit.
-
Low maintenance
Geometries that do not clog, and designs that work without regular intervention.
-
Availability
Framework contracts, stockholding and last-time buy secure supply across the plant lifecycle.
What we supply for automation and drive technology
- Cold plates (liquid cooling plates) : for inverters, power supplies and power electronics.
- Stator cooling : for linear and torque motors.
- Spindle and machine cooling : against thermal drift.
- Air-to-water coolers : for control cabinets.
- Sonderkonstruktionen : for tight and irregular installation spaces.

Three designs that make the difference in industrial automation.

Multipress
Press-fitted tubes in the cold plate: a process-reliable, robust design for large areas and long parts, in copper, copper-nickel, stainless steel or aluminium.

Structureflow
Cooling channels integrated directly into the load-bearing structure. Fewer interfaces, less thermal resistance, and one part instead of an assembly.

Turbulators
Up to 40 % more cooling capacity at an acceptable pressure drop, positioned to the millimetre beneath your hotspots.
Everything from one source, from development to series production.
COOLTEC handles your thermal management completely: one contact, one process, from the first idea to series delivery. You join wherever you stand. Development, simulation and design are optional.
- Optional
Development & simulation
We develop, simulate and design your cooling solution. We test it virtually before we produce anything physically.
-
Manufacturability & cost
You already know what you need? We assess manufacturability and optimise your design for series production.
-
Samples & prototypes
Samples in around 6-8 weeks as standard, or 2-4 weeks by express, depending on product and complexity.
-
Series production
From one supplier: highly automated high-tech manufacturing in Germany, low-cost series from Asia.
-
Supply & lifecycle
Framework contracts, stockholding, last-time buy: we secure your supply across the entire product lifecycle.

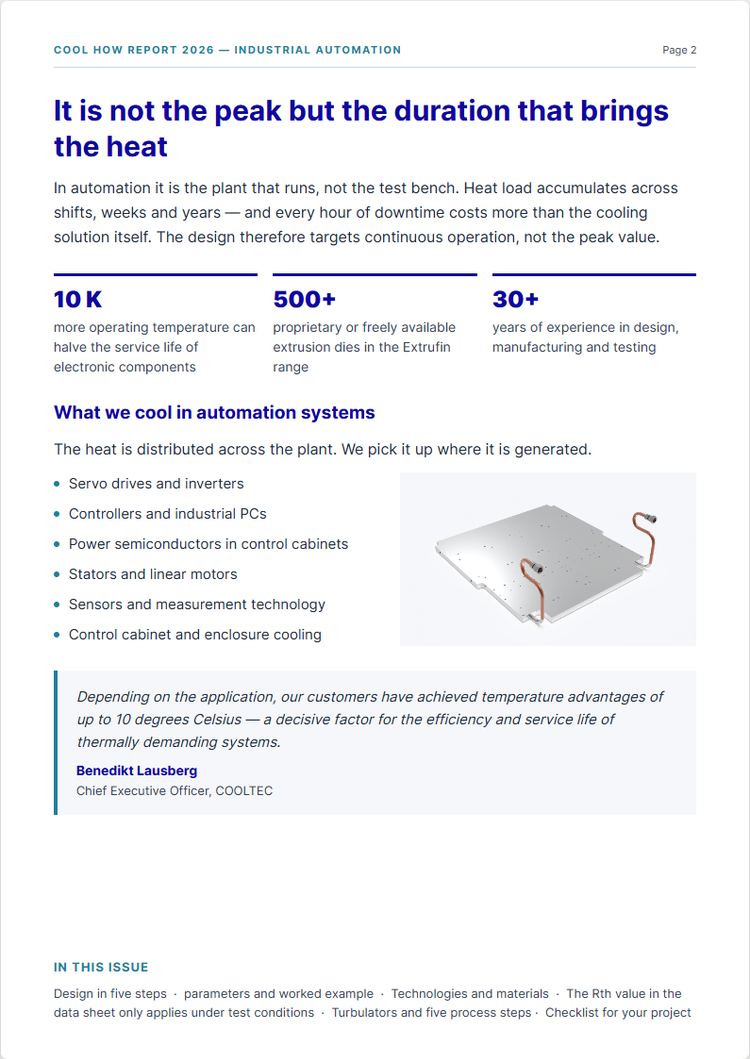

Automation Thermal Guide: cooling in continuous operation
Not a product catalogue but design knowledge: what cooling solutions look like when they have to stay stable for years in multi-shift operation, and what low maintenance means in the design.

Sebastian Krüger
Bring your thermal challenge: heat load, installation space, medium, ambient conditions. In the first call Sebastian works out the right approaches with you and puts together the team we need for it, from application engineering, production engineering and thermal engineering. You will not be put on hold.
Frequently asked questions
Are there suitable water coolers for servo drives and frequency inverters?
Yes. Water coolers for servo drives and inverters are a recurring case for us, often as a retrofit when an air-cooled drive in a sealed control cabinet reaches its limit. Enquiries come in regularly for drive series from well-known manufacturers, sometimes on the recommendation of the drive manufacturer itself. What we need is not the drive type alone but the heat load, the position and size of the cooling surface on the device and the hole pattern. The reason: the same series is built in different power classes, and the cold plate has to fit the specific device, not the name. Limit: we do not have a catalogue item called "cold plate for drive X". We manufacture it to fit, which drives the price for single pieces but covers every device variant.
Read more –>Are there cold plates for 19-inch test benches and racks?
Yes, cold plates in the 19-inch format are a recurring case in test bench construction, typically as a plate onto which test items or power assemblies are mounted. Real enquiries are around 430 × 800 mm with up to 2,500 W per plate at a 15 °C inlet temperature and a plate temperature that must not exceed 75 °C. That is a readily solvable task because the heat is distributed and the inlet temperature is low. What matters is the mounting side: if test items are changed frequently, the plate needs a hole or thread pattern rather than individual holes, and the surface has to stay flat. Limit: with frequent reconfiguration a plate with threaded inserts lasts longer than threads cut directly into aluminium, because threads in soft material wear with repeated assembly.
Read more –>How much heat load does a cold plate remove in a control cabinet?
A cold plate removes heat to wherever the coolant carries it, so the limit is set not by the plate but by the circuit: volume flow, inlet temperature and the capacity of the heat rejection unit. For orientation from real projects: designs from a few hundred watts to over 10 kW per plate are everyday work, in one case with two IGBT modules on a shared plate. The decisive factor is the heat flux density at the source, not the total power: 2 kW over 300 cm² is uncritical, 2 kW over 30 cm² calls for an internally structured plate with a channel directly beneath the source. Limit and a frequent misunderstanding: a cold plate does not cool below the temperature of the coolant. If you need component temperatures below room temperature, you need a chiller, not a cold plate.
Read more –>What flatness does the mounting face achieve, and do we get a measurement report?
We face-machine the mounting face and, on request, measure and record the flatness achieved. We regularly supply flatness measurement reports and records of hole spacing to series customers. Why that is more than a formality: on a power module, flatness directly determines the contact resistance, and no thermal paste compensates for a tenth of a millimetre of waviness. State in the drawing over which area the flatness applies: across the whole plate or only across the module footprint. On large plates that is a considerable difference in effort and price. Limit: very tight flatness over long lengths requires machining after joining and in some cases stress-relief annealing; that extends throughput time and should be planned in early.
Read more –>Can cold plates be integrated into existing machines and tools?
Yes. Integration into existing parts is one of our most frequent applications: we bring cooling channels directly into a choke box, a production tool or a magnet system instead of attaching a separate cooler. The advantage is the heat path as much as the installation space: every separation between part and cooler costs temperature, and an integrated solution does not have that separation. The prerequisite is enough wall thickness for the channel routing and a part that can still be machined after joining. What we need for it: the existing part as a STEP model and a statement of which faces are to be cooled. Limit: we cannot press or weld into parts made of castings or of unknown material without material testing. A bolted-on plate is then the safe route.
Read more –>How reproducible are cold plates from one series?
In test and measurement, reproducibility is often more important than the absolute value: all plates have to behave the same so that measurement results stay comparable. For series we therefore fix the process parameters and inspect the critical features (flatness, channel geometry, leak tightness) to a defined inspection plan, and we supply the measurement reports with them. What creates scatter is rarely the machining but the raw material: different batches and especially different material forms such as cast and rolled material behave differently during joining. For reproducibility-critical series we therefore fix the material form and document the batch. Limit: if you need a scatter figure for thermal resistance, it has to be determined by measurement. Series scatter cannot be derived from a simulation.
Read more –>How large is the pressure drop, and how is it measured?
The pressure drop is not determined by the plate alone but mostly by bends, transitions and fittings: in one customer project the pressure drop fell significantly simply by leaving out the rotary joints at the connection. That is the most important practical insight: if you want to reduce pressure drop, start at the connection routing, not at the channel structure. For designs we state calculated curves; measurement on the real set-up is more accurate because your adapters and hoses contribute. Many customers measure pressure drop against volume flow themselves and characterise their adapters in the process, which is a sensible approach. Limit: pressure drop and thermal resistance work against each other; a plate with a very low pressure drop cools less well at the same geometry.
Read more –>Can several loads be supplied from a single cooling circuit?
Yes, several consumers on one circuit are common. The only question is whether they sit in series or in parallel. In series, each consumer heats the medium for the next, so the last in the chain has the worst conditions; in parallel, every consumer gets cold medium, but the split of volume flow has to be controlled via the channel cross-sections, otherwise the flow takes the path of least resistance. With set-ups combining consumers of very different temperature (drive controllers and braking resistors, for example) we deliberately fix the order: the most temperature-sensitive component comes first. Limit: with widely differing heat loads on one circuit, a hydraulic design of the overall system is necessary; optimising the individual plate alone is then misleading.
Read more –>How do you design for thermal resistance?
We start from your load case: heat load, distribution across the area, permissible component temperature, inlet temperature, volume flow and installation space. This yields the Rth budget. We test it in thermal simulation against variants of the channel routing before design work begins.
How do you design for continuous load rather than peak load?
We calculate with the load profile across the shift, not with the data sheet maximum, and plan reserve for contamination and ageing of the circuit. A cooler that fits exactly when new is too small after two years.
Which materials do you process, and how do you choose correctly?
Copper, copper-nickel, stainless steel and aluminium. The choice follows three criteria: thermal conductivity, media compatibility and mechanical requirement. We often combine materials: conductive material at the heat source, resistant material at the medium.
How do you ensure leak tightness?
Pressure testing of every part is our standard; for demanding applications we additionally test with a helium leak test and document the leak rate per part. We set the target leak rate before design.
In which sizes do you manufacture heat sinks and liquid cold plates?
From a 30 mm microchannel cooler to a 3 m (30,000 mm) cold plate, and up to a fully cooled large precision part. What is possible is not decided by size alone but by material, design and tolerance: give us your dimensions and we will tell you in which design we can produce them.
Do you also cool drives and mechanical components?
Yes: stators, spindles, housings and structural parts. In machine tools, thermal drift of the structure is often a bigger lever than cooling the electronics.
How do you prevent channels from clogging?
Through geometry: no dead volumes, adequate cross-sections, flushable channel routing. We also match material and medium, because deposits usually arise from the material pairing.
Which quantities and lead times are possible?
Samples in around 6-8 weeks as standard, 2-4 weeks by express. For series production we manufacture in a highly automated plant in Germany; cost-sensitive standard parts come from our joint ventures in Asia.
Do you work under NDA?
Yes, that is the norm for us. We sign your non-disclosure agreement or provide ours. We never pass on customer projects or application details.
Cooling in industrial automation: what matters technically
How we design a cooling solution
Every design starts from the same boundary conditions: heat load Pv, maximum permissible component temperature, ambient or inlet temperature and the available contact area. Only these determine which cooling strategy is feasible at all.

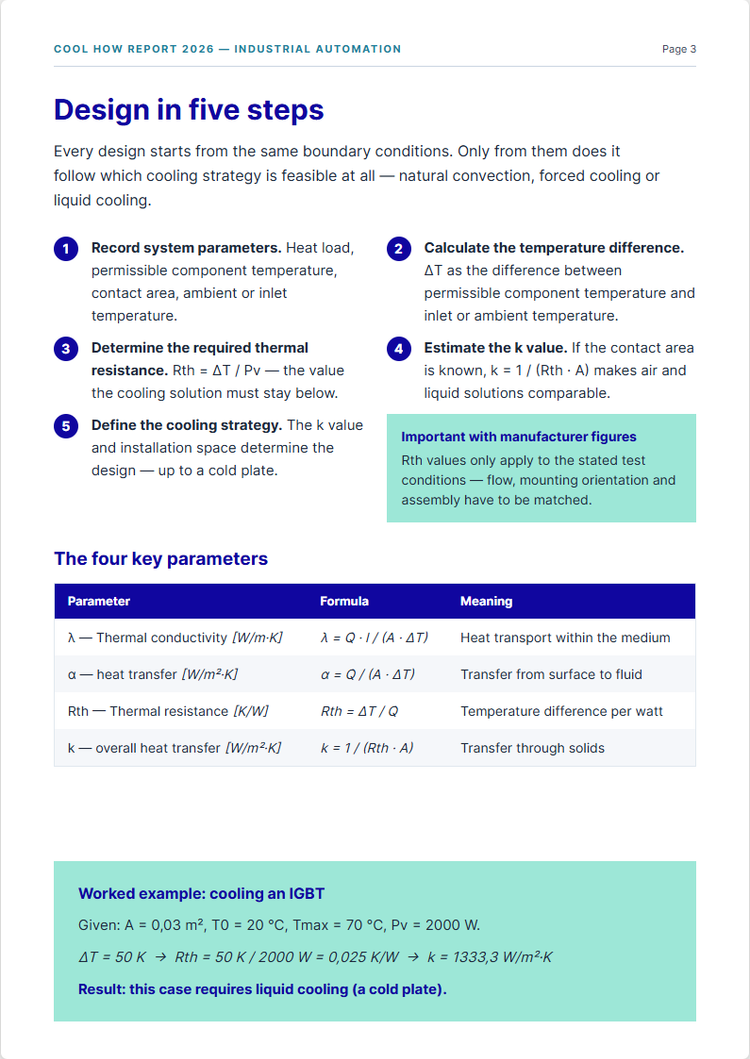

The four key parameters of a thermal system
Five steps to the right cooling solution
What influences the thermal resistance of an air-cooled heat sink
Materials: thermal conductivity and flow limits
The choice of material determines thermal performance and service life. If the flow velocity in the tube exceeds the maximum recommendation, the medium mechanically removes the protective passive layer, which leads to erosion and leakage.
| Material | Thermal conductivity at 20 °C | Max. flow velocity |
|---|---|---|
| Copper / copper alloys | 305–394 W/m·K | 2,0 m/s |
| Aluminium / Al alloys | 125–210 W/m·K | 1.8 m/s (structures 1–2 m/s) |
| Copper-nickel (CuNi) | - | 3,5 m/s |
| Stainless steel | low conductivity, very good corrosion resistance | 4,5 m/s |
| Graphite (parallel to the layer plane) | up to 2000 W/m·K, technically 140–160 W/m·K | - |
| Sintered ceramics (BN, SiC) | 100–200 W/m·K, electrically insulating | - |
The data we need for your design
The more complete the boundary conditions, the faster we get from a first estimate to a reliable CFD simulation. This checklist comes from the Cool How Report and is the basis of every design discussion.
Designing to the load profile
The data sheet value describes an operating point, not operation. What matters is the load profile across the shift: how long which heat load is applied, and how quickly it changes.
We design against that profile and plan reserve for contamination and ageing. That costs a little area at the start and saves downtime later.
Thermal drift in the machine
In machine tools and positioning systems the problem is not the component temperature but the temperature gradient in the structure. It creates deformation and therefore dimensional deviation.
Stator cooling and temperature-controlled structural parts pick the heat up where it is generated, before it spreads into guides and frames.
Low maintenance starts with geometry
Channels clog where flow is missing. Dead corners, abrupt changes in cross-section and areas that are hard to flush are the typical causes.
We therefore design for flushability and match material, medium and inhibitor. That reduces maintenance more than any filter concept.
From prototype to series
The most expensive mistake is a prototype that works thermally but cannot go into series. That is why we assess manufacturability and cost in parallel with the thermal design, not afterwards.
Because development, manufacturing, testing and delivery are all in one hand at COOLTEC, nothing is lost at these transitions, from the first load case to the last-time buy.

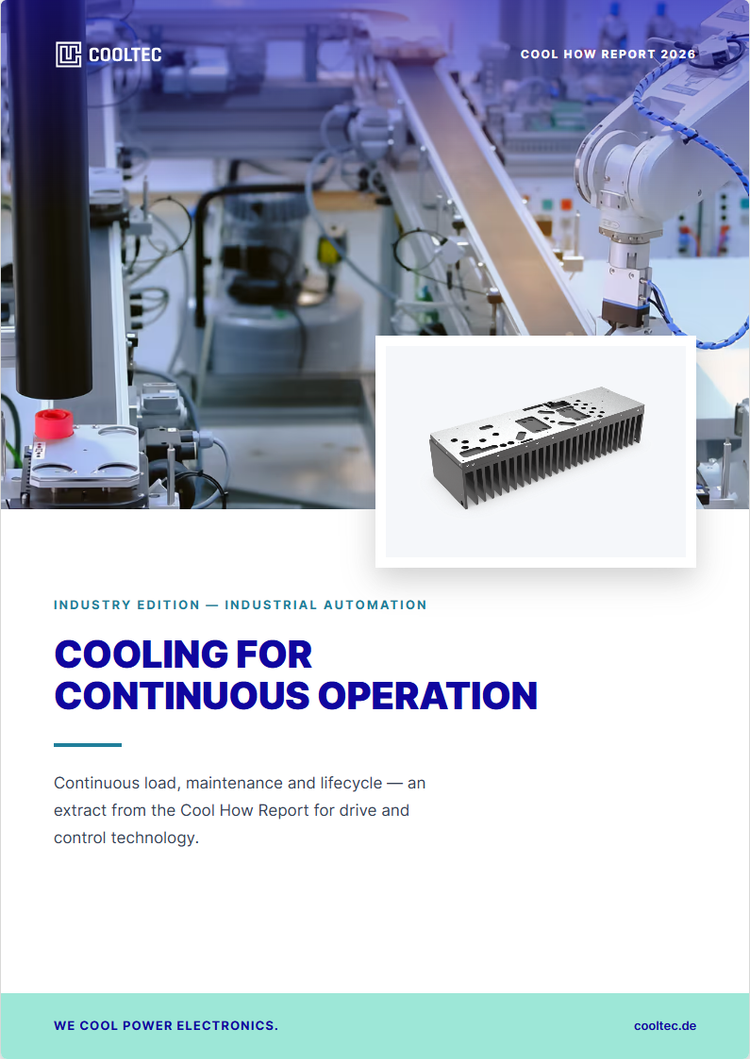

Get the Automation Thermal Guide
Three details, one click, instant download. After that you decide whether we talk about your project.
Is your machine running at its thermal limit?
Send us your load profile: heat load, operating time, installation space, medium. We will tell you whether and how we can solve it.
